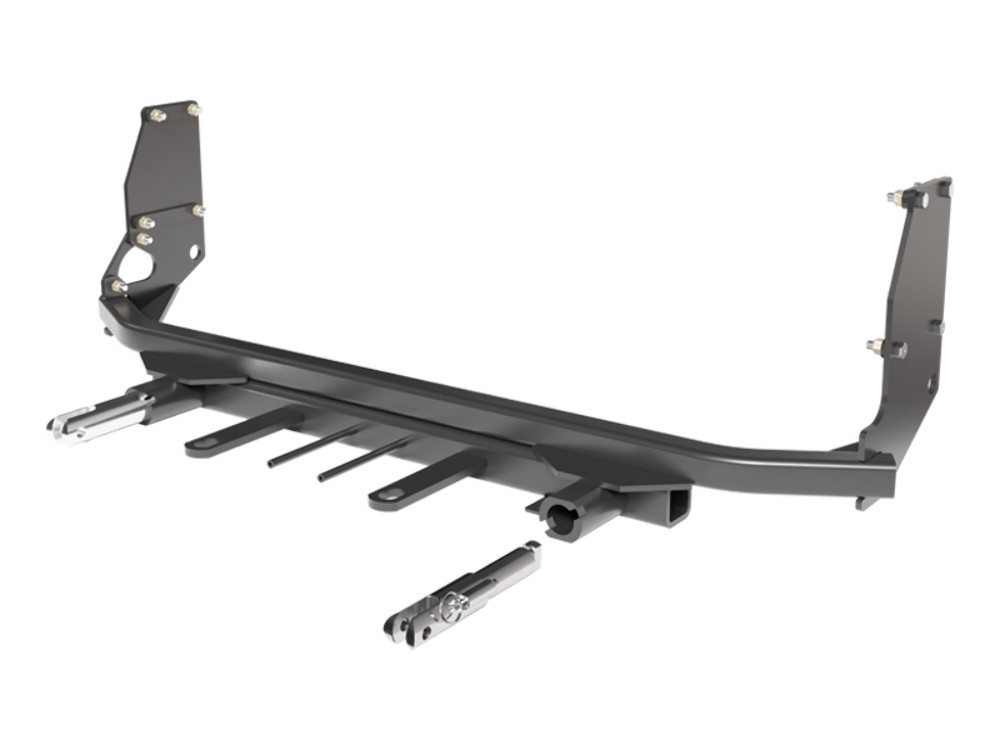

Custom Design: The Blue Ox BX1729 Tow Bar Bracket is specially designed for each specific towed vehicle, ensuring a perfect fit and maximum towing efficiency.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Elevate your towing experience with the Blue Ox BX1729 Tow Bar Bracket. Custom designed for each specific towed vehicle, this product guarantees a perfect fit and optimal performance. The bracket is made of high-quality steel, ensuring durability and long-lasting use. It features a black powder coat finish, adding a sleek, professional aesthetic while also providing added resistance against rust and corrosion. Installation is a breeze with the included mounting hardware and easy-to-follow instructions. Make your towing tasks more convenient and secure with the Blue Ox BX1729 Tow Bar Bracket.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2018 | Chevrolet Cruze | RS Models Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Headlights Must be Removed and Replaced During Installation |
Yes, the BX1729 baseplate is designed specifically for 2017-18 Chevy Cruze RS vehicles. If the front of your vehicle looks different than shown in the manual, contact Blue Ox technical service at (402) 385-3051 before proceeding with installation.
The BX1729 baseplate attachment tabs are 11 inches in height and 24 inches in width.
Required tools include: flat screwdriver, utility knife, torque wrench, drill, 3/8" drill bit, 7MM socket, 7/16" socket, 9/16" socket, 7/16" wrench, 9/16" wrench, T15 Torx, reciprocating saw, and Loctite Red. A vise grip is also needed to clamp the baseplate during installation.
No, the BX8869 Tail Light Wiring Kit is not included but is recommended for this vehicle. You will need to drill a hole according to the tail light wiring kit instructions during installation.
The kit includes: 1 BX1729 baseplate, 2 attachment tab assemblies, 1 flat plate, 2 flat spacers (1/4" x 3/4" x 3-3/4"), 1 bolt (1/4"-20 x 3/4" Grade 5), 2 screws (#10-32 1/2" round slotted head), 10 bolts (3/8"-16 x 1-1/4" Grade 5), 2 self-drilling screws (#12-14 x 1"), 2 hex nuts (#10-32), 10 nylon insert lock nuts (3/8"-16), 1 hex nut (1/4"-20), 2 lock washers (#10), 1 four-way bracket, 2 class III safety cables, 2 quicklinks (3/8"), and 2 black cap plug receivers.
Yes, the fascia and windshield washer fluid reservoir must be removed during baseplate installation and then reinstalled after the baseplate is mounted. Place all removed components on a flat, sturdy surface. All items will be reinstalled unless otherwise noted.
Yes, Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting technical service at (402) 385-3051.
Yes, drilling is required. You must drill four holes (two on each side of the vehicle) using a 3/8" drill bit to mount the baseplate to the frame rails. Additionally, a hole must be drilled according to the BX8869 Tail Light Wiring Kit instructions. Be aware of the dangers of torque and drill bit length when using power drills.
Yes, trimming is required in two locations. First, trim the marked areas on the bumper plastic shielding using a reciprocating saw. Second, mark the front brace 3 inches from the bottom corner, then trim the marked area with a reciprocating saw to allow the brace to sit further back on the baseplate when reattached. Be aware of objects behind the cutting surface when using a reciprocating saw.
Yes, the trimming of the bumper plastic shielding and front brace are permanent modifications. The drilling of mounting holes is also permanent. These modifications cannot be reversed without replacing the affected components.
The manual provides general torque charts for Grade 5 and Grade 8 bolts, but does not explicitly state which grade the supplied 3/8"-16 bolts are. For Grade 5 bolts, the specification is 33 foot-pounds; for Grade 8, it is 47 foot-pounds. Consult the parts list or contact Blue Ox at (402) 385-3051 to confirm the grade of your supplied bolts before tightening.
For the 1/4"-20 bolt (Grade 5), the torque specification is 10 foot-pounds. Use Loctite Red on the bolt thread before tightening.
The BX8869 Tail Light Wiring Kit is recommended but not required. If you choose to install it, you must drill a hole according to the kit's instructions. Ensure all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. Reference your vehicle owner's manual for manufacturer's towing specifications.
Yes, permanent baseplate safety cables are strongly recommended and are included with the kit (2 class III safety cables and 2 quicklinks). The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The cables must not rub against hoses, wires, or brake lines. These cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before reinstalling the fascia, ensure all electrical connections are plugged in and accessories are functioning properly. Inspect that the baseplate is level and properly clamped to the frame rails. Verify that all bolts are tightened to the appropriate torque specifications using Loctite Red. Ensure safety cables do not rub against hoses or moving parts. Check that the fascia is trimmed correctly around the convenience links and attachment tabs.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. Paint cut frame edges to prevent rusting. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
Yes, the attachment tabs should be removed when not in use.
Blue Ox offers a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. The warranty is void if the baseplate is improperly installed, misused, modified, neglected, or if the vehicle's GVWR is exceeded. The warranty does not cover normal wear and tear, paint, rust, or damage from accidents. Register your warranty at http://blueox.com/warranty/ within 30 days of purchase.
Yes, the BX1729 is designed for 2017-18 Chevy Cruze RS. If your vehicle's front looks different, contact Blue Ox at (402) 385-3051.
No, the BX8869 is recommended but sold separately. You will drill a hole per its instructions during installation.
Yes, you must drill four mounting holes using a 3/8" drill bit, plus one hole for the tail light wiring kit. Trimming of bumper plastic and front brace is also required using a reciprocating saw.
Yes, the fascia and windshield washer fluid reservoir must be removed and then reinstalled after baseplate installation.
Yes, Blue Ox recommends installation by Blue Ox Dealers who have the equipment and knowledge for fit work. Find a dealer at www.blueox.com or call (402) 385-3051.
The manual does not specify the grade of the supplied 3/8"-16 bolts. For Grade 5, use 33 ft-lbs; for Grade 8, use 47 ft-lbs. Contact Blue Ox at (402) 385-3051 to confirm your bolt grade. Always use Loctite Red on all bolt threads.
Yes, two class III safety cables and two quicklinks are included. They must be connected from the baseplate to the frame rail or cross member and must not rub against hoses or moving parts.
The baseplate is tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for towing specifications.
Inspect for cracked welds, missing or worn parts, and loose bolts before each towing trip. Tighten all bolts to spec using Loctite Red. Paint cut frame edges to prevent rust. Register your product at www.blueox.com for safety bulletins.
If the baseplate is not level after sliding it into position, adjust its position before sliding the spacer plate into place and clamping with vise grips. The manual notes that dimensional variations between otherwise identical vehicles can be considerable, and it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances. If you cannot achieve a level fit, contact Blue Ox technical service at (402) 385-3051.
Before reinstalling the fascia, ensure all electrical connections are plugged in and accessories are functioning properly. If connections are not functioning, disconnect the fascia again and verify that all electrical connectors are fully seated and properly connected. Check for any damaged wires or connectors that may have been damaged during fascia removal.
The safety cables must not rub against hoses or moving parts. If rubbing is detected, reposition the cables to a different solid piece of the frame as described in the General Information sheet. The installer must watch for oil cooler and air conditioner lines, electrical wires, and hoses when routing the cables. If the baseplate is improperly installed against a wire or hose, it could cause fluid leaks or electrical shorts.
