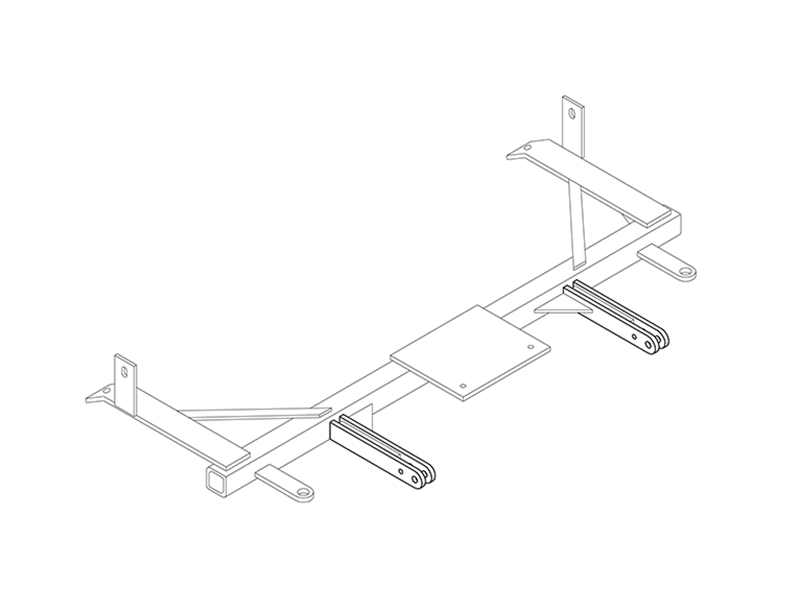

Custom Design: Each Blue Ox BX2122 Tow Bar Bracket is specifically designed for individual vehicle models, ensuring a perfect fit and efficient performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Upgrade your towing setup with the superior Blue Ox BX2122 Tow Bar Bracket. Custom-designed for each vehicle, this tow bar bracket ensures a perfect fit and easy do-it-yourself installation. Manufactured from sturdy black steel with a powder coat finish, it provides lasting durability and resistance to corrosion. The bracket comes complete with all necessary mounting hardware, making installation hassle-free.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1994 | Ford Crown Victoria | Comes with Standard Attachment Tabs Install Rating 4 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required |
Yes, the BX2122 is specifically designed for the 1994 Ford Crown Victoria. However, you must use an approved tow bar from Blue Ox or Automatic Equipment Mfg. Co. Using any other tow bar will invalidate the limited warranty.
The package includes the baseplate weldment (61-4740), two nut plates (61-3799), two 1/2-13 x 2 hex bolts Grade 5 (201-0283), two 12mm-1.75 x 80mm hex bolts Grade 8.8 (201-0591), two 3/8-16 x 1 1/4 hex bolts Grade 5 (201-0368), two 1/2 lock washers (203-0012), and two 3/8-16 hex whiz nuts (202-0071). The installation also reuses two existing nuts from the vehicle.
Required tools are: 8mm socket, 11mm socket, 15mm wrench, 18mm socket, 19mm wrench, 3/4" socket, 9/16" wrench, 9/16" socket, 13/32" drill bit, 17/32" drill bit, flat screwdriver, Phillips screwdriver, Loctite Blue, and a tape measure. A socket extension is also needed to access the horizontal bolt behind the bumper.
Yes, the front bumper must be removed. This requires removing the belly pan first, then the radiator cover, parking lights, turn lights, and various bolts and screws before the bumper can be separated from the frame. An assistant is needed to help pull the bumper forward during removal.
Yes, an assistant is required. They are needed to help pull the bumper forward during removal (Step 8) and to help hold the baseplate in position during installation (Step 11).
Two types of drilling are required: (1) Drill out the smaller holes above the two 1-inch diameter holes in the aluminum bumper using a 13/32" bit (Step 10). (2) Drill through each frame rail using a 17/32" bit where the outside rear supports sit on the bottom of the frame rails (Step 15). The manual notes that dimensional variations between cars may require filing a hole slightly to allow a bolt to clear.
1. Remove belly pan and radiator cover. 2. Remove parking lights and turn lights. 3. Remove bumper mounting bolts and frame rail bolts. 4. Remove bumper with assistant help. 5. Drill holes in aluminum bumper (13/32" bit). 6. Position baseplate with assistant and install upper mount bolts (12mm x 80mm) with Loctite, do not tighten yet. 7. Install lower bolts (3/8 x 2) through bumper holes with Loctite and hex whiz nuts. 8. Snug upper bolts, reposition bumper to original location using tape measure, fully tighten upper bolts. 9. Drill frame rails (17/32" bit), install rear support bolts (1/2 x 2) with Loctite and lock washers. 10. Reinstall bumper, lights, radiator cover, and belly pan. 11. Install tow bar and safety cables.
The upper mounts attach to the frame rails of the vehicle. The 12mm x 80mm bolts are inserted through the upper mount slots and through the frame rails, then secured with the existing nuts that were removed from the bumper mounting points. The upper mounts should be positioned outside of the frame rails.
Before removing the bumper, use a tape measure to record its original position relative to the frame (Step 8). After installing the baseplate and snugging the upper bolts, use the tape measure to move the bumper back to this original position before fully tightening the bolts (Step 14). This ensures the bumper is properly aligned.
The two large holes in the bottom center of the aluminum bumper are 1 inch in diameter and are 7 inches apart. Above these large holes are smaller holes that must be drilled out with a 13/32" bit.
A 17/32" drill bit is required to drill through each frame rail where the outside rear supports of the baseplate sit on the bottom of the frame rails (Step 15).
Loctite Blue is a thread-locking compound included in the tools required. It must be applied to the bolt threads before installation at three points: (1) the 12mm x 80mm upper mount bolts (Step 11), (2) the 3/8 x 2 lower bumper bolts (Step 13), and (3) the 1/2 x 2 rear support bolts (Step 15). This prevents bolts from loosening due to vibration.
The welded nut plates (61-3799) are inserted through the large slot above the 12mm bumper bolt. The wire on the nut plate is bent so the plate sits flat over the drilled hole in the frame rail. A 1/2 x 2 bolt with a 1/2 lock washer is then started into the nut plate with Loctite applied to the threads. Each bolt is fully tightened with a 3/4" socket.
1. Remove the belly pan using an 8mm socket (four bolts in front, two in back, plus plastic push pins). 2. Remove the radiator cover (eight plastic push pins). 3. Remove parking lights (two Phillips screws each, unplug wires). 4. Remove turn lights (Phillips screw on back, 11mm nut on front, pull out bulbs). 5. Remove two Phillips screws at each end of bumper in front of tires. 6. Remove 8mm bolts on bottom of bumper. 7. Remove vertical and horizontal bolts using 8mm socket and extension. 8. Have an assistant pull lightly forward on bumper while you pry up four plastic tabs from underneath using a flat screwdriver. 9. Pull bumper straight forward and set aside.
The bumper mounts to the frame at each end via a round bar that inserts into the end of the frame rail. This bar is secured inside the frame rail with a horizontal bolt running parallel with the bumper. Remove this bolt on each side using a 15mm wrench and 18mm socket (Step 9). These nuts are then reused to secure the upper mount bolts of the baseplate.
Slide the bumper over the baseplate so that the attachment tabs and convenience links protrude through the long horizontal opening in the bottom of the bumper. Secure the bumper with three bolts and two screws on each end. Then reattach the turn lights and parking lights, check that they work, and secure the radiator cover and belly pan with push pins and bolts.
Only tow bars approved by Automatic Equipment Mfg. Co. or Blue Ox are compatible with the BX2122. Using any other tow bar will invalidate the limited warranty. Do not substitute other devices if the tow bar pin and clip are lost; use only approved replacement parts.
After installation, verify that the parking lights and turn lights work correctly (Step 17). Ensure the bumper is properly aligned by using the tape measure to confirm it is in its original position before fully tightening the upper bolts. Check that all bolts are fully tightened and that the baseplate is secure before using the vehicle for towing.
Yes. The manual instructs you to read the General Instruction Sheet included with the baseplate package (Step 1). Additionally, the tow bar and safety cables have their own instruction sheets that must be followed during installation (Step 18). The dealer or installer must ensure the user receives the instruction sheet (Step 20).
Yes, the BX2122 is designed for 1994 Ford Crown Victoria. You must use an approved Blue Ox or Automatic Equipment Mfg. Co. tow bar, or the warranty is void.
8mm, 11mm, 15mm, 18mm, 19mm sockets/wrenches; 3/4" socket; 9/16" wrench and socket; 13/32" and 17/32" drill bits; flat and Phillips screwdrivers; Loctite Blue; tape measure; and a socket extension.
Yes, the front bumper must be removed. You will also need to remove the belly pan and radiator cover. An assistant is required to help with bumper removal and baseplate positioning.
Yes. Drill the bumper holes with a 13/32" bit and drill through each frame rail with a 17/32" bit. Dimensional variations may require filing a hole slightly to allow bolts to clear.
Upper mounts: 12mm-1.75 x 80mm Grade 8.8 bolts with existing nuts. Lower bumper: 3/8-16 x 1 1/4 bolts with 3/8-16 hex whiz nuts. Rear supports: 1/2-13 x 2 Grade 5 bolts with 1/2 lock washers. Apply Loctite Blue to all bolt threads.
Only tow bars approved by Automatic Equipment Mfg. Co. or Blue Ox. Using any other tow bar voids the warranty. Do not substitute other devices if the tow bar pin and clip are lost.
Verify parking and turn lights work. Confirm bumper is in its original position using the tape measure before fully tightening bolts. Ensure all bolts are fully tightened before towing.
