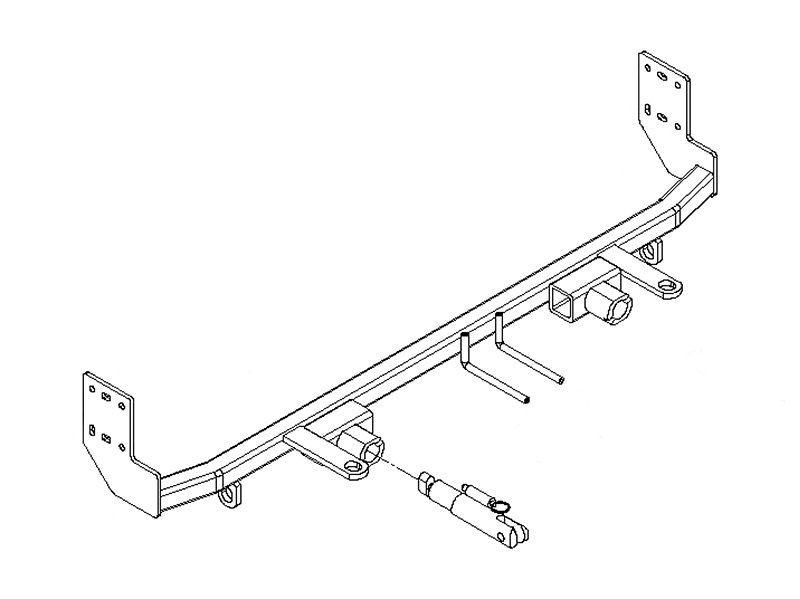

Custom Design: The Blue Ox BX2326 Tow Bar Bracket is specifically designed for each towed vehicle, ensuring a perfect fit and seamless integration.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2326 Tow Bar Bracket is a top-tier, custom designed accessory, purpose-built for your specific towed vehicle. This high-quality product is constructed from robust steel and coated in black powder for superior durability and rust resistance. The bolt-on mounting type ensures a secure fit, while the inclusion of all necessary mounting hardware makes for a convenient do-it-yourself installation. The Blue Ox BX2326 Tow Bar Bracket is not just a purchase, it's an investment in long-lasting, reliable performance for your towing needs.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2008 | Hyundai Entourage | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
| 2007 - 2010 | Kia Sedona | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
Yes, the BX2326 is designed for 2007-08 Hyundai Entourage and 2006-10 Kia Sedona SX/LX vehicles. However, dimensional variations between otherwise identical vehicles can be considerable. Minor adjustments may be necessary to compensate for manufacturer tolerances, including filing holes slightly, bending electrical rods, or bending end plates. If the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051.
No. Due to the design of the removable tabs on the BX2326, the RangefinderII and Ambassador tow bars cannot be used with this baseplate. Motorhome mount tow bars are recommended for use with this baseplate.
Most adapters cannot be used with the BX2326 baseplate. The only exceptions are the BX8833 and BX88151 adapters, which are compatible.
The attachment tab height is 14 1/2" and the attachment tab width is 21".
Required tools include: Phillips screwdriver, 7MM socket, 8MM socket, 10MM socket, 12MM socket, 13/32" drill bit, vise grips, hack saw blade, reciprocating saw, and Loctite RED. A power drill may be used for drilling, but be aware of the dangers of torque and drill bit length.
The hardware kit includes: 1 baseplate weldment (61-6365), 7 nut plates with 10" wire (61-5208), 2 metric hex bolts 8MM-1.25x30MM Grade 8.8 (201-0446), 7 hex bolts 3/8-16x1 1/4" Grade 5 (201-0368), 9 lock washers 3/8" (203-0010), 2 flat washers 3/8" (203-0003), 2 self-drilling screws #12-14x1" (201-0979), 2 round head screws #10-32x1/2" (201-0192), 2 lock washers #10 (203-0054), 2 hex nuts #10-32 (202-0047), 2 four-way connectors (101-5822), 2 attachment assemblies (62-3468), 2 cap plugs (290-0437), 2 quicklinks 3/8" (229-0359), and 2 safety cables 36" Class III (226-0046).
The BX8869 Bulb and Socket Wiring Kit is recommended for this vehicle, but the manual does not explicitly state whether it is required or optional. Contact Blue Ox at (402) 385-3051 for clarification on whether it is necessary for your specific installation.
Yes. The fascia, metal bumper and headlights are removed and reinstalled during installation of the baseplate. This is a necessary part of the installation process.
Blue Ox towing products and accessories are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Customer Care at (402) 385-3051. The manual recommends professional installation but does not explicitly state whether it is mandatory.
Yes. Drilling is required. Using a 13/32" drill bit, you will drill remaining holes into the frame after the baseplate is positioned and clamped in place. The baseplate is used as a template for drilling.
Yes. Trimming of the fascia is required. Specifically, you must trim the plastic piece located under the metal bumper so it is flush with the bottom of the bumper on both sides of the vehicle. Additionally, after aligning the fascia to its original position, you must use a hack saw blade to remove the area around the attachment tab receiver to allow it to come through the fascia on both sides.
Yes. You will need to grind off a small tab on the driver side only, as indicated in the installation photos.
Yes. Drilling into the frame is required. Using the baseplate as a template, you will drill remaining holes into the frame with a 13/32" drill bit. Nut plates are then inserted into the frame and aligned with the drilled holes. These modifications are permanent.
According to the bolt torque specifications chart for inch bolts, a 3/8" Grade 5 bolt should be torqued to 33 foot-pounds. However, the manual states to tighten all bolts according to the torque chart on the front page or page 3 of the Baseplate Towing General Instructions, and to use Loctite RED on all bolts before tightening.
According to the bolt torque specifications chart for metric bolts, an 8MM Grade 8.8 bolt should be torqued to 16 foot-pounds. However, the manual states to tighten all bolts according to the torque chart on the front page or page 3 of the Baseplate Towing General Instructions, and to use Loctite RED on all bolts before tightening.
A 13/32" drill bit is used to drill the remaining holes into the frame. The baseplate is used as a template for drilling.
The baseplate includes 2 four-way connectors (101-5822) for electrical connections. The manual states that all electrical connections must be plugged in properly and functioning before installing the fascia. The BX8869 Bulb and Socket Wiring Kit is recommended for this vehicle.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX2326 includes 2 safety cables 36" Class III (226-0046). These cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. They should remain installed as long as the baseplate is installed on the vehicle. The cables must be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Permanent baseplate safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The manual shows recommended installation of the cables to the frame of the vehicle. If the vehicle has additional options which interfere with mounting the cables, secure them to a solid piece of the vehicle frame as described in the instructions included with the permanent baseplate safety cables. Do not mount the cables against wires, hoses or brake lines.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
Yes. Remove the attachment tabs when not in use.
Be sure that all electrical connections are plugged in properly and functioning before installing the fascia.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
If a bolt is lost or in need of replacement, use a replacement bolt of the same grade. In most cases it will be Grade 5. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to use the correct replacement bolt will void the manufacturer's warranty.
Yes, the BX2326 is designed for these vehicles. Minor adjustments may be necessary due to manufacturer tolerances. If your vehicle's front looks different, contact Blue Ox at (402) 385-3051.
No. The BX2326 design does not support these tow bars. Motorhome mount tow bars are recommended instead.
Required tools include Phillips screwdriver, 7MM/8MM/10MM/12MM sockets, 13/32" drill bit, vise grips, hack saw blade, reciprocating saw, and Loctite RED. A power drill may be used but be aware of torque and drill bit length dangers.
Torque 3/8" Grade 5 bolts to 33 foot-pounds. Use Loctite RED on all bolts before tightening.
Torque 8MM Grade 8.8 bolts to 16 foot-pounds. Use Loctite RED on all bolts before tightening.
Yes. Two 36" Class III safety cables are included. They must be connected from the baseplate to the vehicle frame and should remain installed as long as the baseplate is on the vehicle. Do not mount cables against wires, hoses or brake lines.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to specification using Loctite Red.
If the front of your vehicle looks different than shown in the manual, call Blue Ox at (402) 385-3051. This may indicate a variation in your specific vehicle that requires special attention during installation.
The manual notes that dimensional variations between otherwise identical vehicles can be considerable. Minor adjustments may be necessary to compensate for manufacturer tolerances. These adjustments may include filing a hole slightly, bending electrical rods, or bending end plates. If significant misalignment occurs, contact Blue Ox at (402) 385-3051.
