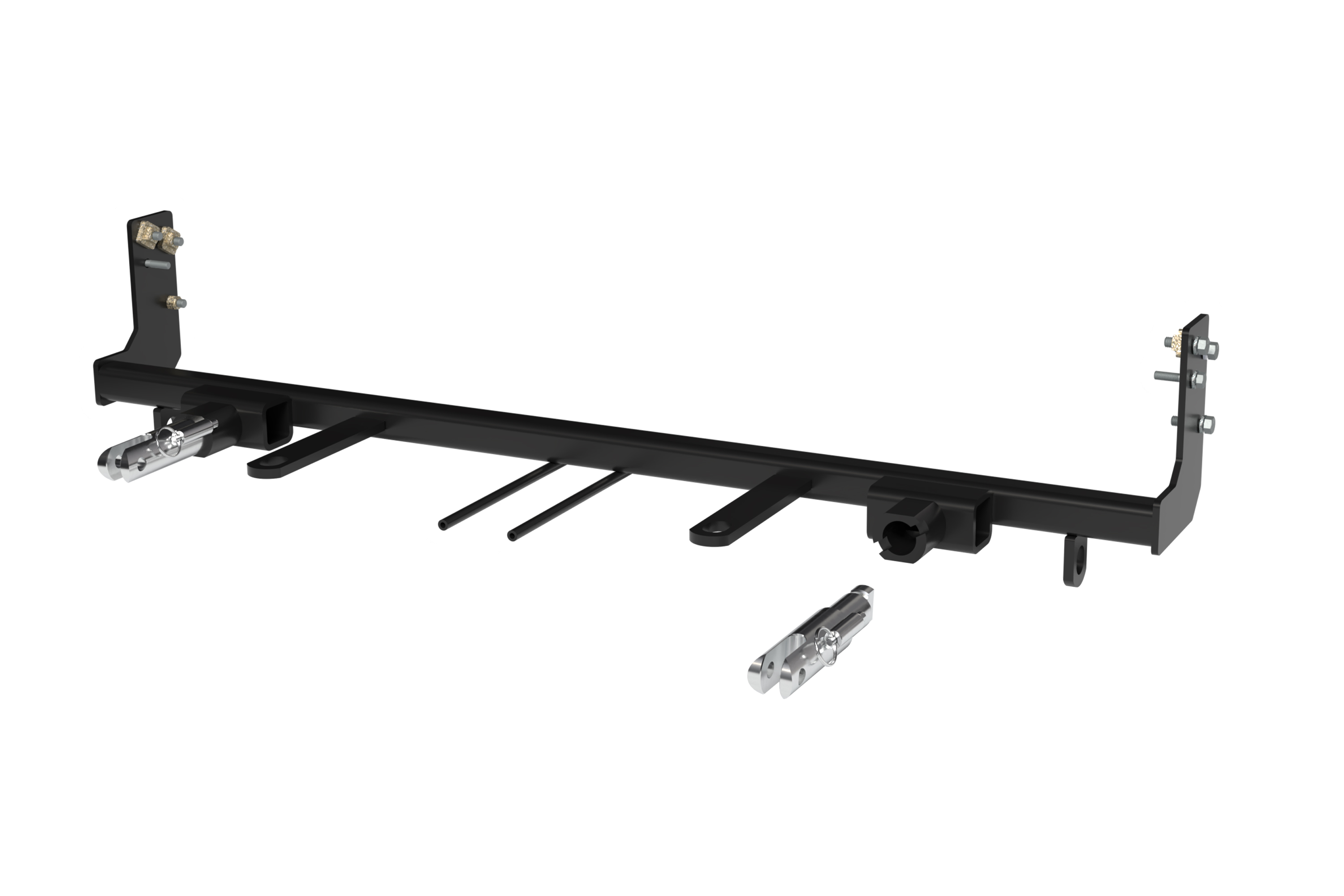

{'feature': 'Custom Design', 'description': 'Each Blue Ox BX1999 Tow Bar Bracket is custom designed for a specific towed vehicle, ensuring an optimal fit and performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Experience the perfect blend of custom design and superior durability with the Blue Ox BX1999 Tow Bar Bracket. This solid steel bracket offers a sleek black powder coat finish that not only adds to its aesthetic appeal but also delivers excellent resistance to wear and tear. It's been designed to mount via a bolt-on mechanism, ensuring a secure and sturdy fit for your towing vehicle. What's more, this package includes all the necessary hardware and comprehensive instructions for a hassle-free, do-it-yourself installation. Trust in Blue Ox for a tow bar bracket that's built to provide reliable service for years to come.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2012 | Mitsubishi Eclipse | cludes Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |

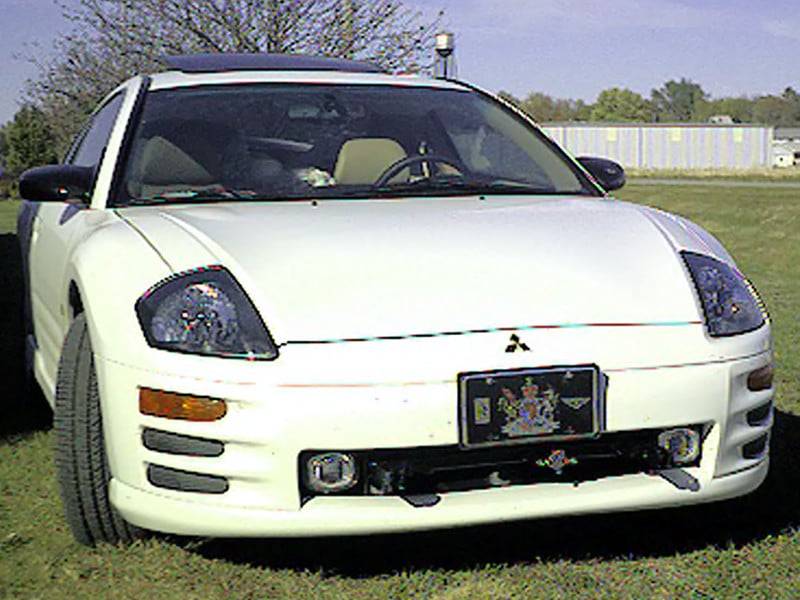

Yes, the BX1999 is designed specifically for 2011-2012 Mitsubishi Eclipse Spyder. If the front of your vehicle looks different, contact Blue Ox at (402) 385-3051 before proceeding.
No. Due to the design of the removable tabs, the RangeFinderII and Ambassador tow bars cannot be used with this baseplate. Motorhome mount tow bars are recommended.
Most adapters cannot be used with the BX1999. Only adapters BX8833, BX88262, and BX88151 are compatible.
Required tools: flat screwdriver, utility knife, Phillips screwdriver, torque wrench, drill, Loctite RED, diagonal cutters, 8MM socket, 10MM socket, 14MM socket, 9/16" socket, 1-1/4" hole saw, and 13/32" drill bit.
Yes. Drilling is required using a 1-1/4" hole saw through the bumper horn and a 13/32" drill bit for three additional holes on each side of the vehicle.
Yes. Trimming of the fascia is required to allow the attachment tabs, quicklinks, and breakaway bracket to come through. Metal fascia is trimmed with diagonal cutters; plastic fascia is trimmed with a utility knife.
Yes. Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Dealers can be found at www.blueox.com or by calling (402) 385-3051.
For Grade 5 bolts: 33 foot-pounds. For Grade 8 bolts: 47 foot-pounds. All bolts must have Loctite RED applied before tightening.
For Grade 8.8 bolts: 16 foot-pounds. For Grade 10.9 bolts: 22 foot-pounds. All bolts must have Loctite RED applied before tightening.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury.
The attachment tab height is 14.5" and the attachment tab width is 30".
The BX1999 includes: 4 nut plates with 14" wire (61-5208), 1 baseplate (61-6973), 2 attachment tab assemblies (62-3468), 1 and 1 each of 1/4"-20 x 3/4" hex bolts (102-0050 and 201-0050), 2 #10-32 1/2" round slotted head screws (201-0192), 6 3/8"-16 x 1-1/4" hex bolts (201-0368), 1 8MM-1.25 x 25MM hex bolt (201-0378), 2 8MM-1.25 x 35MM hex bolts (201-0418), 2 #12-14 x 1" self-drilling screws (201-0979), 2 #10-32 hex nuts (202-0047), 2 3/8"-16 hex nylon insert lock nuts (202-0090), 1 1/4"-20 hex nylon nut (202-0102), 9 3/8" lock washers (203-0010), 2 #10 lock washers (203-0054), 1 4-way bracket (299-0685), 2 class III safety cables (226-0046), 2 3/8" quicklinks (229-0359), and 2 black cap plug receivers (290-0437).
The BX8848 4-Diode Wiring Kit is recommended for the 2011-2012 Mitsubishi Eclipse Spyder with the BX1999 baseplate. It is not stated as required, but is recommended by Blue Ox.
The dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for auto manufacturer's tolerances. These minor adjustments may include filing a hole slightly, bending electrical rods, or bending end plates.
1. Remove four push pins from the top of the fascia and two 10MM bolts with a 10MM socket. 2. Release the pin holding the plastic radiator cover on both sides. 3. Remove three push pins in front of each tire. 4. Remove one 8MM bolt in front of each tire. 5. Pull wheel well cover back and remove two bolts from inside each wheel well with a 10MM socket. 6. Remove three 14MM bolts from the bumper on each side. 7. Disconnect the temperature sensor from the driver's side underneath the bumper. 8. Remove the bumper. 9. Underneath the fascia, remove six bolts and one push pin. 10. Remove two additional push pins underneath the fascia. 11. Carefully remove the fascia.
The temperature sensor is located on the driver's side underneath the bumper. Disconnect it before removing the bumper during baseplate installation. Reconnect it after the bumper is reinstalled following baseplate installation. The manual does not provide specific details on the disconnection/reconnection procedure itself.
With a flat screwdriver, remove four push pins from the plastic fascia guard. Set the push pins and plastic fascia guard aside to be reinstalled later.
Use a 1-1/4" hole saw to drill through the bumper horn on both sides of the vehicle to accommodate installation of welded nut plates. When using power drills, be aware of the dangers of torque and drill bit length.
Use a 13/32" drill bit to drill the remaining three holes on both sides of the vehicle, using the baseplate as a template.
1. Hold the fascia up as close as possible to its original position. 2. Mark the area on the fascia where trimming is required to allow attachment tabs, quicklinks, and breakaway bracket to come through. 3. If the fascia is metal, use diagonal cutters to trim the marked openings. If the fascia is plastic, use a utility knife. 4. With a Phillips screwdriver, remove two screws on the upper corners of the fascia. 5. Trim additional area to allow the baseplate to come through the fascia. 6. With a utility knife, trim back the outer edges of the fascia opening on both sides.
1. Slide the baseplate up to the frame of the vehicle, aligning with the existing holes. Ensure the baseplate always remains level. 2. In existing holes, install 8MM-1.25 x 35MM hex bolts with 3/8" lock washers on both sides. Use Loctite RED on all bolts. 3. With a 13/32" drill bit, using the baseplate as a template, drill three remaining holes on both sides. 4. Install 3/8"-16 x 1-1/4" hex bolts with 3/8" lock washers and welded nut plates into the top two holes of the baseplate. 5. Insert 3/8"-16 x 1-1/4" hex bolts with 3/8"-16 hex nylon insert lock nuts into the bottom holes. Do this on both sides. Always ensure the baseplate remains level. Use Loctite RED on all bolts.
Yes, the breakaway bracket installation is optional. If you choose to install it, install it on the driver's side of the vehicle between the quicklinks and electrical rods. Use an existing hole on the frame underneath the baseplate and insert an 8MM-1.25 x 25MM hex bolt with a 3/8" lock washer to secure the bracket. Attach the breakaway to the bracket with a 1/4"-20 x 3/4" hex bolt with a 1/4"-20 nylon nut.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The recommended installation is to secure the cables to the frame of the vehicle on both sides. If additional options interfere with suggested mounting, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. Ensure the safety cables do not rub against any hoses or moving parts.
1. Reinstall the bumper and reconnect the temperature sensor. 2. Reinstall the plastic fascia guard. 3. Reinstall the fascia. 4. Install the tow bar and safety cables according to the instructions provided in their packages.
The BX1999 includes a 4-pin connector and a 6-pin connector, as shown in the parts diagram. The manual states that all electrical connections must be plugged in properly and functioning before installing the fascia. The BX8848 4-Diode Wiring Kit is recommended for this vehicle.
No. Do not use the towed vehicle for storing luggage, equipment, etc. This may cause you to exceed the towing capacity of the tow bar, baseplate, and its accessories.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite RED on all bolts and tighten to the recommended specifications.
The permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. Their principle function is to prevent the towed vehicle from breaking loose in the event the connection between the frame of the towed vehicle and the baseplate fails or becomes disconnected. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Each cable must have an adequate weight rating for the towing system; the weight rating of the two cables together will not qualify.
No. Permanent baseplate safety cables are to be used in conjunction with, and NOT a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Do not mount the permanent baseplate safety cables against wires, hoses, or brake lines. If the baseplate is improperly installed and is against a wire or hose, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation.
Yes. Remove the attachment tabs when not in use if applicable.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
If a bolt is lost or in need of replacement, for your safety and the preservation of your baseplate, be sure to use a replacement bolt of the same grade. In most cases it will be Grade 5. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow and/or altering these installation instructions in either installation or required equipment will void the manufacturer's warranty.
Use only genuine factory replacement parts on your baseplate. Do NOT substitute homemade or non-typical parts. Failing to follow and/or altering these installation instructions in either installation or required equipment will void the manufacturer's warranty.
The warranty is voided if: (1) you fail to follow and/or alter these installation instructions in either installation or required equipment, or (2) you tow behind a non-motorized vehicle.
If the front of your vehicle looks different than shown in the manual, call Blue Ox at (402) 385-3051 before proceeding with installation.
Please visit www.blueox.com for the latest version of these installation instructions.
You can contact Blue Ox technical support at (402) 385-3051. You can speak with their technical service team with any questions regarding the performance of your product. You can also visit www.blueox.com to find Blue Ox Dealers.
Always ensure the baseplate remains level during installation. If the baseplate is not level, adjust its position before tightening the bolts. The manual emphasizes this requirement multiple times during the installation process.
