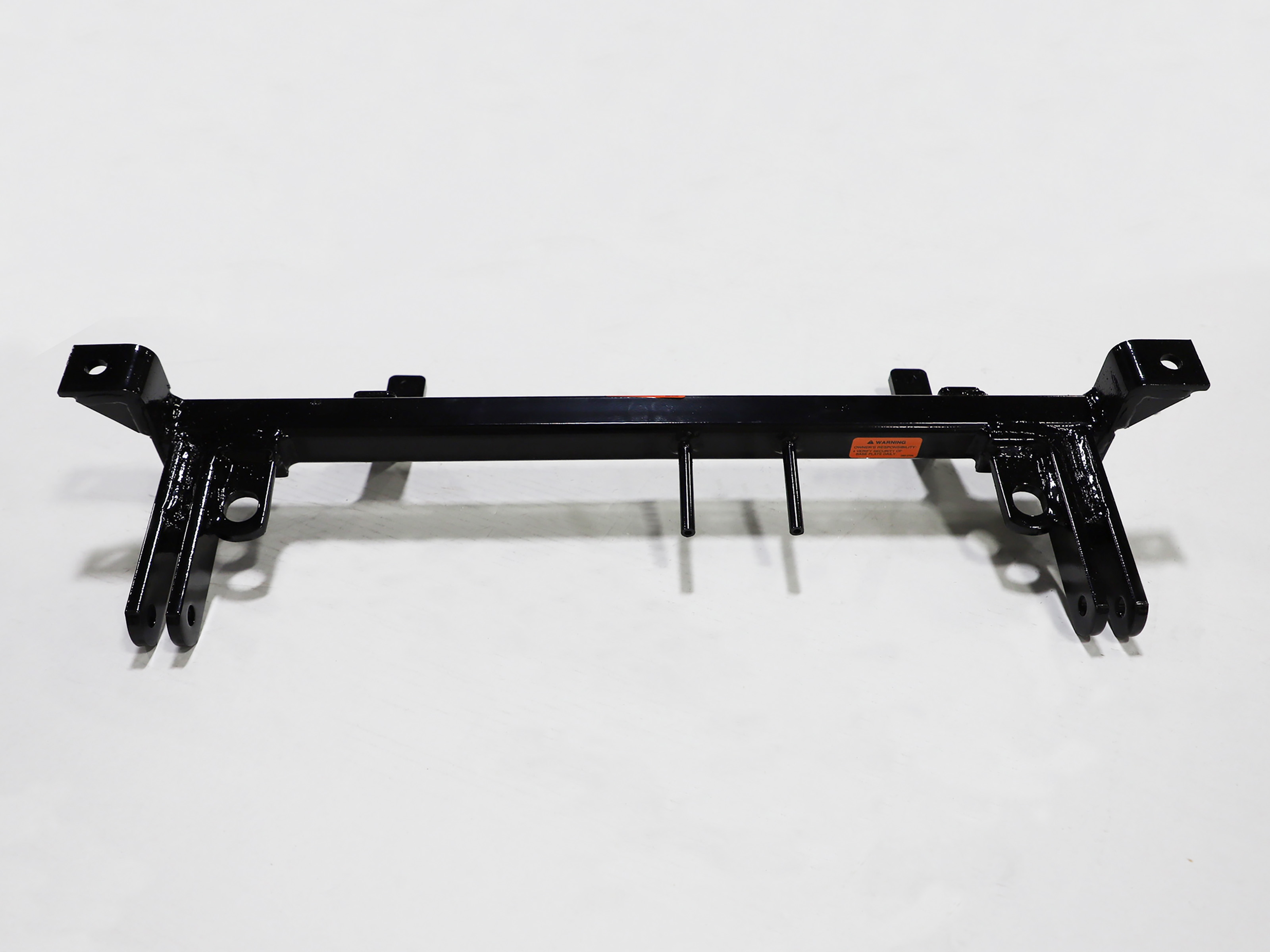

Custom Designed: The BX1941 Tow Bar Bracket is tailored to perfectly fit each specific towed vehicle, enhancing its stability and performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Experience the ultimate convenience in towing with the Blue Ox BX1941 Tow Bar Bracket. This durable, steel-made bracket is custom designed for each specific towed vehicle, ensuring a perfect fit and seamless performance. It's finished with a protective black powder coat that not only adds a sleek look but also enhances its resistance to rust and corrosion. The BX1941 Tow Bar Bracket is a bolt-on type, simplifying the installation process. The package comes complete with all necessary mounting hardware and easy-to-follow instructions, making it an ideal DIY project.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2000 - 2002 | Mitsubishi Eclipse | Also Convertible and Spyder Comes with Standard Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required |
Yes, the BX1941 baseplate is designed for 2000-02 Mitsubishi Eclipse models, including the Spyder convertible. This is the only vehicle application listed for this baseplate.
You must remove the bumper fascia (plastic front cover), metal bumper, headlights, and fog lights. The bumper fascia is separated from the metal bumper; the metal bumper is then bolted back to the frame before the baseplate is installed. The headlights are removed by unbolting three hex head bolts per light and disconnecting the electrical connectors. Fog lights are removed and reinstalled after baseplate installation.
Yes, drilling is required. You must drill two 1/2" holes in the metal bumper for the upper mounting bolts, and four 3/8" holes in the cross frame for the lower brace bolts. A center punch is used to mark hole locations before drilling. The air dam plastic in front of the lower cross frame must also be neatly trimmed to allow the lower braces to sit correctly.
Required tools are: 3/4" wrench, 1/2" drill bit, 3/8" drill bit, 9/16" wrench, center punch, straight screwdriver, utility knife, and Phillips screwdriver. Loctite Blue is also required for fastener application.
The kit includes: 1 BX1941 baseplate, 2 wire bolt plates (1/2"-13), 2 nut plates (3/8"-16), 2 hex nuts (1/2"-13), 2 lock washers (1/2"), 2 hex bolts (3/8"-16 x 1-1/2"), 2 lock washers (3/8"), 2 self-drilling screws (#12-14 x 1"), 2 connector adapters (4-way), 2 hex nuts (#10-32), 2 lock washers (#10), 2 round head screws (#10-32 x 1/2"), 2 safety cables (36" Class III), and 4 quicklinks (3/8").
The two upper mounting bolts (1/2-13 x 1 1/2 hex bolts with lock washers) are inserted through 1/2" holes drilled in the metal bumper. A 1/2" wire nut (bolt plate) is inserted through the side of the lower section of the metal bumper from inside. The bolt is then hand-tightened only at this stage. Loctite is applied to each bolt. Final tightening occurs after all bolts are started.
The lower braces are positioned in the formed areas of the cross frame (outside the engine support). Four 3/8" holes are drilled through the cross frame and marked from the brace position. Each hole receives a 3/8-16 x 1 1/4 hex bolt with lock washer and nut plate (with wire). All four bolts are started, then tightened and torqued according to the torque chart in the General Instruction Sheet. Excess wire is bent out of the way or cut after installation.
The manual states that bolts should be torqued 'according to the torque chart in the General Instruction Sheet,' but the specific torque values are not provided in this installation document. Contact Blue Ox customer service at (402) 385-3051 or consult the General Instruction Sheet that should accompany the product for the exact torque specifications.
1. Remove three plastic rivets from the front fender wells (directly in front of tires) and the 10mm hex bolt inboard of them. 2. Pull fender well plastic out and remove 10mm hex bolts below the fender-fascia seam. 3. Open hood and remove five 10mm hex bolts from top of fascia; remove and set aside the black piece on top. 4. Remove headlights by unbolting three hex bolts per light and disconnecting electrical connectors. 5. Remove bolts from the four larger holes along the bottom of the frame toward the front. 6. Pull bumper fascia and main bumper from frame, removing any plastic push rivets as needed. Separate metal bumper from plastic fascia and bolt metal bumper back to frame.
Mark the center of the metal bumper on the styrofoam and mark the center of the baseplate. Hold the baseplate up to the bottom of the metal bumper, aligning the center marks. Position the lower braces through the plastic and into the formed areas on the cross frame. This ensures the baseplate is centered before drilling and bolting.
Yes, it may be necessary to trim the back of the fascia to allow it to sit in its original position after baseplate installation. It may also be necessary to pull out on the outside piece of the fog light brackets to replace them. These adjustments ensure the fascia and fog lights fit properly after the baseplate is mounted.
The plastic formed in front of the lower cross frame must be neatly trimmed to allow the lower braces to set in place correctly. This plastic is part of the vehicle's air dam and does not need to be completely removed, only trimmed enough to accommodate the brace positioning.
Permanent baseplate safety cables are strongly recommended when towing with the BX1941 baseplate. They prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The cables must be connected from the baseplate to the frame rail or cross member. Two cables are included in the kit (36" Class III). Permanent baseplate safety cables must be used in conjunction with, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Do not mount the permanent baseplate safety cables against wires, hoses, or brake lines. Improper installation against these components could cause fluid leaks or electrical shorts some time after installation. The installer must watch for oil cooler and air conditioner lines, electrical wires and hoses, and ensure the baseplate is not positioned against them.
Before each towing trip, inspect all towing equipment for: cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to the recommended specifications using Loctite Red. This inspection is the owner's responsibility and is critical for safe towing operation.
Yes, Loctite Blue is applied during installation to the two upper mounting bolts (1/2-13 x 1 1/2 hex bolts) as specified in step 7. Additionally, the General Information section states that Loctite Red should be used on all bolts and they should be tightened to recommended specifications before each towing trip.
Yes, it is crucial to register your BX1941 baseplate online at www.blueox.com. Registration ensures you are alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
The manual does not specify whether the battery must be disconnected. However, since headlight electrical connectors must be disconnected during removal, it is recommended to consult with a professional installer or contact Blue Ox customer service at (402) 385-3051 for guidance on electrical safety precautions.
The manual does not explicitly state whether professional installation is required. However, the installation involves multiple steps including bumper removal, drilling, electrical disconnection, and precise alignment. The manual includes a note to 'DEALER OR INSTALLER: BE CERTAIN THE USER RECEIVES THE INSTRUCTION SHEET,' suggesting dealer or installer involvement is expected. Contact Blue Ox at (402) 385-3051 to discuss installation options.
The BX1941 baseplate fits 2000-02 Mitsubishi Eclipse models, including the Spyder convertible.
Yes. You must drill two 1/2" holes in the metal bumper and four 3/8" holes in the cross frame. The air dam plastic must also be trimmed.
You need: 3/4" and 9/16" wrenches, 1/2" and 3/8" drill bits, center punch, utility knife, straight and Phillips screwdrivers, and Loctite Blue.
Yes, you must remove the bumper fascia and headlights. The metal bumper is removed, then bolted back to the frame before baseplate installation.
Yes, two 36" Class III safety cables and four 3/8" quicklinks are included. Permanent baseplate safety cables are strongly recommended and must be used in conjunction with legally required safety cables.
Inspect for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to specification and use Loctite Red on all bolts before each towing trip.
It may be necessary to trim the back of the fascia to allow it to sit in its original position. Additionally, it may be necessary to pull out on the outside piece of the fog light brackets to replace them. Make these adjustments after the baseplate is fully installed and before final reassembly.
The plastic formed in front of the lower cross frame must be neatly trimmed to allow the lower braces to set in place correctly. If the braces are not sitting properly, check that the air dam plastic has been adequately trimmed. The braces should sit in the formed areas on the cross frame outside of the engine support.
