Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.

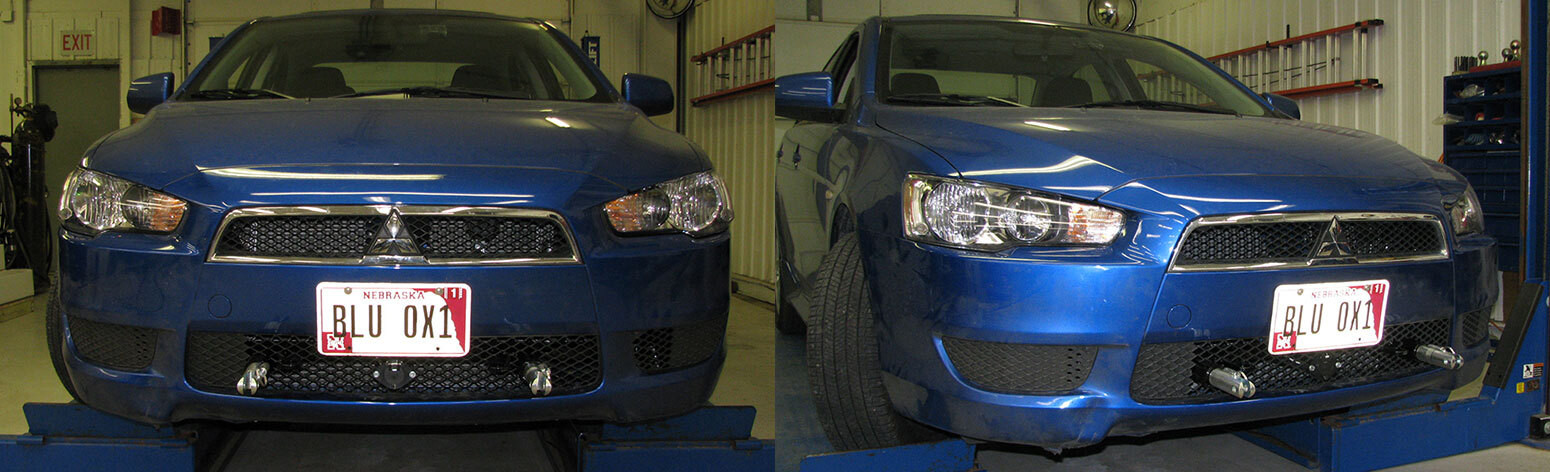

2010 - 2011 Mitsubishi Lancer
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
{'feature': 'Custom Design', 'description': 'Each Blue Ox BX1993 Tow Bar Bracket is custom designed for a particular vehicle model, ensuring a precise and secure fit.
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Material: Steel
Color: Black
Finish: Powder Coat

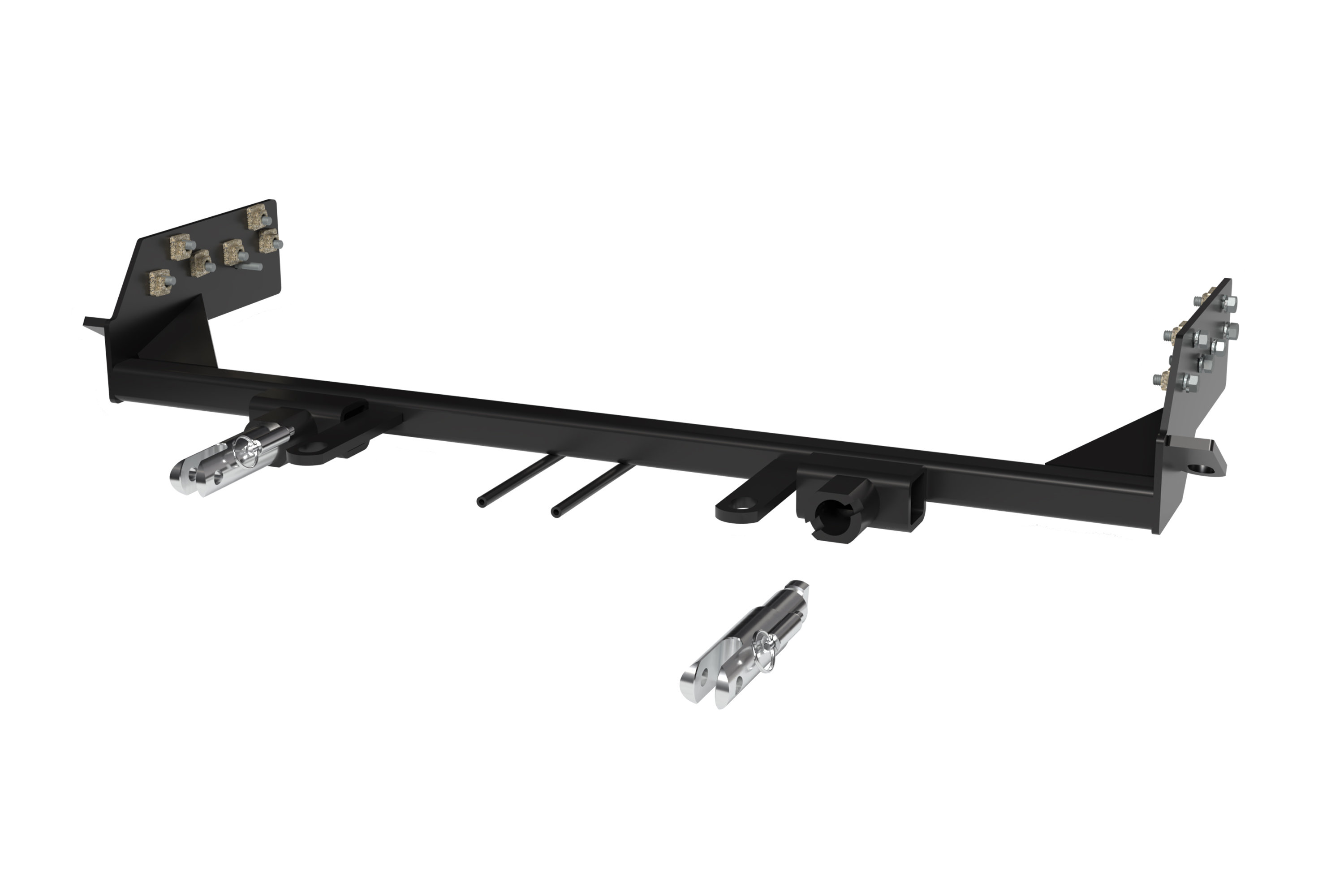

The Blue Ox BX1993 Tow Bar Bracket is an essential investment for those who need reliable towing solutions. Custom designed for each specific vehicle, this tow bar bracket guarantees a perfect fit for a hassle-free installation. It's crafted from robust steel with a black powder coat finish, ensuring durability and resistance against the elements. The bracket is a bolt-on type, which means it can be installed quickly and securely. The package includes all necessary mounting hardware and a comprehensive instruction manual, making the installation process a breeze even for non-professionals.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
Yes, the BX1993 is designed specifically for 2010-11 Mitsubishi Lancer ES/ES Sport models. However, confirm towability and pre-towing procedures with your vehicle's owner's manual or contact the manufacturer for specific towing requirements.
No. Due to the design of the removable tabs on the BX1993, the RangeFinder II and Ambassador tow bars cannot be used with this baseplate. Motorhome mount tow bars are recommended instead.
Most tow bar adapters cannot be used with the BX1993. The only exceptions are the BX8833 and BX88151 adapters. Additionally, tow bar adapters cannot be used with vehicles weighing over 5,000 lbs.
The attachment tab height is 12 inches and the attachment tab width is 22 inches.
Required tools include: 10MM socket, 12MM socket, 14MM socket, 9/16" socket, large vise grip, diagonal cutters, drill, torque wrench, tape measure, 13/32" drill bit, and Loctite Red. A Phillips screwdriver is also needed for some fasteners.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary for fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Customer Care at (402) 385-3051.
Yes, drilling is required. The manual specifies a 13/32" drill bit is needed. A drill is listed in the required tools.
Yes. Trimming of the bumper and the air dam is required. Additionally, you will need to cut a notch in the existing hole on each side of the frame to allow the nut plate through (step 17), and cut a hole in the fascia opening as needed for the breakaway bracket (step 21).
The following must be removed and reinstalled: plastic cover (both sides), fascia, license plate bracket, washer reservoir (passenger side), horn (passenger side), temperature sensor, and various bolts and push pins. The manual notes that handling cosmetic parts may require protective covers, rags, and specialty tools to prevent damage.
The manual states to tighten all bolts according to the torque chart on the front page of these instructions or on page 3 of the Baseplate Towing General Instructions. The specific torque value for 3/8" Grade 5 bolts is 33 foot-pounds (shown in the torque chart on page 1).
The BX8869 Bulb and Socket Wiring Kit is available for this vehicle. A possible location for installation is shown in the manual.
Yes. The manual explicitly states: "BE SURE TO USE LOCTITE® RED ON ALL BOLTS BEFORE TIGHTENING." Loctite Red is listed in the required tools.
On the passenger side, remove the washer reservoir by removing two bolts from the front (step 10), one bolt from the back (step 11), and one bolt from the top (step 12). Disconnect all hoses and electrical connections and plug the hoses. After installing the baseplate, reinstall the washer reservoir into the back middle hole on the baseplate, ensuring all hoses and electrical connections are reconnected (step 19).
On the passenger side, remove the bolt from the horn using a 12MM socket (step 13). Move the horn above the bumper and bolt it to the existing hole.
Remove the temperature sensor from below the bumper, flip it over, and put it on the other side so that it is out of the way (step 15).
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The recommended installation is to secure the cables to the frame of the vehicle. Use the cable ties to ensure the safety cables do not rub against any hoses or moving parts. Do this on both sides of the vehicle. If additional options interfere with suggested mounting, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables (step 20).
Attach the breakaway bracket to the bottom of the bumper with a 10-16 x 1" self drilling screw. Fasten the breakaway to the bracket with a 1/4-20 x 3/4" hex bolt and a 1/4-20 hex nut. Cut a hole in the fascia opening as needed to allow the bracket to go through (step 21).
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
No. Do not use the towed vehicle for storing luggage, equipment, etc. This may cause you to exceed the towing capacity of the tow bar, baseplate, and its accessories.
Be sure that ALL electrical connections are plugged in properly and functioning BEFORE installing the fascia.
Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor, or by calling the Customer Care Team at (402) 385-3051. When replacing a bolt, use a replacement bolt of the same grade (in most cases Grade 5). Use only genuine factory replacement parts; do not substitute homemade or non-typical parts. Failing to follow these instructions or altering the installation instructions will void the manufacturer's warranty.
Yes, the BX1993 is designed for 2010-11 Mitsubishi Lancer ES/ES Sport. Confirm towability with your vehicle's owner's manual or manufacturer.
Yes, drilling is required. A 13/32" drill bit and drill are needed.
Yes, trimming of the bumper and air dam is required. Cutting of notches and fascia holes is also necessary.
Required tools: 10MM, 12MM, 14MM, and 9/16" sockets, large vise grip, diagonal cutters, drill, 13/32" drill bit, torque wrench, tape measure, Phillips screwdriver, and Loctite Red.
Installation by a Blue Ox Dealer is recommended. Dealers have the equipment and knowledge for fit work. Find dealers at www.blueox.com or call (402) 385-3051.
33 foot-pounds. Always use Loctite Red on all bolts before tightening.
The BX8869 Bulb and Socket Wiring Kit is available for this vehicle.
No. Do not store luggage or equipment in the towed vehicle; this may exceed the towing capacity of the baseplate and accessories.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2011 | Mitsubishi Lancer | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
