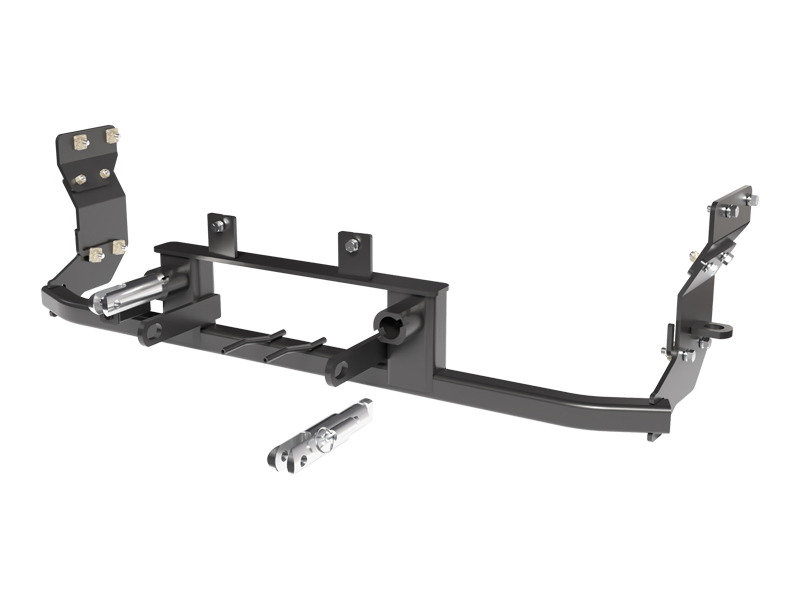

1. Custom Designed: The Blue Ox BX2666 Tow Bar Bracket is custom designed for each specific towed vehicle, ensuring a perfect fit and secure towing.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Ensure a secure and hassle-free towing experience with the Blue Ox BX2666 Tow Bar Bracket. Custom-designed for each specific vehicle, this bracket is constructed from high-quality steel, offering durable and reliable performance. The black powder coat finish not only enhances the appearance but also adds an extra layer of protection against rust and corrosion. With a straightforward, bolt-on mounting type, installation is made easy. The package includes all necessary hardware and detailed instructions, allowing for a smooth do-it-yourself installation process.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2019 | Ford Fusion | Vehicles with EcoBoost Vehicles With Adaptive Cruise Control Comes with Removable Attachment Tabs Install Rating 5 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Headlights Must be Removed and Replaced During Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select FORD FUSION SPORT (Part #FDRWBX2666) is designed to fit the 2017-2019 Ford Fusion.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select FORD FUSION SPORT (Part #FDRWBX2666) fits the following vehicles: 2017-2019 Ford Fusion. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select FORD FUSION SPORT (Part #FDRWBX2666) fits 2017-2019 Ford Fusion models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select FORD FUSION SPORT (Part #FDRWBX2666) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX2666 baseplate is designed specifically for 2017-19 Ford Fusion Sport models equipped with Ecoboost engine and Adaptive Cruise Control (ACC). If the front of your vehicle looks different than shown in the manual, contact Blue Ox technical service at (402) 385-3051 before proceeding with installation.
The BX2666 is designed specifically for 2017-19 Ford Fusion Sport with Ecoboost and ACC. The manual does not confirm fitment on other Fusion variants. Contact Blue Ox at (402) 385-3051 to verify compatibility with your specific vehicle configuration.
The BX2666 attachment tab height is 13 inches and the width is 16 inches.
The BX8848 4-Diode Wiring Kit is recommended for this vehicle. Refer to the BX8848 documentation for wiring installation details, as the baseplate installation instructions do not include wiring procedures.
Required tools include: T25 Torx, Phillips screwdriver, flat screwdriver, 10MM socket, 8MM socket, 7MM socket, 7/16" socket, 9/16" socket, 10MM wrench, 7/16" wrench, 5/16" nut driver, 7MM socket, torque wrench, drill with 3/8" drill bit and 1-1/4" hole saw, tape measure, utility knife, large vise grip, and reciprocating saw. Loctite Red is also required.
Blue Ox recommends that towing products be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting technical service at (402) 385-3051. The installation involves fascia removal, drilling, trimming, and electrical connections that require specialized knowledge.
Installation requires removal and reinstallation of the front fascia, drilling and trimming of plastic shielding and bumper components, removal of the belly pan, disconnection of electrical connections, removal of headlights, and installation of baseplate hardware to the frame. The process involves multiple fastener removals and reinstallations. Dimensional variations between vehicles may require tailoring the baseplate to compensate for manufacturer tolerances.
Yes, drilling is required. You must use a 1-1/4" hole saw to cut holes into the center of the lower support on both sides of the vehicle and to drill access holes on the side of the bumper frame. You must also use a 3/8" drill bit to bore out existing holes on the frame and to drill additional holes indicated during baseplate installation. A reciprocating saw is also required to trim plastic shielding and fascia components.
You must trim: marked areas from the plastic shielding above the bumper horn using a reciprocating saw; plastic hang downs in front of the shutters; and a marked area on the lower support (trimming only to the weld running along the horn on both sides). After reattaching the fascia, you must cut marked areas on the fascia cover around the convenience links and attachment tabs.
Yes. The drilling of holes into the frame and lower support, and the trimming of plastic shielding and fascia components are permanent modifications. The manual does not indicate that these modifications are reversible.
Torque specifications for Grade 5 inch bolts are: 1/4" = 10 ft-lbs, 5/16" = 19 ft-lbs, 3/8" = 33 ft-lbs, 7/16" = 54 ft-lbs, 1/2" = 78 ft-lbs, 5/8" = 154 ft-lbs, 3/4" = 257 ft-lbs. For metric Grade 8.8 bolts: 6MM = 6 ft-lbs, 8MM = 16 ft-lbs, 10MM = 31 ft-lbs, 12MM = 54 ft-lbs, 14MM = 89 ft-lbs, 16MM = 161 ft-lbs, 18MM = 222 ft-lbs.
Torque specifications for Grade 8 inch bolts are: 1/4" = 14 ft-lbs, 5/16" = 29 ft-lbs, 3/8" = 47 ft-lbs, 7/16" = 78 ft-lbs, 1/2" = 119 ft-lbs, 5/8" = 230 ft-lbs, 3/4" = 380 ft-lbs. For metric Grade 10.9 bolts: 6MM = 8 ft-lbs, 8MM = 22 ft-lbs, 10MM = 40 ft-lbs, 12MM = 70 ft-lbs, 14MM = 117 ft-lbs, 16MM = 230 ft-lbs, 18MM = 318 ft-lbs.
Yes. You must use a sufficient amount of Loctite Red on all bolt threads before tightening. All bolts must be tightened according to the torque chart provided unless otherwise specified in the instructions.
After removing the belly pan, you must carefully unplug the electrical connections revealed under the car on the driver's side. When removing the fascia, you must disconnect any electrical connections at the corners of the fascia. The manual does not provide detailed wiring diagrams or specific connector descriptions; refer to the BX8848 4-Diode Wiring Kit documentation for complete wiring procedures.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and GVWR.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The cables must not mount against wires, hoses, or brake lines. The cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The cables should be secured to a solid piece of the frame. The manual shows two recommended options: Option 1 uses convenience link tabs on the baseplate with a quicklink to secure cables around the frame crossmember; Option 2 is for baseplates without convenience link tabs. Ensure cables do not rub against any hoses or moving parts. Install on both sides of the vehicle.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. Level the baseplate prior to fully tightening the bolts. After installation, it is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended torque specifications. Permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle. Register your product at www.blueox.com to receive alerts about maintenance and safety bulletins.
The kit includes: 10 nut plates with 14" wire (3/8"), 2 attachment tab assemblies with holes, 2 upper brace plates (driver and passenger side), 2 plates (1/4" x 1" x 3-1/2"), 1 hex head bolt (1/4"-20 x 3/4"), 2 round slotted head screws (#10-32 1/2"), 10 hex head bolts (3/8"-16 x 1-1/4"), 4 hex bolts (3/8"-16 x 1-1/2"), 2 self-drilling screws (#12-14 x 1"), 2 hex nuts (#10-32), 4 nylon insert lock nuts (3/8"-16), 1 nylon nut (1/4"-20), 14 lock washers (3/8"), 2 lock washers (#10), 1 four-way bracket, 2 safety cables, 2 quicklinks (3/8"), and 2 black cap plug receivers.
No. You must use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (usually Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to use genuine parts will void the manufacturer's warranty.
Blue Ox offers a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. Warranty is valid only if the customer warranty card is returned within 30 days of purchase and a copy of the original invoice accompanies any claim. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to maintain, misuse, accident, normal wear and tear, paint or rust. The warranty is non-transferable. Register your warranty at http://blueox.com/warranty/.
The BX2666 is designed for 2017-19 Ford Fusion Sport with Ecoboost and ACC. If your vehicle's front looks different than shown in the manual, contact Blue Ox at (402) 385-3051 before installation.
The BX8848 4-Diode Wiring Kit is recommended. Refer to that kit's documentation for wiring installation details.
Yes. You must drill with a 1-1/4" hole saw and a 3/8" drill bit, and trim plastic components with a reciprocating saw. These are permanent modifications.
Tighten 3/8" Grade 5 bolts to 33 foot-pounds. Use Loctite Red on all bolt threads before tightening.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for GVWR and towing specifications.
Permanent baseplate safety cables are strongly recommended. They must be connected from the baseplate to the frame and are in addition to, not a replacement for, legally required safety cables.
Blue Ox recommends installation by a Blue Ox Dealer familiar with the product and fit work. Find a dealer at www.blueox.com or call (402) 385-3051.
Ensure all electrical connections are plugged in and functioning. Level the baseplate before final tightening. Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts.
