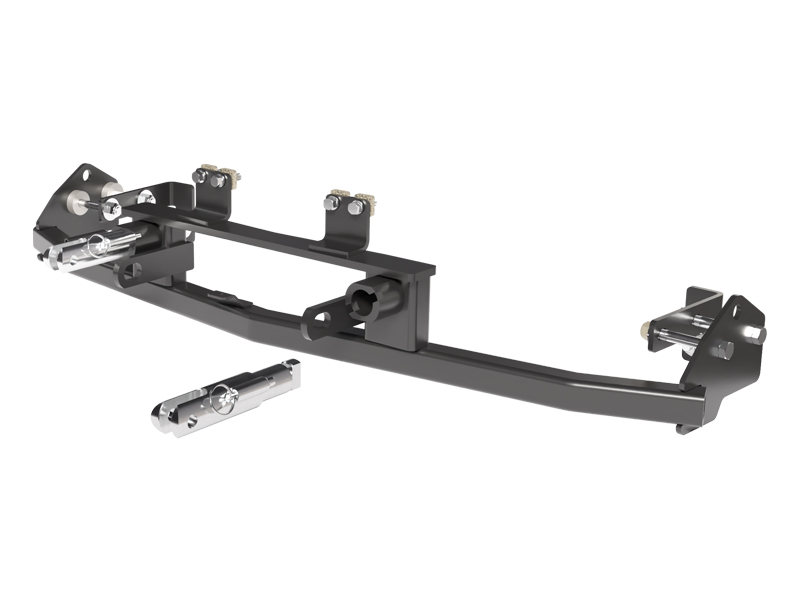

Custom Design: Each Blue Ox BX2684 Tow Bar Bracket is custom-designed for a specific towed vehicle, ensuring a perfect fit and excellent performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2684 Tow Bar Bracket is an essential accessory for your towing needs. Custom-designed for each specific towed vehicle, this bracket ensures a perfect fit and seamless functionality. Made from high-quality steel, it boasts a black powder-coated finish for exceptional durability and resistance to corrosion. The bracket is a breeze to install, thanks to its bolt-on mounting type and the inclusion of all necessary hardware. Plus, with comprehensive instructions included, you can easily do the installation yourself. The Blue Ox BX2684 Tow Bar Bracket is your reliable partner for a hassle-free towing experience.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2020 | Ford Fusion | Also Hybrid, Shutters, & Adaptive Cruise Control Comes with Removable Attachment Tabs Install Rating 4 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD FUSION TITANIUM HYBRID (Part #FDRWBX2684) fits 2017-2020 Ford Fusion models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD FUSION TITANIUM HYBRID (Part #FDRWBX2684) is designed to fit the 2017-2020 Ford Fusion.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD FUSION TITANIUM HYBRID (Part #FDRWBX2684) fits the following vehicles: 2017-2020 Ford Fusion. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD FUSION TITANIUM HYBRID (Part #FDRWBX2684) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. The BX2684 is designed for 2017-2020 Ford Fusion, including Hybrid models and vehicles with Shutters and Adaptive Cruise Control (ACC). However, during installation, you must ensure nothing is installed in front of the ACC sensor on the driver side, as obstructions will cause false readings.
Yes. The BX2684 is compatible with 2017-2020 Ford Fusion Hybrid models.
The attachment tab height is 12.5 inches and the attachment tab width is 16 inches.
Required tools include: large vise grip, flat screwdriver, utility knife, reciprocating saw, drill, torque wrench, Loctite Red, 3/8" drill bit, 1/2" drill bit, 5/16" nut driver, 7MM socket, 8MM socket, 10MM socket, 13MM socket, 7/16" socket, 7/16" wrench, 9/16" socket, 3/4" socket, and 3/4" wrench.
The kit includes: 4 nut plates with 14" wire (61-5208), 1 baseplate (61-8370), 2 attachment tab assemblies (62-3468), 2 rear mount plates (101-10512 and 101-10513), 1 electrical bracket (299-0685), 2 safety cables (226-0046), 2 quicklinks (229-0359), 2 cap plug receivers (290-0437), and various bolts, screws, washers, and nuts as detailed in the parts list. Loctite Red must be applied to all bolt threads.
Yes. The fascia, fascia cover, and belly pan must be removed and reinstalled after baseplate installation. The fascia cover is removed first by taking out nine push pins, then the fascia is removed by unbolting it from multiple locations and disconnecting electrical connections.
Yes. Drilling is required in two locations: four 3/8" holes are drilled above the shutter housing (Step 12), and two 1/2" holes are drilled through the frame on each side using the baseplate as a template (Step 14). The manual notes that the drill must be level and square when drilling so the hole, baseplate, and bracket align properly.
Yes. Trimming is required in several areas: the sides and bottom of the shutter housing are trimmed with a utility knife (Step 10), marked areas above the shutters are removed (Step 11), the plastic underside piece is trimmed with a reciprocating saw on both sides (Steps 19-20), and the fascia is trimmed around the convenience links, attachment tabs, and electrical rods (Step 21). Trim only as little as necessary to allow for tabs.
Trimming the fascia can damage the ACC sensor if too much plastic is cut away on the driver side. The manual explicitly states: "The ACC unit on the driver side may malfunction if too much plastic is cut away." Ensure that nothing is installed in front of the ACC sensor, as obstructions will cause false readings.
The manual provides general torque charts for Grade 5 and Grade 8 inch bolts, and Grade 8.8 and Grade 10.9 metric bolts, but does not specify which grade is used for each fastener in this installation. All bolts must be tightened according to the torque chart provided, with Loctite Red applied to all bolt threads before tightening. Consult the parts list to identify bolt grades, then reference the torque chart on page 1.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for manufacturer's towing specifications.
Yes. Two permanent baseplate safety cables are included and strongly recommended. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The cables must not be mounted against wires, hoses, or brake lines. These cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Yes. The manual states: "Remove the attachment tabs when not in use (if applicable)."
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. After installation, it is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
If the baseplate is involved in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Yes. Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do "fit work." Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051.
No. Use only genuine factory replacement parts on the baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow these instructions will void the manufacturer's warranty.
Blue Ox offers a three-year limited warranty to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. To be valid, the customer warranty card must be returned within 30 days of purchase, and a copy of the original invoice must accompany any warranty claim. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to maintain, misuse, accident, normal wear and tear, paint, or rust. The warranty is non-transferable.
Register your product online at www.blueox.com. Registration is crucial so you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls. For warranty coverage, the customer warranty card must be returned within 30 days of purchase.
Yes, the BX2684 fits 2017-2020 Ford Fusion models, including Hybrid, with Shutters and Adaptive Cruise Control. Do not obstruct the ACC sensor on the driver side during installation.
Yes. You must drill four 3/8" holes above the shutter housing and two 1/2" holes through the frame on each side. Trimming of the shutter housing, fascia, and underside plastic piece is also required.
You will need a drill, reciprocating saw, utility knife, torque wrench, Loctite Red, and sockets from 7MM to 3/4", plus a 3/8" and 1/2" drill bit. A complete tool list is provided on page 3.
Yes. The fascia cover, fascia, and belly pan must be removed and reinstalled after baseplate installation. This is a multi-step process involving removal of push pins and bolts from multiple locations.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for manufacturer's towing specifications.
Yes. Two permanent baseplate safety cables are included and must be connected from the baseplate to the vehicle's frame rail or cross member. They must not contact wires, hoses, or brake lines.
Use the torque chart on page 1, which provides specifications for Grade 5 and Grade 8 inch bolts, and Grade 8.8 and Grade 10.9 metric bolts. Apply Loctite Red to all bolt threads before tightening. Consult the parts list to identify the grade of each fastener.
Ensure all electrical connections are plugged in and accessories function properly before reinstalling the fascia. Before each towing trip, inspect the baseplate for cracked welds, missing or worn parts, and loose bolts.
The ACC unit on the driver side may malfunction if too much plastic is cut away during fascia trimming. Ensure that nothing is installed in front of the ACC sensor, as obstructions will cause false readings. Review Step 21 and trim only as little as necessary to allow for the attachment tabs and convenience links.
Ensure that Loctite Red is applied to all bolt threads before tightening. Tighten all bolts according to the torque chart provided on page 1. Before each towing trip, inspect the baseplate and tighten any loose bolts to the recommended torque specifications.
Improper routing of the permanent baseplate safety cables can cause them to rub against hoses or moving parts. Ensure the safety cables do not rub against any hoses or moving parts. Do not mount the cables against wires, hoses, or brake lines. If cables are rubbing, reposition them to a solid piece of the frame as described in the General Information sheet, ensuring adequate clearance from all fluid and electrical lines.
