Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
2009 - 2010, 2012 - 2013 Subaru Impreza
Confirmed to Fit
2014 Subaru Impreza
Confirmed to Fit
2013 Subaru Impreza
Confirmed to Fit
2008, 2011 Subaru Impreza
Confirmed to Fit
2013 Subaru XV Crosstrek
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
{'feature_1': 'Custom Design: Tailored for each specific towed vehicle to ensure a perfect fit.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

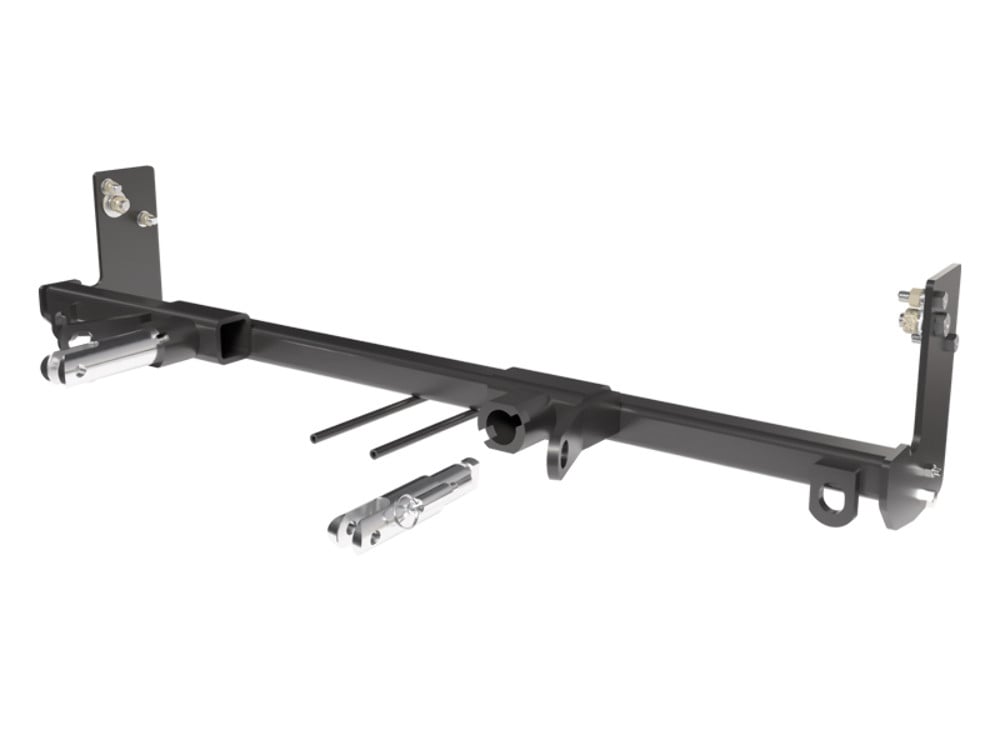

Experience the strength, durability, and ease of installation with the Blue Ox BX3615 Tow Bar Bracket. This premium base plate is custom designed for each specific towed vehicle, making it an ideal solution for your towing needs. Crafted from hard-wearing steel, it ensures unparalleled reliability and longevity. The product features a black powder coat finish that not only adds a sleek appearance but also enhances resistance against rust and corrosion. The bolt-on mounting style offers a secure, hassle-free installation process. With every Blue Ox base plate purchase, you receive all necessary hardware and easy-to-follow instructions, allowing you to handle the installation yourself. This tow bar bracket is the epitome of strength, functionality, and convenience, designed to make your towing experience safe and efficient.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
5 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2010, 2012 - 2013 | Subaru Impreza | All Models Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
| 2014 | Subaru Impreza | All Models Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates |
| 2013 | Subaru Impreza | All Models Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters |
| 2008, 2011 | Subaru Impreza | Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Requires Some Trimming of the Air Dam Minor Drilling Required Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Bumper Fascia Must Be Removed/Replaced During Install Install Rating 3 Comes with Removable Attachment Tabs All Models |
| 2013 | Subaru XV Crosstrek | All Models Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
Yes, the BX3615 is designed for 2012-2014 Subaru Impreza (all models). It also fits 2008-2013 Impreza WRX, 2010 Impreza Outback Sport, and 2013 Subaru XV Crosstrek. However, installation procedures vary by model year and body style, so verify your specific vehicle in the installation instructions before proceeding.
Yes, the BX3615 is compatible with 2008-2013 Subaru Impreza WRX (all models). Installation instructions for WRX models are provided separately from Impreza/Crosstrek models, so follow the WRX/Outback installation section.
Yes, the BX3615 is designed for the 2013 Subaru XV Crosstrek. The Crosstrek uses the same installation procedure as the 2012-2014 Impreza models, not the WRX/Outback procedure.
The attachment tab height is 14 inches and the width is 18 inches.
Required tools include: flat chisel, utility knife, Phillips screwdriver, torque wrench, drill, reciprocating saw, tape measure, 13/32" drill bit, 17/32" drill bit, 10MM socket, 12MM socket, 9/16" socket, 9/16" wrench, 3/4" socket, 3/4" wrench, and Loctite Red.
The kit includes: 2 attachment tabs, 1 breakaway bracket, 2 spacer tubes, 2 x 1/2"-13 x 1-1/4" Grade 5 bolts, 3 x 1/4"-20 x 3/4" Grade 5 bolts, 2 x #10-32 1/2" screws, 4 x 3/8"-16 x 1-1/4" Grade 5 bolts, 2 x 3/8"-16 x 2" Grade 5 bolts, 2 x #12-14 x 1" self-drilling screws, 6 x 3/8"-16 nuts, 2 x 1/2"-13 nuts, 2 x #10-32 nuts, 3 x 1/4"-20 nylon insert nuts, 6 x 3/8" flat washers, 2 x 1/2" flat washers, 6 x 3/8" lock washers, 2 x 1/2" lock washers, 2 x #10 lock washers, 1 electrical bracket, 2 x 36" Class III safety cables, 2 x 3/8" quicklinks, and 2 x black cap plug receivers.
Yes. The BX8869 Tail Light Wiring Kit is recommended for Impreza, WRX, and Outback models. The BX8848 4-Diode Wiring Kit is recommended for the Crosstrek model. These are separate purchases.
Blue Ox recommends that baseplates be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Dealers can be found at www.blueox.com or by contacting Blue Ox Customer Care at (402) 385-3051.
Yes. The fascia and bumper must be removed for baseplate installation and then reinstalled after the baseplate is mounted. All removed components should be placed on a flat, sturdy surface and will be reinstalled unless otherwise noted.
Yes. Drilling and trimming are required. You will drill six holes through the frame using a 13/32" drill bit (three on each side). You will also need to trim the plastic splash guard and, for WRX/Outback models, make a notch in the frame using a reciprocating saw.
Using a reciprocating saw, you must make a notch down 6-1/2" from the top of the frame and flush with the outside of the frame on both sides of the vehicle. This is required for both WRX/Outback and Impreza/Crosstrek models.
Yes. Using a utility knife, cut the plastic splash guard flush with the existing hole approximately 3/4" deep and 3-1/4" long on both sides of the vehicle. For Impreza/Crosstrek models, cut the splash guard flush as shown in the instructions.
1/2"-13 Grade 5 bolts should be torqued to 78 foot-pounds.
3/8"-16 Grade 5 bolts should be torqued to 33 foot-pounds.
1/4"-20 Grade 5 bolts should be torqued to 10 foot-pounds.
For WRX/Outback: (1) Remove fascia by removing push pins and screws; (2) Remove sensor screw on driver side; (3) Remove four bumper bolts on each side; (4) Make a 6-1/2" notch in the frame on both sides using a reciprocating saw; (5) Slide baseplate onto vehicle, align existing frame hole, install 1/2"-13 x 1-1/4" bolt with washers and nut, level baseplate, fully tighten; (6) Drill six remaining holes (three per side) using 13/32" drill bit; (7) Remove nut from inside frame using flat chisel; (8) Ream out sensor bracket hole; (9) Install 3/8"-16 x 1-1/4" bolts in top two holes with sensor bracket on lower bolt, and 3/8"-16 x 2" bolt with spacer tube in bottom hole; (10) Reinstall bumper and trim splash guard; (11) Reinstall fascia and electrical connections.
For 2012-2013 Impreza/Crosstrek: (1) Remove six fascia push pins from top edge; (2) Remove two push pins from wheel well on each side; (3) Remove eight push pins from fascia underside; (4) Unsnap fascia corners from fender and remove fascia; (5) Remove sensor screw on driver side (10MM socket); (6) Remove wire loom push pin on passenger side; (7) Remove four bumper bolts (12MM socket, two per side top and bottom); (8) Trim lower foam support on both sides; (9) Remove horn bracket bolt (12MM socket), disconnect electrical lines, reorient horn, reinstall bracket; (10) Make 6-1/2" notch in frame on both sides using reciprocating saw; (11) Slide baseplate onto vehicle, align existing frame hole, install 1/2"-13 x 1-1/4" bolt with washers and nut, level baseplate, fully tighten; (12) Drill six remaining holes using 13/32" drill bit; (13) Remove nut from inside frame using flat chisel on both sides; (14) Ream out sensor bracket hole; (15) Install 3/8"-16 x 1-1/4" bolts in top two holes with sensor bracket on lower bolt, and 3/8"-16 x 2" bolt with spacer tube in bottom hole; (16) Trim splash guard and reinstall; (17) Reinstall washer reservoir, bumper, and fascia with electrical connections.
For 2014 Impreza/Crosstrek: (1) Remove six fascia push pins from top edge; (2) Remove two push pins from wheel well on each side; (3) Remove eight push pins from fascia underside; (4) Unsnap fascia corners from fender and remove fascia; (5) Remove sensor screw on passenger side (10MM socket); (6) Remove wire loom push pin on passenger side; (7) Remove push pin from filler neck, remove three washer reservoir screws (10MM socket), disconnect/plug all lines, set reservoir aside; (8) Remove four bumper bolts (12MM socket, two per side top and bottom); (9) Trim lower foam support on both sides; (10) Remove horn bracket bolt (12MM socket), disconnect electrical lines, reorient horn, reinstall bracket; (11) Drop front of belly pan down, remove two screws (12MM socket) and two push pins from sides, unsnap front lip; (12) Remove belly pan bracket screw (10MM socket) on both sides; (13) Remove four frame extension bolts (14MM socket, two front and two back) on driver side, remove wire loom from frame; (14) Make 6-1/2" notch in frame on both sides using reciprocating saw; (15) Slide baseplate onto vehicle, align existing frame hole, install 1/2"-13 x 1-1/4" bolt with washers and nut, level baseplate, fully tighten; (16) Drill six remaining holes using 13/32" drill bit; (17) Remove nut from passenger side only using flat chisel; (18) Ream out sensor bracket hole, reattach sensor when installing 3/8" baseplate bolts; (19) Install 3/8"-16 x 1-1/4" bolts in top two holes with sensor bracket on lower bolt, and 3/8"-16 x 2" bolt with spacer tube in bottom hole; (20) Trim splash guard, reinstall washer reservoir/bumper/frame extension/belly pan; shorten bottom outside bumper bolts to clear baseplate using supplied 1/4" hardware; use supplied 1/4" hardware to reinstall front arm of washer reservoir to baseplate (note: baseplates manufactured prior to 9/14 may need hole drilled for reservoir).
Yes. You must use a sufficient amount of Loctite Red on all bolt threads before tightening. Tighten all bolts according to the torque chart provided.
After installing the 1/2"-13 x 1-1/4" bolt into the existing frame hole on both sides, level the baseplate before fully tightening the 1/2" hardware. The baseplate must be level before drilling the remaining six holes.
The spacer tube is installed between the baseplate and frame in the bottom 13/32" hole on each side. A 3/8"-16 x 2" bolt is inserted through the spacer tube. Two spacer tubes are included in the kit.
The sensor bracket attaches to the lower of the two top 3/8"-16 x 1-1/4" bolts on each side of the baseplate. For WRX/Outback models, the existing sensor bracket hole must be reamed out with a 13/32" drill bit. For Impreza/Crosstrek models, the sensor bracket hole is reamed out and the sensor is reattached when installing the 3/8" baseplate bolts.
The horn bracket bolt must be removed (12MM socket) and the electrical lines disconnected. The horn must be reoriented for baseplate clearance. Loosen the bolt on the backside of the bracket, position the arm as shown in the instructions, retighten the bolt, and reinstall the horn bracket with electrical connections.
Yes. For 2014 models only, you must remove the push pin from the filler neck, remove three screws from the washer reservoir (10MM socket), disconnect and plug all lines, and set the reservoir aside. The reservoir is reinstalled later, and the front arm is reattached to the baseplate using supplied 1/4" hardware.
Yes. For 2014 models only, drop the front of the belly pan down by removing two screws (12MM socket) from underneath and two push pins from the sides, then unsnap the front lip from the brackets. Remove the belly pan bracket screw (10MM socket) on both sides. The belly pan is reinstalled after baseplate installation.
Yes. For 2014 models only, on the driver side, remove four bolts from the frame extension (14MM socket: two in back and two in front) and set the extension aside. Remove the wire loom from the frame behind the extension. The frame extension is reinstalled after baseplate installation.
For 2014 models, the bottom outside bumper bolts will need to be shortened to clear the baseplate. Use the supplied 1/4" hardware to reinstall these bolts.
Hold the fascia as close to its original position as possible, mark and trim the fascia around the convenience links and attachment tabs. Then reinstall the fascia and reconnect all electrical connections.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The cables should be secured to a solid piece of the vehicle frame. The photo in the instructions shows the recommended installation. Secure the cables on both sides of the vehicle. Ensure the safety cables do not rub against any hoses or moving parts. Do not mount the cables against wires, hoses, or brake lines.
No, the breakaway bracket installation is optional. If you choose to install it, use the supplied 1/4" hardware and install the bracket in your desired location on the vehicle.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. Reference your vehicle owner's manual for the manufacturer's towing specifications.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The cables prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails or becomes disconnected. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Two cables are included with the baseplate kit.
No. Permanent baseplate safety cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
Yes. Remove the attachment tabs when not in use.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Use a good quality paint to spray cut edges of frame to prevent rusting.
The BX3615 fits 2012-2014 Subaru Impreza (all models), 2008-2013 Impreza WRX, 2010 Impreza Outback Sport, and 2013 Subaru XV Crosstrek. Verify your model year and body style in the installation instructions.
You will need: flat chisel, utility knife, Phillips screwdriver, torque wrench, drill, reciprocating saw, tape measure, 13/32" and 17/32" drill bits, 10MM/12MM/9/16"/3/4" sockets and wrenches, and Loctite Red.
Yes. You will drill six holes through the frame using a 13/32" drill bit, trim the plastic splash guard with a utility knife, and make a 6-1/2" notch in the frame using a reciprocating saw on both sides.
Yes. The fascia and bumper must be removed for installation and then reinstalled. For 2014 Impreza/Crosstrek models, the washer reservoir, belly pan, and frame extension must also be removed.
1/2"-13 Grade 5: 78 ft-lbs; 3/8"-16 Grade 5: 33 ft-lbs; 1/4"-20 Grade 5: 10 ft-lbs. Use Loctite Red on all bolt threads before tightening.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for towing specifications.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to the recommended torque specifications with Loctite Red.
Yes. Two 36" Class III safety cables and two 3/8" quicklinks are included. They must be attached to the baseplate and secured to the vehicle frame on both sides.
The dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances. If the baseplate does not fit properly, contact Blue Ox Customer Care at (402) 385-3051.
Hold the fascia as close to its original position as possible, mark and trim the fascia around the convenience links and attachment tabs. If the fascia still does not fit, contact Blue Ox Customer Care at (402) 385-3051.
Be sure that all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia. If connections are still not working, verify that the wiring kit (BX8869 for Impreza/WRX/Outback or BX8848 for Crosstrek) is properly installed according to its instructions.
