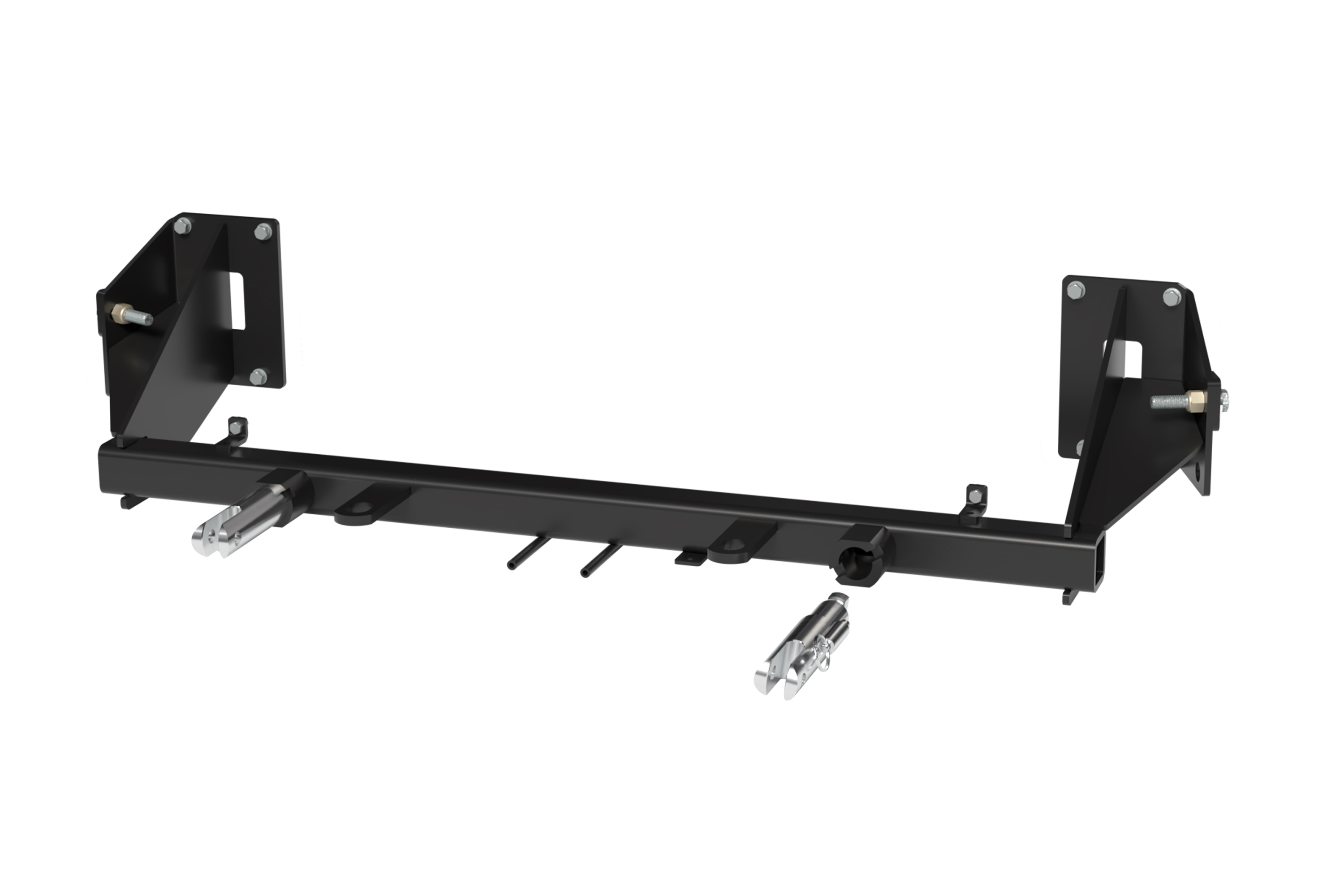

Custom-designed: The Blue Ox BX3623 Tow Bar Bracket is tailor-made for specific towed vehicles, ensuring a perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX3623 Tow Bar Bracket is a high-quality, custom-designed base plate, tailored for specific towed vehicles. Crafted with top-grade steel and finished with a durable black powder coat, this tow bar bracket is engineered to withstand the rigors of regular use. It's a bolt-on mounting type, making the installation process straightforward and user-friendly. What's more, every purchase includes all the necessary mounting hardware and clear, comprehensive instructions to guide a do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2019 | Subaru Impreza | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
Yes, the BX3623 is designed for 2017-19 Subaru Impreza with manual transmission and no fog lights. If the front of your vehicle looks different than shown in the manual, contact Blue Ox technical service at (402) 385-3051 before proceeding with installation.
No. The BX3623 is specifically designed for vehicles with no fog lights. If your vehicle has fog lights, this baseplate is not compatible.
The kit includes: one BX3623 baseplate (61-7980), two attachment tab assemblies with holes (62-3468), three 1/4"-20 x 3/4" Grade 5 bolts, two 1/2"-13 x 2-1/2" Grade 5 bolts, two #10-32 1/2" round slotted head screws, eight 8MM-1.25 x 30MM Grade 8.8 bolts, two #12-14 x 1" self-drilling screws, hex nuts, lock nuts, flat washers, lock washers, one electrical bracket, two Class III safety cables, two 3/8" quicklinks, and two black cap plug receivers. See the parts list on page 3 for complete details and part numbers.
Required tools are: flat screwdriver, utility knife, torque wrench, drill, 1/2" drill bit, 10MM socket, 13MM socket, 7/16" socket, 7/16" wrench, 9/16" socket, 3/4" socket, 3/4" wrench, 5/16" nut driver, and Loctite Red. A reciprocating saw may be needed for trimming, and paint is recommended for sealing cut frame edges.
Blue Ox recommends that baseplates be installed by Blue Ox dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox dealers can be found at www.blueox.com or by contacting technical service at (402) 385-3051. The manual notes that dimensional variations between vehicles can be considerable and the baseplate may need to be tailored slightly to compensate for manufacturer tolerances.
The manual does not specify whether the battery must be disconnected. Contact Blue Ox technical service at (402) 385-3051 for guidance on this step.
The manual states that the BX8869 Tail Light Wiring Kit is recommended for this vehicle, but does not confirm whether it is included in the baseplate kit. Contact your Blue Ox dealer or technical service at (402) 385-3051 to confirm whether this kit must be purchased separately.
Yes. You must drill a 1/2" hole through the frame on both sides of the vehicle so it meets the corresponding slotted hole on the baseplate. The manual indicates the location for drilling in step 8. When using a power drill, be aware of the dangers of torque and drill bit length. After drilling, use a good quality paint to spray the cut edges of the frame to prevent rusting.
Yes. You must trim the foam pieces next to the shutters on each side of the vehicle as indicated in step 6. Additionally, in step 12, you must mark and trim the fascia around the convenience links and attachment tabs before reinstalling it. When using a reciprocating saw, be aware of objects behind the cutting surface.
No. The bumper is removed in step 5 and is not reinstalled. The fascia, however, is removed in step 3 and reinstalled in step 12 after the baseplate installation is complete.
According to the metric bolt torque chart on page 1, 8MM Grade 8.8 bolts should be tightened to 22 foot-pounds. All bolts must have Loctite Red applied to the threads before tightening.
According to the inch bolt torque chart on page 1, 1/2"-13 Grade 5 bolts should be tightened to 78 foot-pounds. All bolts must have Loctite Red applied to the threads before tightening.
According to the inch bolt torque chart on page 1, 1/4"-20 Grade 5 bolts should be tightened to 10 foot-pounds. All bolts must have Loctite Red applied to the threads before tightening.
The attachment tab height is 13 inches and the attachment tab width is 23 inches.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for your specific GVWR and towing specifications.
Yes. Two Class III safety cables (part 226-0046) and two 3/8" quicklinks (part 229-0359) are included. These permanent baseplate safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. They are strongly recommended and must remain installed as long as the baseplate is on the vehicle. The cables must not be mounted against wires, hoses, or brake lines.
No. The permanent baseplate safety cables included with the BX3623 are to be used in conjunction with, and not as a replacement for, legally required safety cables that attach the towed vehicle to the towing vehicle.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. This is critical to verify that the wiring installation is correct before the fascia is put back in place.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended torque specifications. The attachment tabs should be removed when not in use if applicable. Register your product at www.blueox.com to receive alerts about maintenance, updates, and safety bulletins.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox dealer or distributor. Failing to follow this requirement will void the manufacturer's warranty.
Blue Ox offers a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use. The warranty is non-transferable and requires the customer warranty card to be returned within 30 days of purchase and a copy of the original invoice. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, misuse, accident, normal wear and tear, paint, or rust. Register your warranty at http://blueox.com/warranty/.
The BX3623 fits 2017-19 Subaru Impreza with manual transmission and no fog lights. If your vehicle has fog lights or automatic transmission, this baseplate is not compatible. Contact Blue Ox at (402) 385-3051 if your vehicle's front looks different.
You need a torque wrench, drill with 1/2" bit, sockets (10MM, 13MM, 7/16", 9/16", 3/4"), wrenches (7/16", 3/4"), 5/16" nut driver, flat screwdriver, utility knife, and Loctite Red. A reciprocating saw may be needed for trimming.
Yes. Blue Ox recommends installation by Blue Ox dealers familiar with the product and equipped for fit work. Dimensional variations between vehicles can be considerable. Find a dealer at www.blueox.com or call (402) 385-3051.
Use the torque chart on page 1: 1/4"-20 Grade 5 bolts = 10 ft-lbs; 1/2"-13 Grade 5 bolts = 78 ft-lbs; 8MM Grade 8.8 bolts = 22 ft-lbs. Apply Loctite Red to all bolt threads before tightening.
The baseplate is tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for your GVWR and towing specifications.
