Custom Designed For Your Vehicle
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Blue Ox base plates are custom designed for each specific towed vehicle. When you purchase a Blue Ox base plate, it includes all the necessary hardware and instructions for a do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2002 - 2003 | Subaru Legacy | Wagon | Comes with Standard Attachment Tabs Install Rating 2 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill |
Yes, the BX3610 is designed specifically for the 2002 Subaru Legacy "L" Wagon. No drilling is required for installation. The baseplate attachment tabs are 24 inches center to center with a height of 15 inches.
No. The factory tie down brackets are removed during installation and will not be reinstalled. The metric bolts from these brackets are reused to attach the baseplate to the vehicle.
The BX8869 is available for the 2002 Subaru Legacy L Wagon and is shown in the location diagram at the bottom taillight assembly on the driver's side. The manual does not specify whether it is required or optional for baseplate operation.
You will need a 10MM socket, a 14MM socket, and Loctite Blue. The 10MM socket is used to remove the metric bolt inside the wheel well on the upper fascia corner (both sides). The 14MM socket is used to remove the metric bolts from the tie down brackets. Loctite Blue must be applied to all bolts before tightening.

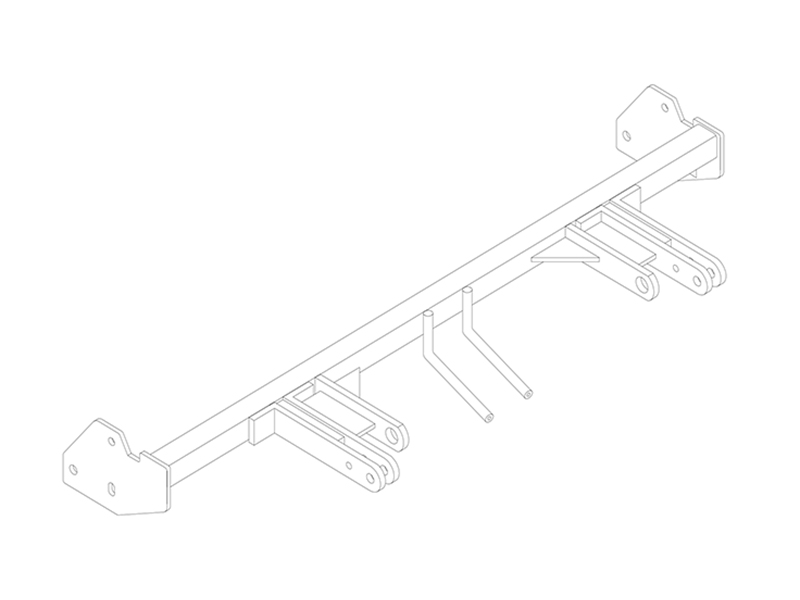

The BX3610 kit includes: one baseplate weldment (61-5784), two #12-14 x 1" self-drilling screws (201-0979), two #10-32 x 1/2" slot round head screws (201-0192), two #10 lock washers (203-0054), two #10-32 hex nuts (202-0047), two 4-way connector adapters (101-5822), two 36" Class III baseplate safety cables (226-0046), and four 3/8" zinc-plated quicklinks (229-0359). You will also reuse the existing metric bolts from the factory tie down brackets.
The manual does not specify whether battery disconnection is required. Consult your vehicle's service manual or a qualified technician before beginning work.
Follow these steps in order: (1) Remove five push pins from the top side of the fascia. (2) Just forward of the front tire, on the lower fascia corner, remove two push pins on both sides. (3) Remove three push pins from the underside of the fascia and cross member. (4) Using a 10MM socket, remove the metric bolt inside the wheel well on the upper fascia corner on both sides. (5) Pull the fascia forward and set it aside.
Using a 14MM socket, remove three metric bolts from the driver's side tie down bracket. Remove the passenger's side tie down bracket also with the 14MM socket. The tie down brackets will not be reinstalled. The metric bolts removed from both brackets will be reused to attach the baseplate.
No drilling is required. The baseplate uses the existing metric bolt holes from the factory tie down brackets. However, dimensional variations between vehicles may require filing a hole slightly to allow a bolt to clear.
Yes, on the passenger's side. After removing the fascia, hold it in place and mark areas that need to be trimmed. Trim accordingly and reinstall the fascia. The specific areas requiring trimming vary due to dimensional variations between vehicles.
Hold the baseplate to align with the tie down bracket mounting positions and fasten with the existing metric bolts on both sides. Before tightening, apply Loctite Blue to all bolts. Due to dimensional variations between vehicles, it may be necessary to file a hole slightly to allow a bolt to clear.
The manual does not provide a torque specification for the baseplate mounting bolts. Contact Blue Ox directly at 402-385-3051 or consult your vehicle's service manual for the correct torque value.
Use Loctite Blue on all bolts before tightening during installation. The manual later references Loctite Red for pre-trip inspection and maintenance, but does not clarify whether this is for reapplication or a different purpose.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX3610 kit includes two 36" Class III baseplate safety cables (226-0046) and four 3/8" quicklinks (229-0359) for this purpose. These cables prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. They must be connected from the baseplate to the frame rail or cross member and must not be mounted against wires, hoses or brake lines.
No. Permanent baseplate safety cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. If the baseplate is improperly installed against a wire or hose, it could cause fluid leaks or electrical shorts some time after installation. Do not mount permanent baseplate safety cables against wires, hoses or brake lines.
Inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Ensure all bolts are tightened to the recommended specifications. Use Loctite Red on all bolts during this inspection.
Yes. Remove the attachment tabs when not in use, if applicable.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Do not substitute other devices if the tow bar pin and clip are lost. Contact Blue Ox or your dealer for genuine replacement parts.
For your safety and the preservation of your baseplate, use a replacement bolt of the same grade (usually Grade 5). Use only genuine factory replacement parts. Repair parts may be ordered through your nearest Blue Ox dealer or distributor. Do not use homemade or nontypical parts.
Yes, the BX3610 is designed specifically for the 2002 Subaru Legacy "L" Wagon. No drilling is required.
You need a 10MM socket, 14MM socket, and Loctite Blue. The baseplate reuses existing metric bolts from the factory tie down brackets.
Yes, both tie down brackets are removed using a 14MM socket. The metric bolts from these brackets are reused to attach the baseplate.
Yes, two 36" Class III safety cables and four 3/8" quicklinks are included. They are strongly recommended and must be connected from the baseplate to the frame rail or cross member.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to recommended specifications.
