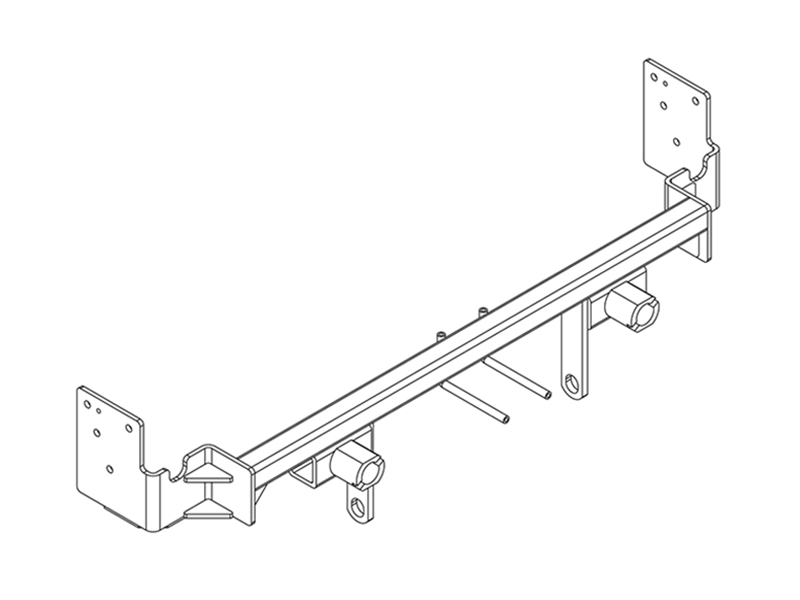

Custom Design: The Blue Ox BX3519 Tow Bar Bracket is custom designed for each specific towed vehicle, ensuring a perfect fit and seamless integration.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Introducing the Blue Ox BX3519 Tow Bar Bracket - a key component for towing vehicles, designed perfectly for a custom fit. Made with premium steel and finished with a black powder coat, this base plate ensures longevity and durability. The Blue Ox Tow Bar Bracket comes with a bolt-on mounting type that provides a solid attachment point for your vehicle. What's more, it includes all the necessary hardware and comprehensive instructions for a do-it-yourself installation. Offering both strength and convenience, the Blue Ox BX3519 is the reliable choice for your towing needs.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 | Suzuki Aerio | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |

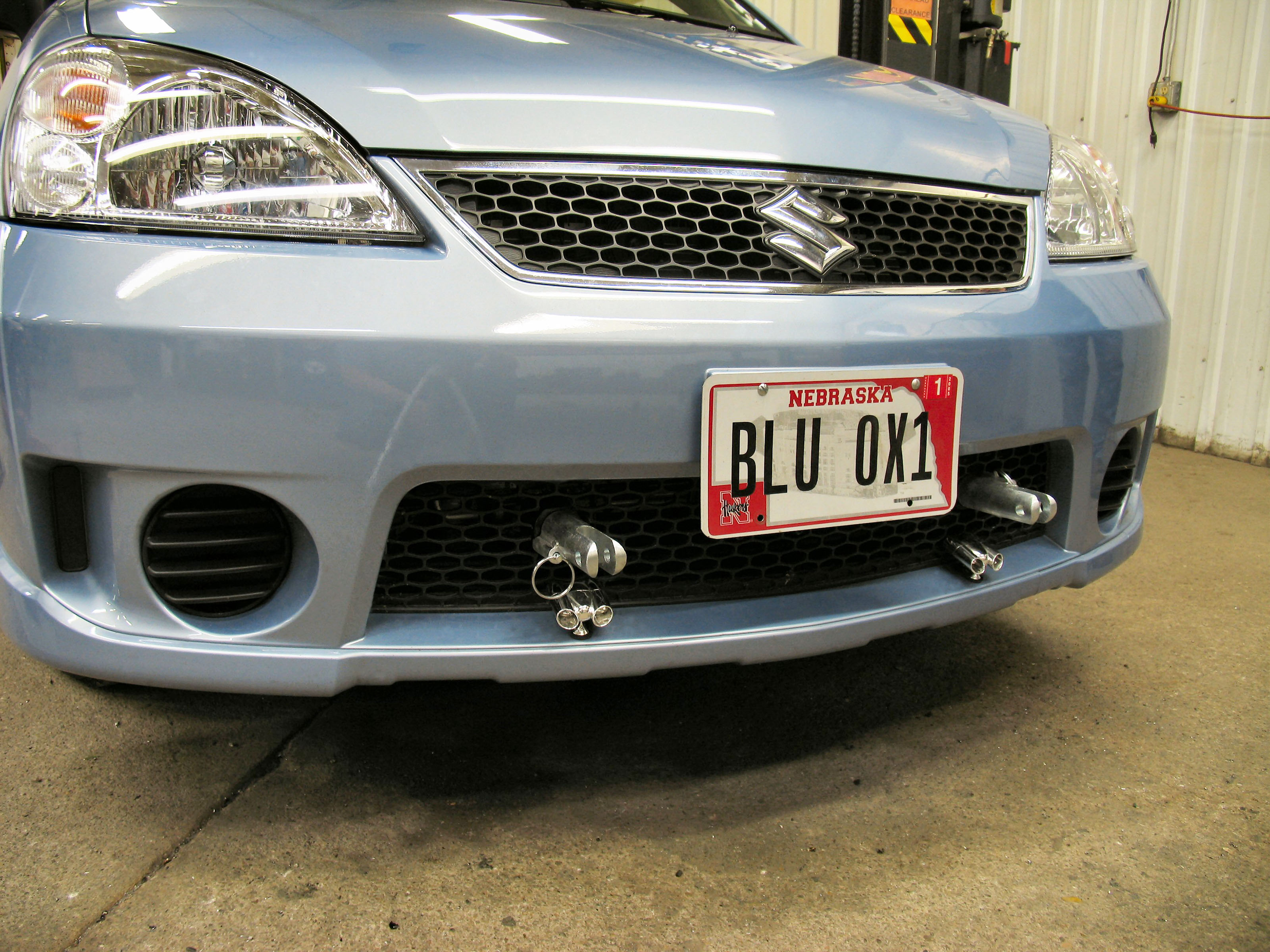

The BX3519 is a baseplate designed for towing a 2005 Suzuki Aerio behind a motorhome or other tow vehicle. It includes an attachment tab with a height of 15 inches and width of 20 inches for connection to a tow bar. The baseplate is mounted to the frame of the vehicle using bolts, spacers, and nut plates.
Yes, the BX3519 is designed specifically for the 2005 Suzuki Aerio. However, dimensional variations between otherwise identical vehicles can be considerable. Minor adjustments may be necessary to compensate for manufacturer tolerances, including filing holes slightly, bending electrical rods, or bending end plates.
No. Due to the design of the removable tabs on the BX3519, the RangeFinder II and Ambassador tow bars cannot be used with this baseplate. Motorhome mount tow bars are recommended instead.
Most adapters cannot be used with the BX3519 baseplate. The only exceptions are the BX8833 and BX88151 adapters, which are compatible.
Required tools include: 10MM socket, 12MM socket, 9/16" socket, 13/32" drill bit, Phillips screwdriver, utility knife, diagonal cutters, vice grips, reciprocating saw, and Loctite RED. A 7MM socket is also needed for some fastener removal during disassembly.
No, the BX8869 Bulb and Socket Wiring Kit is not included. However, it is recommended for the 2005 Suzuki Aerio and should be ordered separately if needed.
The front fascia, air intake tube, and windshield washer reservoir must be removed for baseplate installation. These components are reinstalled after the baseplate is secured. The removal sequence is detailed in steps 1 through 10 of the installation instructions.
Yes, drilling is required. Using a 13/32" drill bit, you must drill all holes into the frame using the baseplate as a template. This is done after the baseplate is temporarily positioned and clamped in place.
Yes, trimming is required. The air dam behind the bumper on the passenger's side must be trimmed. Additionally, the tie-down support webbing on both sides of the vehicle must be cut and bent using a reciprocating saw to prepare the area for baseplate installation.
Using a reciprocating saw, four cuts are made to the tie-down support webbing on both sides of the vehicle. The first cut is made on the front of the webbing just above the radiator cross member and back to the first rib. The second cut is made on the webbing bend just above the first cut. The webbing between these cuts is bent toward the radiator. The third and fourth cuts are made further back, and the webbing is bent forward and flat with the tie-down support. These modifications are permanent and necessary for baseplate installation.
The inside webbing of the metal bumper is cut on both sides using a reciprocating saw, and the webbing is bent flat with the bottom of the bumper using vice grips. This is done after the bumper is removed and set upside down on a bench.
The installation sequence is: (1) remove fascia fasteners and components (steps 1–6); (2) remove washer reservoir (step 7); (3) remove air intake tube and air dam (step 8); (4) remove bumper (step 9); (5) release and reposition temperature sensor (step 10); (6) move condenser tube (step 11); (7) cut and bend tie-down support webbing (step 12); (8) position and clamp baseplate (step 13); (9) drill frame holes (step 14); (10) install nut plates, bolts, and spacers (step 15); (11) modify bumper webbing (step 16); (12) reinstall washer reservoir (step 17); (13) reinstall fascia (step 18); (14) install tow bar and safety cables (step 19).
The baseplate is slid onto the outside of the tie-down support where webbing was cut. The driver's side of the baseplate is aligned with the existing hole for the front washer reservoir bolt location, and this bolt is installed to hold the baseplate in place. The top middle hole of the baseplate on the passenger's side is aligned with the existing hole in the frame for the air intake tube and clamped in place with a vice grip.
According to the bolt torque specifications table on page 1, a 3/8-inch Grade 5 bolt should be torqued to 33 foot-pounds. However, the manual also references a torque chart on page 3 of the Baseplate Towing General Instructions for the specific final torque values for this installation. Loctite RED must be applied to all bolts before tightening.
According to the bolt torque specifications table on page 1, a 6MM Grade 8.8 metric bolt should be torqued to 6 foot-pounds.
The baseplate is secured using 3/8-16 hex bolts with lock washers and nut plates. Two bolts are installed at the top of each side (four total), and one bolt is installed at the bottom of each side (two total). Spacer plates are positioned between the frame and baseplate with the notch facing down. All bolts must be treated with Loctite RED before tightening.
The attachment tab height is 15 inches and the attachment tab width is 20 inches.
A 13/32-inch drill bit is used to drill all holes into the frame using the baseplate as a template.
If the baseplate is in an accident, it must be replaced and cannot be reused. An accident can cause unseen damage, and using a damaged baseplate could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Towing behind a non-motorized vehicle will void the warranty. The BX3519 is designed for use with motorhomes and other motorized tow vehicles.
When using power drills, be aware of the dangers of torque and drill bit length. The manual recommends taking care to prevent injury from drill torque and ensuring the drill bit does not extend too far into the vehicle structure.
Handling of some cosmetic parts when installing this product may require the use of protective covers, rags, and specialty tools to prevent damage. Care should be taken to protect the vehicle's exterior during removal and reinstallation of the fascia and other components.
Before installing the fascia, ensure that all electrical connections are plugged in properly and functioning. This is critical to ensure the vehicle's electrical systems work correctly after installation.
After the baseplate is installed, the tow bar and safety cables should be installed according to the tow bar instructions. The installer should demonstrate the tow bar installation to the customer and ensure all contents and packages of Blue Ox products are included. The customer should receive all instruction sheets for their products.
Blue Ox towing products are intended to be installed by Blue Ox dealers who are familiar with the products and have the equipment necessary and knowledge to do fit work. Blue Ox dealers can be found at www.blueox.com or by contacting the Customer Care Department at (402) 385-3051.
If the front of your vehicle looks different than shown in the manual, call Blue Ox Customer Care at (402) 385-3051. This may indicate a different vehicle variant or model year that requires different installation procedures.
The BX3519 kit includes: one baseplate weldment (61-6150), two nut plates with 14-inch wire (61-5208), two double nut plate weldments (61-5843), four spacer plates (102-6341), six 3/8-16 x 1.5-inch Grade 5 bolts (201-0440), six 3/8-inch lock washers (203-0010), two 6MM-1 x 45MM Grade 8.8 hex bolts (201-0702), four 1/4-inch flat washers (203-0001), two 3/8-inch Schedule 40 pipes (one 1-inch and one 0.5-inch), two #12-14 x 1-inch self-drilling screws (201-0979), two #10-32 x 0.5-inch round head screws (201-0192), two #10 lock washers (203-0054), two #10-32 hex nuts (202-0047), two 4-way connector adapters (101-5822), two attachment assemblies (62-3468), two 36-inch safety cables (226-0046), four 3/8-inch quicklinks (229-0359), and two cap plugs (290-0437).
The washer reservoir is reinstalled using a 6MM hex bolt, a 1-inch spacer tube, a 0.5-inch spacer tube, and 1/4-inch flat washers for the front two bolt locations. The existing bolt is used for the back bolt location on the driver's side. The electrical connections and water lines must be reconnected.
The double nut plate is inserted into the opening on the end of the frame rail to align with the top two drilled holes. Two 3/8-16 hex bolts with lock washers are hand-tightened. Spacer plates are then slid between the frame and baseplate with the notch facing down and positioned on top of the bolts. The top two bolts on both sides are then tightened. A nut plate is inserted into the opening to align with the lower drilled hole, and a 3/8-16 hex bolt with lock washer is tightened. All bolts must be treated with Loctite RED before tightening.
Yes, the BX3519 is designed for 2005 Suzuki Aerio. Minor adjustments may be needed to compensate for manufacturer tolerances.
Motorhome mount tow bars are recommended. RangeFinder II and Ambassador tow bars cannot be used. Most adapters are incompatible except BX8833 and BX88151.
Yes, drilling with a 13/32-inch drill bit is required. Trimming of the air dam and tie-down support webbing is also required.
Required tools include 10MM and 12MM sockets, 13/32-inch drill bit, Phillips screwdriver, utility knife, vice grips, reciprocating saw, and Loctite RED.
The front fascia, air intake tube, and windshield washer reservoir must be removed. These are reinstalled after baseplate installation.
The baseplate must be replaced and cannot be reused. Using a damaged baseplate could result in separation from the tow vehicle and serious injury.
3/8-inch Grade 5 bolts should be torqued to 33 foot-pounds. Loctite RED must be applied before tightening. Refer to the General Instructions for final torque values specific to this installation.
The manual states that dimensional variations between otherwise identical vehicles can be considerable. Minor adjustments may be necessary to compensate for manufacturer tolerances. These adjustments may include filing a hole slightly, bending electrical rods, or bending end plates. If alignment issues persist, contact Blue Ox Customer Care at (402) 385-3051.
Before reinstalling the fascia, ensure that all electrical connections are plugged in properly and functioning. If connections are not working, check that all plugs are fully seated and that no wires were damaged during removal of the fascia, air intake tube, or washer reservoir. Reconnect any unplugged connections and test again before proceeding.
