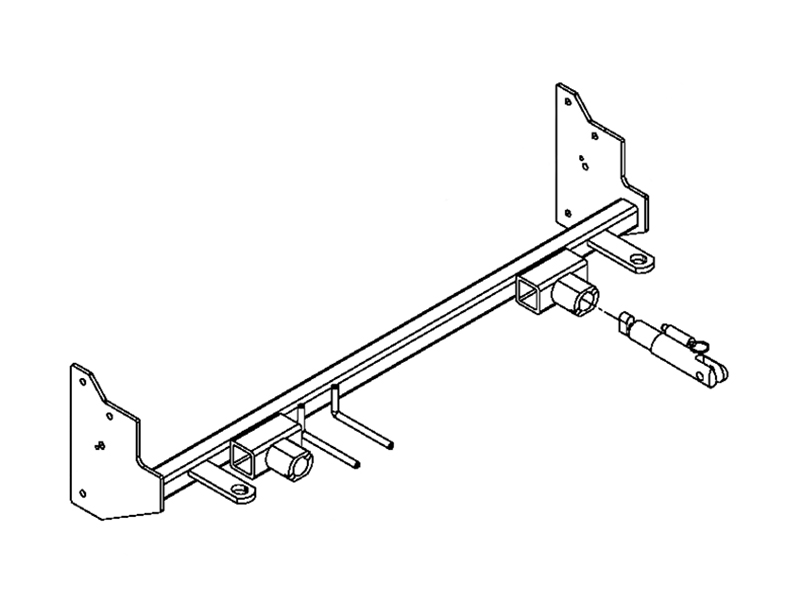

1. Custom Designed: The Blue Ox BX3521 Tow Bar Bracket is custom designed for each specific towed vehicle, ensuring a perfect fit and seamless integration.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Introducing the Blue Ox BX3521 Tow Bar Bracket - a robust, custom-designed solution for your towing needs. Made from high-quality steel, this base plate offers exceptional strength and durability. It features a black powder coat finish for an added layer of protection against rust and corrosion. The easy bolt-on mounting type means you can install it yourself, saving on labor costs. Plus, it comes complete with all necessary mounting hardware, making your installation process a breeze.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2007 | Suzuki Forenza | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Headlights Must be Removed and Replaced During Installation Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
Yes, the BX3521 is designed specifically for the 2005 Suzuki Forenza. The baseplate has an attachment tab height of 13.5 inches and width of 24 inches.
No. Due to the design of the removable tabs on the BX3521, the RangeFinder II tow bar cannot be used with this baseplate.
Only the BX8833 and BX88151 adapters can be used with the BX3521. All other adapters are incompatible with this baseplate.
Required tools include: T30 Torx socket, 10MM socket, 12MM socket, 7MM socket, 14MM socket, 9/16" socket, 13/32" drill bit, 1 1/4" hole saw, Phillips screwdriver, hammer, hack saw blade, large vise grips, and Loctite RED.
The fascia, metal bumper, air bag sensor, and headlight assemblies must be removed during installation and reinstalled after the baseplate is mounted. Additionally, the grille must be lifted to access tabs behind it, and the bumper bracket at the front of the frame rail must be removed.
Yes, drilling is required. You must enlarge the center hole at the frame rail opening using a 1 1/4" hole saw on both sides of the vehicle, and drill two additional holes using a 13/32" drill bit—one into the frame rail and one into the tie down bracket on each side.
Yes, trimming is required. The fascia may need trimming, and you must trim necessary openings in the grille for the attachment tabs using a hack saw blade. Additionally, the tie down brace ribs at the bottom of the frame rail must be flattened.
Possibly. The manual states that dimensional variations between otherwise identical vehicles can be considerable. Minor adjustments may include filing a hole slightly, bending electrical rods, and/or bending end plates to compensate for manufacturer tolerances. The baseplate was designed for easy installation but may require tailoring.
The manual references torque specifications on page 3 of the Baseplate Towing General Instructions, which is not included in this document. Contact Blue Ox Customer Care at (402) 385-3051 or toll free (888) 425-5382 for the specific torque value for 3/8-16 Grade 5 bolts.
The manual does not specify a torque value for the air bag sensor bolt. Step 21 instructs to snug but not over tighten the sensor using the 6MM-1.0 x 30MM hex bolt. Refer to the Baseplate Towing General Instructions or contact Blue Ox Customer Care at (402) 385-3051 for the exact torque specification.
Yes. The manual explicitly states: "BE SURE TO USE LOCTITE RED ON ALL BOLTS BEFORE TIGHTENING." This applies to all bolts used in the baseplate installation.
After inserting and tightening the 3/8-16 x 1 1/2" hex bolts to the nut plates, cut the excess nut plate wire so that it is flush with the frame rail. This applies to both sides of the vehicle.
It is important that the bumper bracket be oriented in the same position as it was before removal. The manual recommends labeling the top of each plate before removal for easier orientation when reinstalling.
Before installing the fascia, verify that all electrical connections are plugged in properly and functioning. Additionally, verify that the horn is free of any objects contacting it, such as the baseplate or nut plate wires, as contact may render it inoperable. Testing the horn at this point is strongly recommended.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. They must be connected from the baseplate to the frame rail or cross member and must have an adequate weight rating. They should remain installed as long as the baseplate is installed. However, they are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Do not mount permanent baseplate safety cables against wires, hoses, or brake lines. If the baseplate is improperly installed against a wire or hose, it could cause fluid leaks or electrical shorts some time after installation.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to the recommended specifications using Loctite RED.
Yes. The manual states: "Remove the attachment tabs when not in use (if applicable)."
The BX3521 has an attachment tab height of 13.5 inches and an attachment tab width of 24 inches.
The hardware kit includes: 1 weldment baseplate (61-6205), 6 weldments with 3/8-16 nutplates and 14" wire (61-5208), 6 3/8-16 x 1 1/2" hex bolts Grade 5 (201-0440), 6 3/8" lock washers (203-0010), 2 6MM-1.0 x 30MM hex bolts Grade 8.8 (201-0655), 2 #12-14 x 1" self-drilling screws (201-0979), 2 #10-32 x 1/2" slot round head screws (201-0192), 2 #10 lock washers (203-0054), 2 #10-32 hex nuts (202-0047), 2 4-way connector adapters (101-5822), 2 attachment assemblies SF/SB right (62-3468), and 2 black cap plugs (290-0437).
No. The manual explicitly states: "Use only genuine factory replacement parts on your baseplate. Do NOT substitute homemade or non-typical parts." If a bolt is lost or needs replacement, use a replacement bolt of the same grade. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor, or by calling (402) 385-3051.
The BX8869 Bulb and Socket Wiring Kit is recommended for the 2005 Suzuki Forenza with the BX3521 baseplate. It is not stated as required, but strongly recommended.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment necessary and knowledge to do "fit work." Blue Ox Dealers can be found at www.blueox.us or by contacting Blue Ox Customer Care at (402) 385-3051 or toll free (888) 425-5382.
Yes, the BX3521 is designed specifically for the 2005 Suzuki Forenza with 13.5" tab height and 24" tab width.
No. Only BX8833 and BX88151 adapters are compatible. RangeFinder II tow bar cannot be used.
Yes. You must enlarge the frame rail center hole with a 1 1/4" hole saw and drill two 13/32" holes—one in the frame rail and one in the tie down bracket on each side.
Yes. The fascia may need trimming, grille openings must be trimmed for attachment tabs using a hack saw, and tie down brace ribs must be flattened.
T30 Torx, 10MM, 12MM, 7MM, 14MM, 9/16" sockets; 13/32" drill bit; 1 1/4" hole saw; Phillips screwdriver; hammer; hack saw blade; large vise grips; and Loctite RED.
Yes. Apply Loctite RED to all bolts before tightening and tighten according to the torque chart in the General Instructions.
Permanent baseplate safety cables are strongly recommended and must be connected from the baseplate to the frame rail. They must be used with, not as a replacement for, legally required safety cables.
Inspect for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to specification with Loctite RED. Verify the horn is free of contact with the baseplate.
Verify that the horn is free of any objects contacting it, such as the baseplate or nut plate wires. Contact with the horn may render it inoperable. Inspect the horn area and reposition any interfering components. The manual recommends testing the horn before reinstalling the fascia.
The manual states that dimensional variations between otherwise identical vehicles can be considerable. Minor adjustments may include filing a hole slightly, bending electrical rods, and/or bending end plates to compensate for manufacturer tolerances. The baseplate was designed for easy installation but may require tailoring to fit properly.
