{'feature': 'Custom-Designed', 'description': 'Each Blue Ox BX3515 Tow Bar Bracket is specially designed for a specific towed vehicle, ensuring a perfect fit and efficient performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

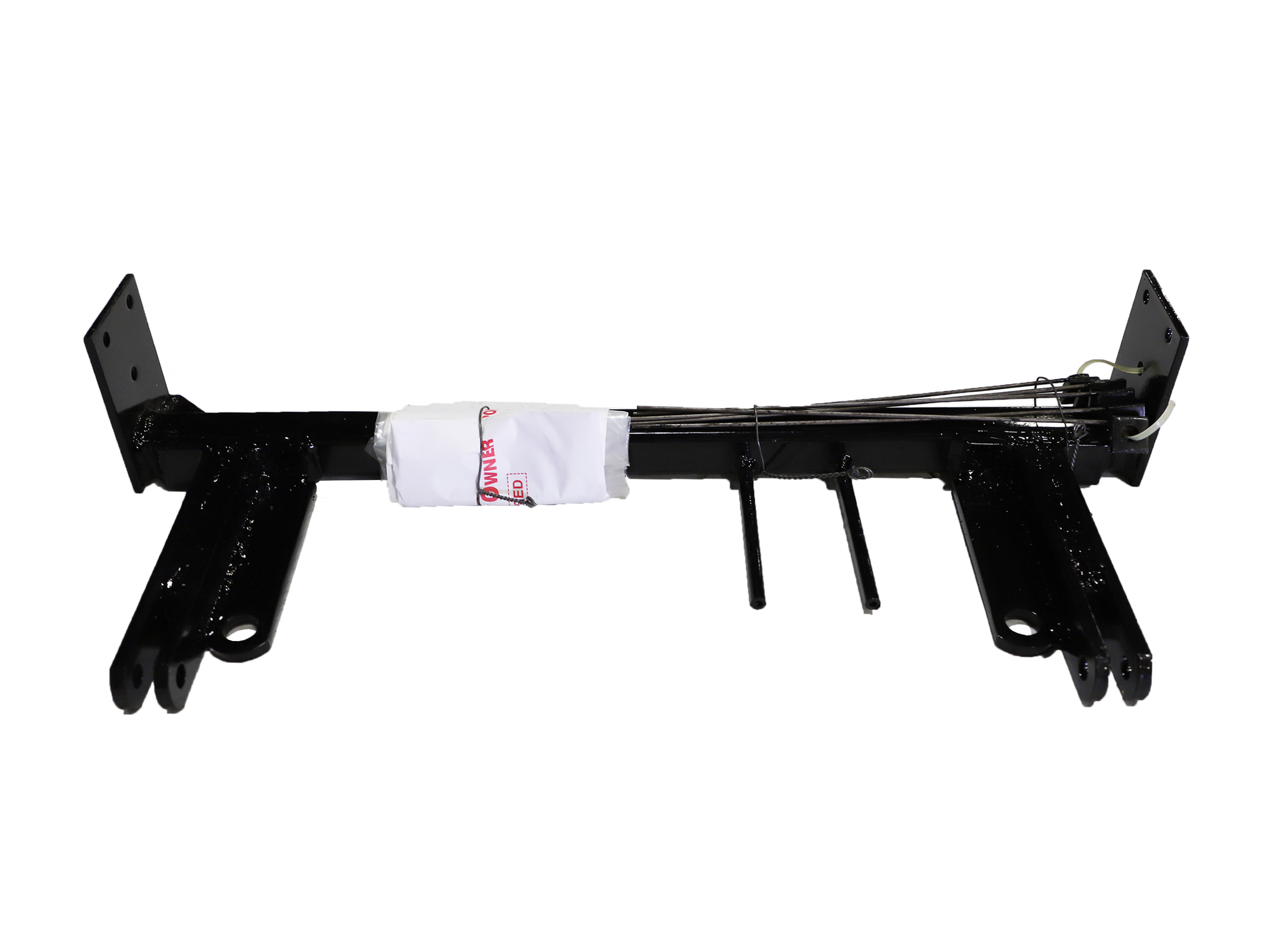

The Blue Ox BX3515 Tow Bar Bracket is a custom-designed, high-quality towing accessory that's crafted for each specific towed vehicle. Made from robust steel with a sleek black powder-coat finish, this tow bar bracket is not only strong and durable, but also adds a touch of style to your vehicle. It's designed for bolt-on mounting, ensuring an easy and secure installation. With all the necessary hardware included, you can undertake a do-it-yourself installation without any hassles. With this Blue Ox base plate, you can expect easy towing, superior quality, and a perfect fit.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2001 - 2003 | Suzuki Grand Vitara | Also XL7 Comes with Standard Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Headlights Must be Removed and Replaced During Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
Yes, the BX3515 baseplate is designed for 2001-03 Suzuki Grand Vitara and XL7 vehicles. Before purchasing, confirm the towability and pre-towing procedures for your specific vehicle with the owner's manual or by contacting the vehicle manufacturer.
The BX3515 has standard attachment tabs centered at 22 3/4". The Ambassador tow bar requires an adapter for attachment tabs not 24" wide. The Adventurer tow bar requires an adapter for attachment tabs less than 24" wide. The Acclaim tow bar will not fold and store without an adapter on vehicles with attachment tabs less than 24" wide. An additional 5/16" hole must be drilled in the attachment tabs to use certain adapters or a RangeFinderII towbar.
Required tools are: 10MM socket, 12MM socket, 3/4" wrench, 3/8" drill bit, 1/2" drill bit, drill, utility knife, and Loctite Red. You will also need a wrench or socket to remove existing vehicle fasteners during disassembly.
The kit includes: 6 nut plates (3/8", part 61-5208), 6 flat washers (3/8", part 203-0003), 6 hex bolts (3/8"-16 x 1 1/2", Grade 5, part 201-0440), 6 lock washers (3/8", part 203-0010), 1 baseplate (part 61-5555), 2 self-drilling screws (#12-14 x 1", part 201-0979), 2 adapters for 4-way connector (part 101-5822), 2 hex nuts (#10-32, part 202-0047), 2 lock washers (#10, part 203-0054), 2 slot round head screws (#10-32 x 1/2", part 201-0192), 1 baseplate safety cable 36" (part 226-0046), and 4 quicklinks 3/8" (part 229-0359).

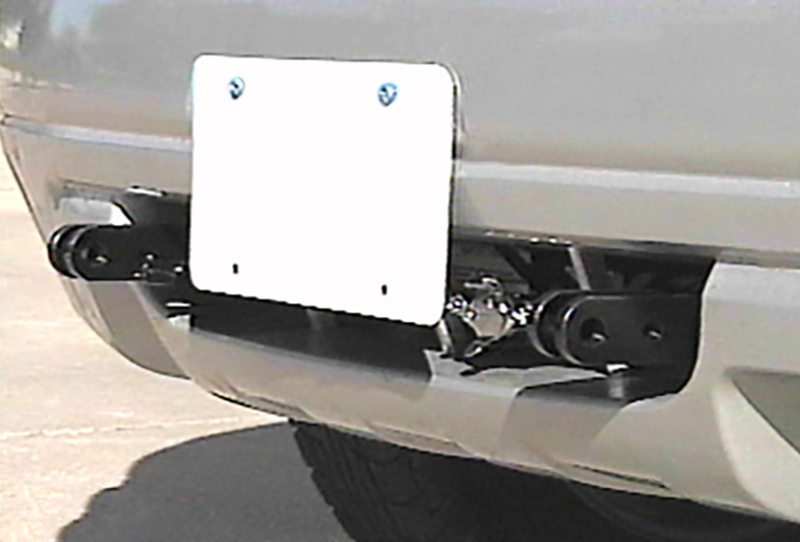

Yes. The grill, bumper, and headlights must be removed for baseplate installation. The attachment tabs will extend through the grill opening approximately four inches. After the baseplate is installed and positioned correctly, these components are reinstalled.
Blue Ox towing products and accessories are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do "fit work". Blue Ox Dealers can be found at www.blueox.us or by contacting Blue Ox Customer Care at (402) 385-3051 or toll free (888) 425-5382.
Six 3/8" holes must be drilled into the vehicle frame for baseplate installation. Additionally, two existing holes on the frame (one on the driver's side and one on the passenger side) must be drilled out to 3/8" diameter. An additional 5/16" hole must be drilled in the attachment tabs if using certain adapters or a RangeFinderII towbar.
The dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for auto manufacturer's tolerances. These minor adjustments may include filing a hole slightly, bending electrical rods, and/or bending end plates.
1. Remove grill push pins and grill. 2. Remove headlights (three bolts each). 3. Remove bumper molding push pins and screws, remove bolts in front of tires and on bumper facia bottom, then remove bumper. 4. Remove passenger-side bracket assembly and disconnect wiring. 5. Pull out plastic wire loom clip on passenger side; drill both frame holes to 3/8". 6. Align baseplate front bolt holes with frame holes, insert 3/8" bolts, reposition bumper to check alignment, remove bumper, mark remaining holes, remove baseplate. 7. Drill remaining holes to 3/8", install baseplate with 3/8" hardware and nut plates, tighten all six bolts. 8. Replace bracket, reconnect wiring, replace bumper and grill, replace headlights.
The manual provides a general torque chart for Grade 5 and Grade 8 bolts. For 3/8" Grade 5 bolts, the specification is 33 foot-pounds. For 3/8" Grade 8 bolts, the specification is 47 foot-pounds. The BX3515 uses 3/8"-16 x 1 1/2" Grade 5 hex bolts (part 201-0440). Tighten all six bolts according to the chart in the General Instruction Sheet after all bolts have been started.
The BX8869 Bulb and Socket Wiring Kit is recommended for this vehicle. All electrical connections must be plugged in properly and functioning before installing the fascia.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX3515 kit includes one 36" safety cable (part 226-0046) and four 3/8" quicklinks (part 229-0359). The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the safety cables against wires, hoses, or brake lines. These cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. It is also the owner's responsibility to hook up all towing equipment per manufacturer's instructions and recommendations.
Before towing, ensure all electrical connections are plugged in properly and functioning. Verify that the baseplate is level and properly positioned. Confirm the towability and pre-towing procedures for your vehicle with the owner's manual or by contacting the vehicle manufacturer. Install the tow bar and safety cables according to the instructions included in their packages. Do not substitute other devices if the tow bar pin and clip are lost.
Register your baseplate online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls. Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red on all bolts and tighten to the recommended specifications. The attachment tabs should be removed when not in use if applicable. Permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle.
No. Always use hardware supplied in the hardware kit and existing hardware specified in the Baseplate Installation Instructions. Even though bolts may already be present on the vehicle, do not assume they are adequate for baseplate mounting. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor, or by calling (402) 385-3051.
For your safety and the preservation of your baseplate, use a replacement bolt of the same grade as the original. The BX3515 uses Grade 5 bolts. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor, or by calling Blue Ox Customer Care at (402) 385-3051.
Yes, the BX3515 is designed for 2001-03 Suzuki Grand Vitara and XL7. Confirm towability with your vehicle's owner's manual or manufacturer.
Yes. The grill, bumper, and headlights must be removed for installation. They are reinstalled after the baseplate is positioned and secured.
Six 3/8" holes must be drilled into the vehicle frame. Two existing frame holes must also be drilled out to 3/8". An additional 5/16" hole is required if using certain adapters or a RangeFinderII towbar.
Required tools: 10MM socket, 12MM socket, 3/4" wrench, 3/8" drill bit, 1/2" drill bit, drill, utility knife, and Loctite Red.
The BX3515 uses 3/8" Grade 5 bolts, which should be torqued to 33 foot-pounds. Use Loctite Red on all bolts.
Yes. One 36" safety cable and four 3/8" quicklinks are included. Safety cables are strongly recommended and must be connected from the baseplate to the vehicle frame. Do not mount cables against wires, hoses, or brake lines.
The BX8869 Bulb and Socket Wiring Kit is recommended. All electrical connections must be plugged in and functioning before installing the fascia.
