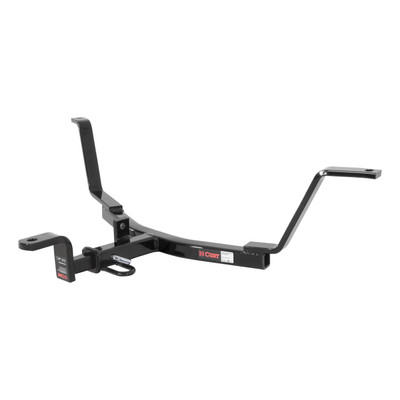

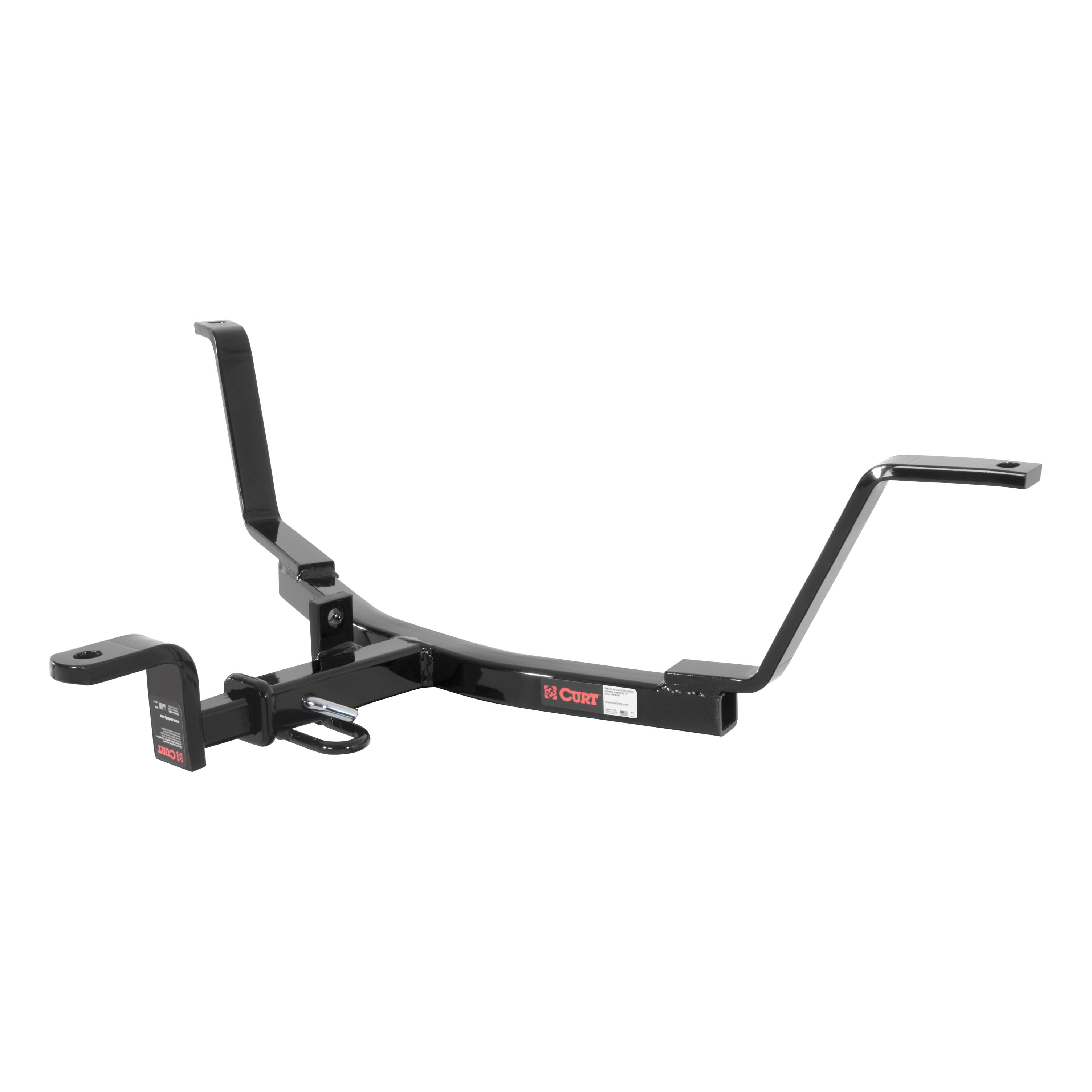

CURT 117683 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Honda CR-VCURT$266.11Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2007 - 2016 Honda CR-V
Confirmed to Fit
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Always the correct part
We know our products
Always the correct part
We know our products
Quality Products
Free Shipping!
Quality Products
Free Shipping!
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes ball mount #45521, installation hardware, pin & clip
Trailer ball sold separately
Includes ball mount #45521, installation hardware, pin & clip
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Square
Receiver Tube Size (Inches): 1-1/4 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 200 LB / 2,000 LB
Weight Carrying Capacity (Pounds): 2,000 LB
WC Tongue Weight (Pounds): 200 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 30
Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Honda CR-V (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid Bonderite for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you?re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2016 | Honda CR-V | No Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
Yes, the CURT 115553 Class 1 Trailer Hitch with Ball Mount, 1-1/4-Inch Receiver, Select Honda CR-V (Part #BKDK115553) is designed to fit the 2007-2016 Honda CR-V.
The CURT 115553 Class 1 Trailer Hitch with Ball Mount, 1-1/4-Inch Receiver, Select Honda CR-V (Part #BKDK115553) fits the following vehicles: 2007-2016 Honda CR-V. Always verify your specific year, make, and model before ordering.
The CURT 115553 Class 1 Trailer Hitch with Ball Mount, 1-1/4-Inch Receiver, Select Honda CR-V (Part #BKDK115553) fits 2007-2016 Honda CR-V models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 115553 Class 1 Trailer Hitch with Ball Mount, 1-1/4-Inch Receiver, Select Honda CR-V (Part #BKDK115553) Drilling is not required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, part number 11555 is designed for the Honda CR-V. The kit is designed for use with ballmount part number 55001 or 45501.
The kit includes: one 1/2-13 x 2.5 inch carriage bolt, three 0.250 x 1.00 x 2.00 inch square hole spacers (CM-SP12), one 1/2-13 hex flange nut, two 7/16 inch fishwire pieces, two 7/16-14 x 1.5 inch carriage bolts, two 7/16-14 hex flange nuts, and two 0.250 x 1.00 x 2.50 inch square hole spacers (CM-SP11).
The CURT 11555 is designed for use with ballmount part number 55001 or 45501.
Non-trailer loads applied to this product must be supported by 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. Do not exceed your vehicle manufacturer's recommended towing capacity.
Yes. If present, you must remove 10 fasteners and lower the underbody panel as the first installation step. The underbody panel will need to be raised with the hitch during installation and reattached using the original fasteners after the hitch is secured.
Yes. You must lower the exhaust by removing rubber isolators from the muffler hangers before installation. After the hitch is installed and secured, raise the exhaust back into position and reinstall the rubber isolators.
Yes. You must mark and trim the underbody panel. The manual notes that dimensions are approximate and you should confirm fit prior to trimming. Use the ribs of the underbody panel as cutting guides. Refer to the underbody panel trim diagram for guidance.
Yes. You must enlarge the existing holes in both frame rails to allow access for the 1.00 x 3.00 inch spacers to be inserted. The manual indicates these are existing holes that require enlargement, not new holes to be drilled.
1. Remove underbody panel fasteners and lower the panel. 2. Lower exhaust by removing rubber isolators. 3. Mark and trim underbody panel using the trim diagram. 4. Enlarge existing frame rail holes. 5. Reverse fishwire carriage bolts and blocks into frame rails. 6. Raise hitch into position with underbody panel. 7. Loosely install tow hook attachment bolt and spacers. 8. Level hitch and install tow loop attachment fasteners, then tighten (this must be done before other fasteners are tightened to prevent receiver tube angling). 9. Loosely install hex flange nuts. 10. Torque all fasteners. 11. Reattach underbody panel. 12. Raise exhaust and reinstall rubber isolators.
Leveling the hitch and installing the tow loop attachment fasteners before tightening other fasteners must be done to prevent the receiver tube from angling up when the remaining fasteners are tightened.
Torque all 7/16 inch hardware to 70 lb-ft. Torque all 1/2 inch hardware to 110 lb-ft.
Torque all 7/16 inch hardware to 70 lb-ft.
Torque all 1/2 inch hardware to 110 lb-ft.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This ongoing inspection helps maintain the integrity and safety of the installation.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace it at their option when returned prepaid with proof of purchase. Alteration to, misuse of, or improper installation voids the warranty.
The CURT 11555 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, the CURT 11555 is designed for the Honda CR-V and works with ballmount 55001 or 45501.
Yes. You must remove the underbody panel fasteners and lower the exhaust by removing rubber isolators from the muffler hangers. Both are reinstalled after the hitch is secured.
Yes. You must trim the underbody panel using the trim diagram and enlarge existing frame rail holes to accommodate the spacers. Confirm fit before trimming.
Torque all 7/16 inch hardware to 70 lb-ft and all 1/2 inch hardware to 110 lb-ft.
Leveling the hitch and tightening the tow loop attachment fasteners before other fasteners prevents the receiver tube from angling up during final tightening.
All non-trailer loads must be supported by 18050 stabilizing straps. Failure to properly support non-trailer loads voids the warranty.
