The mounting platform must be at least 3/8" thick, and the hole size must not be more than 1/16" larger in diameter than the threaded shank

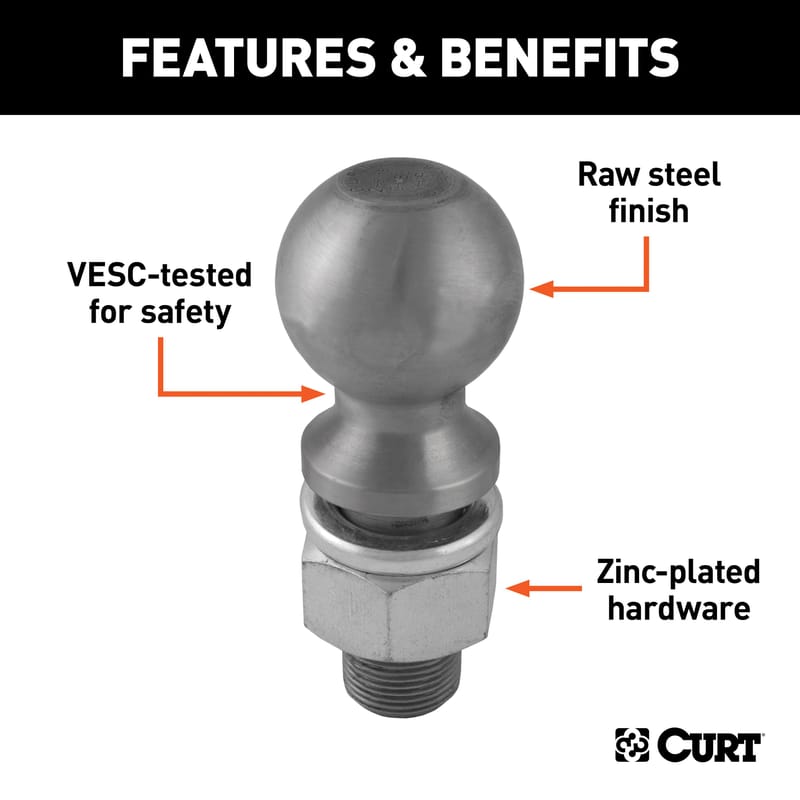

Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Color: Raw Steel
Finish: RAW
Ball Diameter (Inches): 3 IN
Torque (Pounds): 4550 FT LB
Installation Time Exact (Minutes): 0
When you need towing strength unlike anything your average trailer ball can provide, you need something that goes beyond conventional means. CURT 3" trailer balls are unparalleled in their towing capacity and design. With a wide 3" ball diameter, they offer a solid mounting place for your trailer coupler and peace of mind down every road. CURT 3" trailer hitch balls weigh in with a ball capacity of 30,000 lbs. This means they are capable of towing virtually any trailer your class 5 trailer hitch and ball mount can tow. The CURT 3" tow ball comes with a 2" shank diameter for added structural strength and a raw steel finish, giving it a tough layer protection against the stress of pulling large loads. Whether its commercial machinery, industrial supplies, construction equipment or farming materials, these trailer balls are built to thrive in heavy-duty applications (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Also, to give them an added advantage, CURT 3" trailer balls are heat-treated and feature coarse threads. To make sure our trailer balls are fit to take on the CURT name, we put them through strenuous testing. Not only does this ensure they are capable of performing at their listed capacities, but it also gives you the confidence you need to tow that trailer wherever the highway leads. Our 3" trailer balls are made for performance and endurance and meet U.S. VESC specifications for your safety.
| Shank Diameter (C) | Shank Length (B) | Rise (D) | GTW | Chrome Bulk # | Chrome Full Throne # | Chrome Half Throne # | Stainless Bulk # | Stainless Full Throne # | Raw Bulk # |
|---|---|---|---|---|---|---|---|---|---|
| 1-7/8" Ball Diameter (A) | |||||||||
| 3/4" | 1-5/8" | 0" | 2,000 lbs. | 40001 | 40061 | 40161 | -- | -- | -- |
| 3/4" | 2-1/8" | 0" | 2,000 lbs. | 40015 | 40063 | 40163 | -- | -- | 40050 |
| 3/4" | 2-1/8" | 1" | 2,000 lbs. | 40016 | 40071 | 40171 | -- | -- | 40051 |
| 3/4" | 3" | 0" | 2,000 lbs. | 40026 | 40072 | 40172 | -- | -- | 40081 |
| 1" | 2-1/8" | 0" | 3,500 lbs. | 40031 | -- | -- | -- | -- | -- |
| 1" | 3" | 0" | 3,500 lbs. | 40032 | -- | -- | -- | -- | -- |
| 2" Ball Diameter (A) | |||||||||
| 1" | 1-3/4" | 0" | 3,500 lbs. | 40003 | 40064 | 40164 | -- | -- | -- |
| 3/4" | 2-1/8" | 0" | 3,500 lbs. | 40018 | 40065 | 40165 | -- | -- | 40052 |
| 3/4" | 2-1/8" | 1" | 3,500 lbs. | 40019 | 40073 | 40173 | -- | -- | 40082 |
| 1" | 2-1/8" | 0" | 6,000 lbs. | 40001 | 40066 | 40166 | 40053 | -- | 40083 |
| 1" | 2-1/8" | 1" | 6,000 lbs. | 40002 | -- | -- | -- | -- | -- |
| 1-1/4" | 2-5/8" | 0" | 8,000 lbs. | 40034 | -- | -- | -- | -- | -- |
| 1" | 3" | 0" | 12,000 lbs. | 40033 | -- | -- | -- | -- | -- |
| 1-1/4" | 2-5/8" | 0" | 12,000 lbs. | 40038 | -- | -- | -- | -- | -- |
| 1" | 2-1/8" | 0" | 10,000 lbs. | 40039 | -- | -- | -- | -- | 40056 |
| 1-1/4" | 3" | 0" | 10,000 lbs. | 40090 | 40069 | 40190 | -- | -- | -- |
| 2-5/16" Ball Diameter (A) | |||||||||
| 1" | 2-1/8" | 0" | 7,500 lbs. | 40005 | 40067 | 40167 | -- | -- | 40084 |
| 1" | 2-1/4" | 0" | 10,000 lbs. | 40011 | -- | -- | -- | -- | 40042 |
| 1" | 2-1/2" | 0" | 12,000 lbs. | 40037 | -- | -- | -- | -- | -- |
| 1" | 2-1/8" | 1" | 6,000 lbs. | 40012 | 40075 | 40175 | -- | -- | -- |
| 1" | 3-1/4" | 0" | 6,000 lbs. | 40020 | -- | -- | -- | -- | -- |
| 1-1/4" | 2-5/8" | 0" | 15,000 lbs. | 40030 | 40078 | 40178 | 40055 | -- | -- |
| 1" | 3" | 0" | 15,000 lbs. | 40030 | 40078 | 40178 | 40055 | -- | -- |
| 1-1/4" | 2-5/8" | 1" | 15,000 lbs. | 40035 | -- | -- | -- | -- | -- |
| 1-1/4" | 2-5/8" | 0" | 20,000 lbs. | 40036 | -- | -- | -- | -- | 40085 |
| 1" | 2-1/2" | 2-1/4" | 25,000 lbs. | 40038 | -- | -- | -- | -- | 40086 |
| 1" | 2-5/8" | 1" | 12,000 lbs. | 40041 | -- | -- | 40045 | -- | -- |
| 1" | 2-5/8" | 2" | 15,000 lbs. | 40048 | 40089 | -- | -- | -- | 40087 |
| 1-1/4" | 2-5/8" | 1" | 20,000 lbs. | 40008 | 40081 | 40109 | 40109 | -- | -- |
| 1-1/4" | 2-1/2" | 0" | 25,000 lbs. | 40022 | 40076 | 40176 | -- | -- | 40088 |
| 1" | 2-1/2" | 0" | 25,000 lbs. | 40022 | 40076 | 40176 | -- | -- | 40088 |
| 3" Ball Diameter (A) | |||||||||
| 1-1/4" | 3-1/4" | 0" | 30,000 lbs. | -- | -- | -- | -- | -- | 40089 |
| 50mm Ball Diameter (A) | |||||||||
| 3/4" | 50mm | 0" | 1,600 kg. | 40099 | -- | -- | -- | -- | -- |
CURT 2" Trailer Ball (1-1/4" x 2-5/8" Shank, 10,000 lbs., Chrome) Trailer Hitch Ball

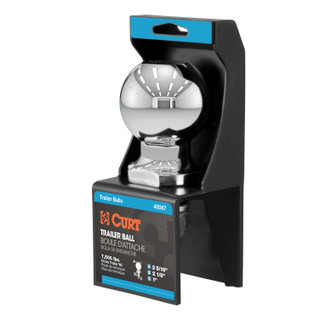

CURT 2-5/16" Trailer Ball (1" x 2-1/8" Shank, 7,500 lbs., Chrome, Packaged) Trailer Hitch Ball
CURT 2" Trailer Ball (1" x 2-1/8" Shank, 6,000 lbs., Stainless, Packaged) Trailer Hitch Ball
CURT 2" Trailer Ball (1" x 2-1/8" Shank, 1" Rise, 6,000 lbs., Chrome) Trailer Hitch Ball
CURT 2-5/16" Trailer Ball (1-1/4" x 2-5/8" Shank, 15,000 lbs., Chrome) Trailer Hitch Ball

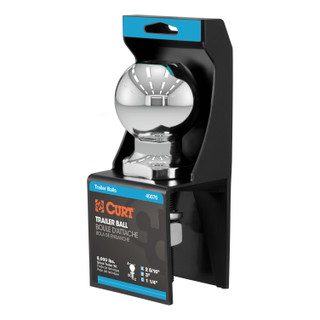

CURT 2-5/16" Trailer Ball (1-1/4" x 3" Shank, 6,000 lbs., Chrome, Packaged) Trailer Hitch Ball

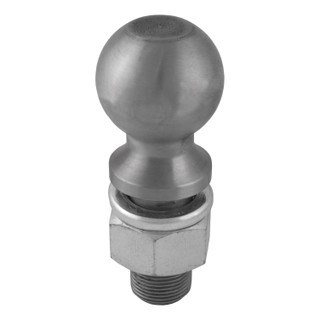

CURT 2-5/16" Trailer Ball (1-1/4" x 2-5/8" Shank, 30,000 lbs., Raw Steel) Trailer Hitch Ball

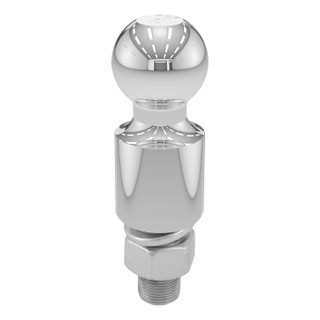

CURT 2" Trailer Ball (1" x 2-1/8" Shank, 2" Rise, 6,000 lbs., Chrome) Trailer Hitch Ball
CURT 2-5/16" Trailer Ball (2" x 3-1/2" Shank, 30,000 lbs., Raw Steel) Trailer Hitch Ball

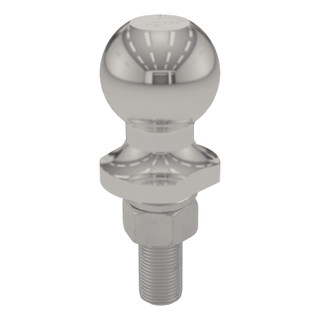

CURT 1-7/8" Trailer Ball (3/4" x 2-1/8" Shank, 2,000 lbs., Stainless) Trailer Hitch Ball
CURT 2" Trailer Ball (1" x 2-1/8" Shank, 6,000 lbs., Chrome, Packaged) Trailer Hitch Ball
CURT 2-5/16" Trailer Ball (1" x 2-1/4" Shank, 12,000 lbs., Chrome) Trailer Hitch Ball
CURT 1-7/8" Trailer Ball (1" x 2-1/8" Shank, 3,500 lbs., Chrome) Trailer Hitch Ball

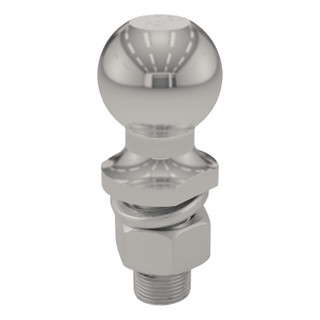

CURT 2" Trailer Ball (1" x 2-1/8" Shank, 6,000 lbs., Stainless) Trailer Hitch Ball
CURT 2" Trailer Ball (3/4" x 2-1/8" Shank, 3,500 lbs., Chrome, Packaged) Trailer Hitch Ball
CURT 2-5/16" Trailer Ball (1" x 2-1/8" Shank, 7,500 lbs., Chrome) Trailer Hitch Ball

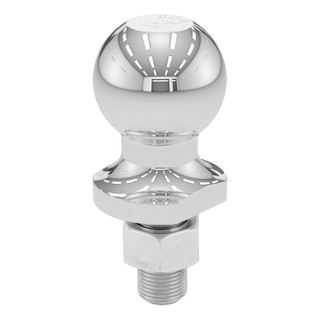

CURT 1-7/8" Trailer Ball (3/4" x 1-5/8" Shank, 2,000 lbs., Chrome) Trailer Hitch Ball

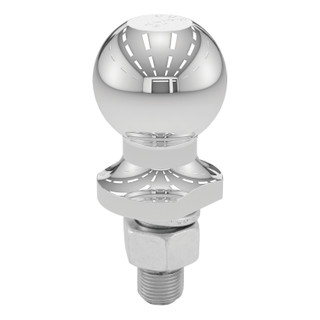

CURT 2" Trailer Ball (3/4" x 1-3/4" Shank, 3,500 lbs., Chrome, Packaged) Trailer Hitch Ball
CURT 2" Trailer Ball (1-1/4" x 2-5/8" Shank, 10,000 lbs., Chrome, Packaged) Trailer Hitch Ball
CURT 2-5/16" Trailer Ball (1-1/4" x 2-5/8" Shank, 15,000 lbs., Chrome, Packaged) Trailer Hitch Ball
CURT 2-5/16" Trailer Ball (1-1/4" x 2-5/8" Shank, 25,000 lbs., Raw Steel) Trailer Hitch Ball

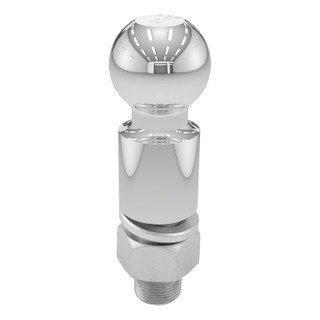

CURT 2-5/16" Trailer Ball (1-1/4" x 2-5/8" Shank, 2" Rise, 10,000 lbs., Chrome) Trailer Hitch Ball
CURT 2-5/16" Trailer Ball (1-1/4" x 2-5/8" Shank, 2" Rise, 25,000 lbs., Raw Steel) Trailer Hitch Ball

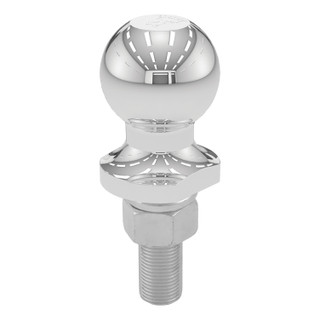

CURT 1-7/8" Trailer Ball (3/4" x 2-1/8" Shank, 2,000 lbs., Chrome) Trailer Hitch Ball

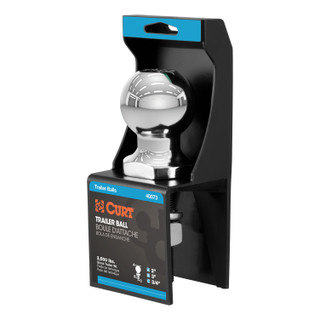

CURT 2" Trailer Ball (3/4" x 3" Shank, 3,500 lbs., Chrome, Packaged) Trailer Hitch Ball

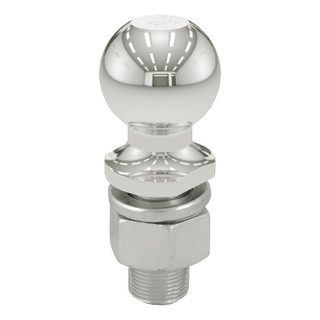

CURT 2-5/16" Trailer Ball (1-1/4" x 2-5/8" Shank, 15,000 lbs., Stainless) Trailer Hitch Ball
CURT 2-5/16" Trailer Ball (1" x 3" Shank, 6,000 lbs., Chrome, Packaged) Trailer Hitch Ball

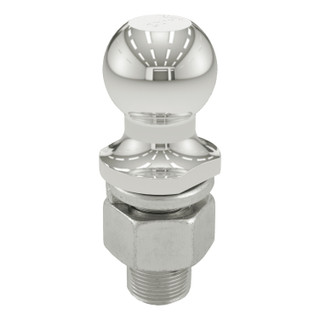

CURT 2" Trailer Ball (1-1/4" x 2-5/8" Shank, 10,000 lbs., Stainless) Trailer Hitch Ball

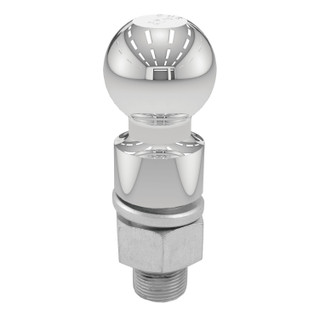

CURT 2-5/16" Trailer Ball (1-1/4" x 2-5/8" Shank, 1" Rise, 10,000 lbs., Chrome) Trailer Hitch Ball
CURT 2-5/16" Trailer Ball (1" x 2-1/4" Shank, 12,000 lbs., Raw Steel) Trailer Hitch Ball

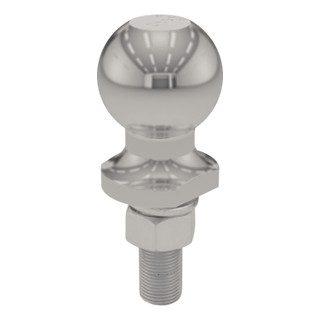

CURT 2" Trailer Ball (3/4" x 2-1/8" Shank, 3,500 lbs., Stainless) Trailer Hitch Ball
CURT 40008 Chrome Trailer Hitch Ball, 20,000 lbs, 2-5/16-Inch Diameter, 1-1/4 x 2-3/4-Inch Shank
CURT 40178 2-5/16-Inch Chrome Trailer Hitch Ball, 15,000 lbs, 1-1/4 x 2-5/8-Inch Shank, Packaged

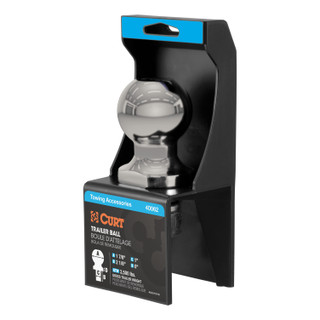

CURT 40081 Stainless Steel Trailer Hitch Ball, 3,500 lbs, 1-7/8-Inch Diameter, 1 x 2-1/8-Inch Shank
CURT 40031 Chrome Trailer Hitch Ball, 3,500 lbs, 1-Inch Rise, 1-7/8-Inch Diameter, 1 x 2-3/16-Inch Shank
CURT 40022 Chrome Trailer Hitch Ball, 6,000 lbs, 2-5/16-Inch Diameter, 1-1/4 x 3-Inch Shank
CURT 40082 Stainless Steel Trailer Hitch Ball, 3,500 lbs, 2-Inch Diameter, 3/4 x 2-1/8-Inch Shank

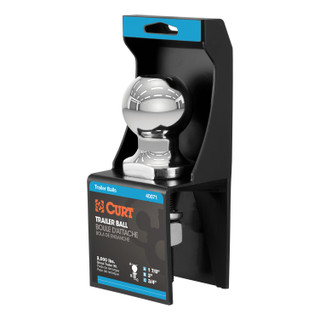

CURT 40071 Chrome Trailer Hitch Ball, 2,000 lbs, 1-7/8-Inch Diameter, 3/4 x 3-Inch Shank
