CURT
Verify Fitment
Select your vehicle to confirm this part fits.
1996 - 2003 Chevrolet Express 1500
Confirmed to Fit
1996 - 2003 Chevrolet Express 2500
Confirmed to Fit
1996 - 2003 Chevrolet Express 3500
Confirmed to Fit
1996 - 2003 GMC Savana 1500
Confirmed to Fit
1996 - 2003 GMC Savana 2500
Confirmed to Fit
1996 - 2003 GMC Savana 3500
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes all necessary installation hardware
Includes all necessary installation hardware
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Receiver Tube Size (Inches): 2 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 500 LB / 5,000 LB
Weight Carrying Capacity (Pounds): 5,000 LB
WC Tongue Weight (Pounds): 500 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 35

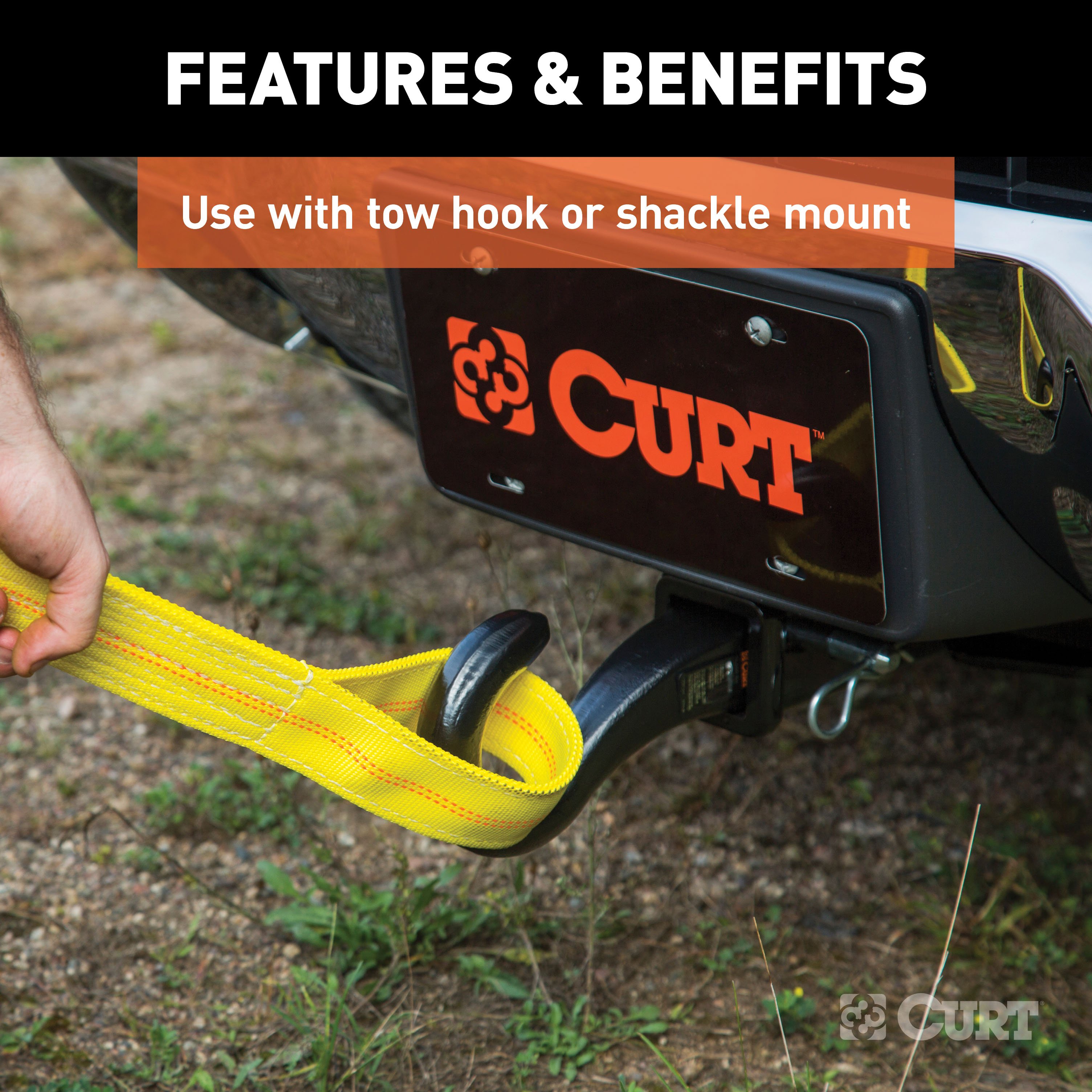

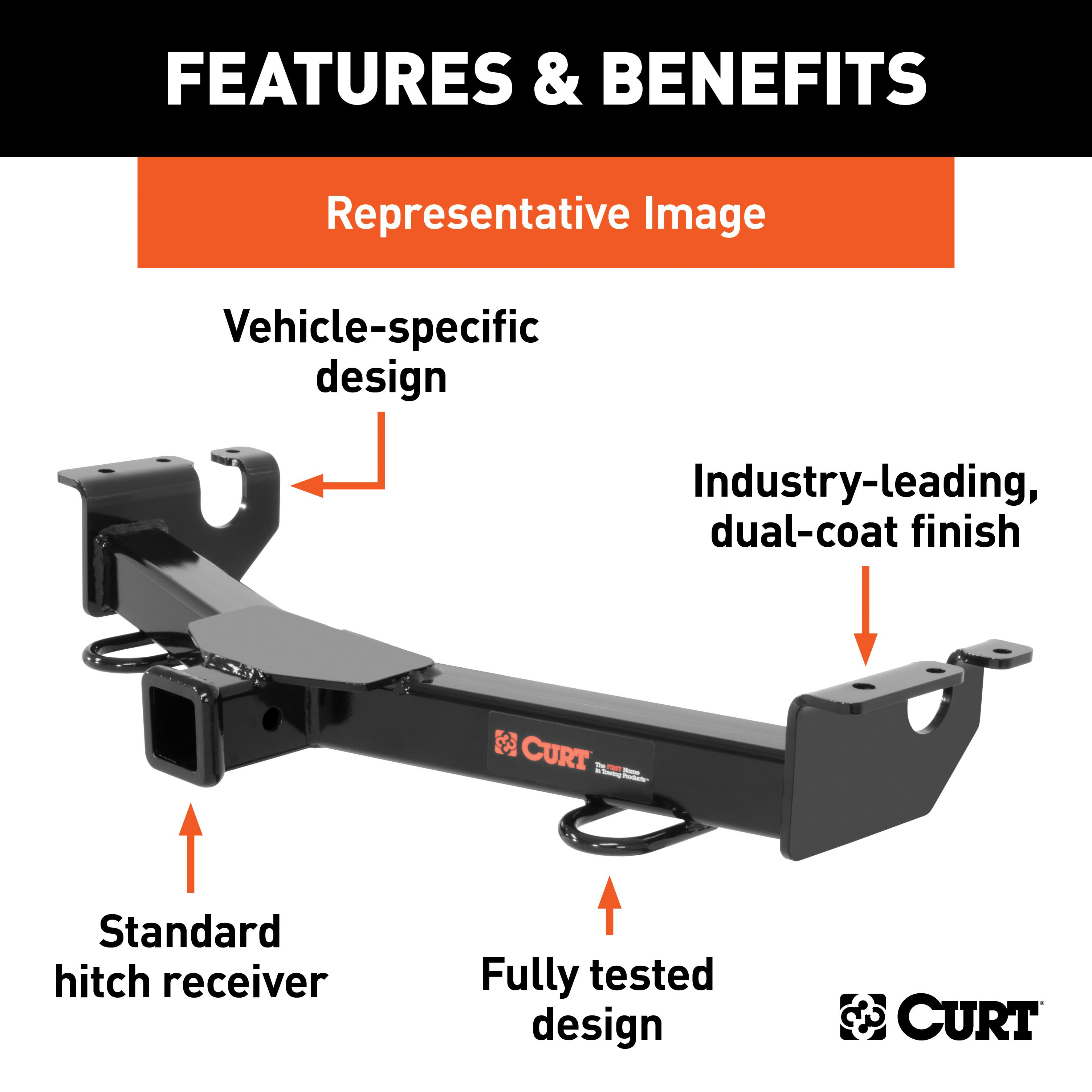

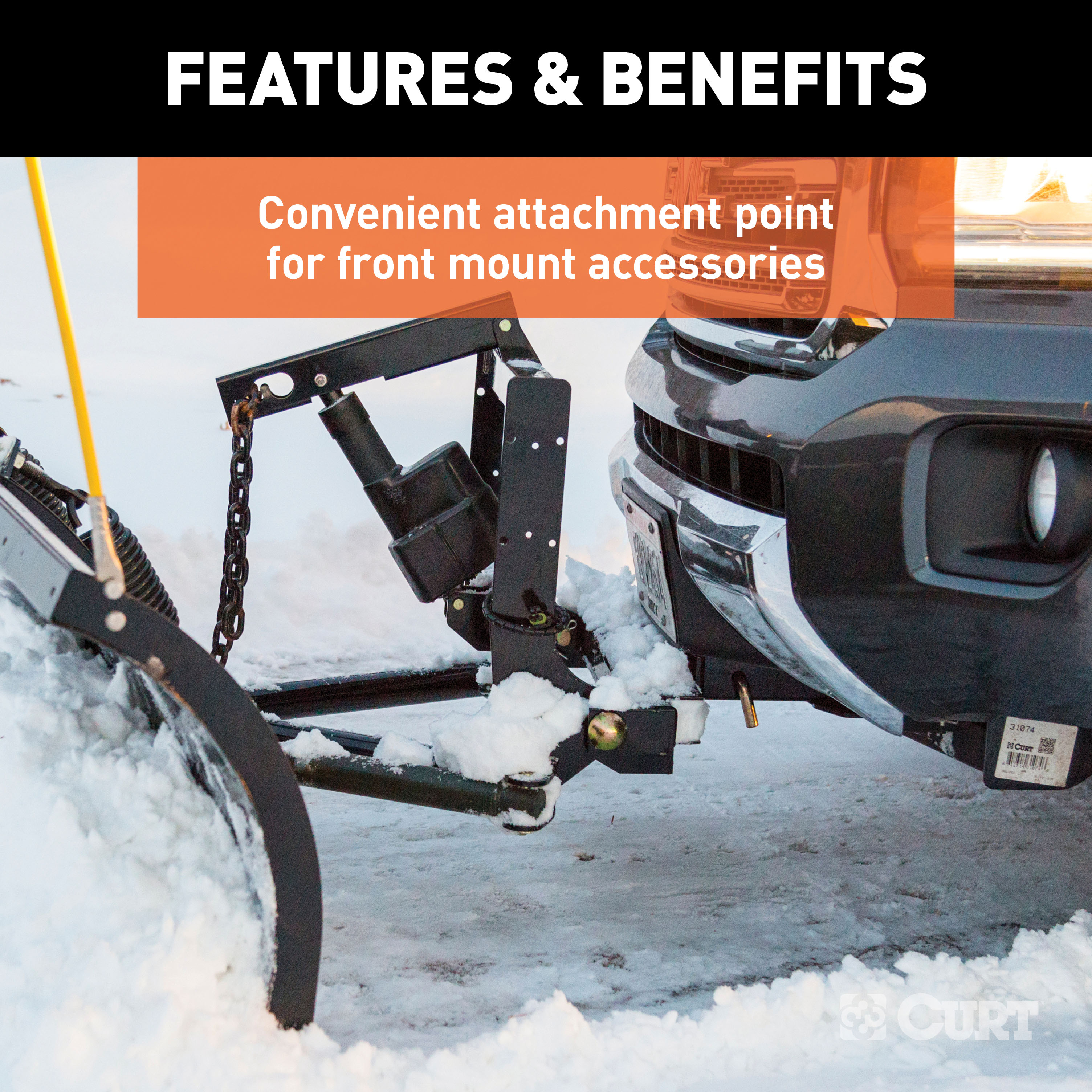

A CURT front trailer hitch allows you to use the front end of your vehicle for a variety of towing applications. They can be used for mounting a winch, a snow plow, a number of towing accessories and can even be used for some trailering applications. When space is limited, a front trailer hitch is commonly used to hold a cargo carrier, freeing up space inside the vehicle for extra cargo and making the rear mount receiver available to pull a trailer. At the boat ramp, your boat trailer can be hitched up to the front receiver hitch, giving you better control over the trailer as you launch. Some of the other accessories that can be used with a front tow hitch are the CURT winch mount, step pad, license plate holder, spare tire mount, skid shield and tow hooks. All CURT front trailer hitches provide a useful receiver tube to accept a 2" x 2" shank, and they are commonly used on trucks, vans and SUVs. This front trailer hitch is rated for 5,000 lbs. GTW and 500 lbs. TW. It also has a straight-line pull rating of 9,000 lbs. It is designed to be a custom trailer hitch for certain years of the Chevy Express 1500, 2500 or 3500 and GMC Savana 1500, 2500 or 3500 (to verify your vehicle compatibility, see application info). It comes with all necessary hardware for a complete installation and is backed by a limited lifetime warranty.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94946 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1996 - 2003 | Chevrolet Express 1500 | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 1996 - 2003 | Chevrolet Express 2500 | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 1996 - 2003 | Chevrolet Express 3500 | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 1996 - 2003 | GMC Savana 1500 | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 1996 - 2003 | GMC Savana 2500 | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 1996 - 2003 | GMC Savana 3500 | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |

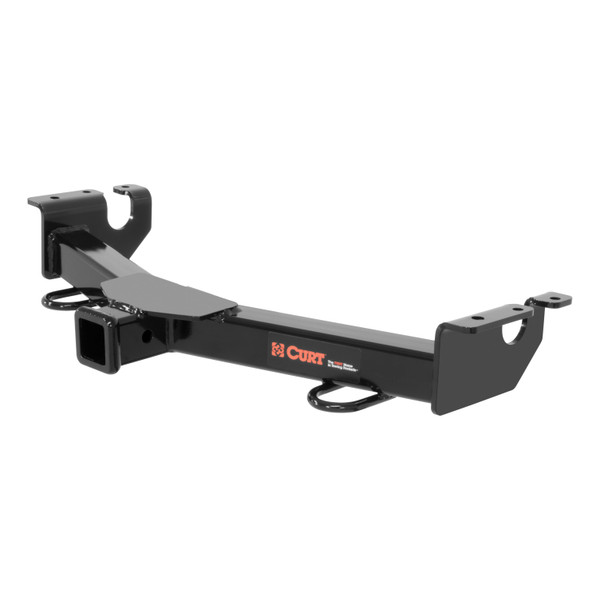

The CURT 31016 2-Inch Front Receiver Hitch, Select Chevrolet Express, GMC Savana (Part #BKDK31016) fits 1996-2003 Chevrolet Express 1500 models. The 2003 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 31016 2-Inch Front Receiver Hitch, Select Chevrolet Express, GMC Savana (Part #BKDK31016) fits the following vehicles: 1996-2003 Chevrolet Express 1500; 1996-2003 Chevrolet Express 2500; 1996-2003 Chevrolet Express 3500; 1996-2003 GMC Savana 1500; 1996-2003 GMC Savana 2500; 1996-2003 GMC Savana 3500. Always verify your specific year, make, and model before ordering.
Yes, the CURT 31016 2-Inch Front Receiver Hitch, Select Chevrolet Express, GMC Savana (Part #BKDK31016) is designed to fit the 1996-2003 Chevrolet Express 1500.
The CURT 31016 2-Inch Front Receiver Hitch, Select Chevrolet Express, GMC Savana (Part #BKDK31016) Drilling is required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Part number 31016 fits 2003 Chevrolet Express only if it is equipped with an RV cutaway. It does not fit standard 2003 models. It is compatible with 1996-2002 Chevrolet Express and GMC Savana models without restriction.
Yes, part number 31016 fits 1996-2002 GMC Savana models. For 2003 GMC Savana, it fits only models with RV cutaway.
When used as a weight-carrying hitch, the gross load capacity is 5,000 lbs trailer weight and 500 lbs tongue weight. When used as a straight-line pull (winching), the maximum line pull is 9,000 lbs. You must not exceed your vehicle manufacturer's recommended towing capacity.
You will need: a drill with 17/32" drill bit, a torque wrench, a ratchet, a 3/4" socket, and a 17mm socket.
The kit includes: four M10×1.5×35mm hex head cap screws (grade 10.9), four 7/16" lock washers, two 1/2"-13 UNC×1¾" hex head cap screws (grade 8), two 1/2" lock washers, and two 1/2"-13 UNC handle nuts (grade 8).
You must remove the stabilizer bar fasteners and brackets to allow the stabilizer bar to swing free during installation. The fasteners should be returned to the vehicle owner. The bar itself is repositioned as part of the installation, not permanently removed.
Yes, the lower fascia and license plate mounting bracket (if present) must be removed during installation. After the hitch is installed, you may trim and reinstall the lower fascia if desired, but you must consult the vehicle owner before trimming.
Yes, drilling is required. You must drill a 17/32" hole in the driver side frame rail using the installed hitch as a template. This is a permanent modification to the vehicle frame.
A 17/32" hole must be drilled in the driver side frame rail. The hitch itself is used as a template to mark the correct location.
Fascia trimming is optional. If you choose to trim and reinstall the lower fascia, you must consult the vehicle owner before doing so.
If a front-mounted license plate is present and obstructed by the hitch, repositioning is necessary. This is noted in the installation notes.
All 10mm hardware must be torqued to 45 ft-lbs. All 1/2" hardware must be torqued to 110 ft-lbs. These torque values are applied after all fasteners are installed.
The stabilizer bar brackets are attached using 10mm hex bolts and 7/16" lock washers. These bolts pass through the stabilizer bar brackets, hitch side brackets, and into existing weldnuts on the frame rails. All 10mm hardware is torqued to 45 ft-lbs after installation.
The 1/2"-13×1¾" hex bolts and 1/2" lock washers are installed through the forward-most holes of the hitch and secured with 1/2"-13 handle nuts through the access holes in the frame rails. These bolts are torqued to 110 ft-lbs after installation.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This ongoing inspection helps maintain safe operation.
You must not exceed the front axle Gross Weight Rating (GAWR) specified by the vehicle manufacturer. Exceeding GAWR may overload the front axle and/or suspension, which could result in accident, property damage, and personal injury. Consult the owner's manual or the specification plate on the driver's door frame. Measure gross front axle weight by placing the front wheels of the loaded vehicle on a scale.
Never use a ball mount or ball as an anchor point for a tow strap or winch cable; severe personal injury or death could result. Use only OEM tow hooks, recovery eyes, or a clevis mount. Observe the winch manufacturer's recommendations, cautions, and warnings. Do not attach the return cable to the winch mount, as this may overload the winch mount and/or receiver. For maximum line pull rating, the winch cable must not exceed 15° angle up or down from horizontal, or 45° angle left or right from straight ahead.
For maximum line pull rating, the winch cable must not exceed 15° angle up or down from horizontal, or 45° angle left or right from straight ahead. Exceeding these angles may overload the winch, winch mount, and/or front-mounted receiver.
Rear wheel traction may be reduced when using front-mounted accessories. This could affect handling. Reduce speed and drive with caution.
The hitch extends the front of the vehicle, which may reduce the approach angle. Use caution when parking and maneuvering.
Do not obstruct vehicle lights. Allow free air flow into the grille opening. Do not obstruct the driver's view. Reposition the front-mounted license plate if obstructed by the hitch.
Curt 31016 fits 1996-2002 Chevrolet Express and GMC Savana. For 2003 models, it fits only Chevrolet Express and GMC Savana with RV cutaway.
Yes. A 17/32" hole must be drilled in the driver side frame rail. The hitch is used as a template to mark the location.
You need a drill with 17/32" bit, torque wrench, ratchet, 3/4" socket, and 17mm socket.
Torque all 10mm hardware to 45 ft-lbs and all 1/2" hardware to 110 ft-lbs.
Weight-carrying: 5,000 lbs trailer weight, 500 lbs tongue weight. Straight-line pull: 9,000 lbs maximum. Do not exceed your vehicle manufacturer's recommended towing capacity.
No. Never use a ball mount or ball as an anchor point for tow strap or winch cable. Use only OEM tow hooks, recovery eyes, or clevis mount. Severe personal injury or death could result.
