Warranty: Limited Lifetime Warranty (One-Year Parts)
Finish: BLACK OXIDE
Installation Time Exact (Minutes): 0
In agriculture, construction and even military applications, pintle hitches are the trusted product of specialized towing. They are notorious for their high weight capacity and simple design. The basic pintle hitch is essentially a hook and loop, with the hook attached to the vehicle and the loop mounted on the trailer. Because of their simple design, pintle hitches are able to have thicker metal construction and more secure coupling. CURT has a wide variety of pintle hitches and pintle-style products to give you a complete solution for your heavy-duty towing needs. This pintle mount bolt kit is designed for the pintle hook #48231 and is required to reach 60,000 pounds gross trailer weight. It includes all of the necessary hardware for a secure installation and can easily be removed and reinstalled for convenient height adjustment of the pintle hook or pintle ball combination.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
CURT Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT will repair or replace it at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation. CURT's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
CURT part number 48180 has a pintle GTW (Gross Towing Weight) capacity of 16,000 lbs, a vertical load rating of 1,600 lbs, and a ball GTW capacity of 6,000 lbs with a 1-7/8" ball diameter.
CURT part number 48190 has a pintle GTW (Gross Towing Weight) capacity of 16,000 lbs, a vertical load rating of 1,600 lbs, and a ball GTW capacity of 10,000 lbs with a 2" ball diameter.
CURT part number 48200 has a pintle GTW (Gross Towing Weight) capacity of 16,000 lbs, a vertical load rating of 1,600 lbs, and a ball GTW capacity of 16,000 lbs with a 2-5/16" ball diameter.
CURT part number 48205 is a pintle-only model with a pintle GTW (Gross Towing Weight) capacity of 10,000 lbs and a vertical load rating of 2,000 lbs. It does not support ball hitch coupling.
CURT part number 48210 is a pintle-only model with a pintle GTW (Gross Towing Weight) capacity of 20,000 lbs and a vertical load rating of 4,000 lbs. It does not support ball hitch coupling.
CURT part number 48215 is a pintle-only model with a pintle GTW (Gross Towing Weight) capacity of 30,000 lbs and a vertical load rating of 8,000 lbs. It does not support ball hitch coupling.
CURT part number 48231 is a pintle-only model with a pintle GTW (Gross Towing Weight) capacity of 60,000 lbs and a vertical load rating of 12,000 lbs. It does not support ball hitch coupling.
1/2" hardware on CURT pintle hooks (part numbers 48180, 48190, 48200, 48205, 48210, 48215, 48330) must be torqued to 90 ft-lbs.
5/8" hardware on CURT pintle hooks (part numbers 48180, 48190, 48200, 48205, 48210, 48215, 48330) must be torqued to 200 ft-lbs.
1/2" hardware on CURT part numbers 48231 and 48332 must be torqued to 90 ft-lbs.
5/8" hardware on CURT part numbers 48231 and 48332 must be torqued to 200 ft-lbs.
Only use CURT-supplied mounting hardware torqued to the proper specification as shown in the Torque Chart. The mounting structure must be capable of supporting the rated pintle hook capacity in accordance with SAE J847.
1. Open the latch by removing the safety pin and pulling the lock while lifting the latch. 2. Position the drawbar eye over the horn of the pintle and lower it into place. 3. Push the latch closed and insert the safety pin.
1. Open the latch by removing the safety pin and pulling the lock while lifting the latch. 2. Replace the safety pin to retain the latch in the open position. 3. Position the ball coupler over the ball and lower it into place, then follow the coupler manufacturer's instructions.
Before towing, ensure all fasteners are tight and all structural components are sound. Never tow with worn or damaged parts. Attach the trailer securely to safety chain loops. Maintain adequate tongue load to properly control the trailer (approximately 10%) without exceeding ratings. For off-road applications, reduce the rated capacities by 25%. Support the rear of the trailer to avoid load shift when loading or unloading.
Maintain adequate tongue load to properly control the trailer at approximately 10% of the total trailer weight, without exceeding the product's rated capacity.
For off-road applications, reduce the rated capacities by 25%.
Vehicle performance (braking, handling, acceleration, turning radius) can be drastically affected by towing a trailer. Allow additional time and space for stopping, changing lanes, passing, and turning. Do not tow more than one trailer at a time. Severe bumps can damage the towing system; avoid or drive slowly over rough terrain. Do not damage the latch, and be particularly careful with the drawbar when coupling and uncoupling. Consult DOT regulations and American Trucking Association for complete towing procedures.
Periodically check the towing system to ensure all fasteners are tight and all structural components are sound. Clean and lubricate moving parts regularly to ensure proper function.
No. Do not tow more than one trailer at a time.
Severe bumps can damage the towing system. Avoid rough terrain or drive slowly over it.
Yes. Part 48180 supports both pintle hook (16,000 lbs GTW) and ball hitch (6,000 lbs GTW with 1-7/8" ball diameter) coupling.
No. Part 48205 is pintle-only with 10,000 lbs GTW capacity and does not support ball hitch coupling.
Use CURT-supplied hardware only: 1/2" bolts torque to 90 ft-lbs; 5/8" bolts torque to 200 ft-lbs. Torque specifications vary by part number group as shown in the Torque Chart.
Maintain adequate tongue load at approximately 10% of total trailer weight without exceeding the product's rated vertical load capacity.
No. Never tow with worn or damaged parts. Ensure all fasteners are tight and all structural components are sound before towing.
Periodically check the towing system to ensure all fasteners are tight and all structural components are sound. Clean and lubricate moving parts regularly.
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
Shipping from Eau Claire, WIFREE SHIPPING
Estimated delivery Fri, Sep 18 - Sun, Sep 20
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
| Bulk # | Description | Fits |
|---|---|---|
| 48549 | SecureLatch pintle mount hardware: - 1/2" x 2" carriage bolts, qty 4 - 1/2" top lock nuts, qty 4 - Bolt plates, qty 2 |
48011, 48016 |
| 48334 | Pintle hook & hitch hardware: - 1/2" socket head cap screws, qty 4 - 1/2" hex nuts, qty 4 - 1/2" lock washers, qty 4 |
48410, 48411, 48505, All forged pintles (excl. 48231) |

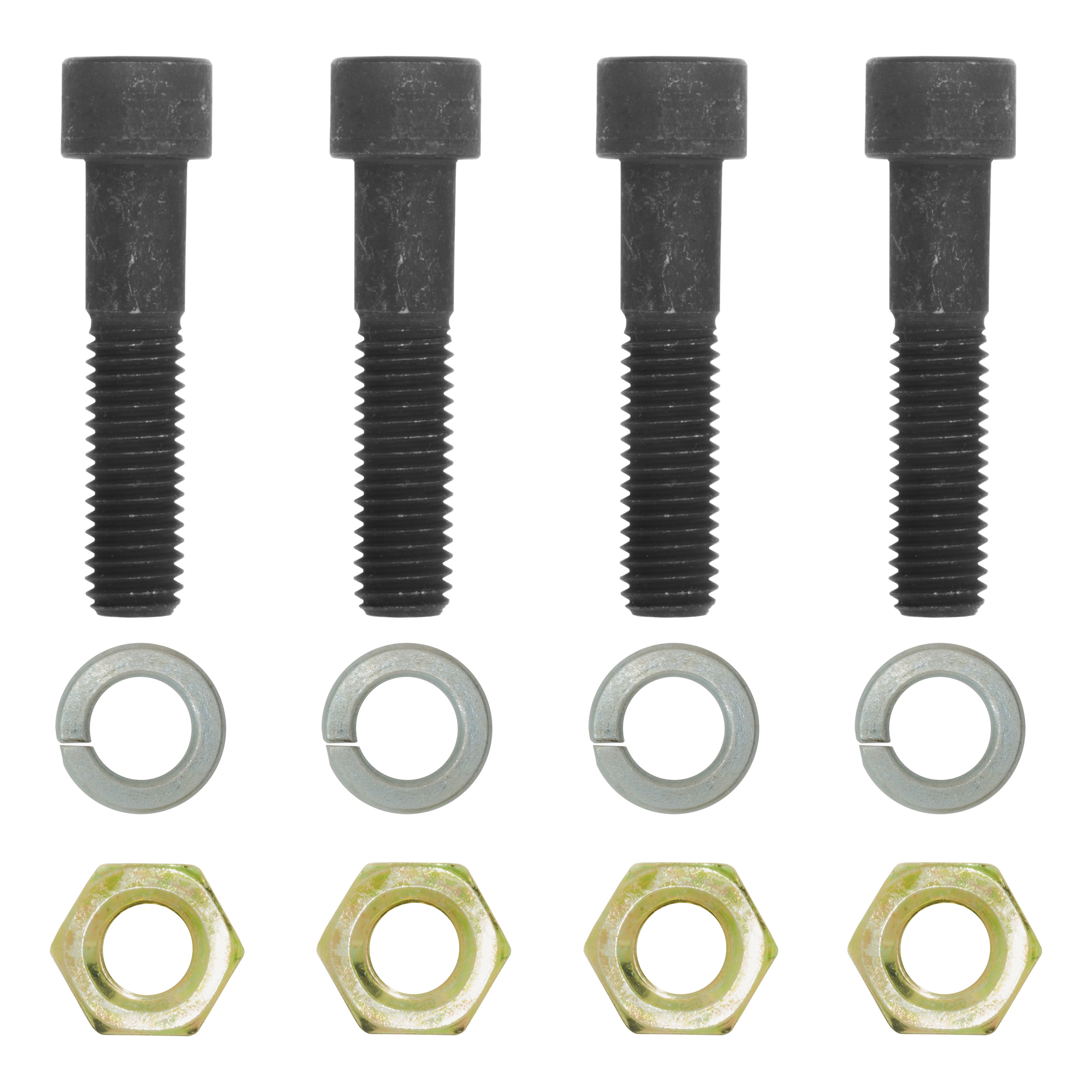

| 48332 | Forged pintle hook & hitch hardware: - 5/8" socket head cap screws, qty 4 - 5/8" hex nuts, qty 4 - 5/8" lock washers, qty 4 |
48231 |
| 48551 | Safety chain hangers, qty 2 | All |
| 48420 | 2" ball (10,000 lbs.), qty 1 | 48407, 48411 |
| 48430 | 2-5/16" ball (14,000 lbs.), qty 1 | 48406, 48410 |
| 48620 | 1-7/8" ball (6,000 lbs.), qty 1 | 48407, 49180 |
| 48820 | 2" ball (10,000 lbs.), qty 1 | 48407, 48560 |
| 48830 | 2-5/16" ball (16,000 lbs.), qty 1 | 48006, 48200 |
