CURT 58901 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Honda CR-VCURTIn Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2002 - 2006 Honda CR-V
Confirmed to Fit
Always the correct part
We know our products
Always the correct part
We know our products
Quality Products
Free Shipping!
Quality Products
Free Shipping!
Includes harness, 4-flat extension, mounting bracket and hardware
Includes harness, 4-flat extension, mounting bracket and hardware
Warranty: One-Year Limited Warranty
Installation Difficulty: Novice
Installation Time Exact (Minutes): 60
Towing your vehicle behind your RV is a great way to experience more of the adventure on your cross-country excursions. Whether you're towing a compact car or a full-size truck, CURT has the perfect solution to help you Bring It! CURT towed-vehicle RV harnesses are a vehicle-specific, plug-and-play solution to wiring your vehicle for dinghy towing. They use original-equipment-compatible connectors to plug into your vehicle's wiring system without any cutting, splicing or soldering required. They provide a standard 4-way flat connector to plug into the RV socket and synchronize the vehicle's tail lights, turn signals and brake lights with the RV's. Because each towed-vehicle RV harness has a vehicle-specific design, installation is fast and easy. This particular RV dinghy towing wiring harness is designed for specific years of the Honda CR-V. CURT RV harnesses are also built to provide long-lasting operation. They feature integrated block diodes that protect the vehicle's circuits from the RV signals. They isolate the sensitive vehicle electronics, keeping them from overheating and short circuiting. Every CURT towed-vehicle RV harness comes ready to install with all necessary hardware included. They also come with a 4-way flat extension to provide plenty of length to plug into the RV socket, as well as a connector mounting bracket to mount the connector on the vehicle.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2002 - 2006 | Honda CR-V | — |
On Sale Today
You save $21.55 (18%)
Free Shipping
Ships free on all orders
Authorized DealerQuick Ship
In stock and ready to ship — order now!
Shipping from Lancaster, TXFREE SHIPPING
Estimated delivery Sun, Aug 16 - Tue, Aug 18
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
The CURT 58949 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Honda CR-V (Part #BKDK58949) fits the following vehicles: 2002-2006 Honda CR-V. Always verify your specific year, make, and model before ordering.
Yes, the CURT 58949 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Honda CR-V (Part #BKDK58949) is designed to fit the 2002-2006 Honda CR-V.
The CURT 58949 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Honda CR-V (Part #BKDK58949) fits 2002-2006 Honda CR-V models. The 2006 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 58949 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Honda CR-V (Part #BKDK58949) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 58949 is designed to fit Honda CRV vehicles. The harness connects to the vehicle's existing taillight connectors and mounts to the front frame rail.

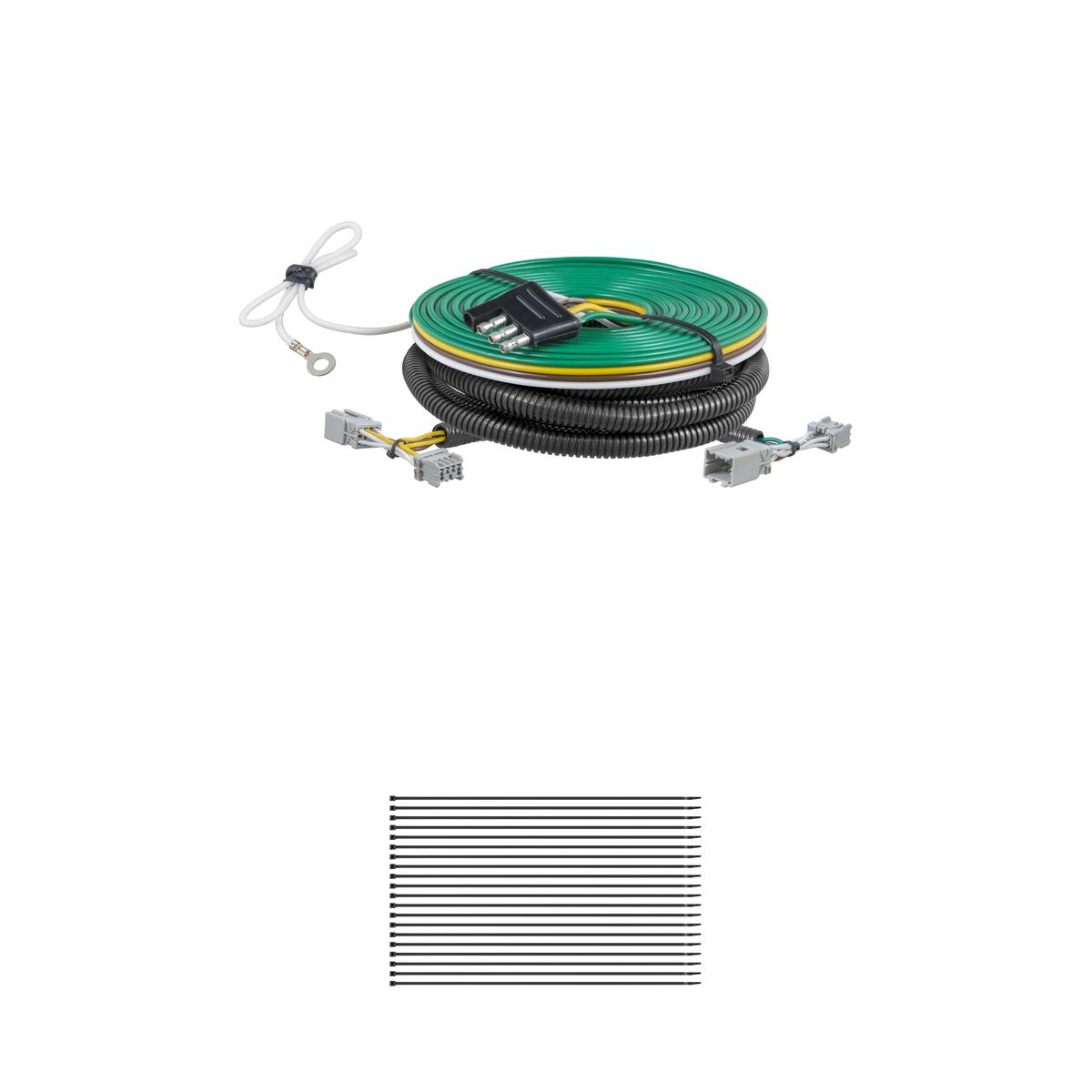

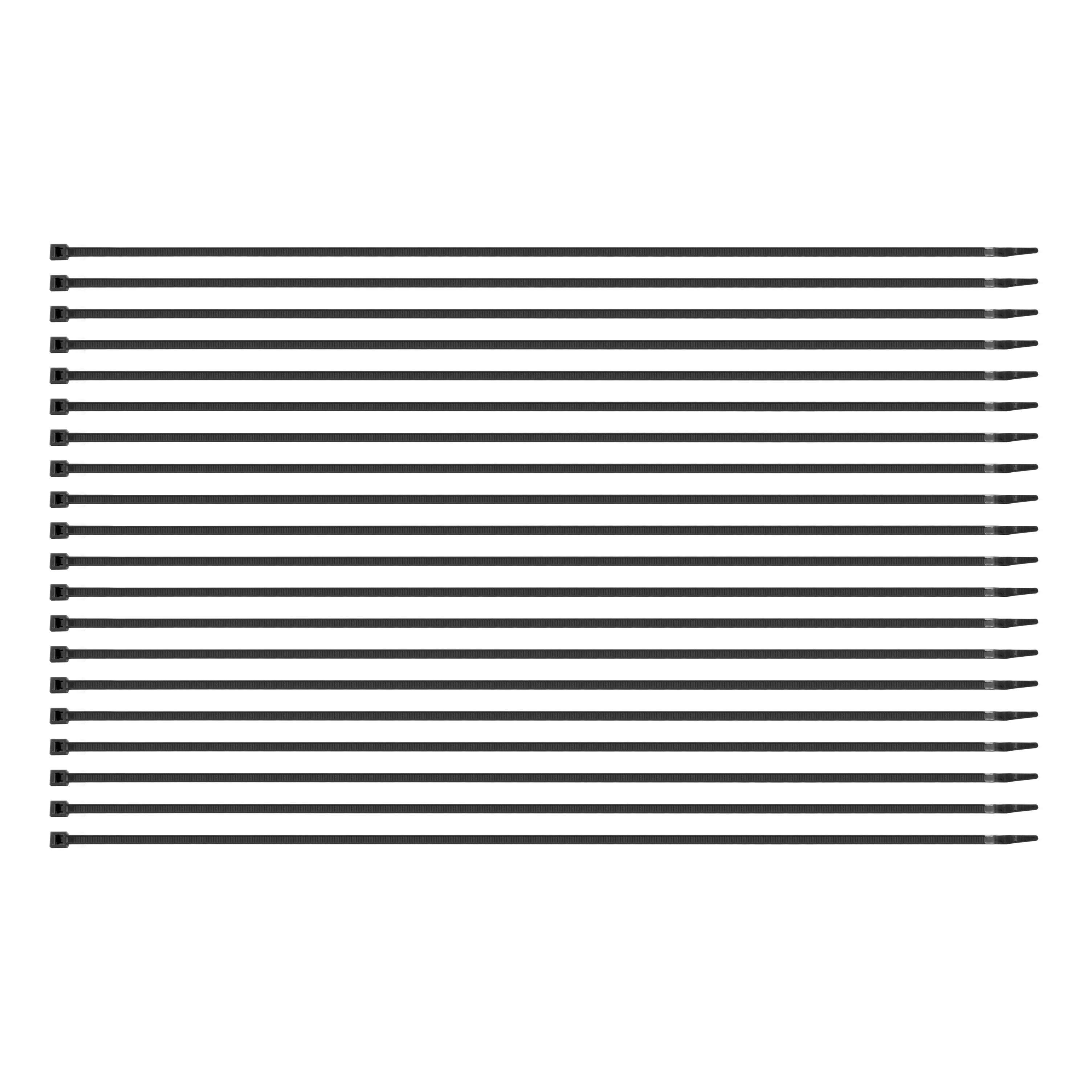

The kit includes: (1) Wiring Harness with 4-Flat Connector, (1) 48" 4-Flat Extension, (20) 15" Cable Ties, (1) 4-Flat Bracket, and (3) #8 Self-Tapping Ground Screws.
The 4-Flat Harness Color Code is: White = Ground, Brown = Tail Lights, Green = Right Turn and Brake Signal, Yellow = Left Turn and Brake Signal.
You must remove: the rear tailgate floor cover, spare tire cover and tray, threshold plate (by removing two clips and gently pulling up), cargo net hook covers, floor cargo tie downs bolts, both side panels, spare tire jack (passenger side), and both taillights.
Position the RV harness with connectors containing Yellow wires between the separated vehicle harness connectors. Press the connectors firmly into the vehicle connectors until they lock into place. Pull on the connectors to ensure the locks are engaged. Repeat this process for the Green wire connectors on the passenger side.
Yes, drilling is required. You must drill one 3/32" hole for the ground screw attachment near the RV harness ends on a clean metal surface, and two 3/32" holes for the 4-Flat bracket mounting on the front frame rail. Take care not to drill through the vehicle body or any exposed surface.
Locate a clean and accessible mounting location on the vehicle near the RV harness ends within reach of the white wire and ring terminal. Remove any debris or undercoating to expose a clean metal surface, then drill a 3/32" hole and attach the ring terminal on the White wire using the #8 Self-Tapping Ground Screw provided.
From the front of the wheel well, use a fish tape to route up and over to the bottom right of the wheel well. You may need to remove plastic clips to allow the fish tape to pass. Attach the 4-Flat connector to the fish tape and pull it to the front of the wheel well. Replace any clips that were removed.
Locate the front frame rail that goes across the front of the vehicle. Use the bracket as a template to mark two holes, drill two 3/32" holes, and attach the bracket using the two remaining #8 Self-Tapping Screws. Secure the 4-Flat connector to the frame rail with a cable tie.
Route the 4-Flat wire above and around the suspension and secure it with a cable tie. Continue routing towards the front of the vehicle along the side frame rail, securing with cable ties along the way. Avoid areas containing moving parts, suspension components, and fuel lines to prevent cutting, pinching, burning, or fuel ignition.
The harness functions will only work on the brake/tail combination lamp. The 4-Flat connector provides tail lights (Brown), right turn and brake signal (Green), left turn and brake signal (Yellow), and ground (White).
With the 4-Flat extension plugged into the RV harness on one end and the motorhome on the other, test that the functions work on the Honda CRV. The functions will only work on the brake/tail combination lamp.
Route the 4-Flat portion of the RV harness through the opening behind the taillight and push the grommet back into the hole around the 4-Flat wire. If necessary, you may make a slit in the grommet. If you do so, apply silicone around the area to seal it.
Store the 4-Flat extension in the vehicle's glove box when not in use.
After securing any loose wires to the vehicle's crossmember using cable ties, re-install the taillights to the vehicle. The taillight connectors will plug into the RV harness connectors that were connected in Steps 5 and 8.
Yes, the Curt 58949 RV TOW Harness is designed for Honda CRV vehicles.
Yes. You must drill one 3/32" hole for the ground screw and two 3/32" holes for the 4-Flat bracket on the front frame rail. Take care not to drill through the vehicle body or exposed surfaces.
You will need: a flat screwdriver, a Phillips screwdriver, a 10mm socket, a drill with a 3/32" bit, and a fish tape for routing the harness through the wheel well.
You must remove the tailgate floor cover, spare tire cover and tray, threshold plate, cargo net hook covers, floor cargo tie downs, both side panels, spare tire jack, and both taillights.
White = Ground, Brown = Tail Lights, Green = Right Turn and Brake Signal, Yellow = Left Turn and Brake Signal.
The harness controls brake/tail combination lamp functions only: tail lights, right turn and brake signal, and left turn and brake signal.
