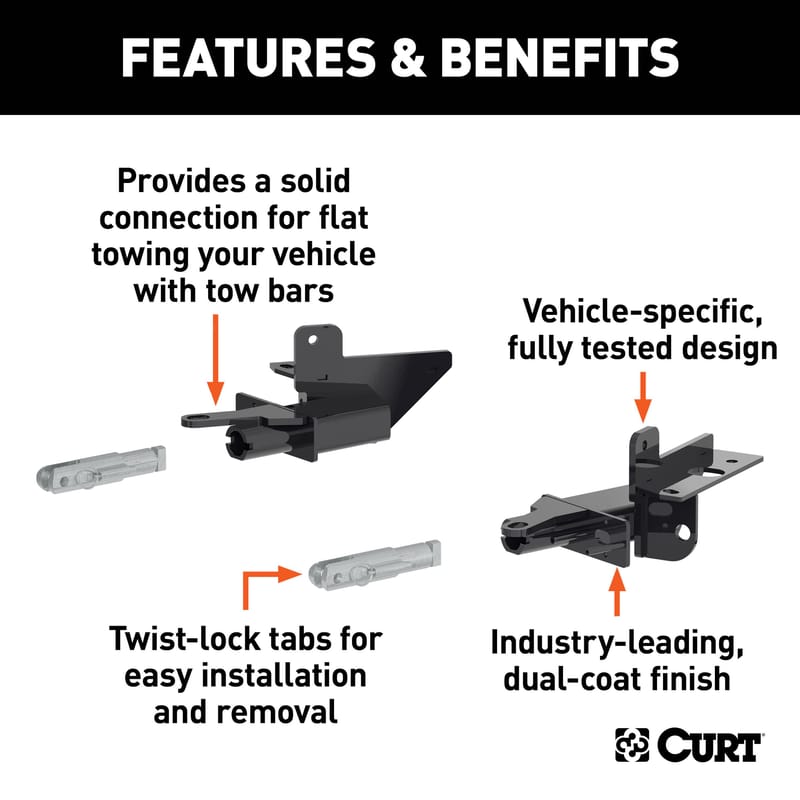

Engineered with a vehicle-specific design for a custom fit
| Material | Carbon Steel |

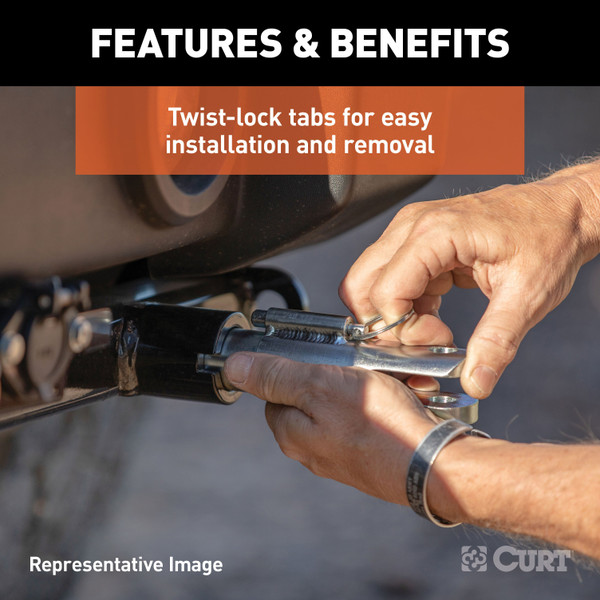

CURT tow bar base plates are engineered for a custom fit on each unique vehicle. This custom tow bar base plate fits select years of the Ram 1500 (see application info to verify fitment). This Ram 1500 tow bar baseplate is constructed from high-quality steel and is precisely welded for a perfect fit. It is physically tested for absolute safety and peace of mind while dinghy towing. It also features a unique co-cured finish of liquid A-coat and highly durable powder coat to protect against the outdoor elements. This base plate for towing comes with attachment tabs, safety cables and installation hardware.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited lifetime warranty (one-year finish, one-year parts)
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2024 | Ram 1500 | — |
The CURT 70154 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Ram 1500 (Part #BKDK70154) fits the following vehicles: 2019-2024 Ram 1500. Always verify your specific year, make, and model before ordering.
Yes, the CURT 70154 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Ram 1500 (Part #BKDK70154) is designed to fit the 2019-2024 Ram 1500.
The CURT 70154 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Ram 1500 (Part #BKDK70154) fits 2019-2024 Ram 1500 models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 70154 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Ram 1500 (Part #BKDK70154) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The CURT 70154 is a base plate tow bar designed for dinghy towing vehicles. It provides a permanent mounting point for towing a vehicle behind another vehicle. The base plate measures 38.5" wide and 17" high when installed. It includes integrated safety cables rated for 7500 lbs each to help prevent complete vehicle separation in the event of a disconnect.
Yes, the CURT 70154 is designed for trucks equipped with tow hooks. During installation, the tow hooks must be permanently removed by unbolting them from the frame. The back tow hook bolt is then reinstalled and torqued to 46 ft-lb with Loctite RED. If the tow hook bolt is difficult to remove, a rubber mallet may be needed to loosen it.
Yes, the CURT 70154 is compatible with trucks not equipped with tow hooks. For these vehicles, you will unclip and remove the three tow hook cover clips and push the cover towards the back of the bumper to expose the mounting area.
Yes, if your vehicle is equipped with an intercooler, the mounting bracket must be trimmed as shown in the manual. The trimming should be done as needed for proper fitment. This is a permanent modification.
Required tools include: flathead screwdriver, 8mm socket, 18mm socket, 21mm socket, 22mm socket, 3/4" socket, torque wrench, wrench (18mm), drill with 1/2" drill bit, reciprocating saw, and Loctite RED. A rubber mallet may also be needed if tow hook bolts are difficult to remove.

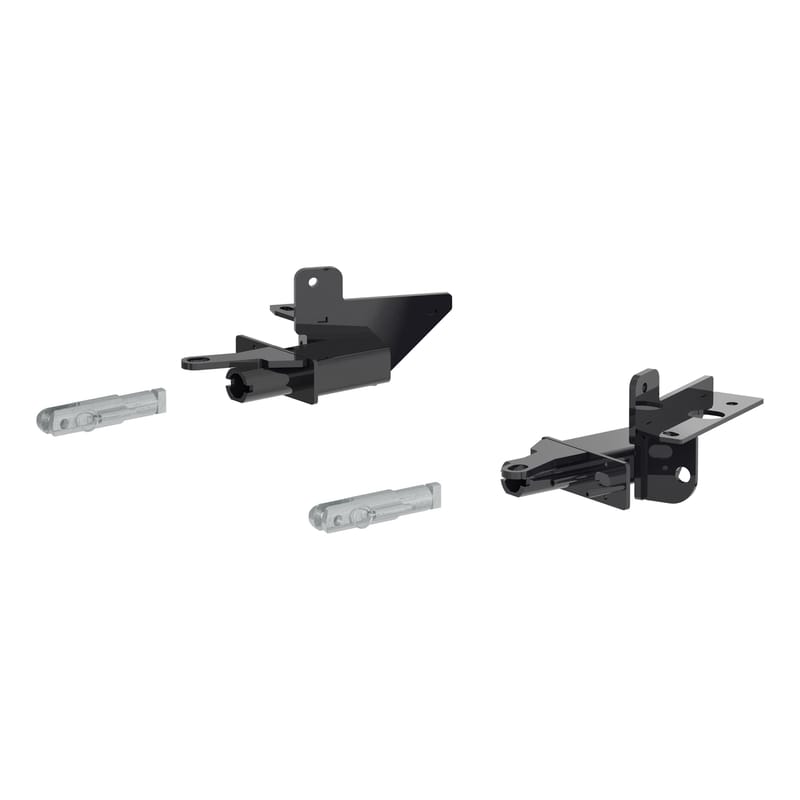

The kit includes: one 70154-DSWA driver side assembly, one 70154-PSWA passenger side assembly, two base plate T-bolt long fasteners, two 7500 lb safety cables, one electrical flat bracket, two handle nuts (1/2-13 UNC), two HHCS bolts (1/2-13 UNC, 1-1/2"), two carriage bolts (1/2-13 UNC, 1-1/2"), two square hole spacers (0.250" x 1.00" x 3.00"), two HHCS bolts (M14x2, 50mm), two self-drilling screws (12-14, 1"), two 9/16" conical tooth washers, two 1/2" conical tooth washers, two serrated flange nuts (1/2-13 UNC), two 0.500" quick links, and two cap lugs (DOP-1375).
Before installation, you must temporarily remove the wheel well plastic pieces (five 8mm bolts per side), disconnect one electrical connector from the driver side, and temporarily remove the bumper (three 18mm bolts per side). All of these parts are reinstalled after the base plate installation is complete. Tow hooks, if equipped, are permanently removed.
Yes, drilling is required. Using a 1/2" drill bit and the baseplate as a template, you must drill the remaining mounting holes on the bottom and side of the baseplate. This is done on both sides of the vehicle. The manual lists a drill and 1/2" drill bit as required tools.
Yes, trimming is required in two areas. First, if your vehicle is equipped with an intercooler, the mounting bracket must be trimmed as shown in the manual. Second, using a reciprocating saw, you must trim the highlighted area on the back of the bumper on both sides of the vehicle. Both trims should be done as needed for proper fitment.
The back tow hook bolt must be torqued to 46 ft-lb. Loctite RED must be applied to all bolt threads before tightening. This applies to both sides of the vehicle.
The 1/2" x 1-1/2" bolts with 1/2" conical tooth washers and handle nuts must be fully tightened to 110 ft-lb. Tighten in this order: first the side bolt, then the back bottom mounting bolt, and finally the front bottom mounting bolt. Apply Loctite RED to all bolt threads before tightening. Repeat on both sides of the vehicle.
One electrical connector must be disconnected from the driver side of the vehicle before removing the bumper. After the base plate installation is complete, all electrical connectors must be reconnected properly. An electrical flat bracket is included and must be attached to the mounting rods with two self-drilling screws.
Each of the two permanent base plate safety cables is rated for 7500 lbs. When dinghy towing, each cable must meet or exceed the gross weight of the towed vehicle. The cables are designed to help prevent complete vehicle separation in the event of a disconnect.
The two permanent base plate safety cables must be connected to both the base plate and the vehicle frame using the provided 0.500" quick links. Attach the cables to the provided hole on the baseplate with the quick link, then install the cables to the frame of the vehicle, securing them around a solid piece of frame. Ensure the cables do not rub against any hoses or moving parts, as this could cause severe damage to the vehicle. Repeat on both sides of the vehicle.
No. The base plate safety cables are not a replacement for safety chains connecting the tow vehicle to the towed vehicle. Both safety cables and safety chains must be used when dinghy towing.
Never exceed the vehicle manufacturer's recommended towing capacity. Refer to your vehicle's owner's manual for the specific towing capacity of your vehicle.
After installation, verify that all electrical connectors are properly reconnected. Periodically inspect the base plate to ensure all hardware and components remain secure. Check the condition of all towing equipment, ensure all fasteners are tight, and verify that all structural components are sound. Do not tow with worn or damaged parts.
Periodic inspection of the base plate should be performed to ensure all hardware and components remain secure. Regularly check the condition of all towing equipment, ensure all fasteners remain tight, and verify that all structural components are sound. Do not tow with worn or damaged parts. Review your vehicle manufacturer's recommendations in the owner's manual for specific towing requirements and capacities.
The CURT 70154 is designed for trucks with or without tow hooks. For specific vehicle compatibility, contact CURT Product Support at 877-287-8634 or visit curtmfg.com.
Yes. Installation requires drilling mounting holes with a 1/2" drill bit and trimming the bumper with a reciprocating saw. If your vehicle has an intercooler, the mounting bracket must also be trimmed.
Required tools: flathead screwdriver, 8mm/18mm/21mm/22mm/3/4" sockets, torque wrench, 18mm wrench, drill with 1/2" bit, reciprocating saw, and Loctite RED. A rubber mallet may be needed for stubborn tow hook bolts.
Temporarily remove wheel well plastic (5 bolts per side, 8mm socket), disconnect one electrical connector from the driver side, and temporarily remove the bumper (3 bolts per side, 18mm socket). Tow hooks, if equipped, are permanently removed.
Main mounting bolts: 110 ft-lb. Tow hook bolt: 46 ft-lb. Apply Loctite RED to all bolt threads. Use a torque wrench and tighten in the specified sequence.
Yes. Two 7500 lb safety cables must be installed and used at all times when dinghy towing. Each cable must meet or exceed the gross weight of the towed vehicle. Safety cables are not a replacement for safety chains.
Verify all electrical connectors are properly reconnected. Ensure all hardware is tight and secure. Periodically inspect the base plate to confirm all fasteners remain tight and structural components are sound.
