CURT Adjustable Coupler Channel (3" I.D., 11-3/4" High) Tow Bar
CURT
click to zoom in
CURT Adjustable Coupler Channel (3" I.D., 11-3/4" High) Tow Bar
1,269
Write a Review
MSRP:
$47.95
$45.69
In-Stock
You save
$2.26
!
SKU:
BKDK48650
Condition:
New
Made In:
US
curtwhlocations:
D01, D25, D30, D60
Ships via Freight:
False
__bundleid:
47868
QUICK SHIP
Hurry, Order now!
47 customers are viewing this product
Experts Available Now!
888-634-9494
Ask an Expert-
-
In-House Experts
We know our products
-
Added Value
Quality Products
-
Nationwide Delivery
Free Shipping!
CURT Adjustable Coupler Channel (3" I.D., 11-3/4" High) Tow Bar
MSRP:
$47.95
$45.69
In-Stock
You save
$2.26
!
CURT 48650 Adjustable Lunette Ring or Coupler Channel 3-Inch ID x 11-3/4-Inch, 2-In Bolt Pattern
Installation Instructions
View InstructionsNotes
Includes channel only
Bolt kit #48620 sold separately
Includes channel only
Product Video

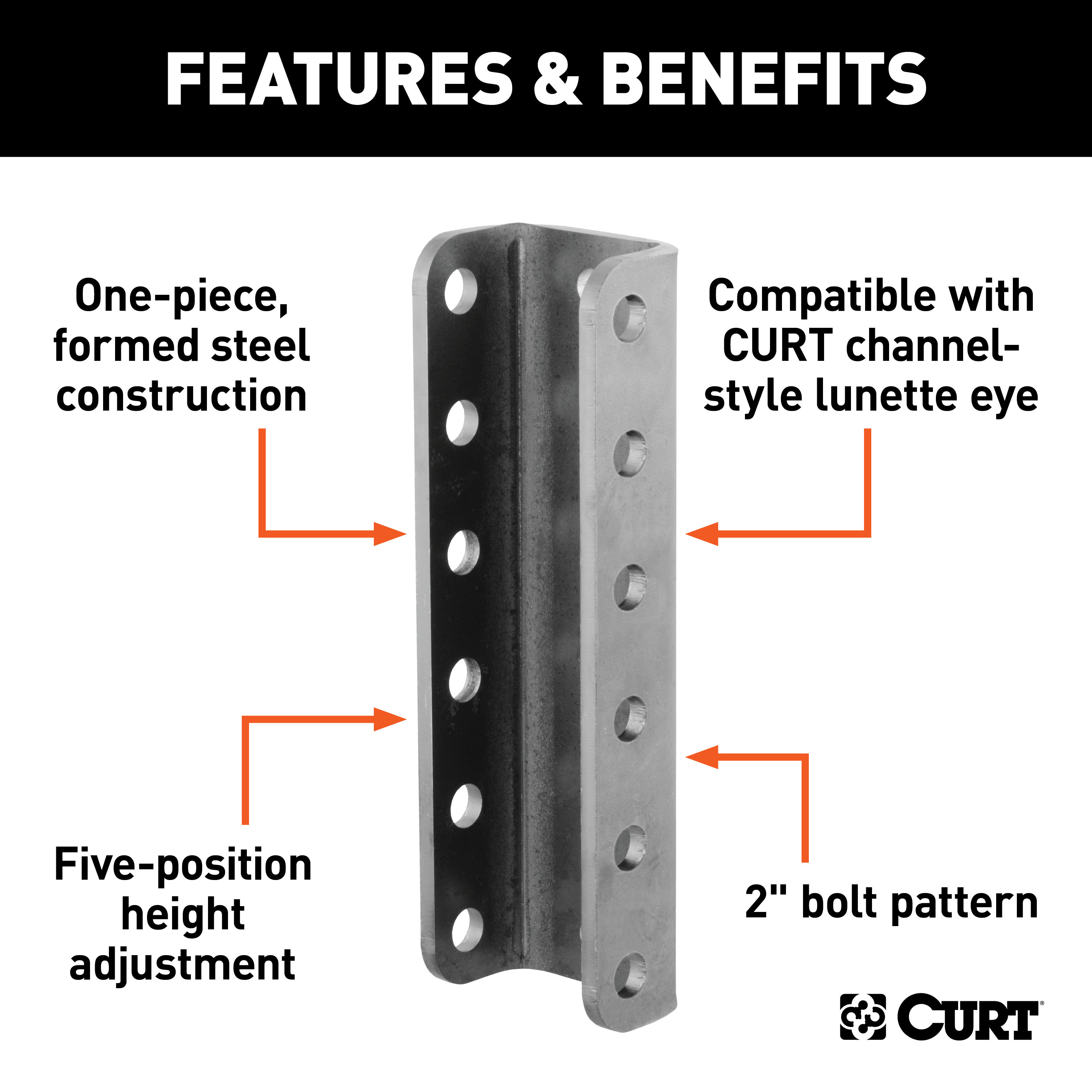

Features

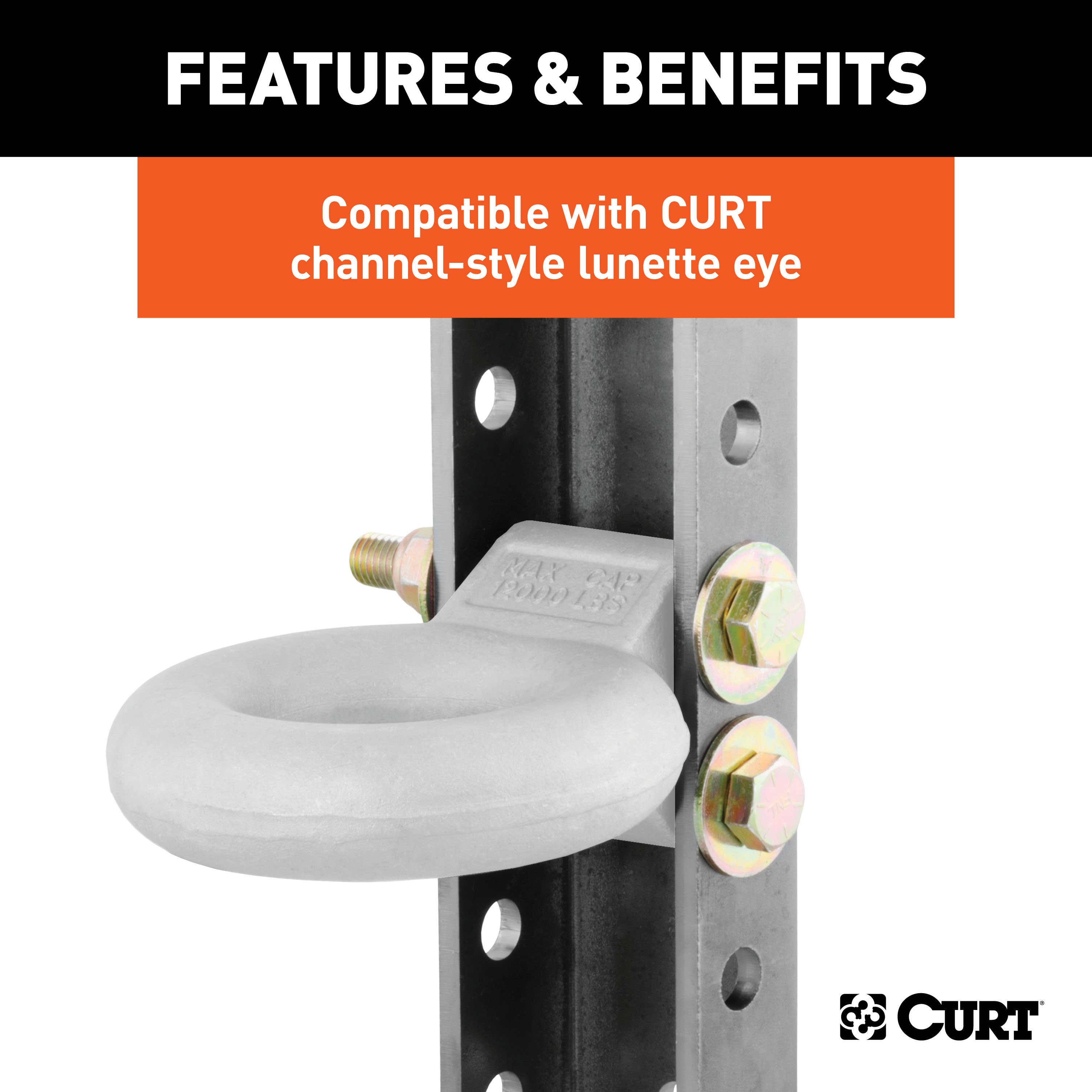

- Mounts CURT channel-style lunette ring or coupler
- Fits #48600, #48601, #48660, #25319, #25329, #25330 or #25328
- Five-position height adjustment allows for precise trailer leveling
- 2" bolt pattern spread for simple, secure attachment
- 3" inside channel width
- Constructed from one-piece, formed steel for superior strength
- Limited lifetime warranty (one-year finish, one-year parts)
Specifications
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: RAW
Installation Time Exact (Minutes): 0
Description
In agriculture, construction and even military applications, pintle hitches are the trusted product of specialized towing. They are notorious for their high weight capacity and simple design. The basic pintle hitch is essentially a hook and loop, with the hook attached to the vehicle and the loop mounted on the trailer. Because of their simple design, pintle hitches are able to have thicker metal construction and more secure coupling. CURT has a wide variety of pintle hitches and pintle-style products to give you a complete solution for your heavy-duty towing needs. This adjustable coupler channel is designed to mount CURT lunette rings #48600, #48601 or #48660 or CURT channel-style couplers #25319, #25329, #25330 or #25328, allowing for easy height adjustment and trailer levelling. It features a formed, one-piece steel construction and boasts a gross trailer weight capacity of 12,000 lbs. (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). It offers five different height adjustment positions with an overall height of 11-3/4".
CHANNELS & FORGED LUNETTE RINGS
| Bulk # | Pkg # | GTW | Number of Positions | Eye Hole Size | Bolt Hole Spacing | Channel Width | Channel Height | Description | Finish |
|---|---|---|---|---|---|---|---|---|---|

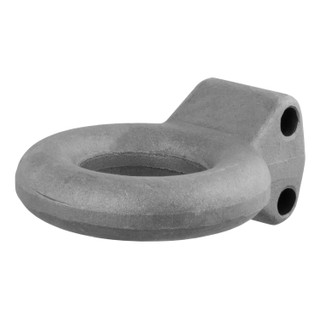

| 48600 | -- | 12,000 lbs. | -- | 3" I.D. | 2" on center | -- | -- | Forged ring | Raw |

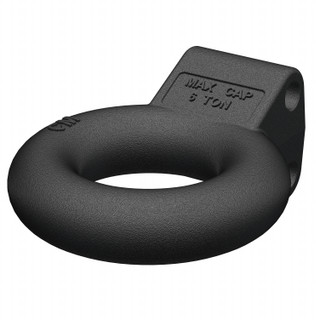

| 48601 | -- | 12,000 lbs. | -- | 3" I.D. | 2" on center | -- | -- | Forged ring | Gloss black |
| 48606 | -- | 24,000 lbs. | -- | 3" I.D. | 2" on center | -- | -- | Forged ring | Raw |

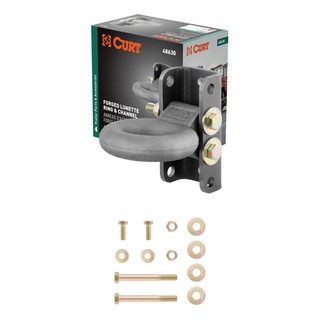

| 48631 | 48630 | 12,000 lbs. | 3-position | 3" I.D. | 2" on center | 3" I.D. | 7-1/2" | Forged ring with formed channel | Raw |
| 48610 | -- | -- | 3-position | -- | 2" on center | 3" I.D. | 7-1/2" | Formed channel | Raw |
| 48650 | -- | -- | 5-position | -- | 2" on center | 3" I.D. | 11-3/4" | Formed channel | Raw |
| 48640 | -- | 12,000 lbs. | 5-position | 3" I.D. | 2" on center | 3" I.D. | 11-3/4" | Forged ring with formed channel | Raw |
SECURELATCH™ CHANNELS & LUNETTE RINGS
| Bulk # | Pkg # | GTW | Number of Positions | Ring Hole Size | Ring Thickness | Vertical Hole Spacing | Channel Width | Channel Height | Description |
|---|---|---|---|---|---|---|---|---|---|
| -- | 48625 | 25,000 lbs. | -- | 3" I.D. | 1-1/2" | 2" on center | 3" I.D. | -- | Lunette ring only |
| -- | 48626 | 40,000 lbs. | -- | 3" I.D. | 1-1/2" | 2" on center | 2-3/4" I.D. | -- | Lunette ring only |
| -- | 48641 | 40,000 lbs. | 4-position | 3" I.D. | 1-1/2" | 2" on center | 2-3/4" I.D. | 11-3/4" | Lunette ring and channel |
| 48651 | -- | -- | 4-position | -- | -- | 2" on center | 2-3/4" I.D. | 11-3/4" | Channel fits 48626 only |
| 48610 | -- | -- | 3-position | -- | -- | 2" on center | 3" I.D. | 7-1/2" | Channel only |
| 48650 | -- | -- | 5-position | -- | -- | 2" on center | 3" I.D. | 11-3/4" | Channel only |
SECURELATCH™ CHANNELS & LUNETTE RINGS
| Bulk # | Pkg # | GTW | Number of Positions | Ring Hole Size | Ring Thickness | Vertical Hole Spacing | Channel Width | Channel Height | Description |
|---|---|---|---|---|---|---|---|---|---|
| -- | 48625 | 25,000 lbs. | -- | 3" I.D. | 1-1/2" | 2" on center | 3" I.D. | -- | Lunette ring only |
| -- | 48626 | 40,000 lbs. | -- | 3" I.D. | 1-1/2" | 2" on center | 2-3/4" I.D. | -- | Lunette ring only |
| -- | 48641 | 40,000 lbs. | 4-position | 3" I.D. | 1-1/2" | 2" on center | 2-3/4" I.D. | 11-3/4" | Lunette ring and channel |
| 48651 | -- | -- | 4-position | -- | -- | 2" on center | 2-3/4" I.D. | 11-3/4" | Channel fits 48626 only |
| 48610 | -- | -- | 3-position | -- | -- | 2" on center | 3" I.D. | 7-1/2" | Channel only |
| 48650 | -- | -- | 5-position | -- | -- | 2" on center | 3" I.D. | 11-3/4" | Channel only |
Similar Products

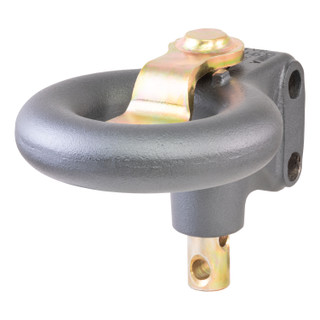

CURT SecureLatch Channel-Style Lunette Ring (25,000 lbs, 3" ID) Trailer Hitch Pintle Hook Mount$101.86
View Product
CURT SecureLatch Lunette Ring Channel (2-3/4" ID, 11-3/4" High) Trailer Hitch Pintle Hook Mount$89.19
View Product

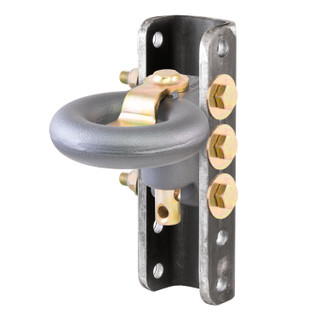

CURT SecureLatch Lunette Ring & Channel (40,000 lbs, 3" ID, 11-3/4" Channel Height) Trailer Hitch Pintle Hook Mount$256.95
View Product

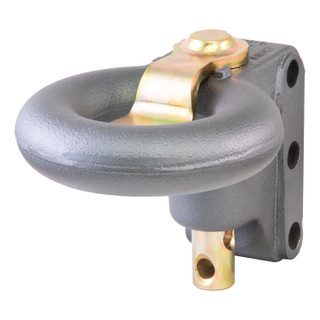

CURT SecureLatch Channel-Style Lunette Ring (40,000 lbs., 3" ID) Trailer Hitch Pintle Hook Mount$179.95
View Product
CURT 48610 Adjustable Lunette Ring or Coupler Channel 3-Inch ID x 7-1/2-Inch, 2-In Bolt Pattern$41.50
View Product

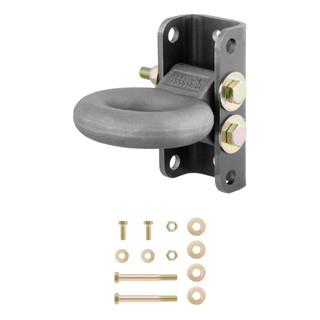

CURT 48631 Raw Steel Adjustable Pintle Hitch Lunette Ring 3-In ID, 12,000 lbs, 7-1/2-Inch Channel Height$102.98
