3" inside width channel required for installation (sold separately)
U.S. patent# 5,527,356; Canadian patent# 2,823,001; Australian patent# 2014305601
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: DARK GREY TERIDIUM
Gross Trailer Weight (Pounds): 25,000 LBS
Installation Time Exact (Minutes): 0

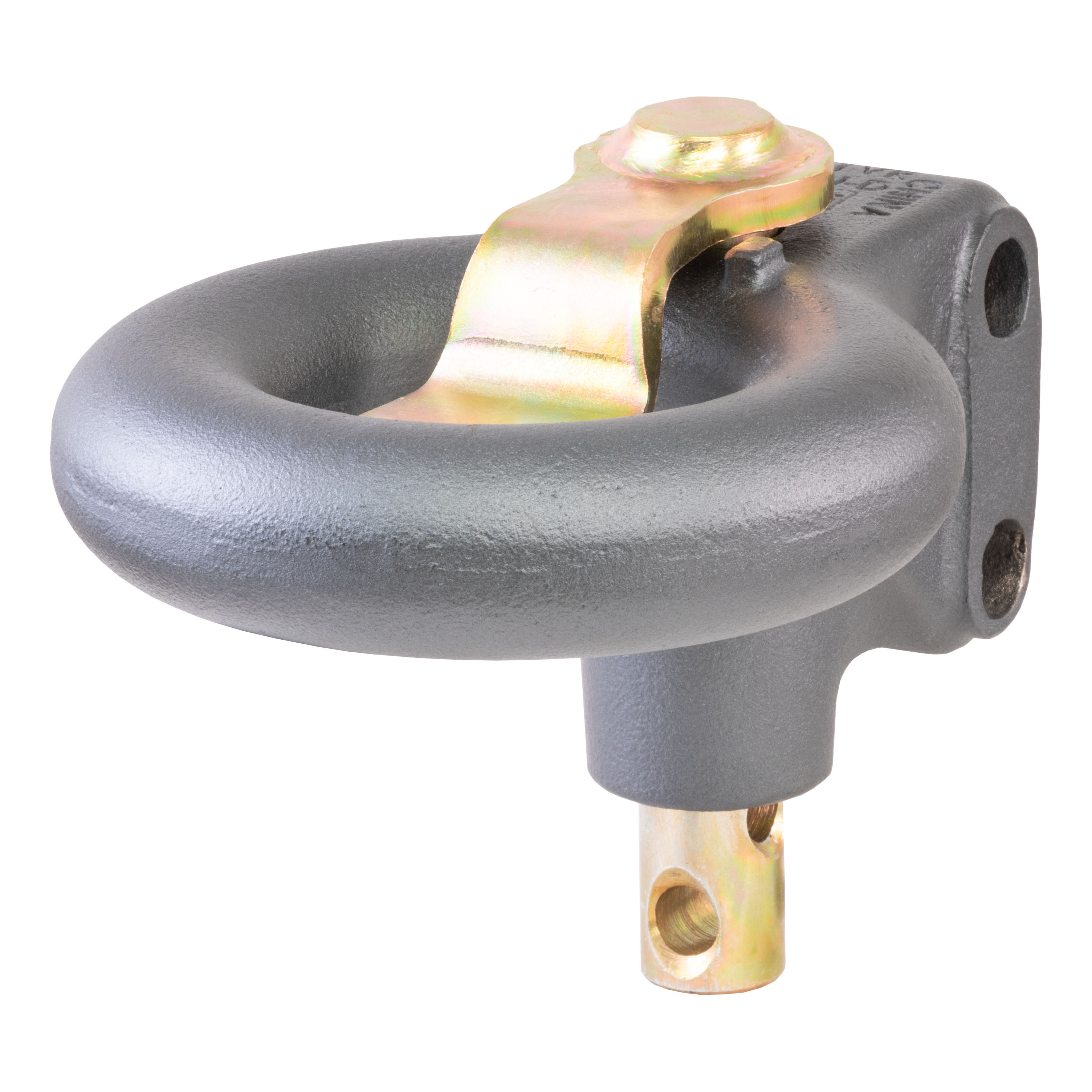

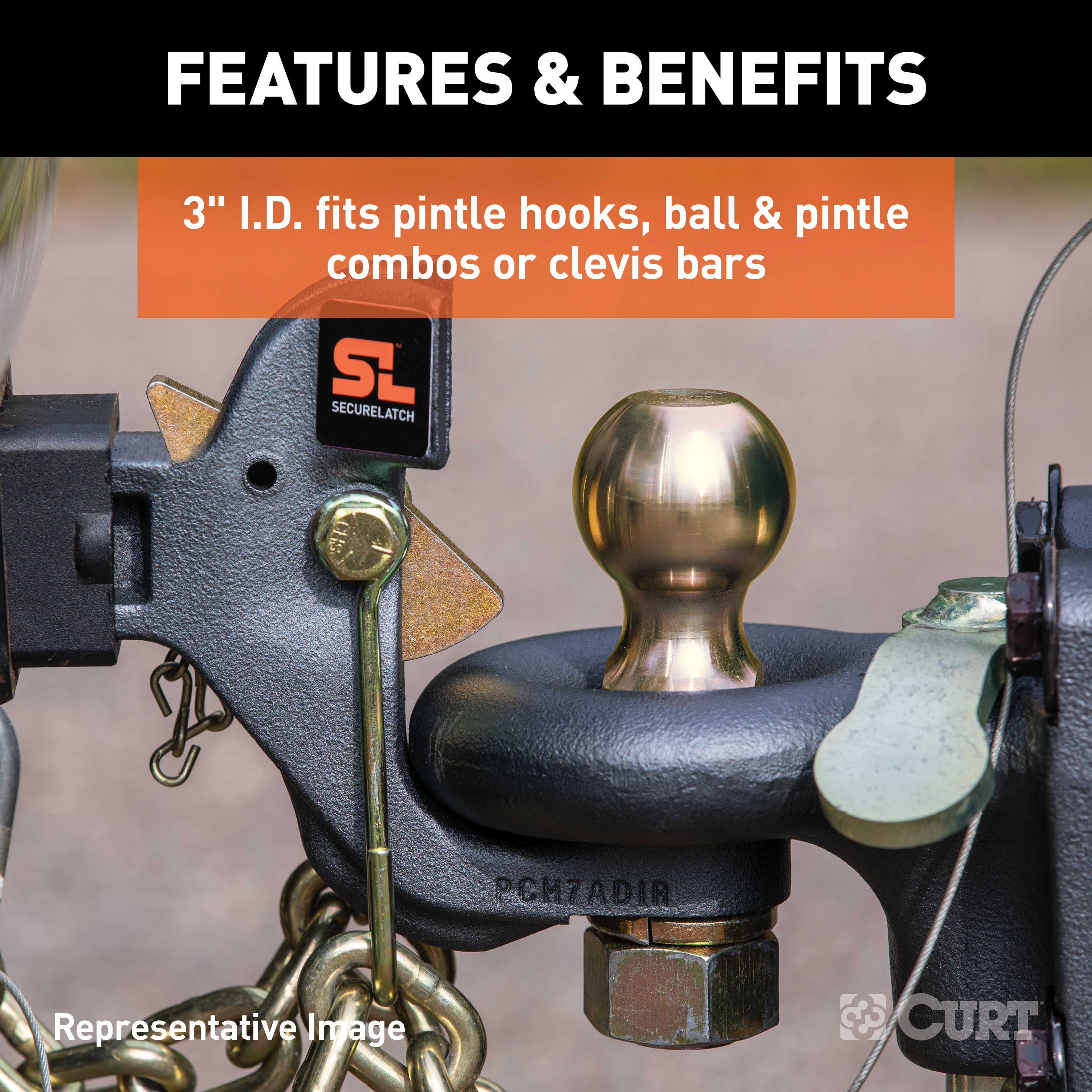

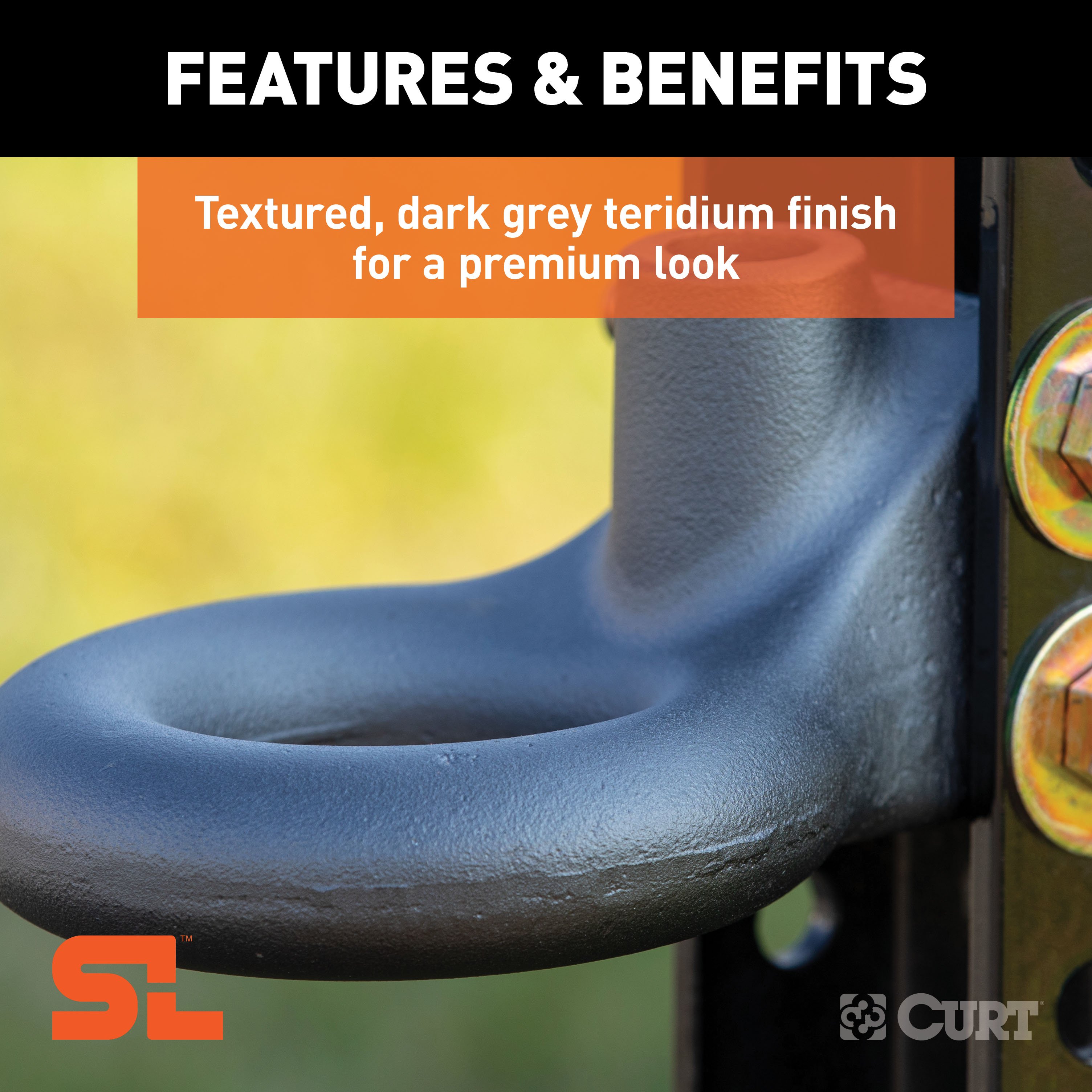

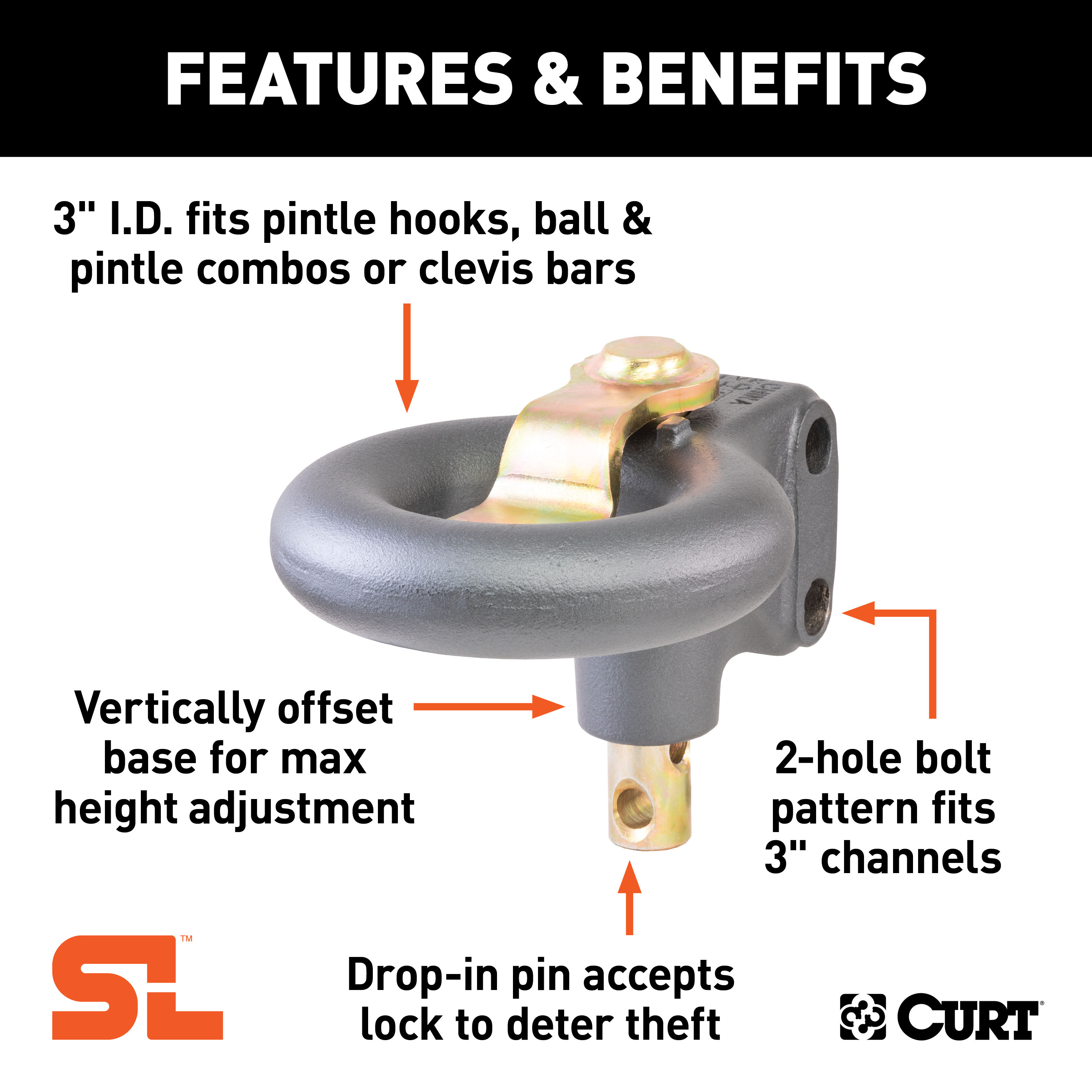

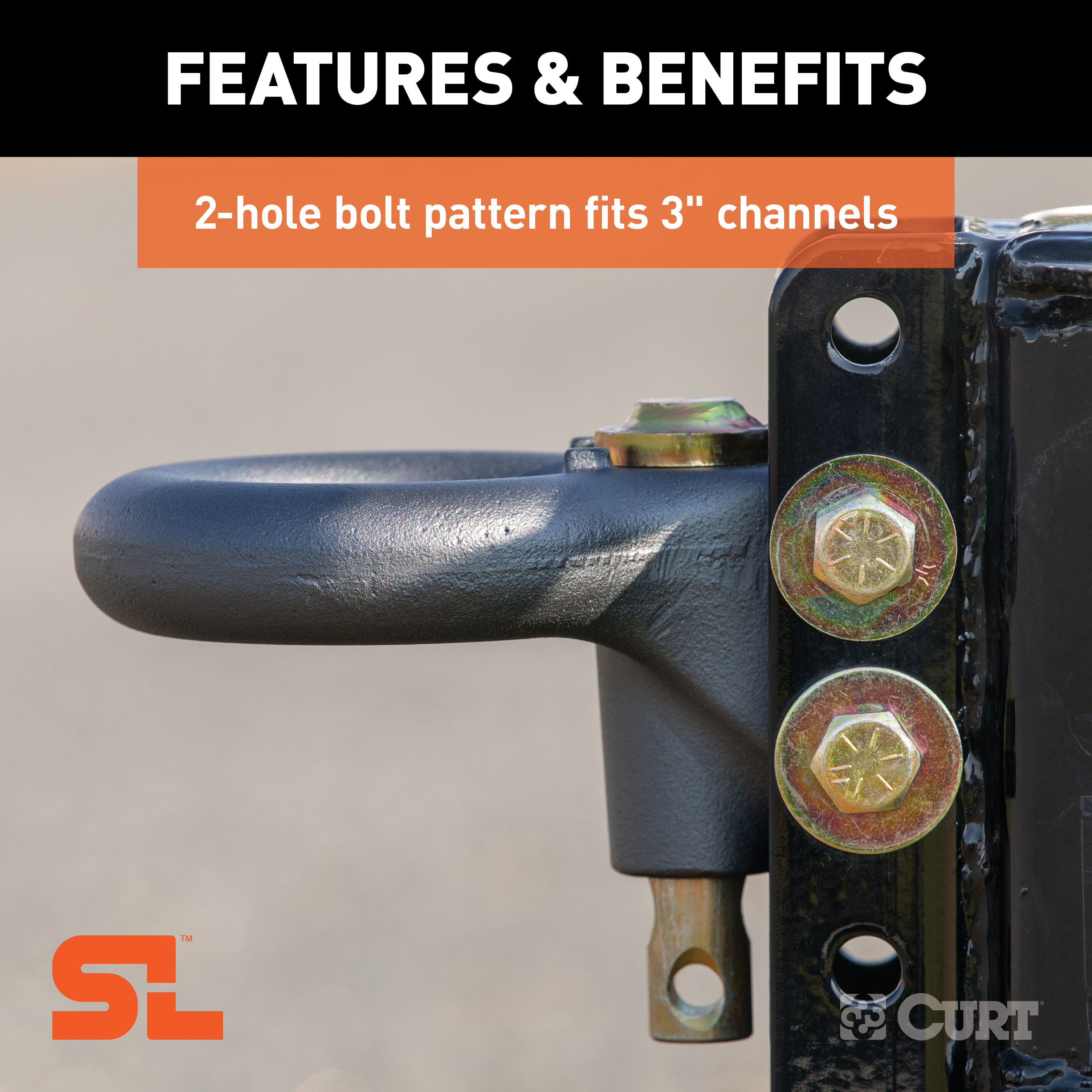

The CURT SecureLatch lunette ring offers enhanced security and maximum versatility. Its integrated locking pin helps prevent coupling and theft when your trailer is left unattended, featuring holes in the bottom to accept a padlock. The pin can also be turned 90 degrees to allow you to hitch up your trailer. This lunette ring also offers maximum height adjustment, featuring an offset base. The ring can be flipped for more drop or rise as needed. The CURT SecureLatch lunette ring is intended to fit an 11-3/4-inch x 3-inch inside width channel (sold separately). It has a two-hole bolt pattern. The lunette ring itself has a 3-inch inside diameter to couple to a pintle hook or ball and pintle combination, and it is rated for up to 25,000 pounds gross trailer weight. This SecureLatch lunette eyelet is made from cast iron for dependable strength, and it features a durable, dark grey teridium powder coat finish for resistance to the elements.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The CURT 48625 is a channel-mount lunette eye designed to connect a trailer to a towing vehicle. It features a locking pin mechanism to secure the trailer connection during towing and can be flipped to adjust height. It is rated for trailers with a gross weight up to 25,000 lbs.
Yes. The 48625 is a channel-mount lunette eye that must be secured to a trailer channel-mount lunette ring, which is sold separately. The lunette ring is the component that physically connects to your trailer.
The 48625 is rated for a gross trailer weight (GTW) of 25,000 lbs. on-road. For off-road applications, reduce this capacity by 25% (to 18,750 lbs.). Never exceed your vehicle manufacturer's recommended towing capacity, whichever is lower.
The 48625 includes one channel-mount lunette eye and one locking pin. The two 5/8" grade-8 bolts, washers, nuts, and padlock are not included and must be purchased separately.
You will need a torque wrench, ratchet, 15/16" socket, and 15/16" wrench. A torque wrench is essential to tighten the bolts to the correct specification of 180 ft-lbs.
You must purchase two 5/8" grade-8 bolts, two washers, and two nuts. These are not included with the product. You will also need a padlock (not included) to secure the locking pin during travel.
1. Determine the optimal height for the lunette ring on your trailer channel (the lunette ring can be flipped to achieve greater drop or rise). 2. Secure the lunette eye to the trailer channel using two 5/8" grade-8 bolts, washers, and nuts. 3. Tighten all bolts to 180 ft-lbs using a torque wrench.

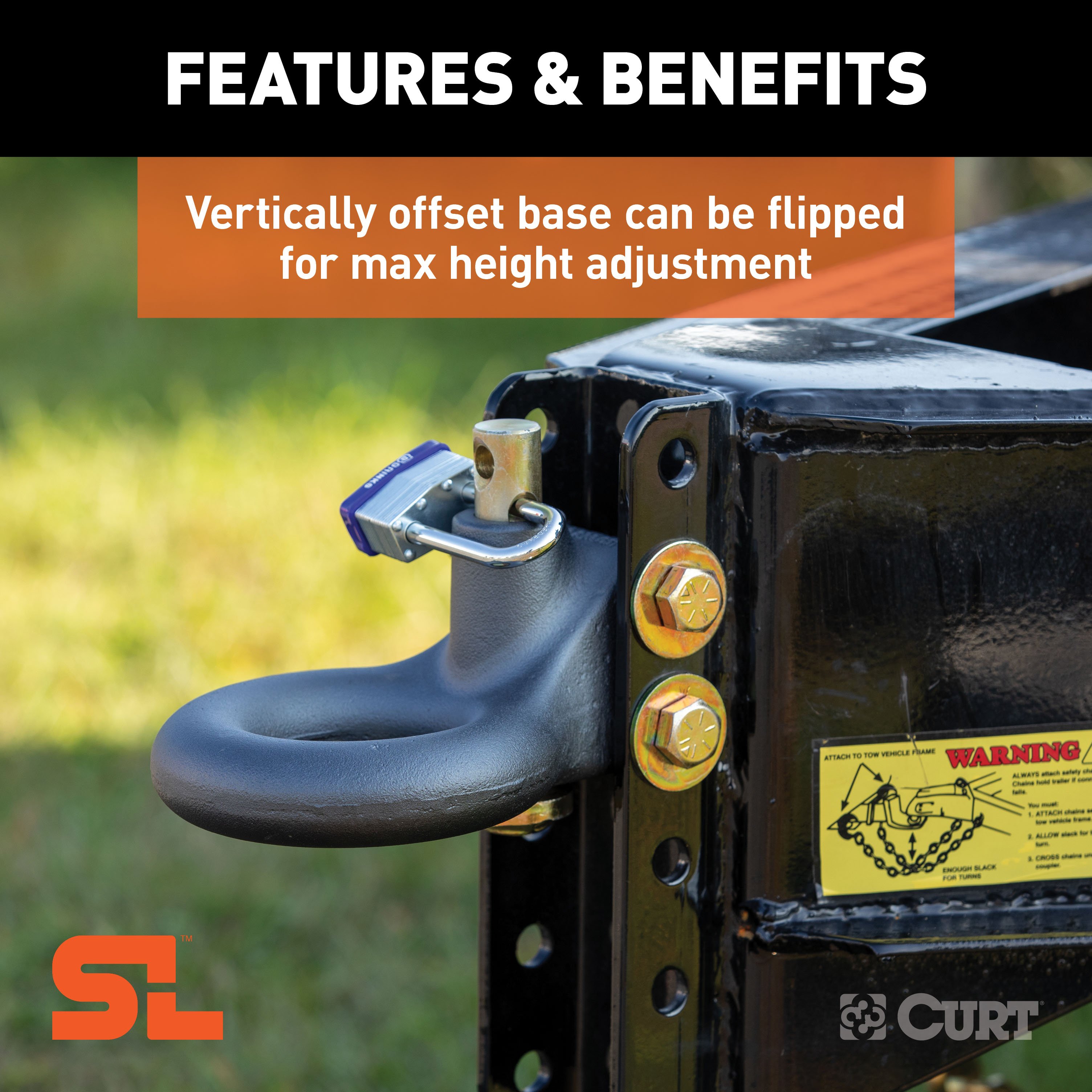

Yes. The lunette ring can be flipped to achieve greater drop or rise, allowing you to adjust the height to match your towing vehicle's hitch height. Determine the optimal height before securing the bolts.
All 5/8" bolts must be tightened to 180 ft-lbs. This torque specification applies to the two bolts that secure the lunette eye to the trailer channel.
1. Remove the padlock from the locking pin. 2. Lift and turn the locking pin 90 degrees to the side to the unlocked position. 3. Reinsert the padlock to keep the locking pin secure during travel. The locking pin must be in the unlocked position before hooking up the trailer.

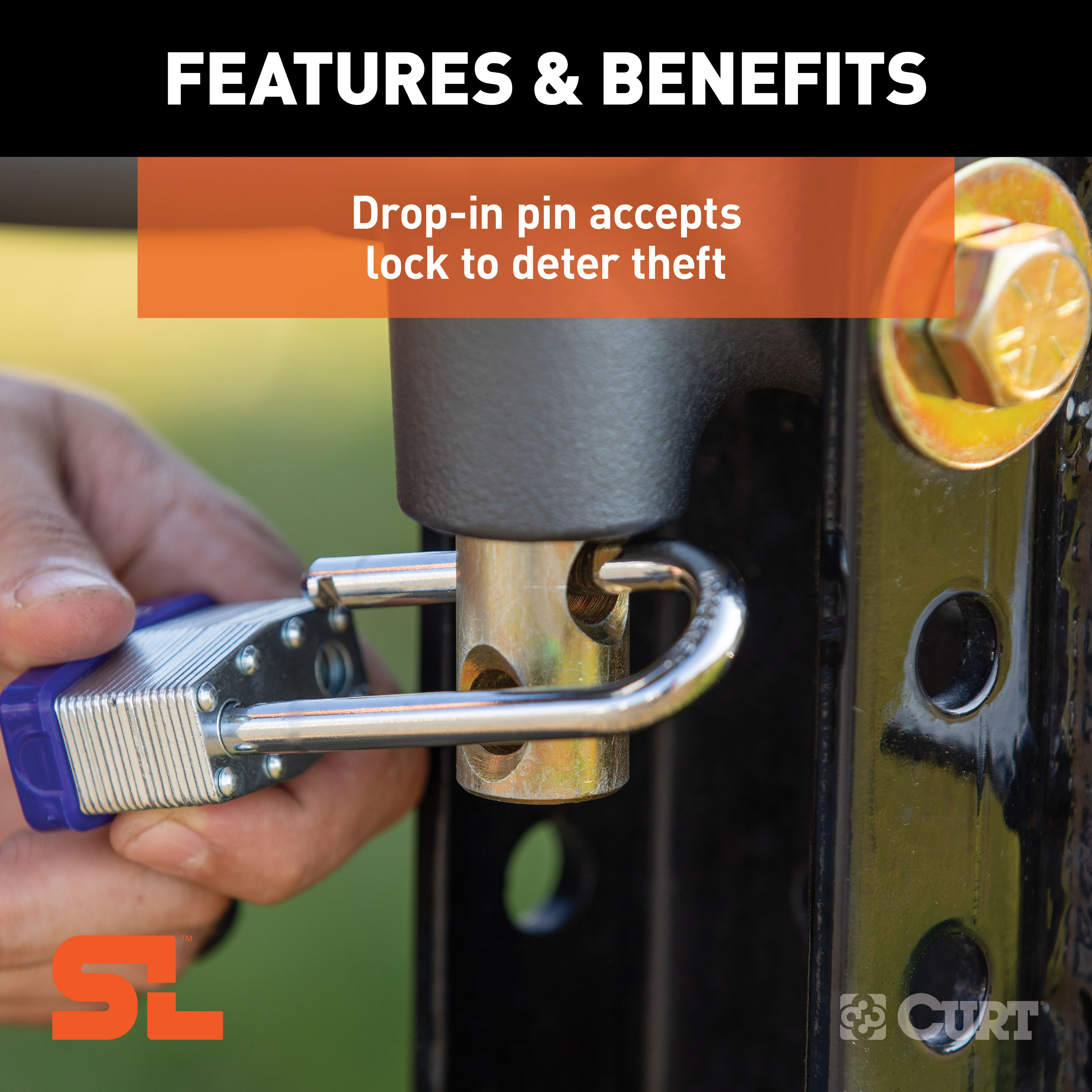

Drop the locking pin into the locked position (straight down) and install a padlock (not included) through the locking pin hole. The locking pin can still be used when the lunette ring is in the drop position.
Maintain adequate vertical down (tongue) load of approximately 10% of the trailer's gross weight to have proper control of the trailer. However, do not exceed the specified rated capacities of the vehicle or towing component.
The 48625 is designed for on-road towing within the stated capacities. For off-road applications, reduce the 25,000 lbs GTW capacity by 25% (to 18,750 lbs maximum). Always follow your vehicle manufacturer's towing recommendations.
Yes. Safety chains must be kept in place and in working order at all times. Never operate the product without safety chains attached to the vehicle. This is a critical safety requirement.
No. Do not modify the lunette eye in any way. Unauthorized modification may impair function and safety, could affect the product's life, and will void the warranty.
Before each use, inspect the unit for proper operation and check for worn, damaged, or missing parts. Replace any damaged or worn parts immediately. Never operate the product with a damaged part. Replace parts when wear exceeds 1/8" from the original surface.
Check the hardware torque specification after the first 200 miles of towing and every 400 miles after that. Retighten all bolts to 180 ft-lbs if needed. This maintenance is critical to ensure safe operation.
Replace worn or damaged parts when the unit's wear exceeds 1/8" from the original surface. Inspect the unit regularly and replace parts as required to maintain safe operation.
The 48625 is a channel-mount lunette eye that requires a separate channel-mount lunette ring (sold separately). It is rated for trailers up to 25,000 lbs GTW. Verify your trailer has a channel mount and that your vehicle's towing capacity meets or exceeds the trailer weight.
You must purchase two 5/8" grade-8 bolts, washers, nuts, and a padlock. A torque wrench is also required for proper installation.
Tighten all 5/8" bolts to 180 ft-lbs using a torque wrench. Recheck torque after the first 200 miles and every 400 miles thereafter.
Yes, but reduce the 25,000 lbs capacity by 25% for off-road use. The product is designed for on-road towing within stated capacities.
Check torque after the first 200 miles of towing, then every 400 miles after that. Retighten to 180 ft-lbs if needed.
| Bulk # | Pkg # | GTW | Number of Positions | Ring Hole Size | Ring Thickness | Vertical Hole Spacing | Channel Width | Channel Height | Description |
|---|---|---|---|---|---|---|---|---|---|
| -- | 48625 | 25,000 lbs. | -- | 3" I.D. | 1-1/2" | 2" on center | 3" I.D. | -- | Lunette ring only |
| -- | 48626 | 40,000 lbs. | -- | 3" I.D. | 1-1/2" | 2" on center | 2-3/4" I.D. | -- | Lunette ring only |
| -- | 48641 | 40,000 lbs. | 4-position | 3" I.D. | 1-1/2" | 2" on center | 2-3/4" I.D. | 11-3/4" | Lunette ring and channel |
| 48651 | -- | -- | 4-position | -- | -- | 2" on center | 2-3/4" I.D. | 11-3/4" | Channel fits 48626 only |
| 48610 | -- | -- | 3-position | -- | -- | 2" on center | 3" I.D. | 7-1/2" | Channel only |
| 48650 | -- | -- | 5-position | -- | -- | 2" on center | 3" I.D. | 11-3/4" | Channel only |
| Bulk # | Pkg # | GTW | Number of Positions | Ring Hole Size | Ring Thickness | Vertical Hole Spacing | Channel Width | Channel Height | Description |
|---|---|---|---|---|---|---|---|---|---|
| -- | 48625 | 25,000 lbs. | -- | 3" I.D. | 1-1/2" | 2" on center | 3" I.D. | -- | Lunette ring only |
| -- | 48626 | 40,000 lbs. | -- | 3" I.D. | 1-1/2" | 2" on center | 2-3/4" I.D. | -- | Lunette ring only |
| -- | 48641 | 40,000 lbs. | 4-position | 3" I.D. | 1-1/2" | 2" on center | 2-3/4" I.D. | 11-3/4" | Lunette ring and channel |
| 48651 | -- | -- | 4-position | -- | -- | 2" on center | 2-3/4" I.D. | 11-3/4" | Channel fits 48626 only |
| 48610 | -- | -- | 3-position | -- | -- | 2" on center | 3" I.D. | 7-1/2" | Channel only |
| 48650 | -- | -- | 5-position | -- | -- | 2" on center | 3" I.D. | 11-3/4" | Channel only |
