Includes lunette ring #48626, channel #48651 and hardware
Lunette ring fits 2-3/4" I.D. channel only
U.S. patent# 5,527,356; Canadian patent# 2,823,001; Australian patent# 2014305601
Includes lunette ring #48626, channel #48651 and hardware
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

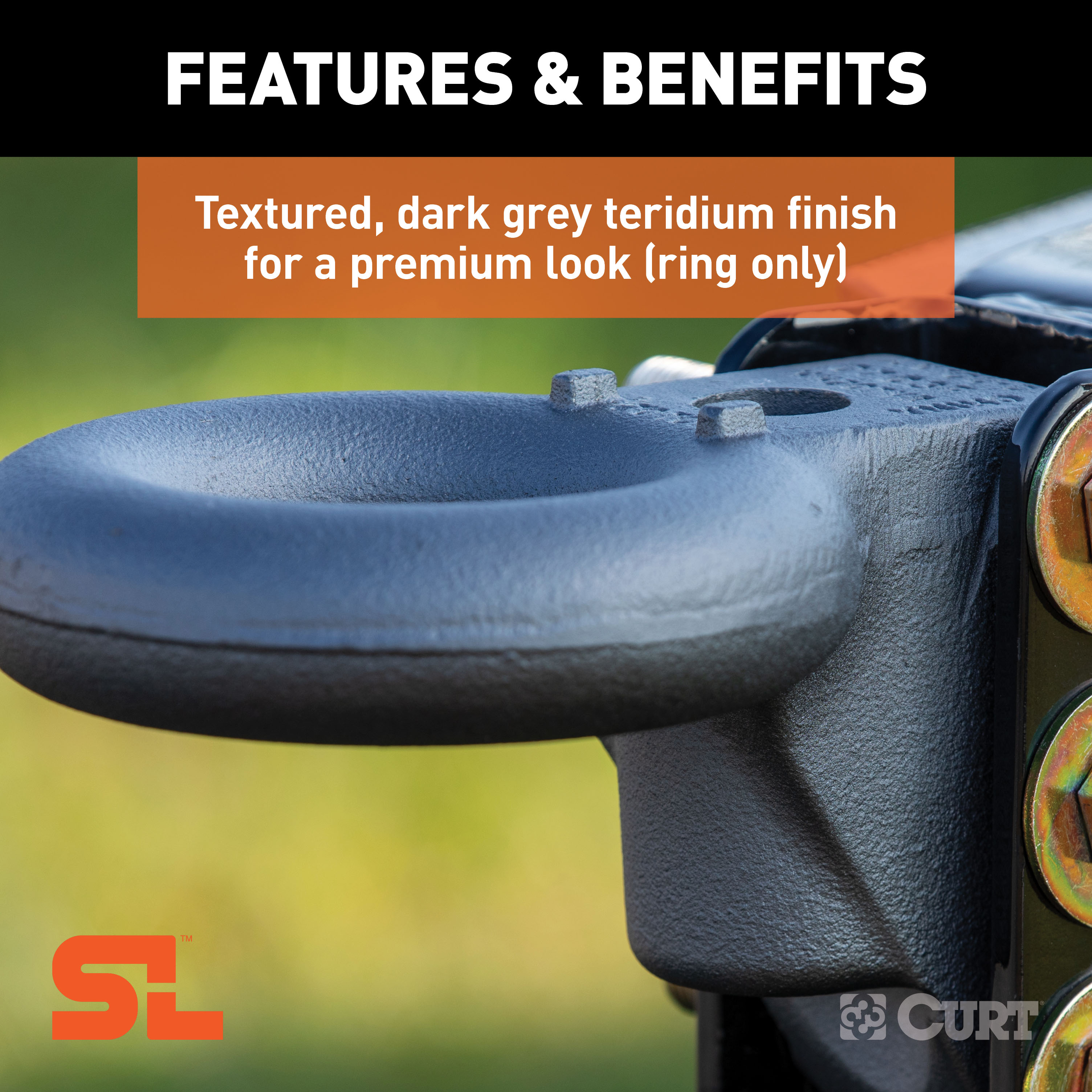

Finish: DARK GREY TERIDIUM
Gross Trailer Weight (Pounds): 40,000 LBS
Installation Time Exact (Minutes): 0

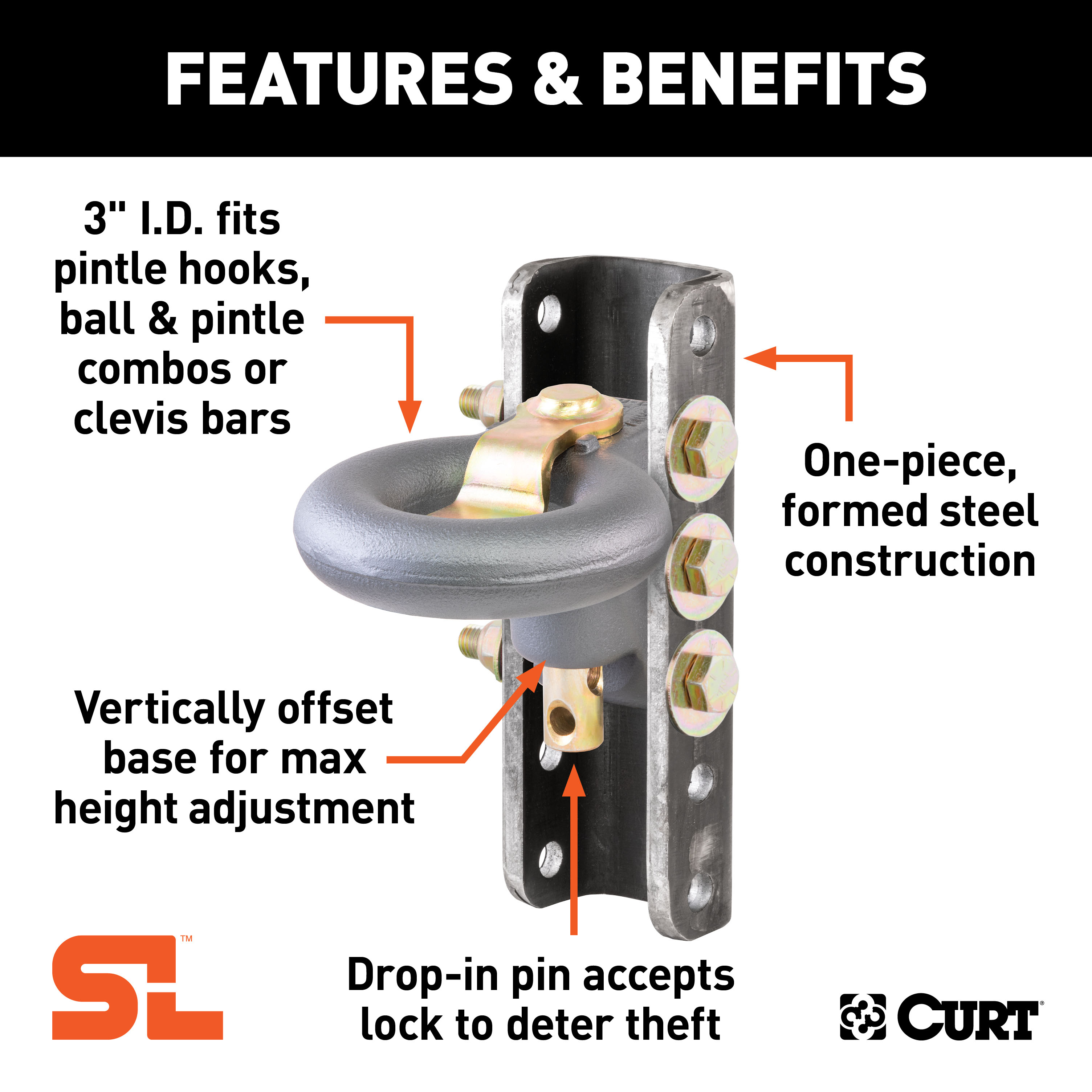

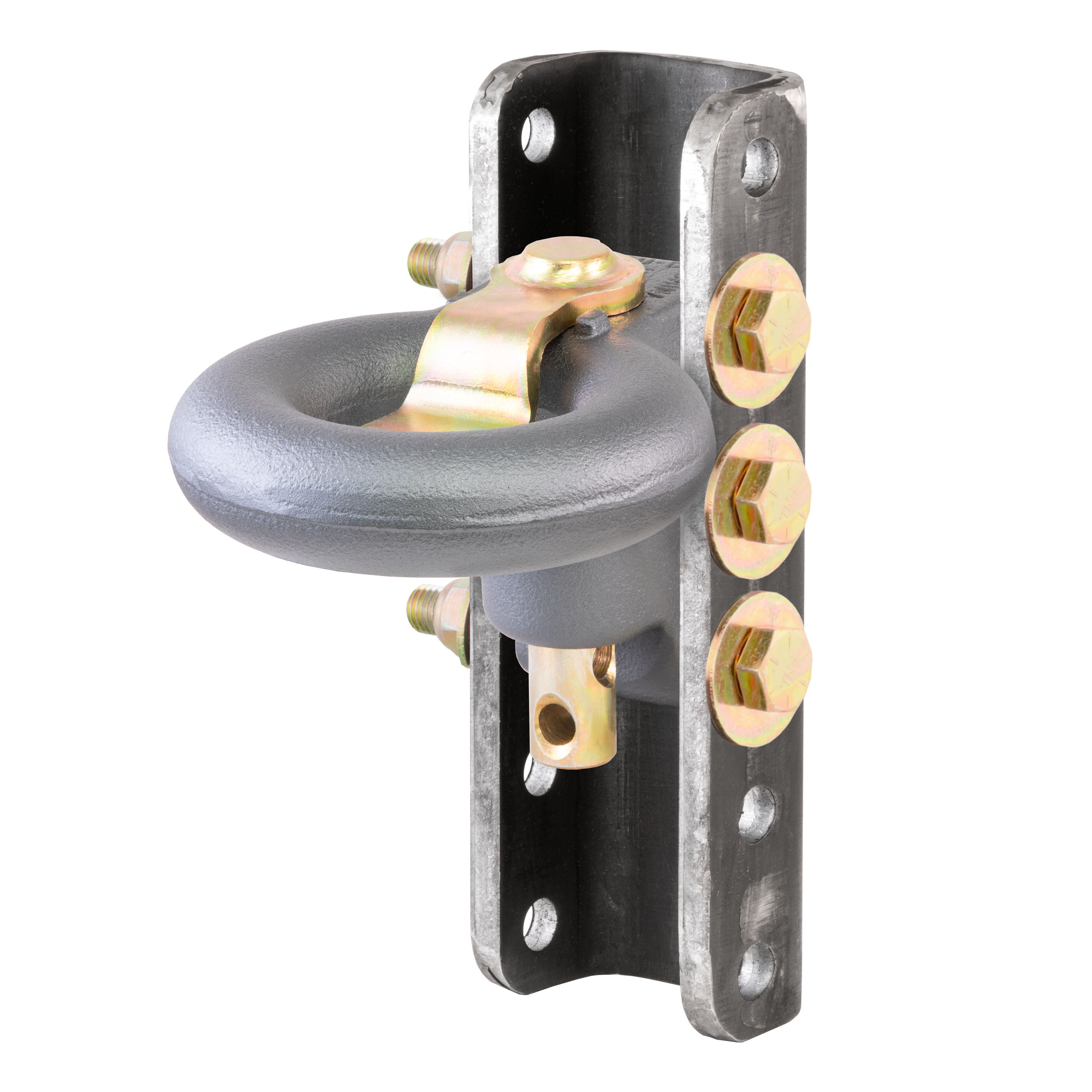

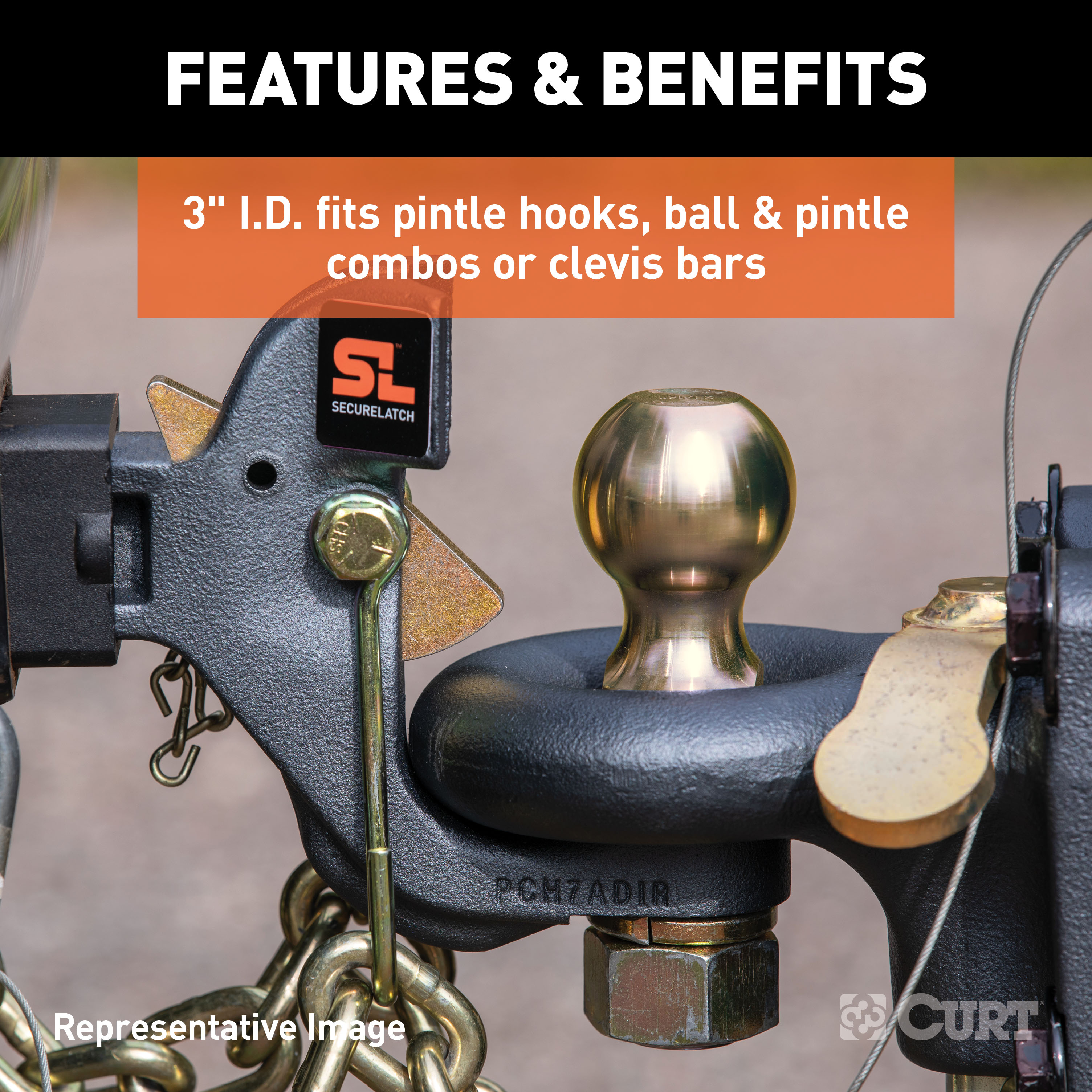

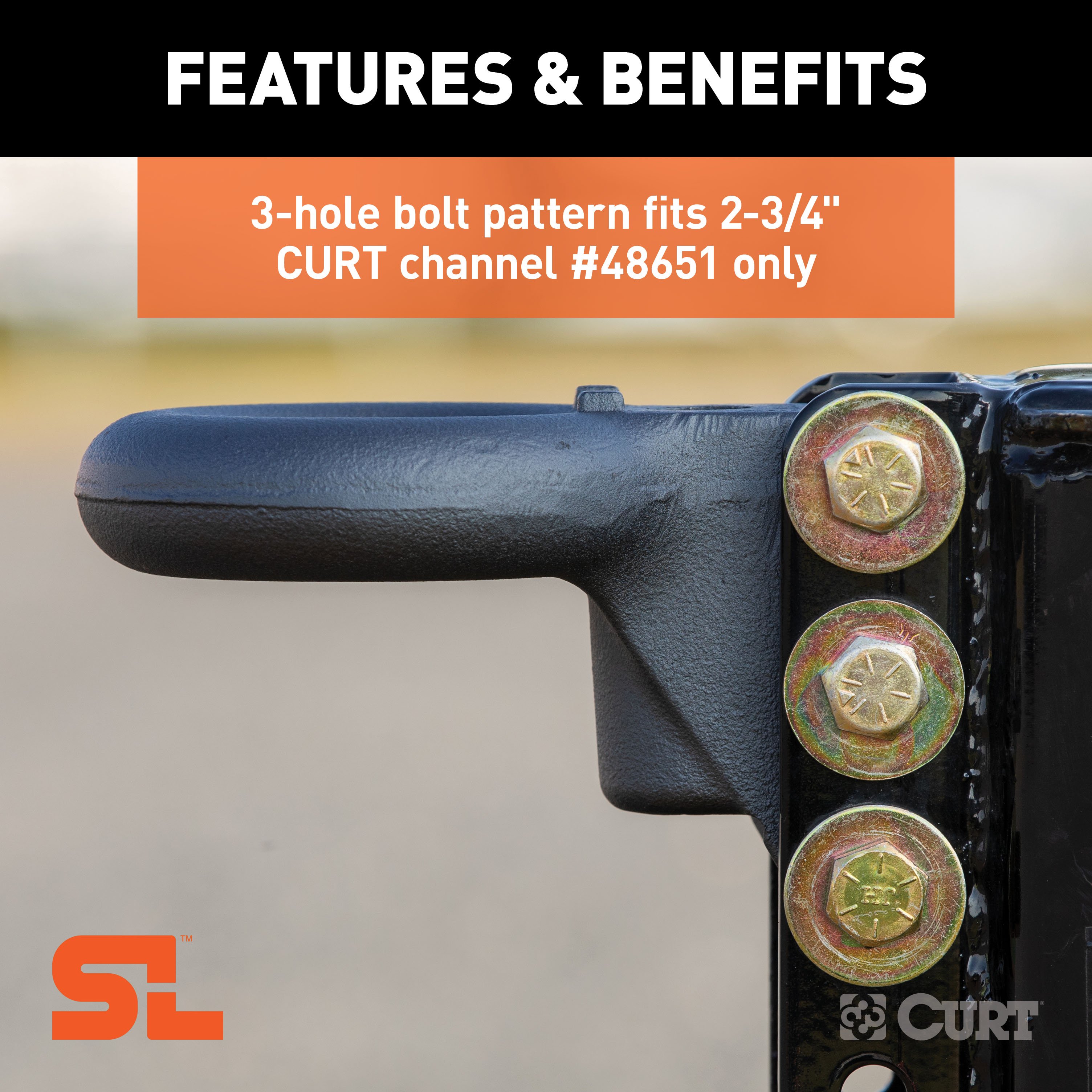

The CURT SecureLatch adjustable lunette ring and channel set offers enhanced security and maximum versatility. Its integrated locking pin helps prevent coupling and theft when your trailer is left unattended, featuring holes in the bottom to accept a padlock. The pin can also be turned 90 degrees to allow you to hitch up your trailer. This lunette ring also offers flexible height adjustment. It can be moved up or down for more drop or rise as needed. The CURT SecureLatch lunette ring comes with an 11-3/4-inch tall x 2-3/4-inch inside width channel. It has a 3-hole bolt pattern. The lunette ring itself has a 3-inch inside diameter to couple to a pintle hook or ball and pintle combination, and it is rated for up to 40,000 pounds gross trailer weight. This SecureLatch lunette eyelet is made from austempered iron for superior strength and wear resistance, and it features a durable, dark grey teridium powder coat finish for resistance to the elements.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The CURT 48641 channel-mount lunette ring has a gross trailer weight (GTW) capacity of 40,000 lbs. Never exceed the vehicle manufacturer's recommended towing capacity, and for off-road applications, reduce this capacity by 25%.
The CURT 48641 is a channel-mount lunette ring designed to be welded to a trailer channel. The manual does not specify which trailer models or types are compatible. Contact CURT Manufacturing at 877-287-8634 or check the product listing for your specific trailer model to confirm fitment.
The kit includes: one channel-mount lunette ring, one channel-mount, one locking pin, six 5/8" washers, three 5/8" hex head bolts, and three 5/8" Nylock nuts. A padlock is not included and must be purchased separately.
You will need: a torque wrench, a ratchet, a 15/16" socket, a 15/16" wrench, and welding supplies. All welding must be performed by an AWS certified welder.
Yes. The mounting channel must be welded to a structure of sufficient strength to support the rated capacity of the lunette ring in accordance with SAE J847. All welding must be performed by an AWS certified welder. It is your responsibility to ensure the mounting structure is capable of supporting the rated capacity.
After the mounting channel has been welded in place by an AWS certified welder, secure the lunette ring to the trailer channel using the three 5/8" bolts, six washers, and three Nylock nuts. Tighten all hardware to 180 ft-lbs using a torque wrench. The product is rated for use in the rise position only; do not use in the drop position.
All 5/8" bolts must be tightened to 180 ft-lbs using a torque wrench.
Ensure the locking pin is in the unlocked position before hooking up the trailer. Remove the padlock, lift and turn the locking pin 90 degrees to the side as shown in the manual, then reinsert the padlock to keep the locking pin secure during travel.

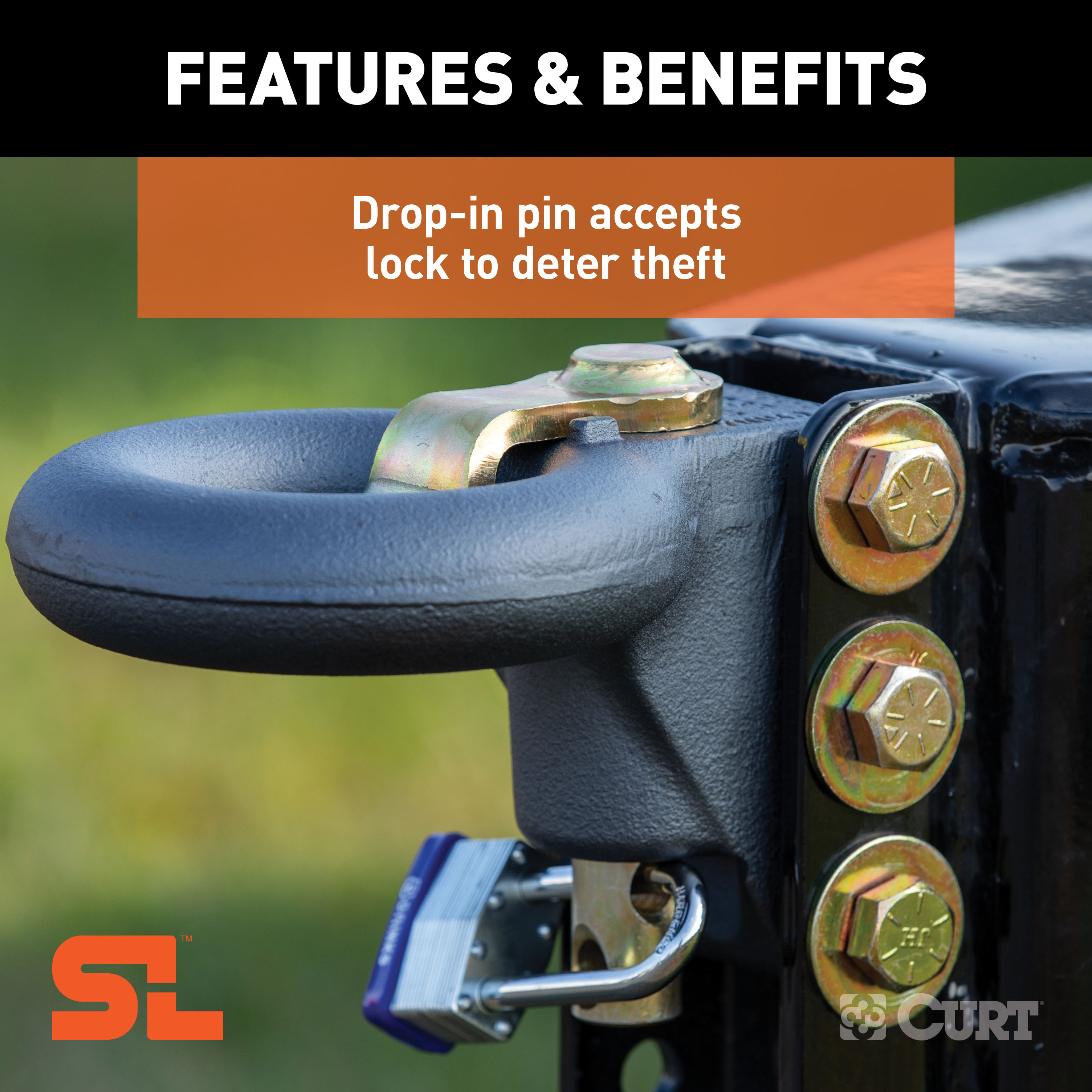

Drop the locking pin into the locked position as shown in the manual, then install a padlock (not included) into the locking pin to secure it.
No. This product is rated for use in the rise position only. Do not use in the drop position.
Maintain adequate vertical down (tongue) load to have control of the trailer, generally 10%, but do not exceed the specified rated capacities of the vehicle or towing components.
Yes. Keep safety chains in place and in working order. Never operate the product without the safety chains attached to the vehicle.
The CURT 48641 is designed for on-road towing within the stated capacities. For off-road applications, reduce the 40,000 lbs GTW capacity by 25%, resulting in a maximum of 30,000 lbs GTW.
Check the hardware torque specification after the first 200 miles of towing and every 400 miles after that. Use a torque wrench to ensure all 5/8" bolts remain at 180 ft-lbs.
Inspect the unit before each use for proper operation and worn, damaged, or missing parts. Replace parts as required or when wear exceeds 1/8" from the original surface. Check hardware torque after the first 200 miles of towing and every 400 miles thereafter. Never operate the product with a damaged part.
No. Do not modify this lunette ring in any way. Unauthorized modification may impair the function and/or safety, could affect the life of the product, and will void the warranty.
Yes. The mounting channel must be welded to a trailer structure by an AWS certified welder. The mounting structure must be capable of supporting the 40,000 lbs GTW rated capacity.
The kit includes the lunette ring, channel-mount, locking pin, six 5/8" washers, three 5/8" bolts, and three 5/8" Nylock nuts. A padlock is not included.
Tighten all 5/8" bolts to 180 ft-lbs using a torque wrench.
The CURT 48641 has a gross trailer weight capacity of 40,000 lbs for on-road towing. For off-road use, reduce this by 25% to 30,000 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
Check hardware torque after the first 200 miles of towing, then every 400 miles thereafter. All 5/8" bolts must remain at 180 ft-lbs.
No. This product is rated for use in the rise position only. Do not use in the drop position.
| Bulk # | Pkg # | GTW | Number of Positions | Ring Hole Size | Ring Thickness | Vertical Hole Spacing | Channel Width | Channel Height | Description |
|---|---|---|---|---|---|---|---|---|---|
| -- | 48625 | 25,000 lbs. | -- | 3" I.D. | 1-1/2" | 2" on center | 3" I.D. | -- | Lunette ring only |
| -- | 48626 | 40,000 lbs. | -- | 3" I.D. | 1-1/2" | 2" on center | 2-3/4" I.D. | -- | Lunette ring only |
| -- | 48641 | 40,000 lbs. | 4-position | 3" I.D. | 1-1/2" | 2" on center | 2-3/4" I.D. | 11-3/4" | Lunette ring and channel |
| 48651 | -- | -- | 4-position | -- | -- | 2" on center | 2-3/4" I.D. | 11-3/4" | Channel fits 48626 only |
| 48610 | -- | -- | 3-position | -- | -- | 2" on center | 3" I.D. | 7-1/2" | Channel only |
| 48650 | -- | -- | 5-position | -- | -- | 2" on center | 3" I.D. | 11-3/4" | Channel only |
| Bulk # | Pkg # | GTW | Number of Positions | Ring Hole Size | Ring Thickness | Vertical Hole Spacing | Channel Width | Channel Height | Description |
|---|---|---|---|---|---|---|---|---|---|
| -- | 48625 | 25,000 lbs. | -- | 3" I.D. | 1-1/2" | 2" on center | 3" I.D. | -- | Lunette ring only |
| -- | 48626 | 40,000 lbs. | -- | 3" I.D. | 1-1/2" | 2" on center | 2-3/4" I.D. | -- | Lunette ring only |
| -- | 48641 | 40,000 lbs. | 4-position | 3" I.D. | 1-1/2" | 2" on center | 2-3/4" I.D. | 11-3/4" | Lunette ring and channel |
| 48651 | -- | -- | 4-position | -- | -- | 2" on center | 2-3/4" I.D. | 11-3/4" | Channel fits 48626 only |
| 48610 | -- | -- | 3-position | -- | -- | 2" on center | 3" I.D. | 7-1/2" | Channel only |
| 48650 | -- | -- | 5-position | -- | -- | 2" on center | 3" I.D. | 11-3/4" | Channel only |
