For use in drop position only
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Receiver Tube Size (Inches): 2-1/2 IN
Finish: CARBIDE BLACK POWDER COAT
Gross Trailer Weight (Pounds): 20,000 LB
Installation Time Exact (Minutes): 0

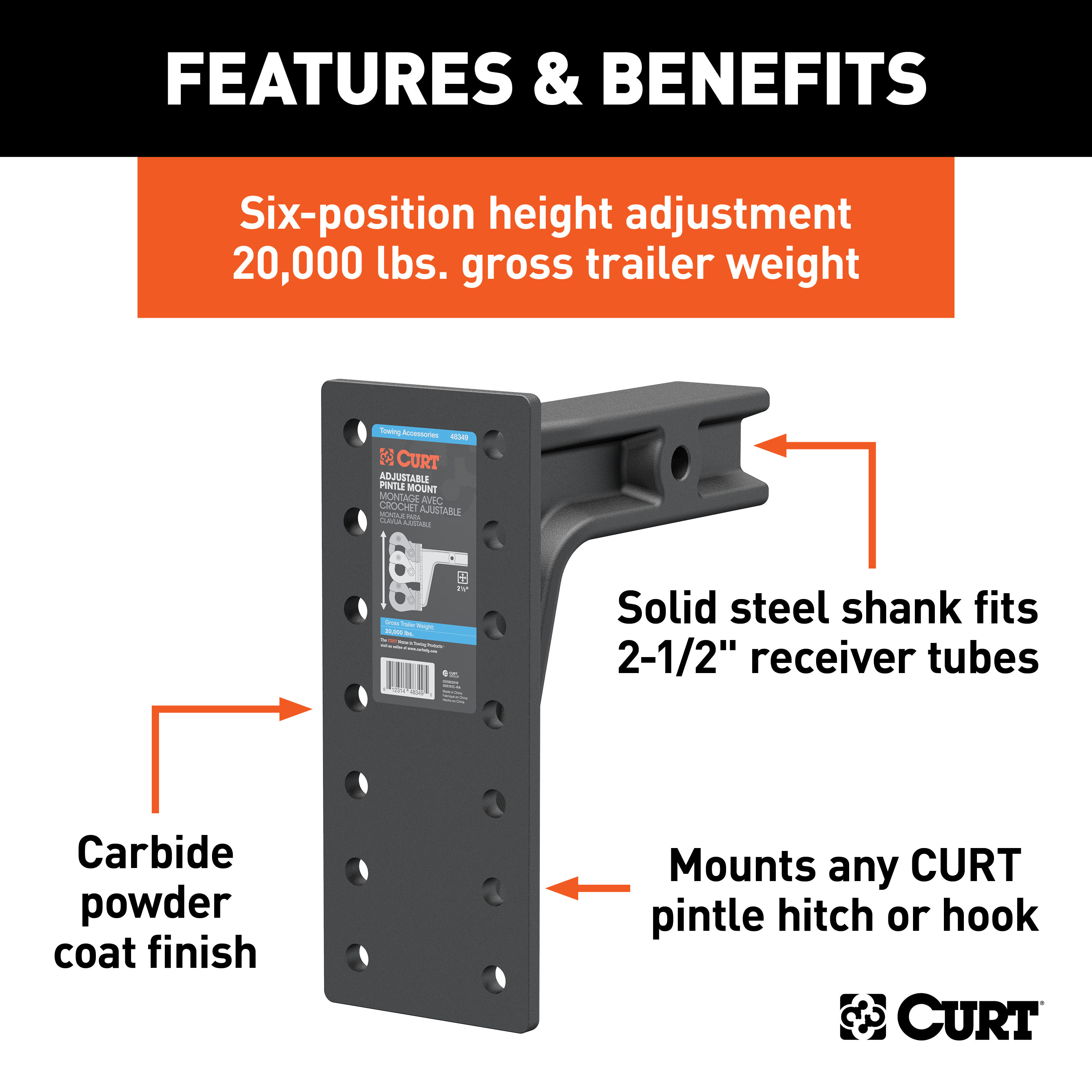

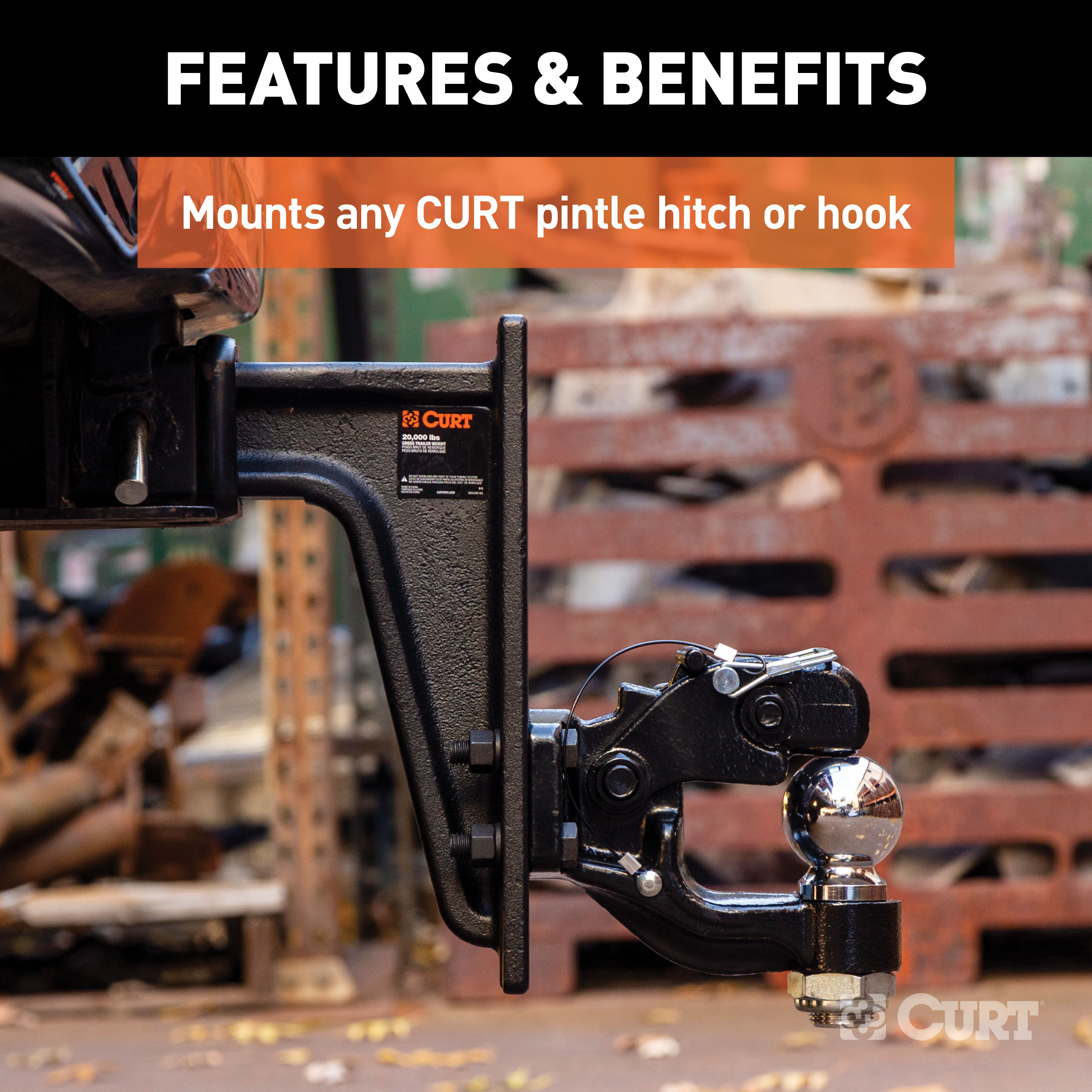

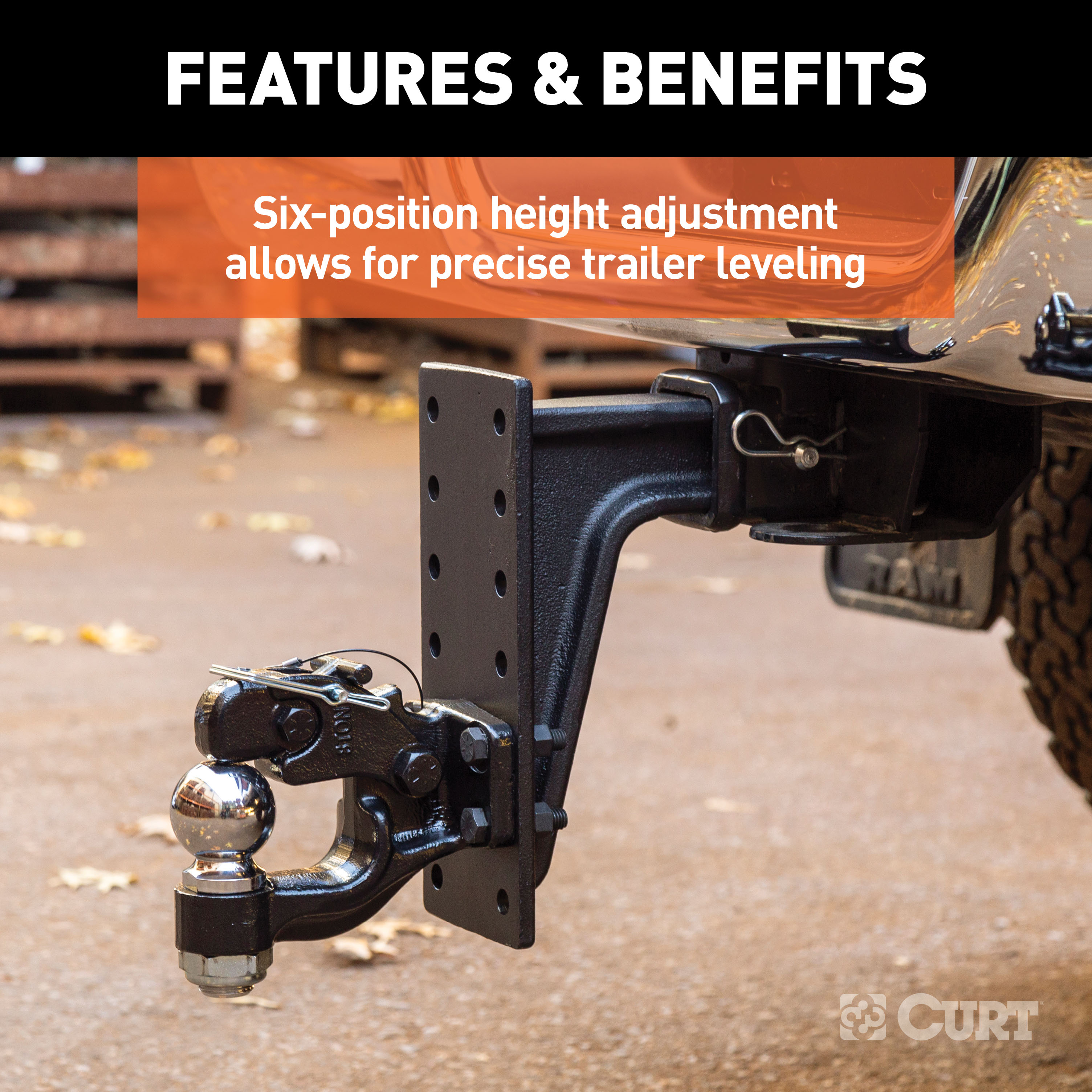

Your truck might have the muscle and your hitch might have more capacity than you know what to do with, but what about a ball mount that can keep up? The CURT 2-1/2" adjustable pintle mount is the ideal heavy-duty counterpart to your full-size pickup and class 5 trailer hitch. Rather than using a reducer sleeve or hitch adapter to increase the shank size of your 2" mount, this pintle mount features a solid steel 2-1/2" x 2-1/2" shank. It can accept any mounted CURT pintle hook or ball and pintle combination, and with its 12-1/2" height, it offers up to six height adjustment positions (NOTE: Not for use in rise position; never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Not only does the 2-1/2" x 2-1/2" pintle mount accommodate a variety of trailers with different coupler heights, but it also allows for use with the heaviest of loads. Its solid shank gives it the strength to accept a gross trailer weight up to 20,000 lbs. It also features a black carbide powder coat finish to ensure maximum resistance to chipping, scratches and rust. Never let your towing equipment hold you back from the job that needs getting done. Whether you are towing a livestock trailer, flatbed or equipment hauler, Bring It with a CURT 2-1/2" adjustable pintle mount.
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
| Part # | GTW | Pintle Positions | Plate Height (A) | Plate Width (B) | Shank Length (C) | Hole Size (D) | Hole Space Width (E) | Hole Space Height (F) | Top Hole Height (G) |
|---|---|---|---|---|---|---|---|---|---|
| For 2" x 2" Receiver Tube Openings | |||||||||
| 48326 | 20,000 lbs. | 1-position | 3-1/2" | 5" | 6" | 9/16" | 3-5/16" | 1-3/4" | 7/8" |
| 48327 | 20,000 lbs. | 1-position | 3-1/2" | 5" | 6" | 9/16" | 3-5/16" | 1-3/4" | 7/8" |
| 48322 | 10,000 lbs. | 3-position | 7" | 5" | 9" | 9/16" | 3-5/16" | 1-3/4" | 7/8" |
| 48323 | 10,000 lbs. | 3-position | 7" | 5" | 8" | 9/16" | 3-5/16" | 1-3/4" | 7/8" |
| 48324 | 10,000 lbs. | 3-position | 7" | 5" | 6" | 9/16" | 3-5/16" | 1-3/4" | 7/8" |
| 48328 | 15,000 lbs. | 3-position | 7" | 5" | 6" | 9/16" | 3-5/16" | 1-3/4" | 7/8" |
| 48325 | 15,000 lbs. | 3-position | 7" | 5" | 8" | 9/16" | 3-5/16" | 1-3/4" | 7/8" |
| 48334 | 17,000 lbs. | 3-position | 7-1/4" | 5" | 6-1/2" | 9/16" | 3-5/16" | 1-3/4" | 7/8" |
| 48341 | 10,000 lbs. | 6-position | 13" | 5" | 10" | 9/16" | 3-5/16" | 1-3/4" | 7/8" |
| 48342 | 10,000 lbs. | 6-position | 13" | 5" | 5" | 9/16" | 3-5/16" | 1-3/4" | 7/8" |
| For 2-1/2" x 2-1/2" Receiver Tube Openings | |||||||||

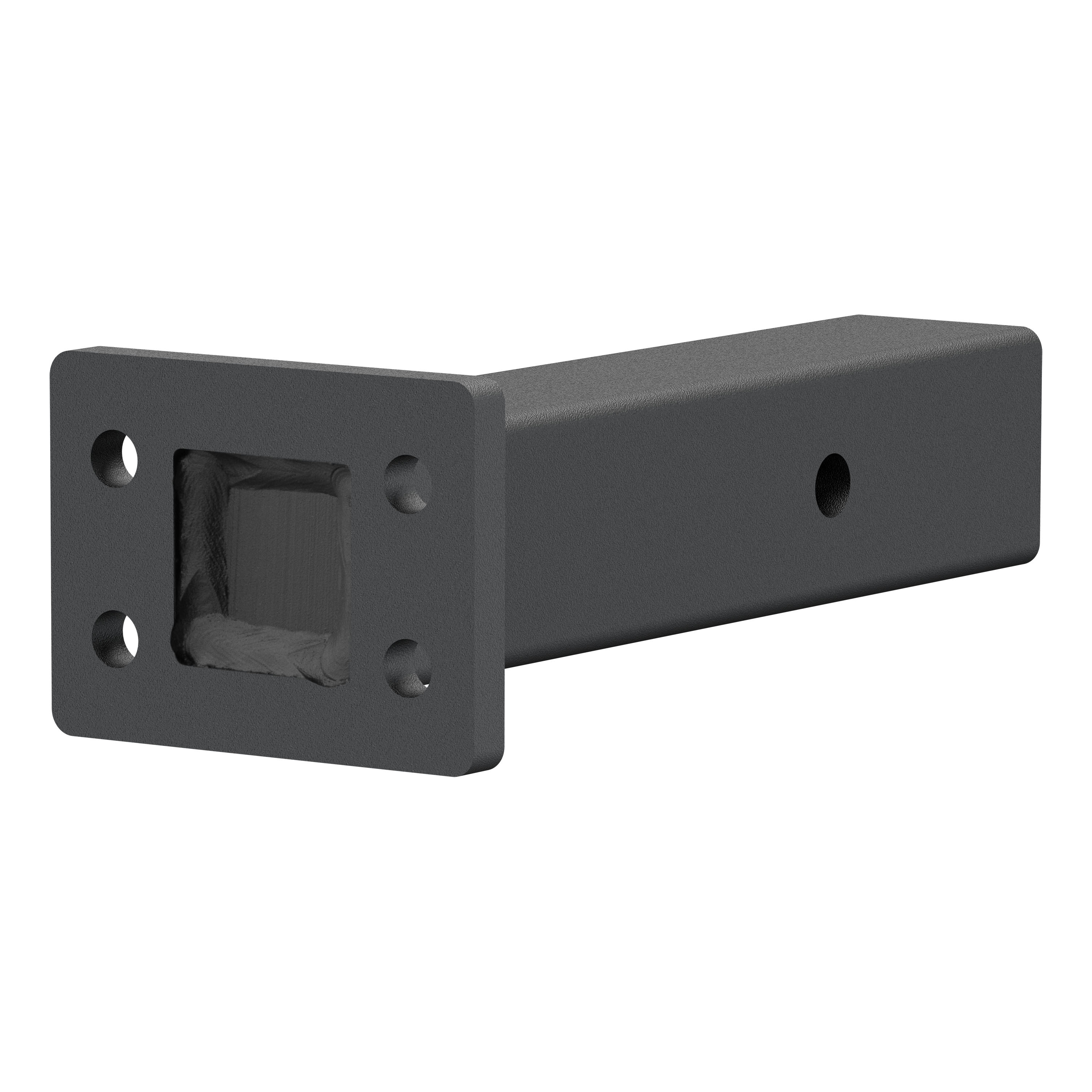

| 48340 | 20,000 lbs. | 1-position | 3-1/2" | 5" | 8" | 9/16" | 3-5/16" | 1-3/4" | 7/8" |
| 48329 | 18,000 lbs. | 3-position | 7" | 5" | 8" | 9/16" | 3-5/16" | 1-3/4" | 7/8" |
| 48338 | 20,000 lbs. | 3-position | 7-1/4" | 5" | 7-1/8" | 9/16" | 3-5/16" | 1-3/4" | 7/8" |

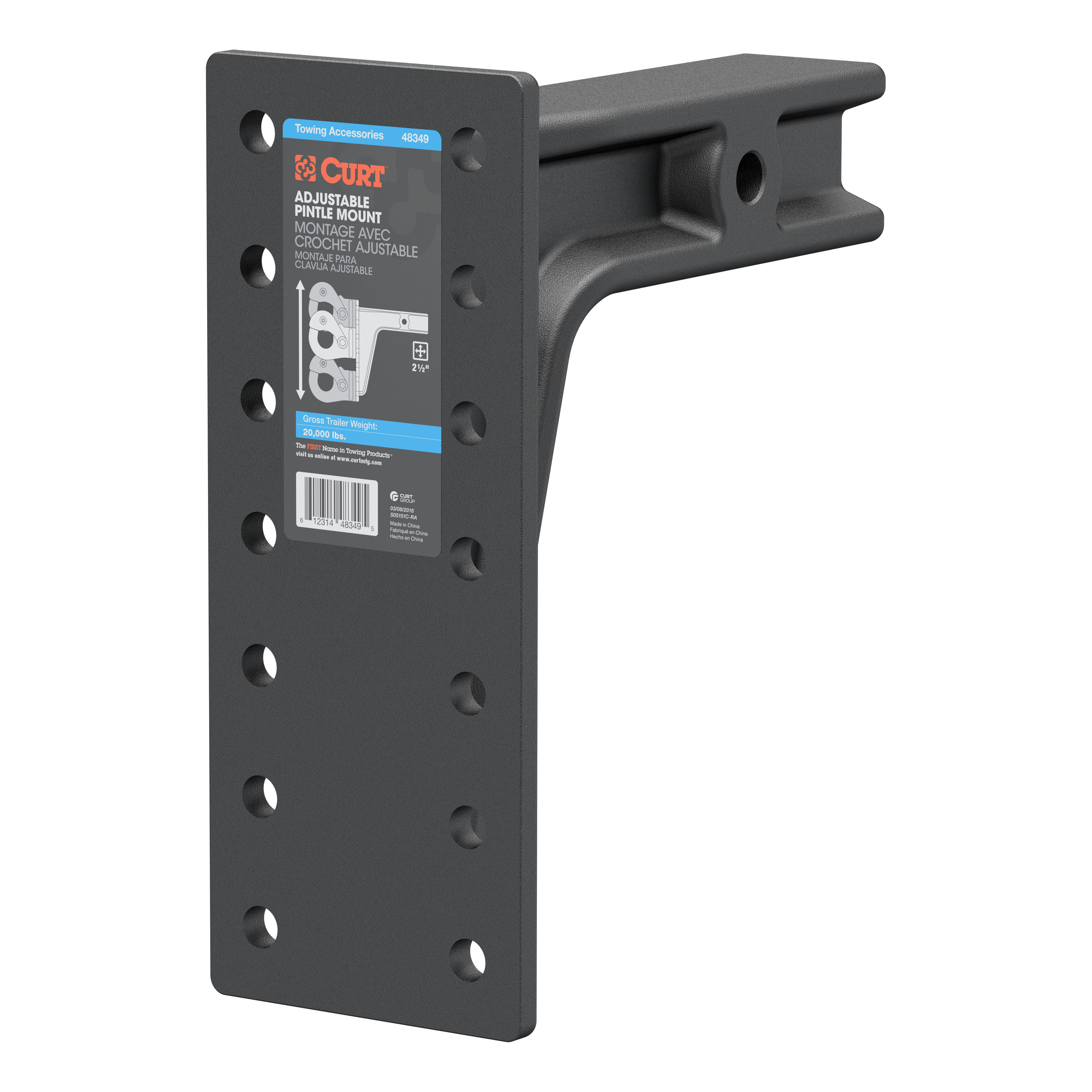

| 48349 | 20,000 lbs. | 6-position | 12-1/2" | 5" | 7-1/8" | 9/16" | 3-5/16" | 1-3/4" | 7/8" |
On Sale Today
Original price was $314.95. Current price is $194.99.You save $119.96 (38%)
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
Shipping from Eau Claire, WIFREE SHIPPING
Estimated delivery Wed, Aug 5 - Fri, Aug 7
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
No reviews have been added for this product.
