Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Receiver Tube Size (Inches): 2-1/2 IN
Finish: DARK GREY TERIDIUM
Gross Trailer Weight (Pounds): 20,000 LBS
Installation Time Exact (Minutes): 0

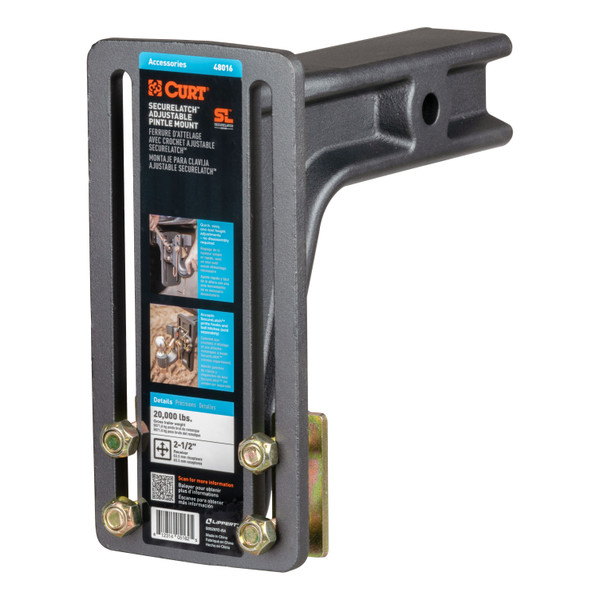

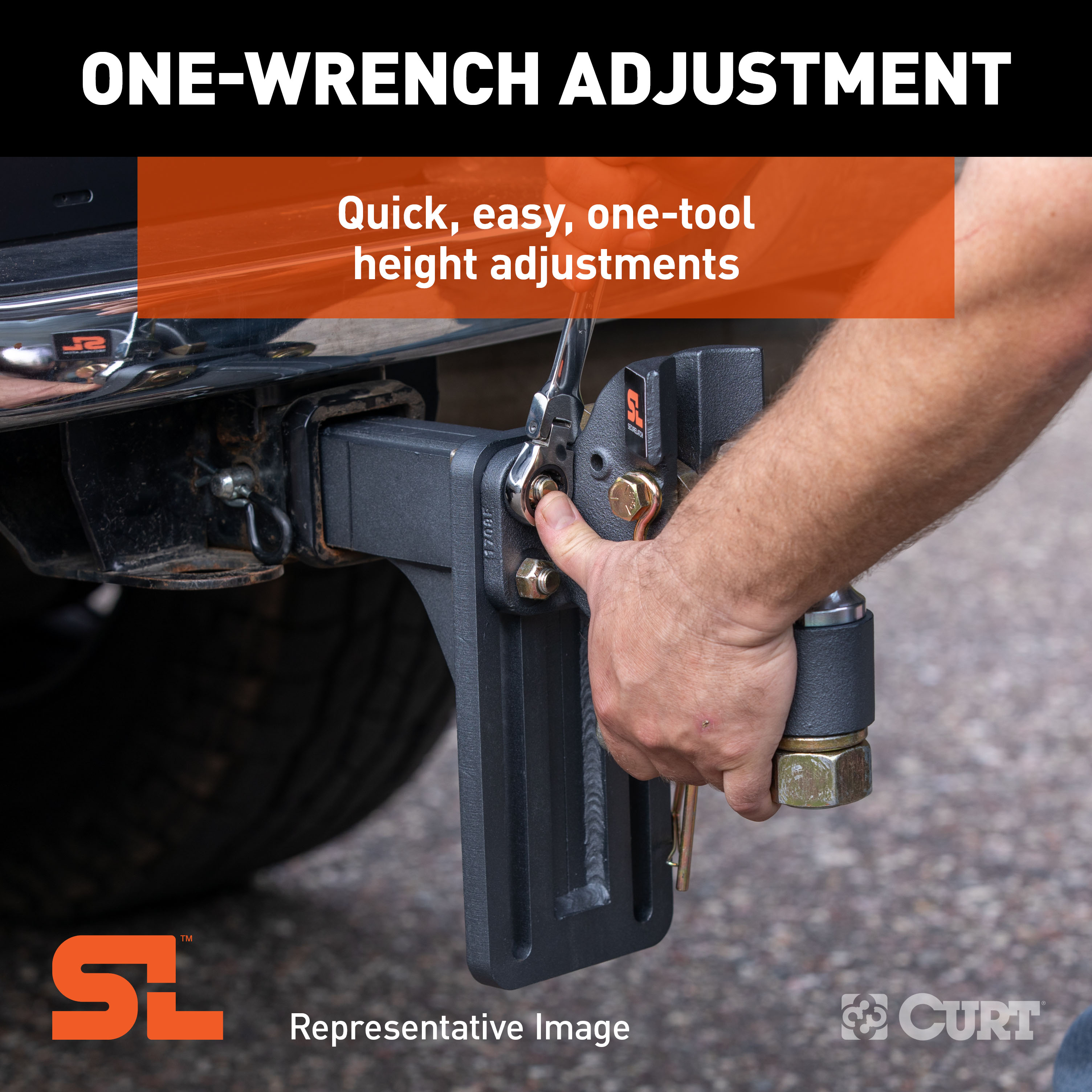

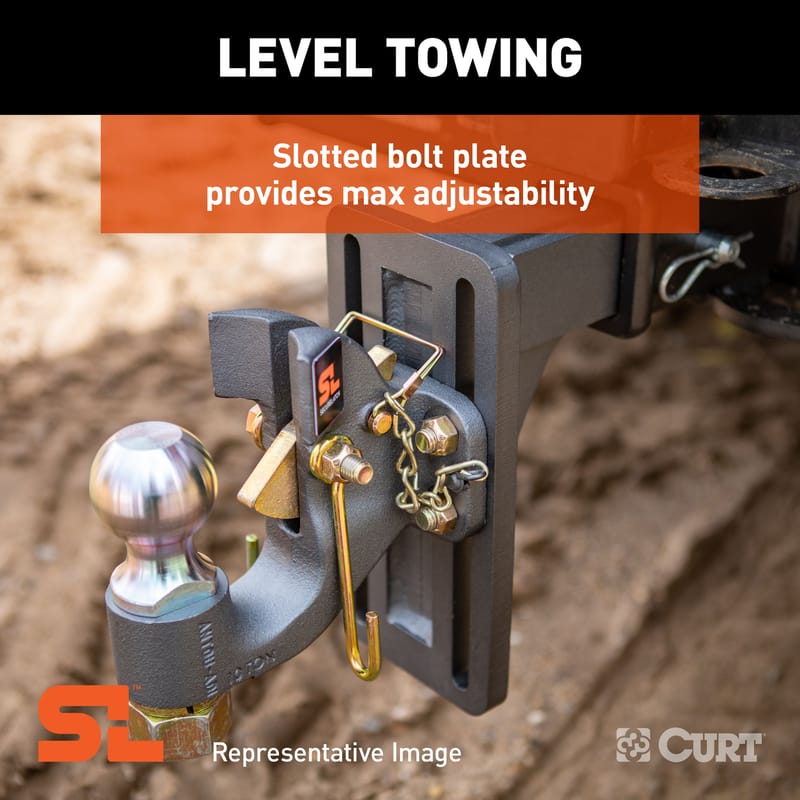

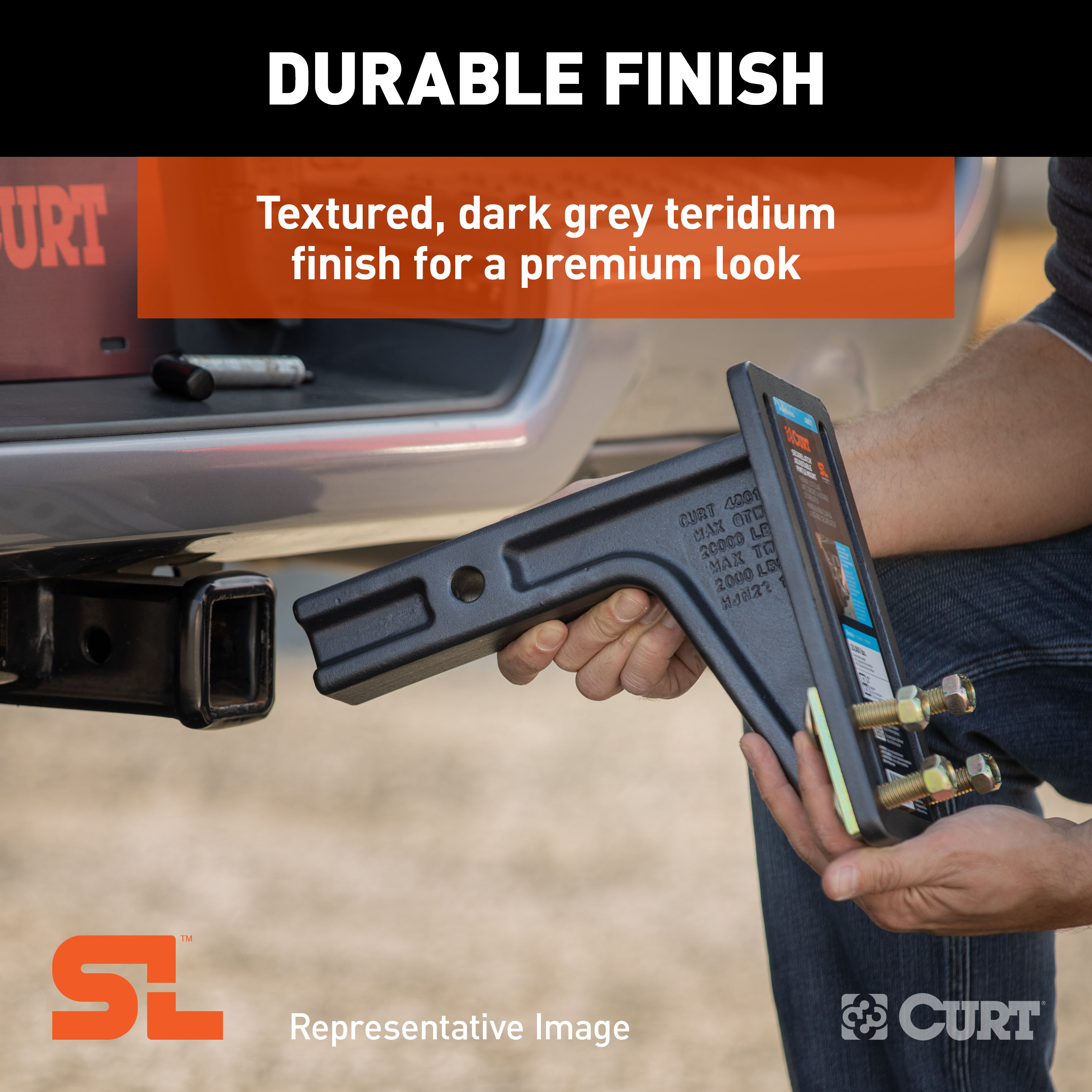

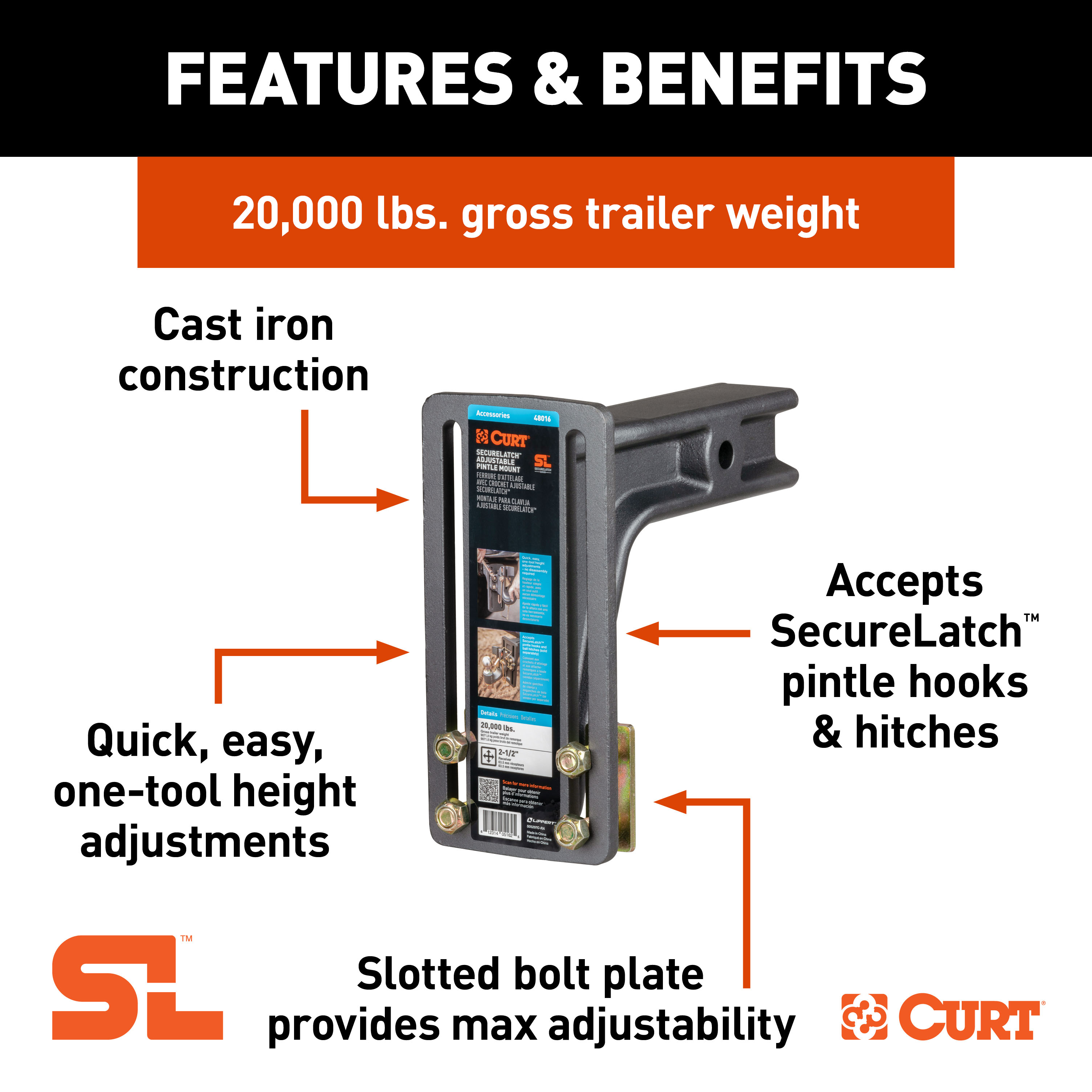

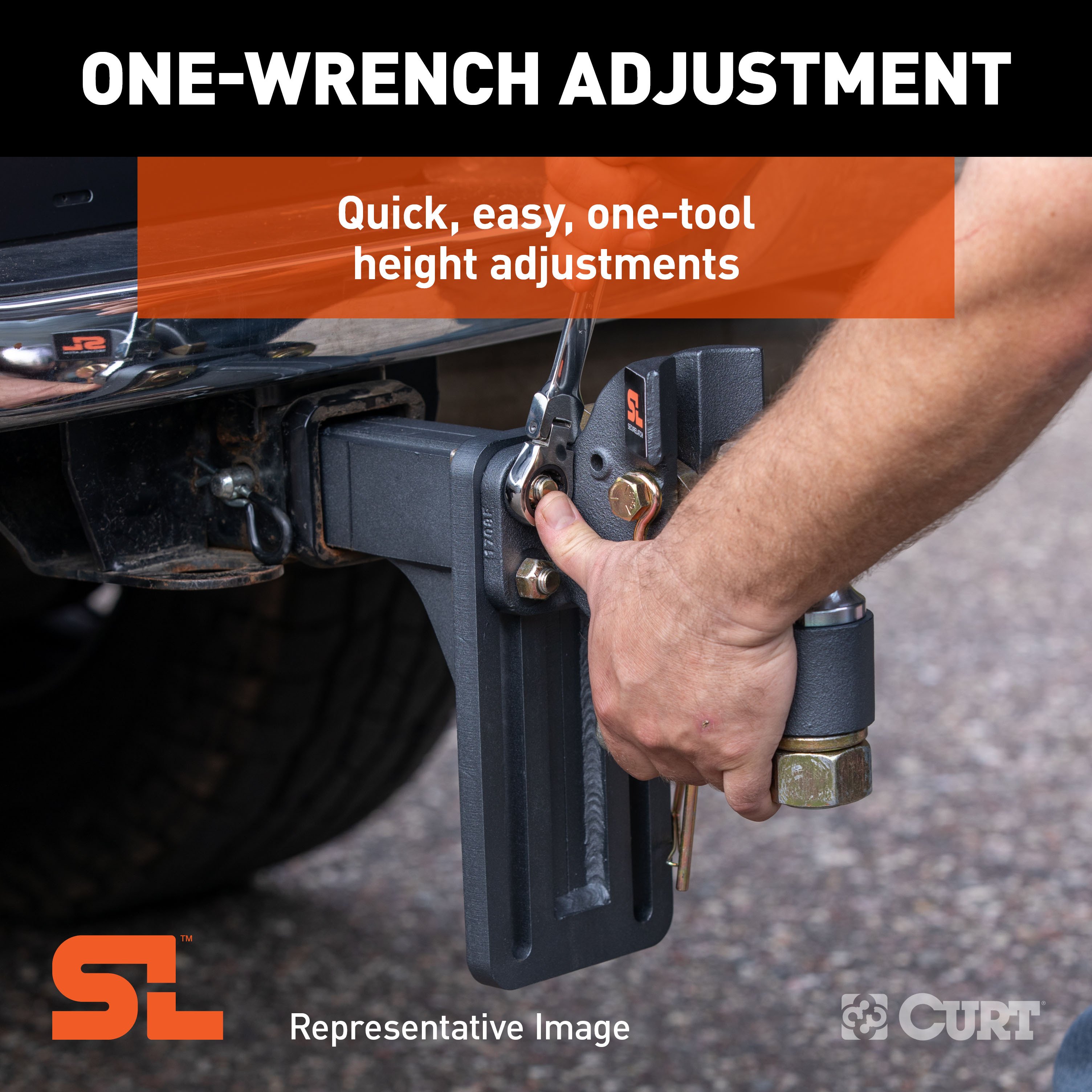

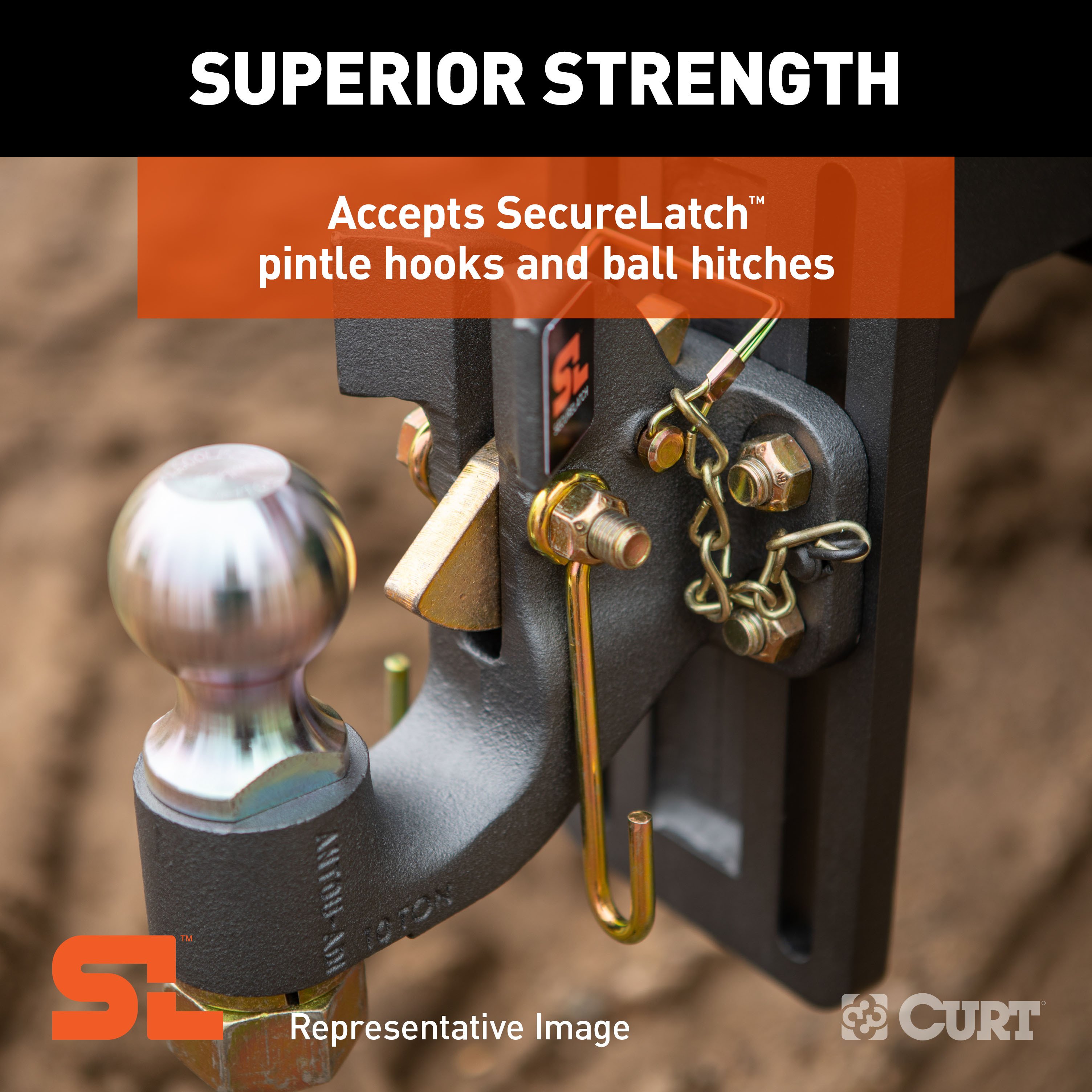

The CURT SecureLatch pintle mount offers easy, precise vertical adjustment of your pintle hitch. It features a unique slotted design that allows the double bolts to slide up and down as needed to level your trailer. Instead of having to disassemble and reassemble the entire hitch, simply loosen the bolts with a single wrench, enough to allow the pintle hitch to slide freely. Then, retorque the bolts -- the bolts provide 48,000 pounds of clamp pressure for highly secure towing of heavy-duty loads. This SecureLatch pintle plate mount fits any industry-standard 2-1/2-inch receiver and has a 10-5/8-inch x 5-inch plate for a wide range of adjustment (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). The mount is rated for 20,000 pounds gross trailer weight, and it can accept a SecureLatch pintle hook or ball and pintle combination (sold separately). This pintle hitch mount is constructed from high-strength fabricated steel, and it comes with a teridium powder coat finish for lasting corrosion resistance.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The CURT 48016 is a pintle mount designed to attach to a receiver hitch and accept a pintle hook or similar towing attachment. It allows you to secure a trailer or equipment for towing. The mount is rated for a gross trailer weight (GTW) of 20,000 lbs and is secured to the receiver hitch using a 5/8" hitch pin or lock (not included).
The CURT 48016 mounts into a receiver hitch on your vehicle. The manual does not specify which receiver hitch sizes (2-inch, 2.5-inch, etc.) or vehicle models are compatible. Contact CURT Manufacturing at 877-287-8634 or check the product listing for your specific vehicle to confirm fitment.
The CURT 48016 is rated for a gross trailer weight (GTW) of 20,000 lbs. However, you must never exceed your vehicle manufacturer's recommended towing capacity, and you must use the lowest rated capacity among your vehicle, the mount, and all other towing components. For off-road applications, reduce this capacity by 25%.
The CURT 48016 includes: 1 pintle mount, 4 carriage bolts (1/2" x 2"), 2 spacer plates, and 4 top lock nuts (1/2"). The 5/8" hitch pin or lock required to secure the shank to the receiver hitch is not included and must be purchased separately.
You will need a torque wrench and a 3/4" socket. These are the only tools specified in the manual for installation.
1. Insert the pintle mount shank into the receiver hitch. The shank can be used in either the rise or drop position. 2. Secure your attachment of choice (such as a pintle hook) using the hardware provided with the pintle mount, but do not fully tighten at this stage. 3. Adjust the attachment to the required towing height. 4. Tighten all bolts to 90 ft-lbs using a torque wrench. 5. Secure the shank to the receiver hitch with a 5/8" hitch pin or lock (not included).
All 1/2" bolts on the CURT 48016 must be tightened to 90 ft-lbs. This applies to the carriage bolts and top lock nuts included with the mount.
Never exceed your vehicle manufacturer's recommended towing capacity or the product's rated capacity (20,000 lbs GTW). Maintain adequate vertical down (tongue) load—generally 10%—but do not exceed the specified rated capacities. Keep safety chains in place and in working order at all times. Never operate the product without safety chains attached to the vehicle. For off-road applications, reduce the 20,000 lbs capacity by 25%. Check for damaged parts before each use and never operate with a damaged part.
No. Do not modify this mount in any way. Unauthorized modification may impair the function and/or safety, could affect the life of the product, and will void the warranty.
After installation, inspect the unit for proper operation and check that all worn, damaged, or missing parts are replaced as required. The manual specifies that you must check the hardware torque specification after the first 200 miles of towing and every 400 miles after that to ensure bolts remain at 90 ft-lbs.
Check the hardware torque specification after the first 200 miles of towing, then every 400 miles after that. All 1/2" bolts must remain at 90 ft-lbs. Replace any parts that show wear exceeding 1/8" from the original surface.
Replace worn, damaged, or missing parts immediately. Replace any part when its wear exceeds 1/8" from the original surface. Never operate the product with a damaged part.
You need a torque wrench and 3/4" socket. The kit includes the pintle mount, 4 carriage bolts (1/2" x 2"), 2 spacer plates, and 4 lock nuts. You must supply a 5/8" hitch pin or lock separately.
No. Insert the shank into the receiver hitch, attach your pintle hook with the provided hardware but do not fully tighten, adjust to the required towing height, then tighten all bolts to 90 ft-lbs.
All 1/2" bolts must be tightened to 90 ft-lbs using a torque wrench.
Check torque after the first 200 miles of towing, then every 400 miles thereafter. All bolts must remain at 90 ft-lbs.
No. Do not modify this mount in any way. Unauthorized modification may impair function and safety and will void the warranty.
Maintain adequate vertical down (tongue) load—generally 10%—but do not exceed the specified rated capacities of your vehicle or the product.
On Sale Today
Original price was $316.95. Current price is $283.95.You save $33.00 (10%)
Free Shipping
Ships free on all orders
Authorized Dealer| Bulk # | GTW | Plate Height (A) | Plate Width (B) | Shank Length (C) | Slot Width (D) | Slot Height (E) | Slot Space Width (F) | Top Slot Height (G) |
|---|---|---|---|---|---|---|---|---|
| For 2" x 2" Receiver Tube Openings | ||||||||
| 48011 | 20,000 lbs. | 9-1/2" | 5" | 6-7/8" | 17/32" | 7-3/4" | 3-3/8" | 1" |
| For 2-1/2" x 2-1/2" Receiver Tube Openings | ||||||||
| 48016 | 20,000 lbs. | 10-5/8" | 5" | 7-1/4" | 17/32" | 9" | 3-3/8" | 1-5/16" |
