Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: DARK GREY TERIDIUM
Gross Trailer Weight (Pounds): 20,000 LBS
Installation Time Exact (Minutes): 0

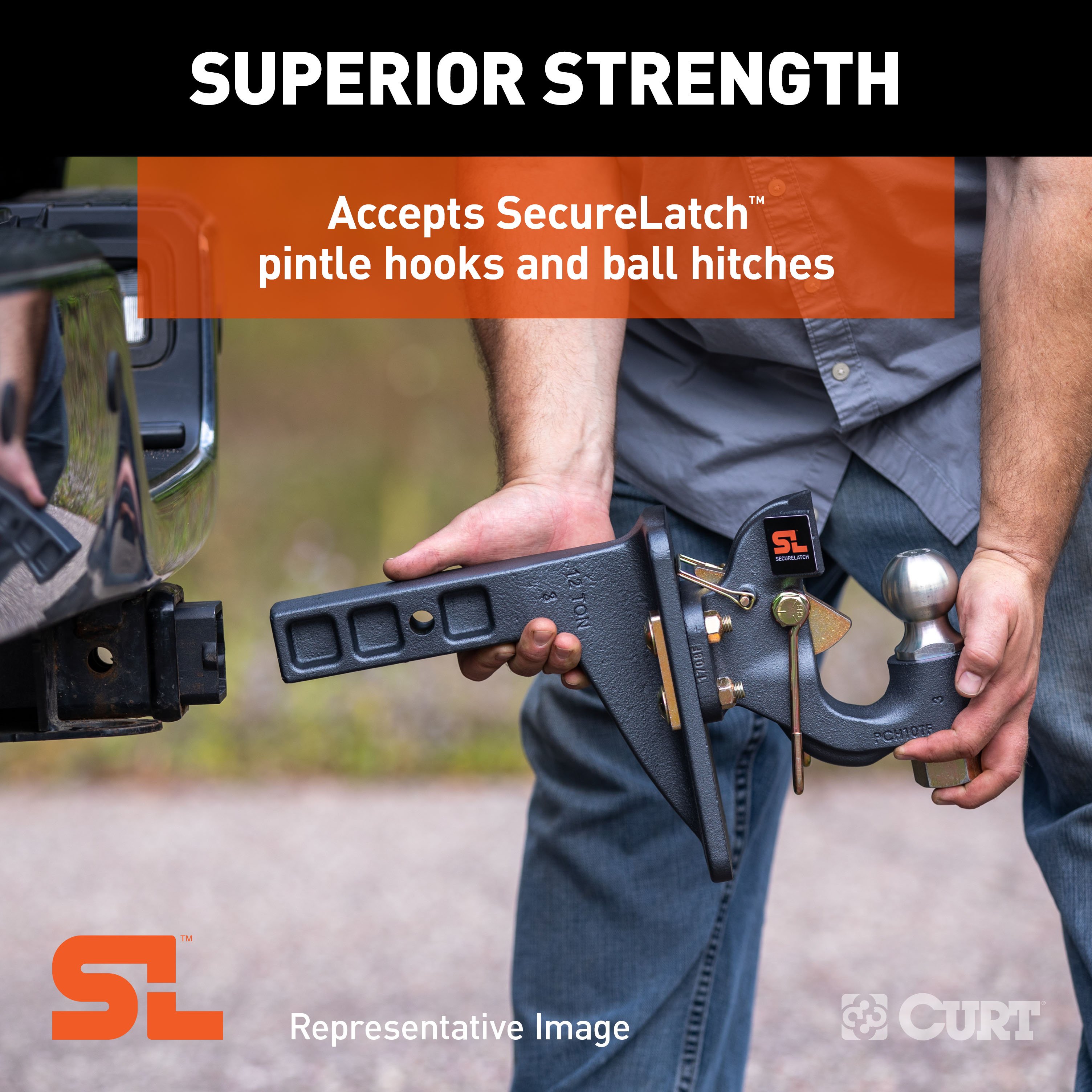

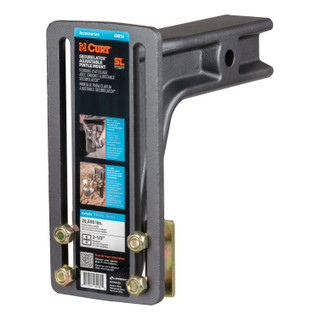

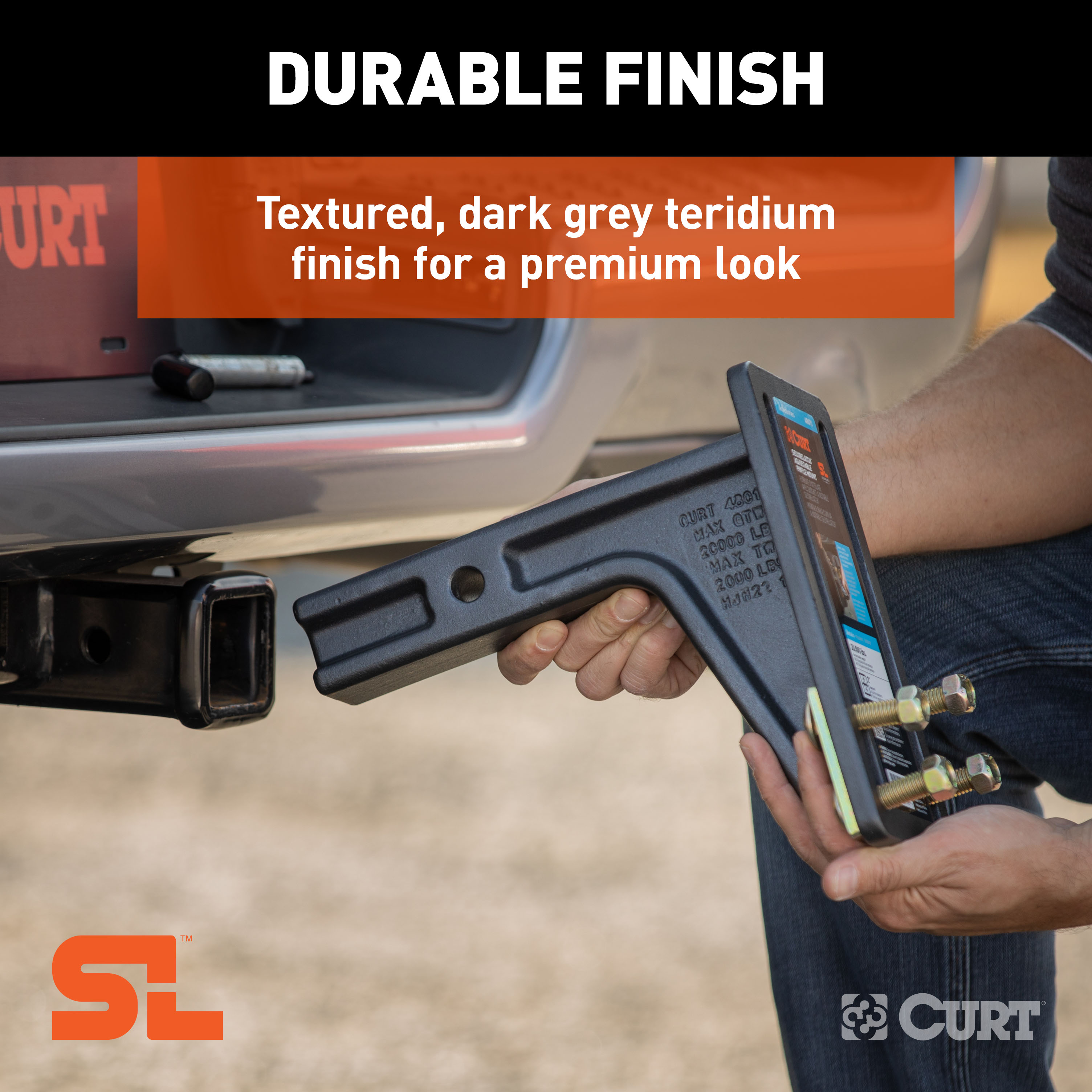

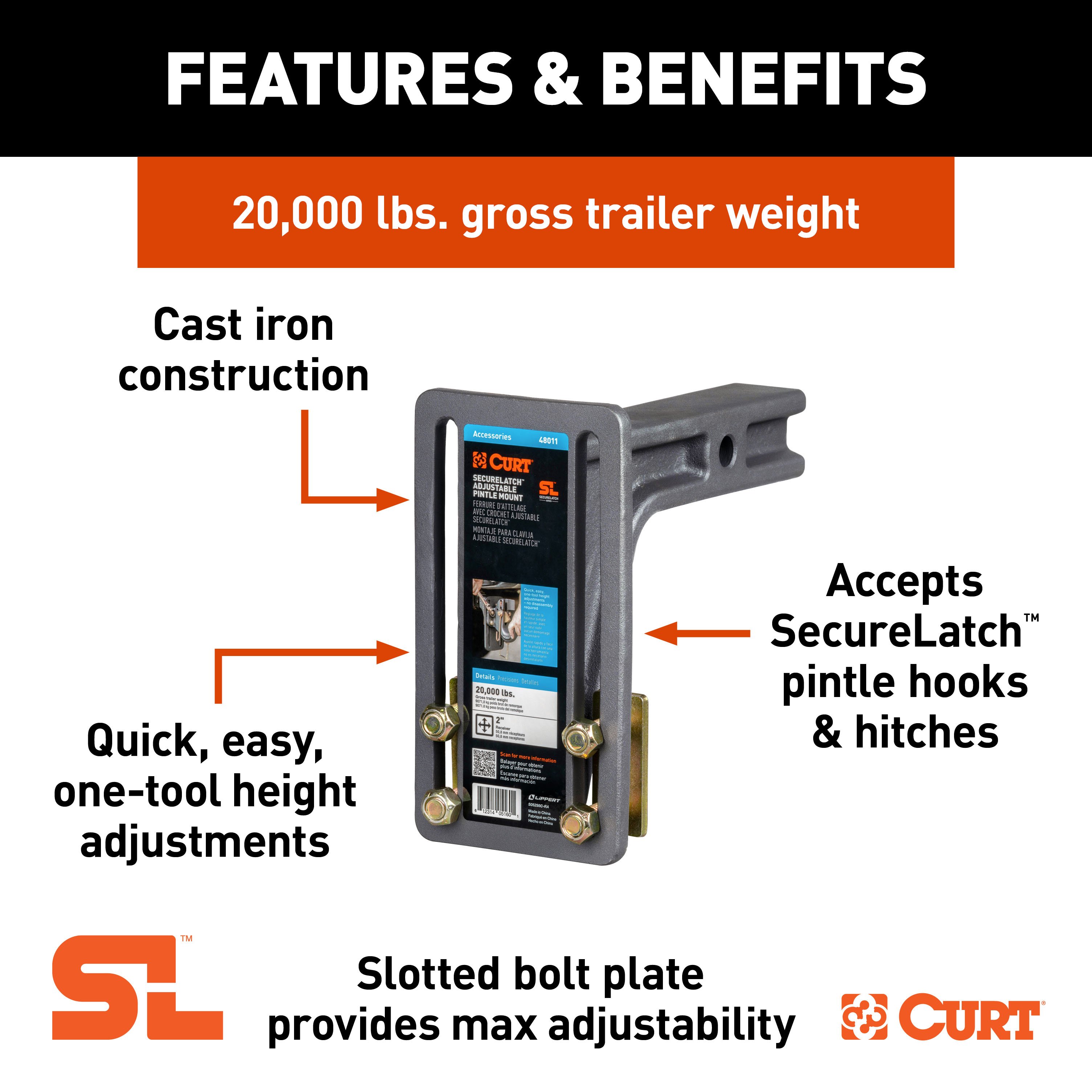

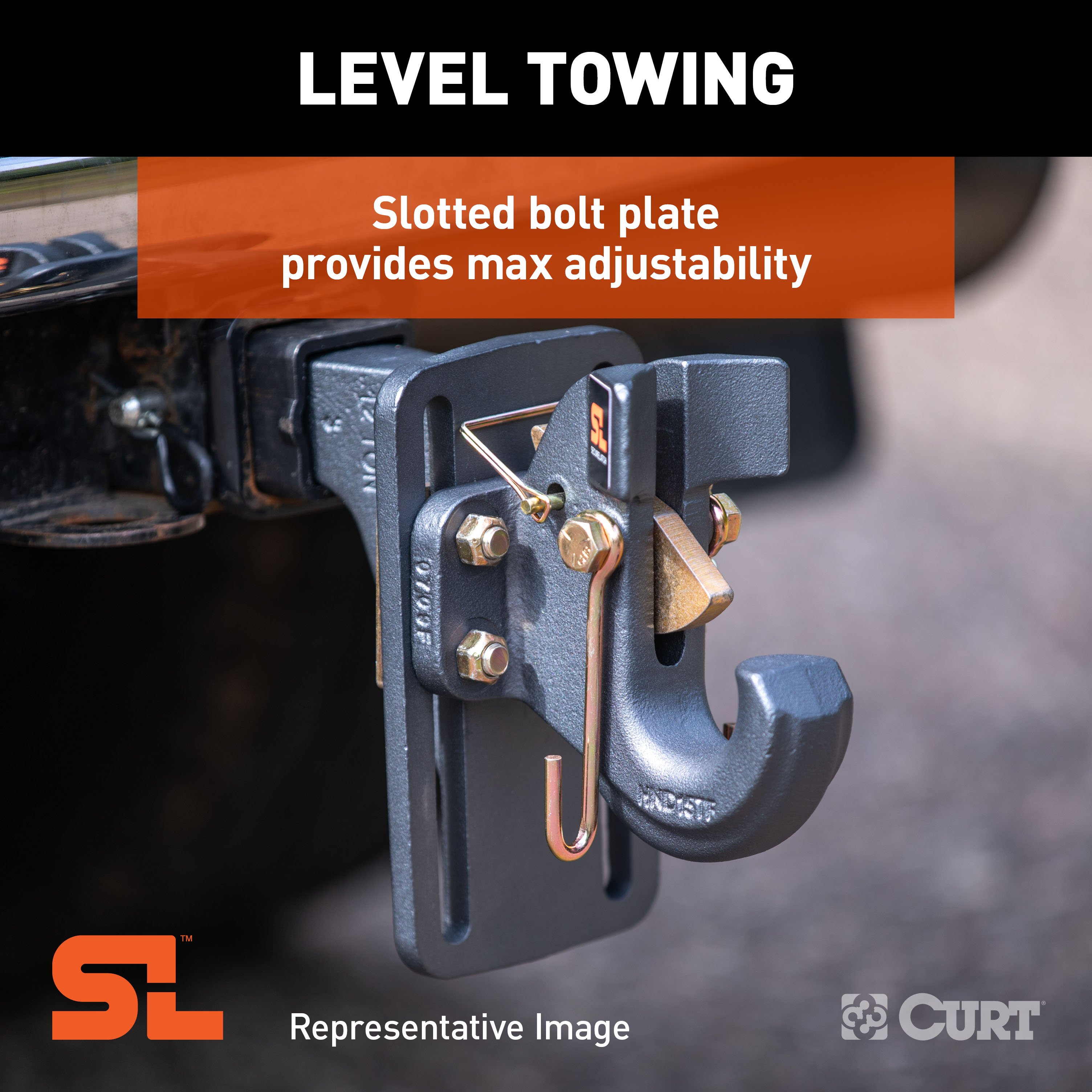

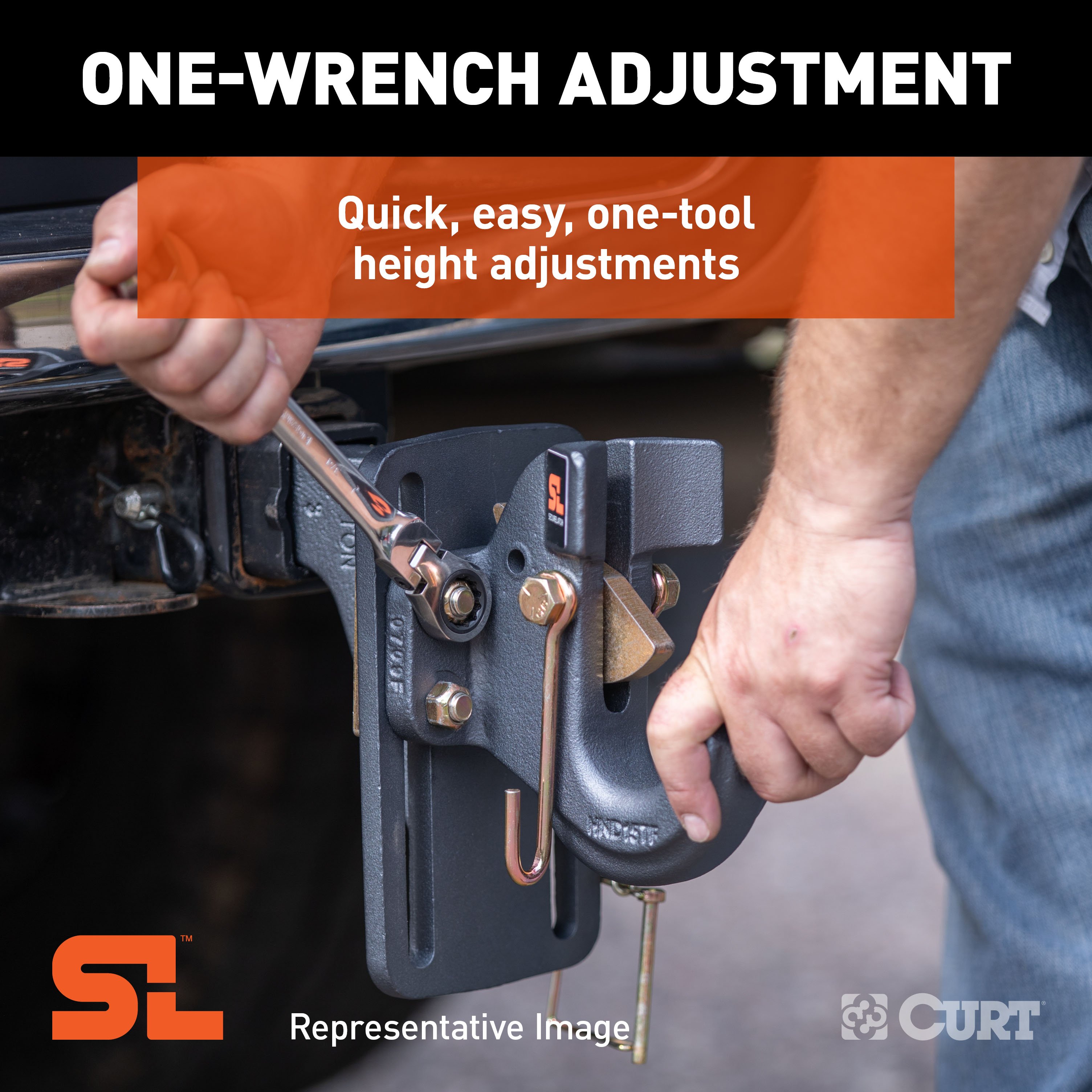

The CURT SecureLatch pintle mount offers easy, precise vertical adjustment of your pintle hitch. It features a unique slotted design that allows the double bolts to slide up and down as needed to level your trailer. Instead of having to disassemble and reassemble the entire hitch, simply loosen the bolts with a single wrench, enough to allow the pintle hitch to slide freely. Then, retorque the bolts -- the bolts provide 48,000 pounds of clamp pressure for highly secure towing of heavy-duty loads. This SecureLatch pintle mount fits any industry-standard 2-inch receiver and has a 9-1/2-inch x 5-inch plate for a wide range of adjustment (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). The mount is rated for 20,000 pounds gross trailer weight, and it can accept a SecureLatch pintle hook or ball and pintle combination (sold separately). This pintle mount is constructed from cast steel for superior strength and wear resistance, and it comes with a teridium powder coat finish for lasting corrosion resistance.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The kit includes: 1 pintle mount, 4 carriage bolts (1/2" x 2"), 2 spacer plates, and 4 top lock nuts (1/2"). A 5/8" hitch pin or lock is required but not included. The pintle hook itself is also not included.
The pintle mount shank inserts into a receiver hitch and can be used in either the rise or drop position. The manual does not specify receiver hitch sizes or vehicle models. Verify that your vehicle has a standard receiver hitch and consult the manufacturer or a fitment database to confirm compatibility with your specific vehicle.
You will need a torque wrench and a 3/4" socket. These are required to tighten the carriage bolts to the specified torque of 90 ft-lbs.
No. A 5/8" hitch pin or lock is required to secure the pintle mount shank in the receiver hitch but is not included in the kit. You must purchase this separately.
1. Insert the pintle mount shank into the receiver hitch. The shank can be positioned in either the rise or drop position. 2. Secure with a 5/8" hitch pin or lock (not included). 3. Secure your attachment (pintle hook or hitch) using the provided hardware (carriage bolts, spacer plates, and lock nuts), but do not fully tighten initially. 4. Adjust the attachment to the required towing height. 5. Tighten all bolts to 90 ft-lbs using a torque wrench.
Yes. The shank can be inserted into the receiver hitch in either the rise or drop position, depending on your towing height requirements.
All 1/2" bolts must be tightened to 90 ft-lbs. This applies to the four carriage bolts (1/2" x 2") that secure the attachment to the pintle mount.
The gross trailer weight (GTW) capacity is 20,000 lbs. Never exceed the vehicle manufacturer's recommended towing capacity or the lowest rated towing component. For off-road applications, reduce this capacity by 25%.
Maintain adequate vertical down (tongue) load to have control of the trailer, generally 10% of the total trailer weight. However, do not exceed the specified rated capacities of the vehicle or the pintle mount.
Yes. Safety chains must be kept in place and in working order at all times. Never operate the product without safety chains attached to the vehicle. This is a critical safety requirement.
No. Do not modify this mount in any way. Unauthorized modification may impair the function and/or safety, could affect the life of the product, and will void the warranty.
The pintle mount is designed for on-road towing within the stated capacities. For off-road applications, you must reduce the weight capacity by 25%. The standard GTW capacity of 20,000 lbs would be reduced to 15,000 lbs for off-road use.
Check the hardware torque specification after the first 200 miles of towing, and then every 400 miles after that. Re-tighten all bolts to 90 ft-lbs if needed.
Inspect the unit for proper operation and check for worn, damaged, or missing parts before each use. Replace parts as required or when wear exceeds 1/8" from the original surface. Check hardware torque after the first 200 miles of towing and every 400 miles thereafter, re-tightening to 90 ft-lbs as needed.
Before each use, carefully check the product for damaged parts and verify that it will operate properly and perform its intended function. Never operate the product with a damaged or worn part. Replace any damaged or worn parts immediately.
The 48011 is a receiver hitch pintle mount that fits standard receiver hitches in either rise or drop position. Verify your vehicle has a receiver hitch and check a fitment database or contact CURT at 877-287-8634 for your specific vehicle.
You must purchase a 5/8" hitch pin or lock separately. The pintle hook is also not included. A torque wrench and 3/4" socket are required for installation.
The shank can be inserted in either the rise or drop position. After inserting the shank and securing it with a 5/8" hitch pin, adjust the attachment to the required towing height before tightening all bolts to 90 ft-lbs.
Tighten all 1/2" carriage bolts to 90 ft-lbs using a torque wrench. Re-check torque after the first 200 miles of towing and every 400 miles thereafter.
The gross trailer weight capacity is 20,000 lbs. Never exceed your vehicle manufacturer's towing capacity. For off-road use, reduce this to 15,000 lbs (25% reduction).
Yes. Safety chains must always be in place and in working order. Never operate without safety chains attached to the vehicle.
Check and retorque all bolts to 90 ft-lbs after the first 200 miles of towing, then every 400 miles thereafter.
| Bulk # | Description | Fits |
|---|---|---|
| 48549 | SecureLatch pintle mount hardware: - 1/2" x 2" carriage bolts, qty 4 - 1/2" top lock nuts, qty 4 - Bolt plates, qty 2 |
48011, 48016 |
| 48334 | Pintle hook & hitch hardware: - 1/2" socket head cap screws, qty 4 - 1/2" hex nuts, qty 4 - 1/2" lock washers, qty 4 |
48410, 48411, 48505, All forged pintles (excl. 48231) |
| 48332 | Forged pintle hook & hitch hardware: - 5/8" socket head cap screws, qty 4 - 5/8" hex nuts, qty 4 - 5/8" lock washers, qty 4 |
48231 |
| 48551 | Safety chain hangers, qty 2 | All |
| 48420 | 2" ball (10,000 lbs.), qty 1 | 48407, 48411 |
| 48430 | 2-5/16" ball (14,000 lbs.), qty 1 | 48406, 48410 |
| 48620 | 1-7/8" ball (6,000 lbs.), qty 1 | 48407, 49180 |
| 48820 | 2" ball (10,000 lbs.), qty 1 | 48407, 48560 |
| 48830 | 2-5/16" ball (16,000 lbs.), qty 1 | 48006, 48200 |
| Bulk # | Pkg # | GTW* | Ball Capacity | Fits Tube Size | Ball Diameter | Overall Length | Ball Length | Hook Length | Fits Lunette Ring |
|---|---|---|---|---|---|---|---|---|---|
| Receiver-Mount Ball & Pintle Hitches | |||||||||
| 48006 | -- | 16,000 lbs. | 12,000 lbs. | 2" | 2-5/16" | 15-1/4" | 11-1/4" | 9-1/2" | 2-1/2" or 3" I.D. |
| 48007 | -- | 16,000 lbs. | 10,000 lbs. | 2" | 2" | 15-1/4" | 11-1/4" | 9-1/2" | 2-1/2" or 3" I.D. |
| 48012 | -- | 20,000 lbs. | 20,000 lbs. | 2-1/2" | 2-5/16" | 15" | 11" | 9-1/2" | 2-1/2" or 3" I.D. |
| Receiver-Mount Pintle Hooks | |||||||||
| 48005 | -- | 10,000 lbs. | -- | 2" | -- | 14" | -- | 9-1/2" | 2-1/2" or 3" I.D. |
| 48004 | -- | 20,000 lbs. | -- | 2" | -- | 14-1/2" | -- | 9-1/2" | 2-1/2" or 3" I.D. |
| 48011 | -- | 20,000 lbs. | -- | 2-1/2" | -- | 14-3/4" | -- | 9-1/2" | 2-1/2" or 3" I.D. |
| Ball & Pintle Hitches | |||||||||
| -- | 48180 | 16,000 lbs. | 6,000 lbs. | -- | 1-7/8" | -- | -- | -- | 2-1/2" or 3" I.D. |
| -- | 48190 | 16,000 lbs. | 10,000 lbs. | -- | 2" | -- | -- | -- | 2-1/2" or 3" I.D. |
| -- | 48200 | 16,000 lbs. | 16,000 lbs. | -- | 2-5/16" | -- | -- | -- | 2-1/2" or 3" I.D. |
| Pintle Hooks | |||||||||
| 48025 | -- | 10,000 lbs. | -- | -- | -- | -- | -- | -- | 2-1/2" or 3" I.D. |
| 48210 | -- | 15,000 lbs. | -- | -- | -- | -- | -- | -- | 2-1/2" or 3" I.D. |
| 48215 | -- | 30,000 lbs. | -- | -- | -- | -- | -- | -- | 2-1/2" or 3" I.D. |
| 48231 | -- | 60,000 lbs. | -- | -- | -- | -- | -- | -- | 2-1/2" or 3" I.D. |
| Bulk # | GTW | Plate Height (A) | Plate Width (B) | Shank Length (C) | Slot Width (D) | Slot Height (E) | Slot Space Width (F) | Top Slot Height (G) |
|---|---|---|---|---|---|---|---|---|
| For 2" x 2" Receiver Tube Openings | ||||||||
| 48011 | 20,000 lbs. | 9-1/2" | 5" | 6-7/8" | 17/32" | 7-3/4" | 3-3/8" | 1" |
| For 2-1/2" x 2-1/2" Receiver Tube Openings | ||||||||
| 48016 | 20,000 lbs. | 10-5/8" | 5" | 7-1/4" | 17/32" | 9" | 3-3/8" | 1-5/16" |
