Includes fuse holder, battery connection wiring and other necessary wiring components (RV harness not included)
Includes fuse holder, battery connection wiring and other necessary wiring components (RV harness not included)
Warranty: One-Year Limited Warranty
Installation Difficulty: Advanced
Installation Time Exact (Minutes): 90

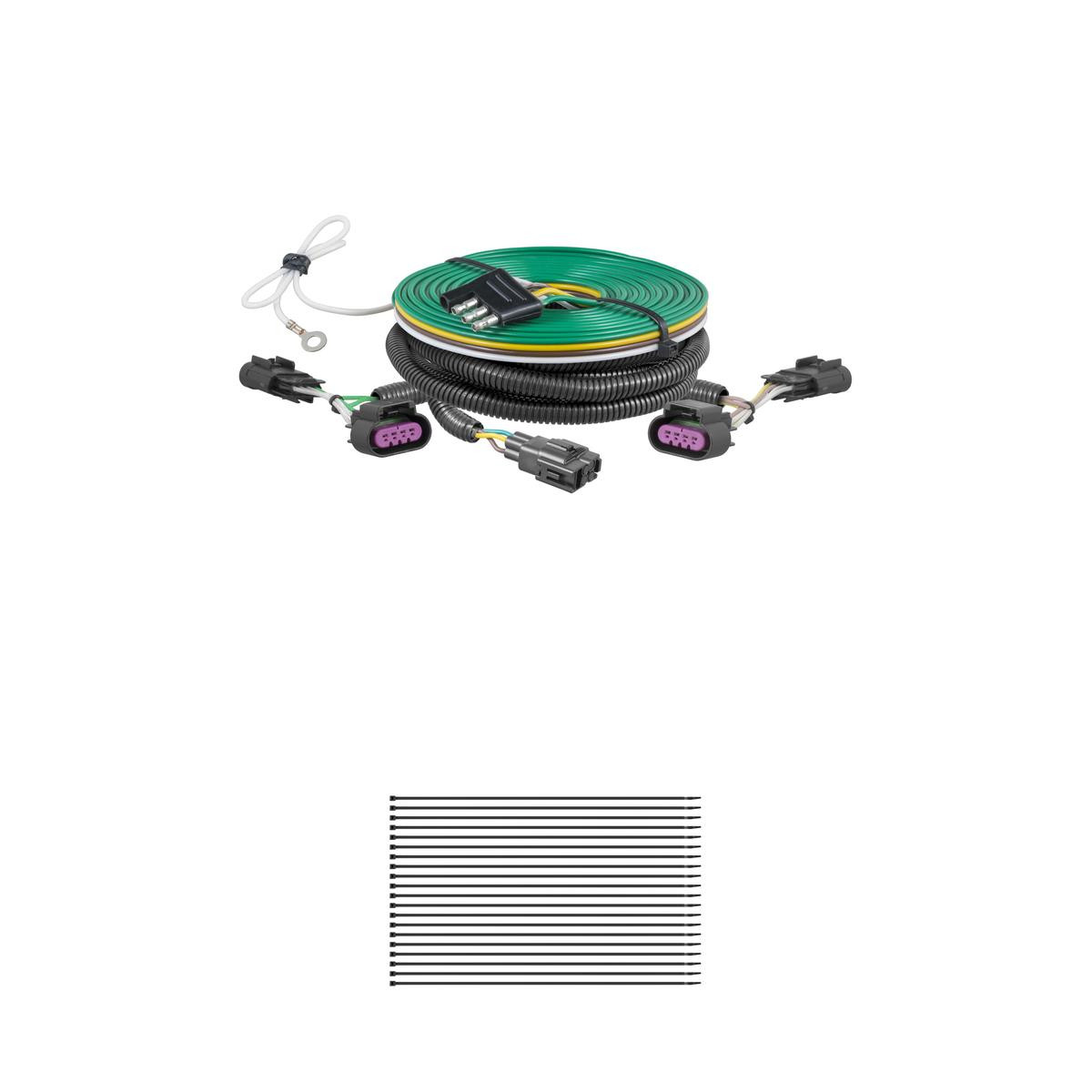

Towing your vehicle behind your RV is a great way to experience more of the adventure on your cross-country excursions. Whether you're towing a compact car or a full-size truck, CURT has the perfect solution to help you Bring It! CURT towed-vehicle RV harnesses are a vehicle-specific, plug-and-play solution to wiring your vehicle for dinghy towing. They use original-equipment-compatible connectors to plug into your vehicle's wiring system without any cutting, splicing or soldering required. They provide a standard 4-way flat connector to plug into the RV socket and synchronize the vehicle's tail lights, turn signals and brake lights with the RV's. Because each towed-vehicle RV harness has a vehicle-specific design, installation is fast and easy. This RV harness add-on connector is designed to install together with a CURT RV harness and provide a standard 4-way flat connection for towing with your vehicle. When your vehicle is not being dinghy towed, this add-on allows you to plug in, hitch up and tow like any standard vehicle-trailer combination. It supplies your vehicle with a 4-way flat connector at the rear and feature a plug-and-play design for no cutting or splicing during the installation process. This particular add-on can be used with certain RV harnesses with 3-wire systems and a powered connection to the vehicle's battery.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products

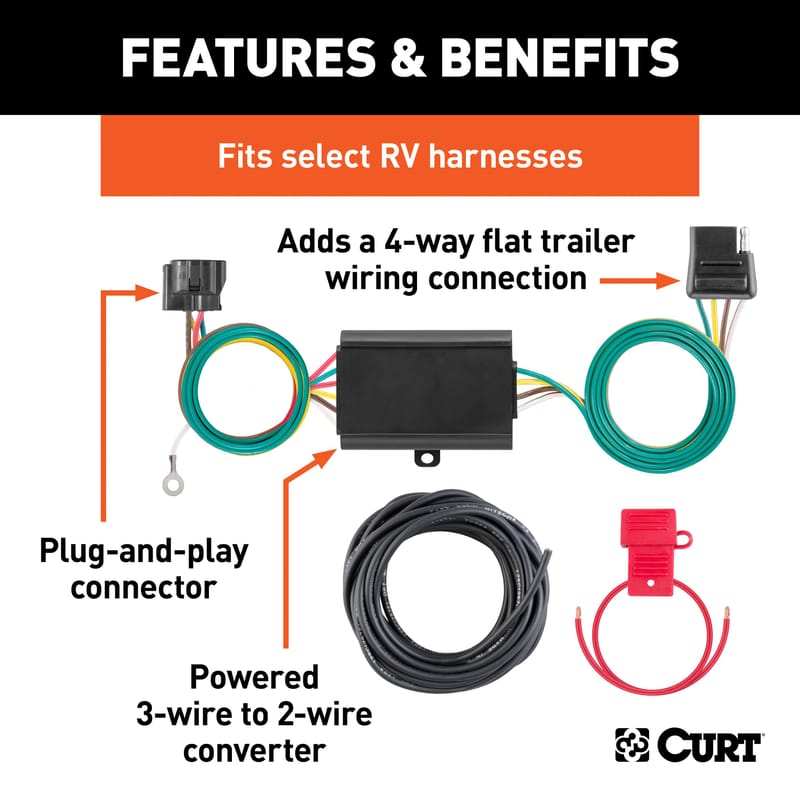

The Curt 58920 is a powered converter harness system that allows a tow vehicle to control the brake, turn signal, and taillight functions of a towed RV. It includes a converter module, a 4-flat extension harness, wiring, and mounting hardware. The system converts the tow vehicle's lighting signals to control the RV's brake and taillight combination lamps.
Your vehicle must have a 12 volt negative ground electrical system. The converter system is designed only for 12 volt negative ground systems and will not function on other voltage or ground configurations.
You will need a wire stripper, wire crimper, and cutting tool. You may also need a drill if you do not have an existing ground point on the vehicle frame.

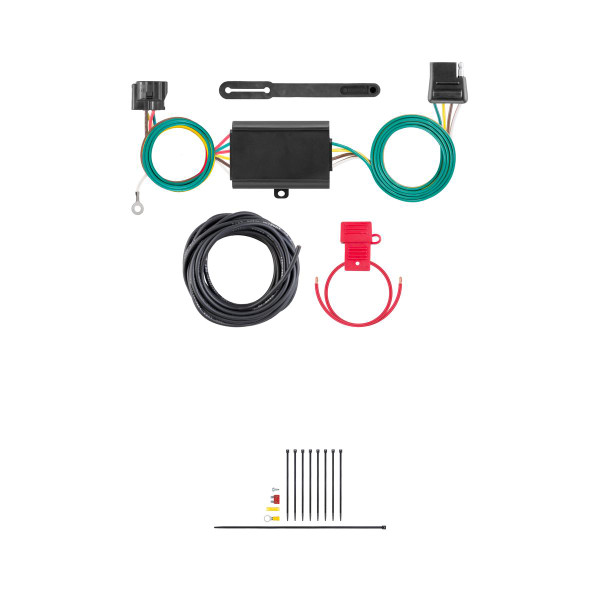

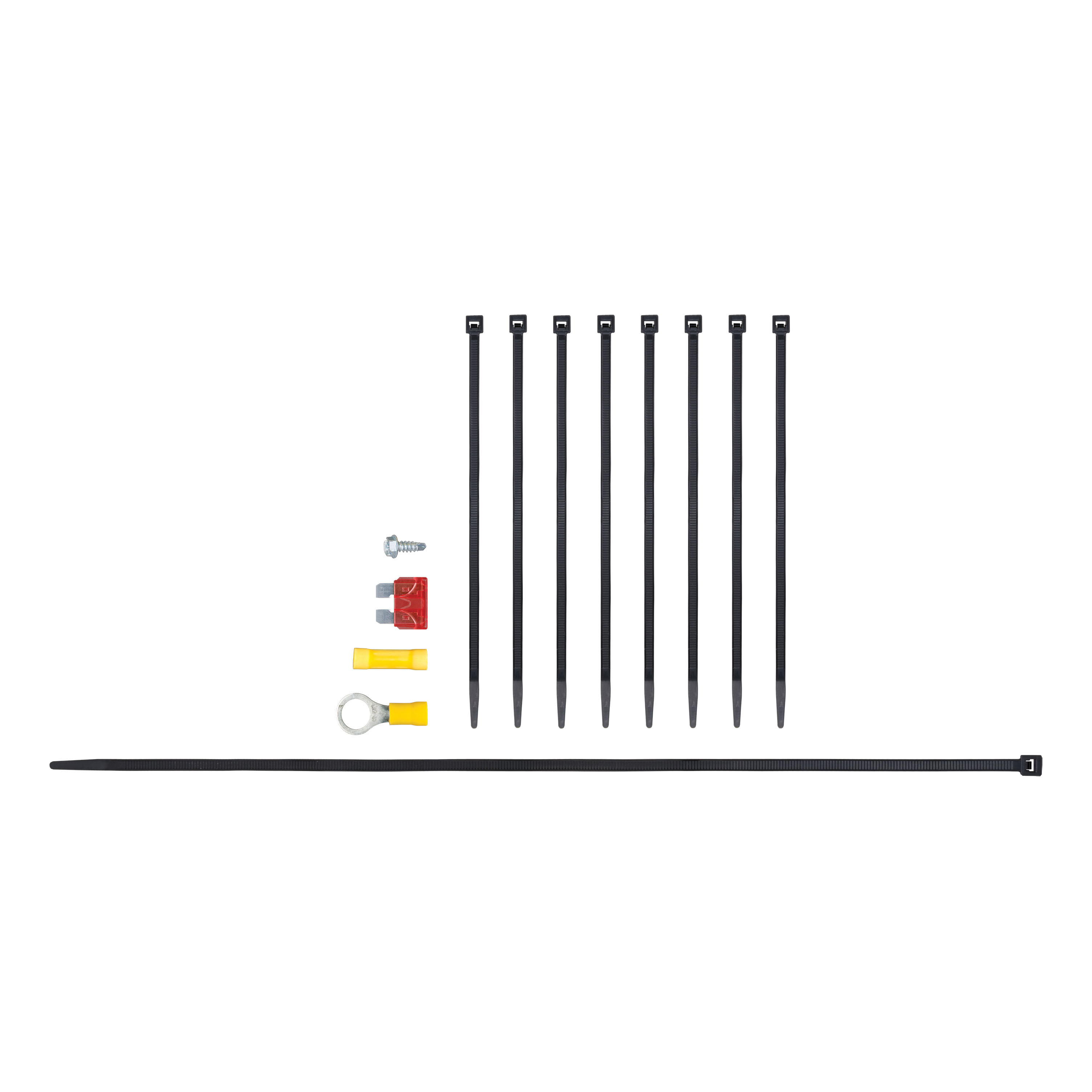

The kit includes a converter module, a 4-flat extension harness with dust cover, a white ground wire with ring terminal, a mounting screw for the ground connection, cable ties, double-sided tape for mounting the converter box, and a fuse holder with 10-amp fuse. The 4-flat harness has four color-coded wires: white (ground), green (right turn/brake), brown (taillights), and yellow (left turn/brake).
Yes. You must disconnect the negative battery terminal before beginning installation and fasten this wire down and away from the battery while completing the installation process. The power wire should only be connected to the positive battery terminal after all other steps are complete.
Locate the vehicle battery and disconnect the negative battery terminal. Fasten this wire down and away from the battery while completing the installation process. This must be done before any other installation steps.
Locate the breakout on the RV harness labeled 'For trailer use only: converter required'. Identify and remove the protective dust cover from the RV-harness add-on breakout. Press down on the female 4-way connector and pull outward to separate it from the RV-harness. Inspect the connectors for dirt and debris and clean if necessary. Then plug the mating connector on the converter harness into the RV-harness.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no existing hole is available, drill a 3/32" pilot hole for the provided screw. The area should be free of rust, dirt, and paint. Secure the white ground wire using the ring terminal and provided screw. If possible, use the existing hole drilled for the RV-harness ground wire.
Drill a 3/32" pilot hole if an existing ground point is not available. The area should be free of rust, dirt, and paint before securing the white ground wire with the ring terminal and provided screw.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. This is especially important when drilling the ground wire pilot hole or routing the power wire through sheet metal.
If the harness is mounted in the interior of a hatch or trunk, route the 4-flat through the hatch or trunk far enough away so the harness does not pinch in the locking mechanism. When not in use, roll up and place in the trunk or hatch. If the harness is mounted on the exterior, route the 4-flat near the vehicle hitch and secure to the vehicle or hitch. Secure any loose wire with the provided cable ties.
The 4-flat harness has four color-coded wires: white (ground), green (right turn/brake), brown (taillights), and yellow (left turn/brake). These functions will only work on the brake/taillight combination lamp.
Use 12 GA wire or larger for the power lead from the vehicle battery to the converter. Route this wire to the vehicle battery location, taking care to avoid any pinch points and hot or rotating components.
When passing the power wire through sheet metal, use an existing grommet, add a grommet, or use silicone to protect the power wire from sharp edges. This prevents damage to the wire insulation and potential electrical hazards.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating, and potential fire. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
Signal Circuits are rated at 3.0 amps per side. Tail/Running Circuits are rated at 6.0 amps total. Do not exceed these product ratings or the tow vehicle lamp load rating, whichever is lower.
Locate a suitable position to mount the converter box. Clean the surface prior to mounting. Remove the paper from the back of the double-sided tape and press the converter against the surface. Secure any loose wires behind the taillights with the provided cable ties.
When not in use, store the 4-flat extension harness inside the vehicle. If the harness is mounted in the interior of a hatch or trunk, roll it up and place it in the trunk or hatch to prevent it from pinching in the locking mechanism.
With the 4-flat extension plugged into the RV harness on one end and the RV on the other, perform a function test. These functions will only work on the brake/taillight combination lamp. All steps must be followed to ensure the towed-vehicle RV harness will function properly. Test by connecting a properly wired tow vehicle.
Install the 10-amp fuse in the fuse holder after all other installation steps are complete. Do not install the fuse until the power wire is fully routed and all other connections are made.
After installation is complete, install the provided 4-flat dust cover to help prevent corrosion. The dust cover should be placed over the 4-flat connector when the harness is not in use.
Reinstall all items removed during installation. Secure any loose wires behind the taillights with the provided cable ties. Install the provided 4-flat dust cover to help prevent corrosion. Perform a function test by connecting a properly wired tow vehicle with the 4-flat extension plugged into the RV harness on one end and the RV on the other.
The Curt 58920 is designed for 12 volt negative ground tow vehicles. Check your vehicle owner's manual or contact the vehicle manufacturer to confirm your system voltage and ground type before purchasing.
Yes, you must disconnect the negative battery terminal before starting installation and keep it disconnected until all other steps are complete. The power wire connects to the positive terminal only after all other connections are made.
Drilling may be required only if you do not have an existing ground point on the vehicle frame. If needed, drill a 3/32" pilot hole. Always check for hidden items behind or under surfaces before drilling to avoid damage or injury.
The battery connection must use a 10-amp maximum fuse. Exceeding this rating can cause overheating, fire, and loss of warranty. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
