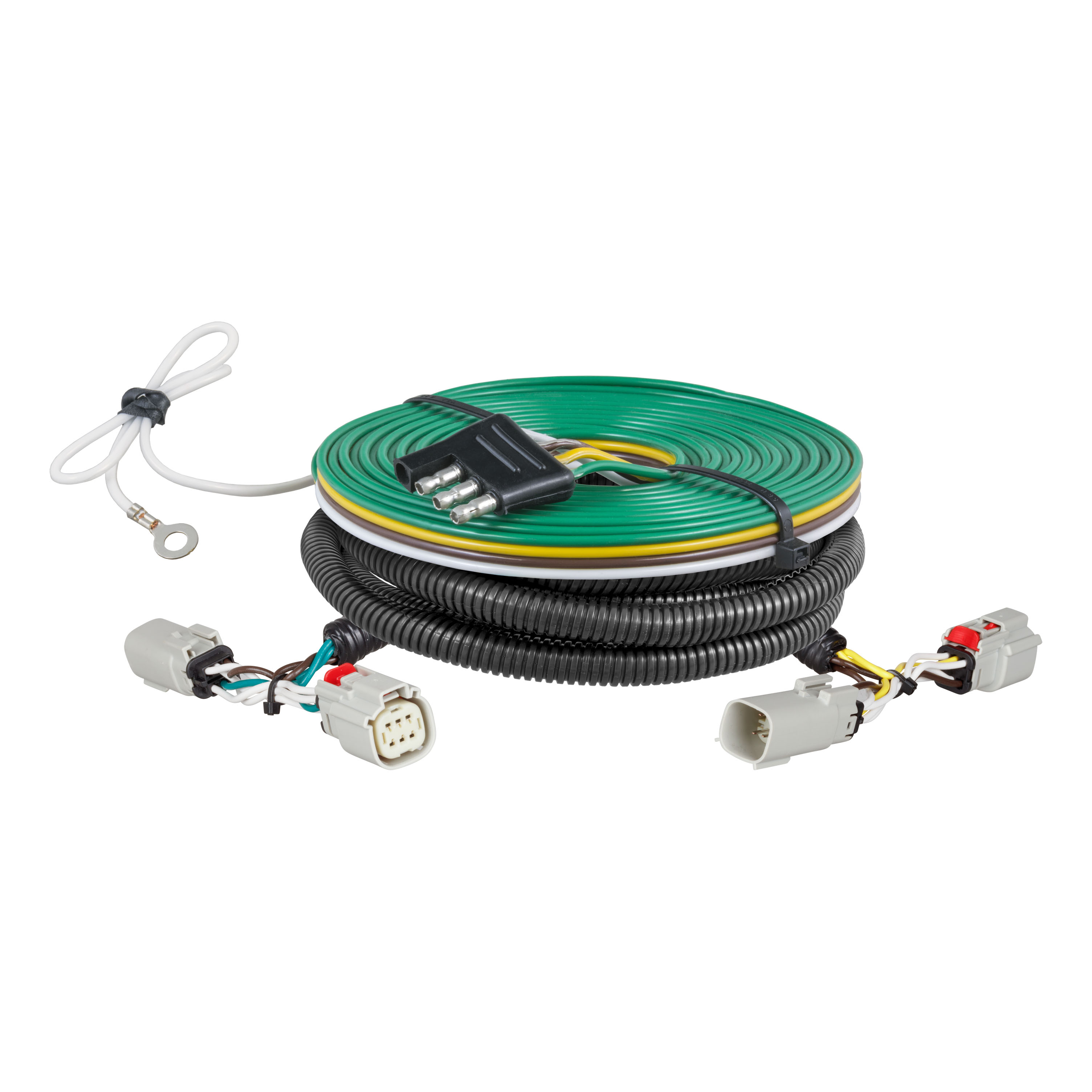

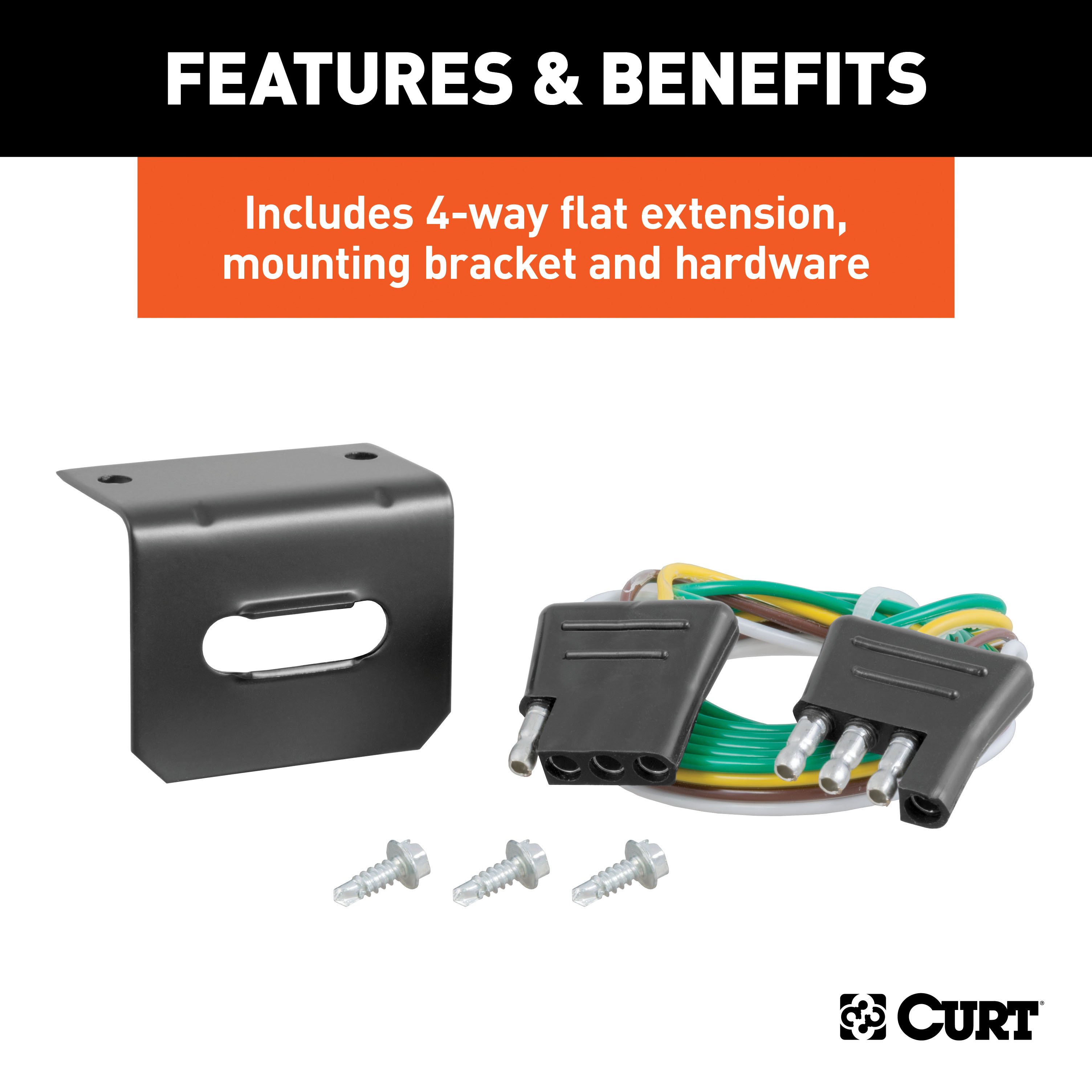

Includes harness, 4-flat extension, mounting bracket and hardware
Includes harness, 4-flat extension, mounting bracket and hardware
Warranty: One-Year Limited Warranty
Finish: Blank
Installation Time Exact (Minutes): 0
Towing your vehicle behind your RV is a great way to experience more of the adventure on your cross-country excursions. Whether you're towing a compact car or a full-size truck, CURT has the perfect solution to help you Bring It! CURT towed-vehicle RV harnesses are a vehicle-specific, plug-and-play solution to wiring your vehicle for dinghy towing. They use original-equipment-compatible connectors to plug into your vehicle's wiring system without any cutting, splicing or soldering required. They provide a standard 4-way flat connector to plug into the RV socket and synchronize the vehicle's tail lights, turn signals and brake lights with the RV's. Because each towed-vehicle RV harness has a vehicle-specific design, installation is fast and easy. This particular RV dinghy towing wiring harness is designed for specific years of the Chevrolet Equinox with LED taillights. CURT RV harnesses are also built to provide long-lasting operation. They feature integrated block diodes that protect the vehicle's circuits from the RV signals. They isolate the sensitive vehicle electronics, keeping them from overheating and short circuiting. Every CURT towed-vehicle RV harness comes ready to install with all necessary hardware included. They also come with a 4-way flat extension to provide plenty of length to plug into the RV socket, as well as a connector mounting bracket to mount the connector on the vehicle.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494One-Year Limited
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2023 | Chevrolet Equinox | — |
The CURT Custom Towed-Vehicle RV Wiring Harness, Select Chevrolet Equinox LED Taillights 52105 (Part #BKDK52105) fits 2022-2023 Chevrolet Equinox models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom Towed-Vehicle RV Wiring Harness, Select Chevrolet Equinox LED Taillights 52105 (Part #BKDK52105) fits the following vehicles: 2022-2023 Chevrolet Equinox. Always verify your specific year, make, and model before ordering.
Yes, the CURT Custom Towed-Vehicle RV Wiring Harness, Select Chevrolet Equinox LED Taillights 52105 (Part #BKDK52105) is designed to fit the 2022-2023 Chevrolet Equinox.
The CURT Custom Towed-Vehicle RV Wiring Harness, Select Chevrolet Equinox LED Taillights 52105 (Part #BKDK52105) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The Curt 52105 is an RV wiring harness that allows you to connect a trailer with functioning lights to your vehicle. Once installed, the taillights on the towed vehicle will function in sync with the taillights on your tow vehicle. The harness can also act as a trailer light harness when used with an RV wiring harness add-on.
The manual does not specify which vehicle makes, models, years, bed lengths, or cab styles are compatible with the 52105. Contact Curt Manufacturing or consult a fitment database to confirm compatibility with your specific vehicle before purchasing.
You will need: ratchet, cutting tool, socket extension, fish wire, T-15 Torx bit, electrical tape, and a panel trim removal tool. The manual notes that proper tools will improve installation quality and reduce time required.
The manual does not state whether fish wire is included. The manual notes that fish wire can be made from a cut-up wire hanger, stiff wire, rope, or string depending on what is needed for the installation. Contact the manufacturer or your retailer to confirm what is included in the package.
Yes. Step 1 requires you to locate the vehicle battery in the engine compartment on the driver side and disconnect the negative battery terminal. Fasten this wire down and away from the battery while completing the installation process.
The installation is rated as Easy. However, the manual notes that installation difficulty levels are based on time and effort involved and may vary depending on the installer's level of expertise, condition of the vehicle, and proper tools and equipment.
Yes. Step 3 requires you to remove both taillights by pulling straight back. The lights have alignment tabs that are pressure fit into the vehicle body; you will need to wiggle them back and forth to loosen them. Disconnect the taillight connectors carefully to avoid damaging the locking tabs. After routing the harness, you will reinstall the taillights in Step 5.
Fish wiring is a method to push or pull an electrical wire through a blind hole or cavity. Make sure the fish wire is long enough to stick out on the other side. Insert it through the blind hole and locate it on the other side. Use tape to secure the harness to the fish wire and pull back up. If the fish wire gets hung up, you may need to push back down, wiggle it around, or twist the wire to loosen it. Fish wire can be made from a cut-up wire hanger, stiff wire, rope, or string.
In Step 4, starting on the driver side, run a fish wire down between the body and the bumper cover. From under the vehicle, locate the side of the custom RV harness with the yellow wire. Attach the yellow side to the fish wire and pull the harness up to the factory harness. Once the custom wiring harness is up to the factory harness, connect the mating housings and reconnect the taillight. Repeat this process on the passenger side using the wiring end with the green wire.
Route the 4-flat wire along the back side of the bumper to the passenger side (Step 6). Then route it along the fuel tank between the tank and the driver-side sub frame to the rear of the front tire (Step 9). From the driver-side engine compartment, use fish wire between the inner fender and exterior fender to route the 4-flat up to the engine compartment (Step 10). Route it along the driver-side inner fender to the front of the vehicle, behind the headlight, and mount it next to the vehicle ground lug on the driver side (Step 11). Zip tie in place as needed throughout.
Route the 4-flat wire above the rear drive line and suspension mounts and the body (Step 8). Keep the wiring away from hot objects like the exhaust, pinch points, and moving objects. Zip tie in place as needed. In Step 12, pull all excess wire so it is not drooping or dangling, but not too tight so that it causes unnecessary strain to the wire, which could lead to breakage over time.
Drilling is required only if you cannot find an existing screw or bolt on the vehicle frame to use as a grounding point (Step 7). If you must drill, create a 3/32" pilot hole. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. The area should be free from rust, dirt, and paint; use an abrasive pad or paper to remove rust and paint.
If you need to drill a grounding point, the pilot hole size is 3/32". Before drilling, check for hidden items behind or under any surface to avoid damage and personal injury.

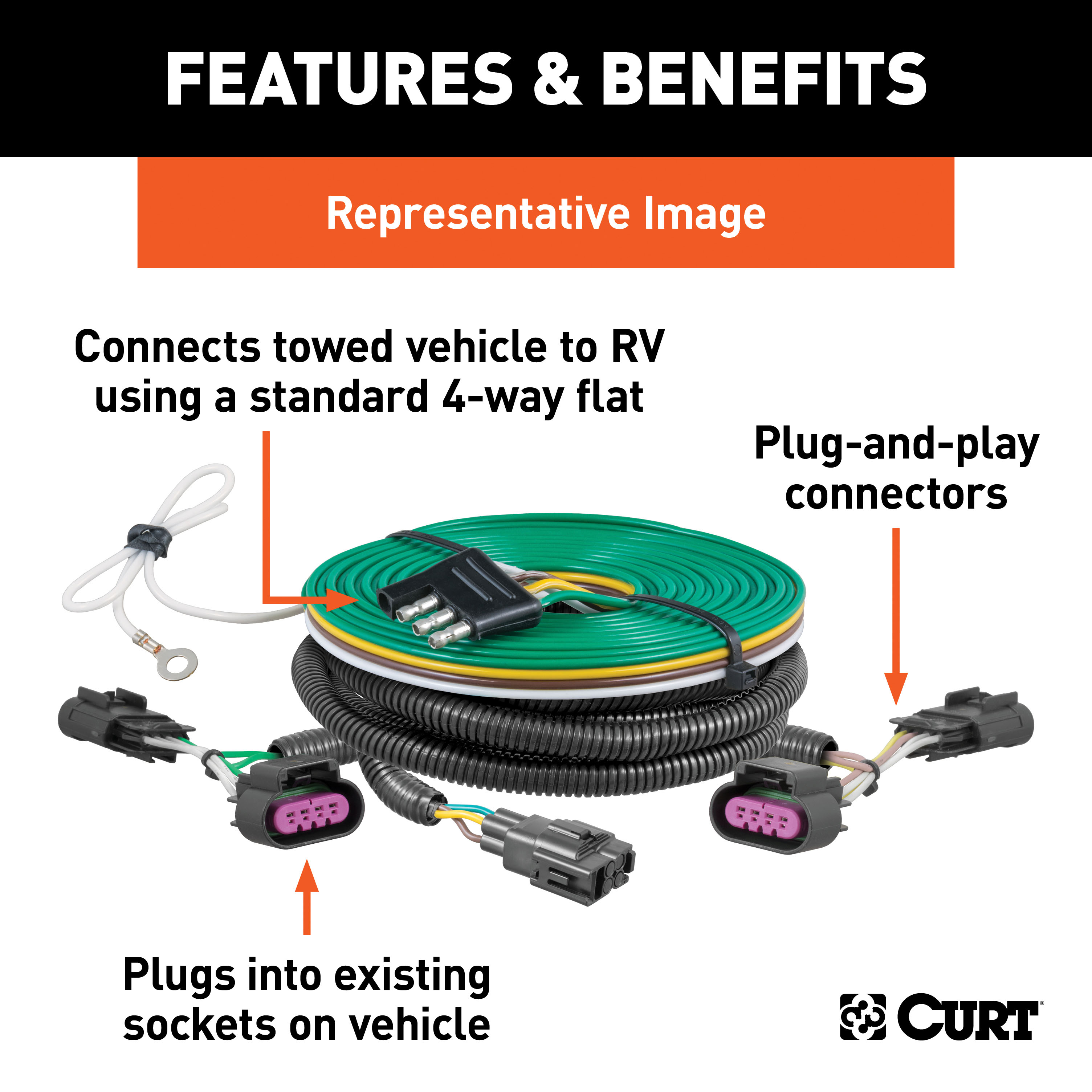

The harness includes a yellow wire (driver side), a green wire (passenger side), a white ground wire with a ring terminal, and a 4-flat wire. The yellow and green wires are used to connect the custom RV harness to the factory harness at the taillights. The white ground wire is secured to a grounding point on the vehicle frame. The 4-flat wire connects to the trailer.
The white ground wire with a ring terminal is secured to a grounding point on the vehicle frame (Step 7). You can use an existing screw or bolt in the frame, or drill a 3/32" pilot hole if no existing fastener is available. The area should be free from rust, dirt, and paint. You can secure the wire with the existing fastener or with the provided ground screw.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Additionally, do not lay tools across the positive battery terminal (typically noted with red covers or a red '+' symbol), as this can cause a ground short, resulting in sparks and/or electrical shocks.
After disconnecting the negative battery terminal in Step 1, fasten this wire down and away from the battery while completing the installation process. This prevents accidental reconnection or contact with the positive terminal.
After installation, test for proper function by using a test light or connecting a properly wired trailer. According to the Step 8 notice, verify that the harness is functioning by attaching the 4-flat to any trailer with functioning lights. The taillights on the vehicle to be towed should function along with the taillights on the vehicle that is powering them.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections.
The manual does not specify compatible vehicles. Contact Curt Manufacturing or check a fitment database with your vehicle's year, make, and model to confirm compatibility.
Yes, you must disconnect the negative battery terminal before beginning installation and keep it fastened away from the battery throughout the process.
Drilling is required only if you cannot find an existing screw or bolt on the vehicle frame to use as a grounding point. If drilling is necessary, the pilot hole size is 3/32".
The harness uses yellow (driver side), green (passenger side), white (ground), and a 4-flat connector wire. The yellow and green wires connect to the factory harness at the taillights.
Periodically inspect all wires and connections to ensure there is no visible damage or loose connections.
