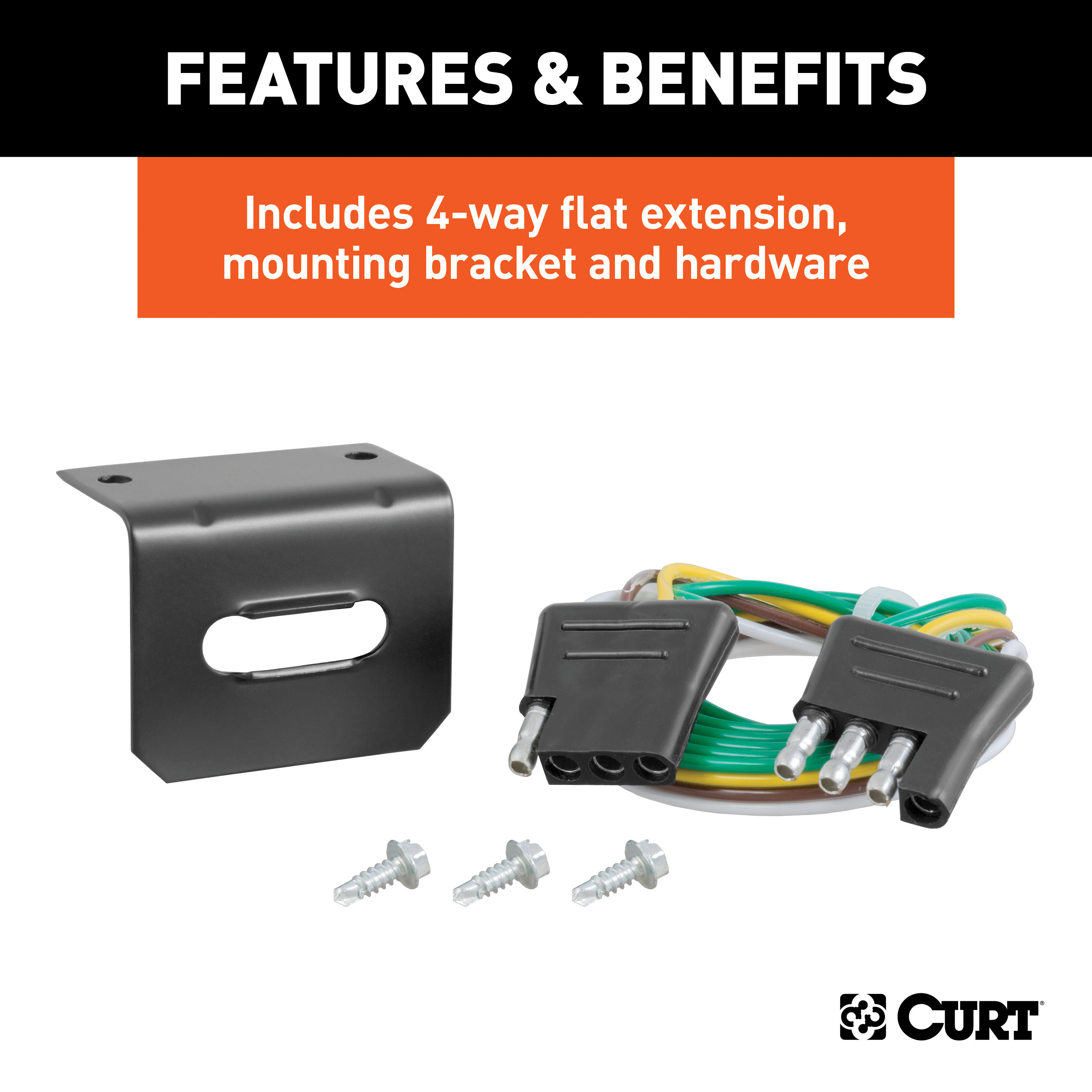

Includes harness, 4-flat extension, mounting bracket and hardware
Includes harness, 4-flat extension, mounting bracket and hardware
Warranty: One-Year Limited Warranty
Installation Difficulty: Novice
Installation Time Exact (Minutes): 30

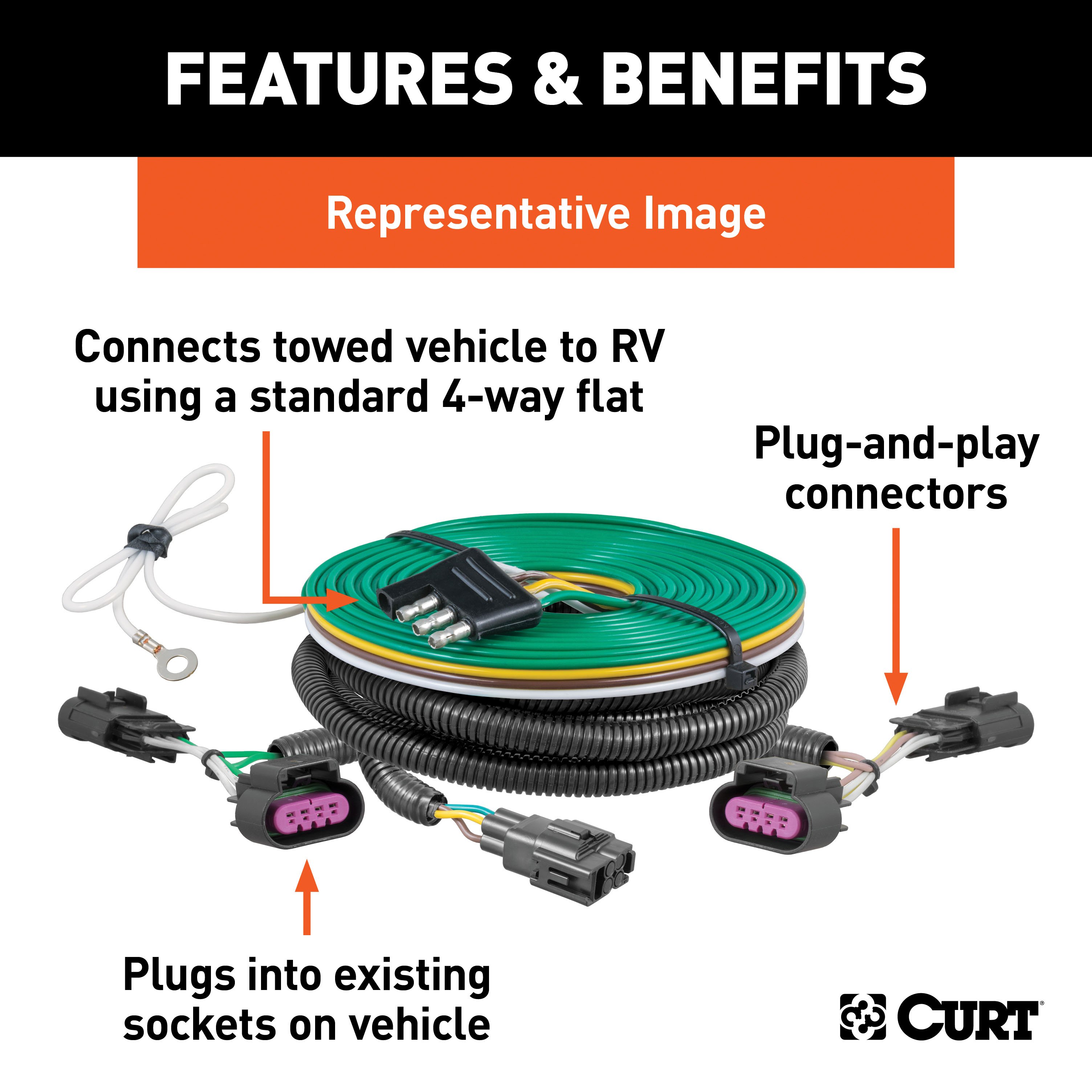

Towing your vehicle behind your RV is a great way to experience more of the adventure on your cross-country excursions. Whether you're towing a compact car or a full-size truck, CURT has the perfect solution to help you Bring It! CURT towed-vehicle RV harnesses are a vehicle-specific, plug-and-play solution to wiring your vehicle for dinghy towing. They use original-equipment-compatible connectors to plug into your vehicle's wiring system without any cutting, splicing or soldering required. They provide a standard 4-way flat connector to plug into the RV socket and synchronize the vehicle's tail lights, turn signals and brake lights with the RV's. Because each towed-vehicle RV harness has a vehicle-specific design, installation is fast and easy. This particular RV dinghy towing wiring harness is designed for specific years of the Chevrolet Traverse. CURT RV harnesses are also built to provide long-lasting operation. They feature integrated block diodes that protect the vehicle's circuits from the RV signals. They isolate the sensitive vehicle electronics, keeping them from overheating and short circuiting. Every CURT towed-vehicle RV harness comes ready to install with all necessary hardware included. They also come with a 4-way flat extension to provide plenty of length to plug into the RV socket, as well as a connector mounting bracket to mount the connector on the vehicle.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 - 2017 | Chevrolet Traverse | — |
Yes, the CURT Custom Towed-Vehicle RV Wiring Harness, Select Chevrolet Traverse Trailer Connector Kit (Part #BKDK58922) is designed to fit the 2013-2017 Chevrolet Traverse.
The CURT Custom Towed-Vehicle RV Wiring Harness, Select Chevrolet Traverse Trailer Connector Kit (Part #BKDK58922) fits 2013-2017 Chevrolet Traverse models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom Towed-Vehicle RV Wiring Harness, Select Chevrolet Traverse Trailer Connector Kit (Part #BKDK58922) fits the following vehicles: 2013-2017 Chevrolet Traverse. Always verify your specific year, make, and model before ordering.
The CURT Custom Towed-Vehicle RV Wiring Harness, Select Chevrolet Traverse Trailer Connector Kit (Part #BKDK58922) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The Curt 58922 RV TOW Harness fits Buick Enclave, Chevrolet Traverse, and GMC Acadia models. The harness connects to the vehicle's factory taillight wiring and provides a 4-Flat connector for RV towing. Verify your vehicle model matches one of these three before purchasing.

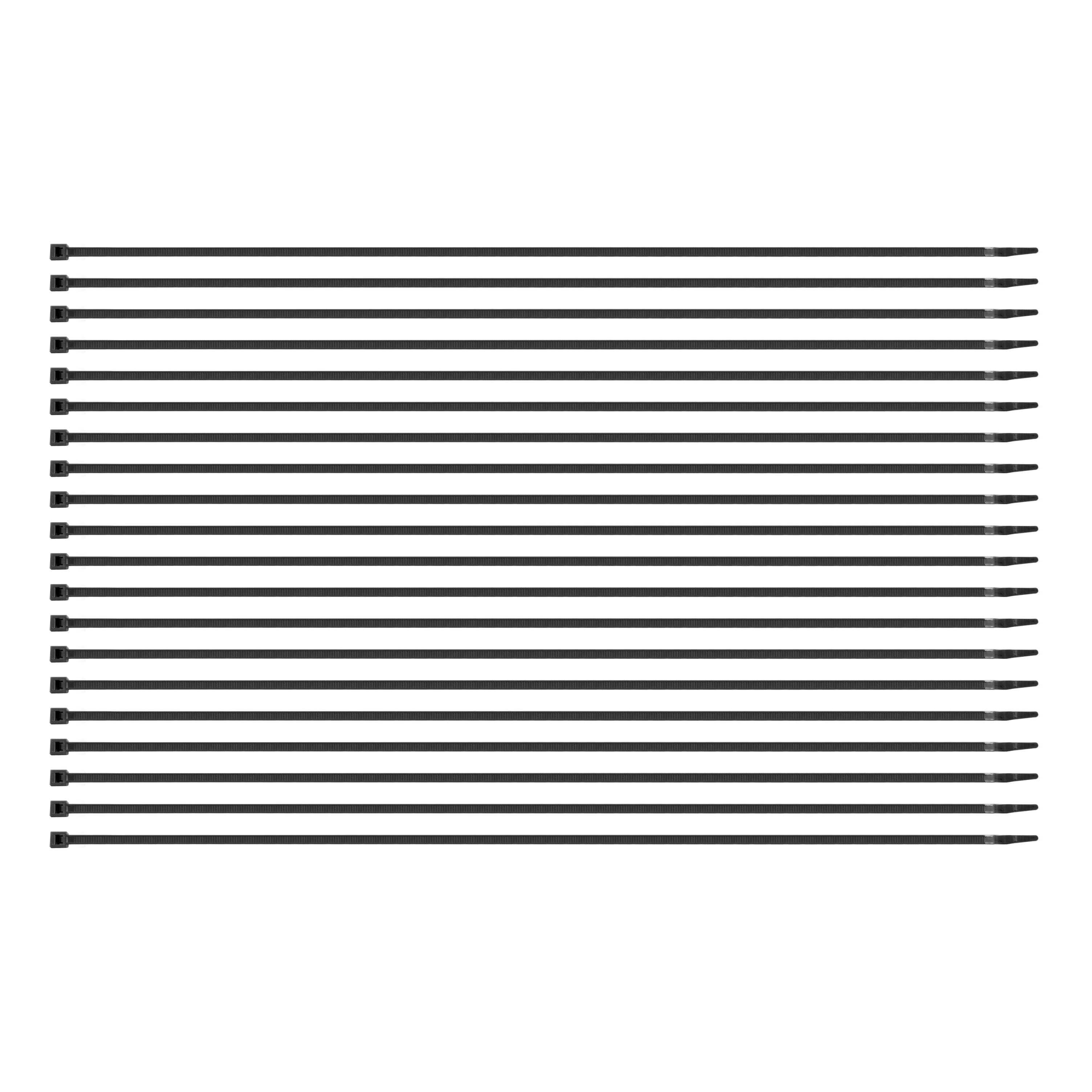

The kit includes: (1) Wiring Harness with 4-Flat Connector, (1) 48" 4-Flat Extension, (20) 15" Cable Ties, (1) 4-Flat Bracket, (2) Adhesive Cable Tie Pads, and (3) #8 Self-Tapping Ground Screws.
The 58922 is designed for RV towing. For trailer towing, the harness includes a connection point labeled "FOR TRAILER TOW USE ONLY: CONVERTER 58920 REQUIRED." You can leave the 58922 harness on the vehicle permanently and plug in the separate 4-Flat Harness Part Number 58920 when you need to tow a trailer.
Yes. You must open the rear tailgate, remove the plastic caps covering the taillight screws, remove the two 7mm screws holding each taillight assembly, and gently pull the taillights away from the vehicle to access the factory wiring harness connectors. The taillights are reinstalled at the end of the installation.
Required tools include: a flat screwdriver (to remove plastic taillight caps), a 7mm socket (to remove taillight screws), a drill with a 3/32" bit (to drill two mounting holes), a fish tape (to route harness through bumper and wheel wells), and a Torx T15 screwdriver (to remove rear wheel well cover screws). A marker or pencil is needed to mark drill holes.
Yes. You must drill two 3/32" holes: one near the rear of the vehicle on clean metal to mount the ground screw (Step 4), and two more at the front frame rail to mount the 4-Flat bracket (Step 14). Before drilling, remove any debris or undercoating to expose clean metal. Take care not to drill through the vehicle body or any exposed surface.
Drill two 3/32" holes: one at the rear of the vehicle to mount the ground screw (Step 4), and two at the front frame rail to mount the 4-Flat bracket (Step 14). Use the bracket as a template to mark the front holes before drilling.
The 4-Flat Harness uses the following color code: White = Ground, Brown = Tail Lights, Green = Right Turn and Brake Signal, Yellow = Left Turn and Brake Signal. The Yellow wires are routed to the driver's side taillight, and the Green wires to the passenger side taillight.
Route the RV harness with Yellow wire connectors up behind the bumper fascia and between the separated vehicle harness connectors (driver's side first). Press the connectors firmly into the vehicle connectors until they lock, then pull on them to ensure the locks are engaged. Repeat the same process on the passenger side with the Green wire connectors, routing them through the frame rail using a fish tape.
Remove the Torx T15 screw on the driver's rear wheel well cover. Use a fish tape to route from the left side of the rear wheel well over to the right side, secure the 4-Flat connector to the fish tape, and pull it through. Route the connector forward along brake line brackets, securing it with cable ties. Secure the harness to the vehicle frame with two adhesive cable tie pads before routing to the front wheel well. Repeat the process to route the 4-Flat through the driver's front wheel well, removing additional Torx T15 screws if necessary.
Mount the 4-Flat bracket on the front frame rail that goes across the front of the vehicle. Use the bracket as a template to mark two holes, drill two 3/32" holes, and attach the bracket using the two remaining #8 Self-Tapping Ground Screws from the kit.
Locate a clean and accessible mounting location on the vehicle near the RV harness ends, within reach of the white wire and ring terminal. Remove any debris or undercoating to expose clean metal and drill a 3/32" hole. Attach the ring terminal on the white wire using one of the #8 Self-Tapping Ground Screws provided.
Avoid routing the harness near moving parts, fuel lines, or areas where wires could be cut, pinched, or burned. Do not drill through the vehicle body or any exposed surface. Failure to follow these warnings may cause property damage, personal injury, or loss of life. When routing through wheel wells and frame areas, use a fish tape and secure the harness with cable ties to keep it away from hazards.
With the 4-Flat extension plugged into the RV harness on one end and the motorhome on the other, test that the functions work on your Buick Enclave, Chevrolet Traverse, or GMC Acadia. These functions will only work on the brake/tail combination lamp. Verify that tail lights, left turn/brake signal (Yellow), and right turn/brake signal (Green) operate correctly.
Store the 4-Flat extension in the vehicle's glove box when not in use.
Yes. After separating the factory wiring harness connectors from the taillights, inspect them for dirt and debris and clean if necessary before connecting the RV harness connectors.
Press the connectors firmly into the vehicle connectors until they lock into place. Pull on the connectors to ensure the locks are engaged. The connectors should not move when pulled.
The Curt 58922 RV TOW Harness fits Buick Enclave, Chevrolet Traverse, and GMC Acadia models.
Yes. Remove the plastic caps, then the two 7mm screws holding each taillight, and gently pull the taillights away to access the factory wiring connectors. Reinstall them at the end.
You need a flat screwdriver, 7mm socket, drill with 3/32" bit, fish tape, Torx T15 screwdriver, and a marker. A fish tape is essential for routing the harness through the bumper and wheel wells.
White = Ground, Brown = Tail Lights, Green = Right Turn and Brake Signal, Yellow = Left Turn and Brake Signal.
Avoid routing near moving parts, fuel lines, or areas where wires could be cut, pinched, or burned. Do not drill through the vehicle body or exposed surfaces. Failure to follow these warnings may cause property damage, personal injury, or loss of life.
The 58922 is for RV towing. For trailer towing, you need the separate Curt 58920 converter. You can leave the 58922 on the vehicle and plug in the 58920 when towing a trailer.
