CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2021 - 2026 Ford Bronco
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

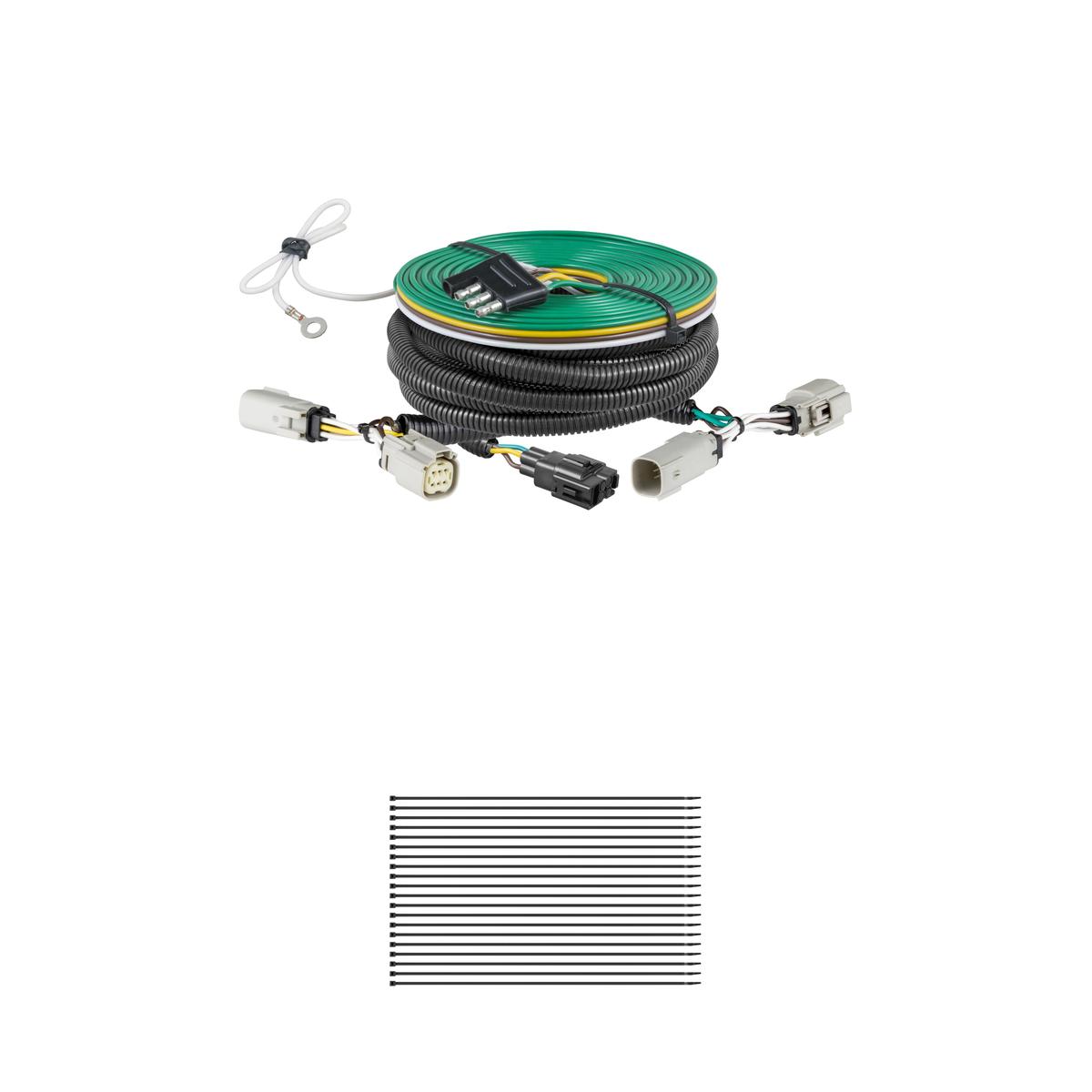

Includes harness, 4-flat extension, mounting bracket and hardware
Includes harness, 4-flat extension, mounting bracket and hardware
Warranty: One-Year Limited Warranty
Finish: Blank
Installation Difficulty: Professional
Installation Time Exact (Minutes): 45
Towing your vehicle behind your RV is a great way to experience more of the adventure on your cross-country excursions. Whether you're towing a compact car or a full-size truck, CURT has the perfect solution to help you Bring It! CURT towed-vehicle RV harnesses are a vehicle-specific, plug-and-play solution to wiring your vehicle for dinghy towing. They use original-equipment-compatible connectors to plug into your vehicle's wiring system without any cutting, splicing or soldering required. They provide a standard 4-way flat connector to plug into the RV socket and synchronize the vehicle's tail lights, turn signals and brake lights with the RV's. Because each towed-vehicle RV harness has a vehicle-specific design, installation is fast and easy. This particular RV dinghy towing wiring harness is designed for specific years of the Ford Bronco without LED taillights. CURT RV harnesses are also built to provide long-lasting operation. They feature integrated block diodes that protect the vehicle's circuits from the RV signals. They isolate the sensitive vehicle electronics, keeping them from overheating and short circuiting. Every CURT towed-vehicle RV harness comes ready to install with all necessary hardware included. They also come with a 4-way flat extension to provide plenty of length to plug into the RV socket, as well as a connector mounting bracket to mount the connector on the vehicle.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2026 | Ford Bronco | — |
Yes, the CURT Custom Towed-Vehicle RV Wiring Harness, Select Ford Bronco w/o LED Taillights Trailer Connector Kit (Part #BKDK58996) is designed to fit the 2021-2026 Ford Bronco.
The CURT Custom Towed-Vehicle RV Wiring Harness, Select Ford Bronco w/o LED Taillights Trailer Connector Kit (Part #BKDK58996) fits 2021-2026 Ford Bronco models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom Towed-Vehicle RV Wiring Harness, Select Ford Bronco w/o LED Taillights Trailer Connector Kit (Part #BKDK58996) fits the following vehicles: 2021-2026 Ford Bronco. Always verify your specific year, make, and model before ordering.
The CURT Custom Towed-Vehicle RV Wiring Harness, Select Ford Bronco w/o LED Taillights Trailer Connector Kit (Part #BKDK58996) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The Curt 58996 is an RV harness designed for SUVs and vans. It provides electrical connections for trailer lights by routing wiring from the vehicle's taillights to a 4-flat connector at the front of the vehicle, allowing you to connect a trailer with functioning lights to your tow vehicle.
The Curt 58996 is designed for SUVs and vans. The manual does not specify particular makes, model years, or trim levels. Consult the product listing or contact Curt Manufacturing to confirm fitment for your specific vehicle.
You will need: ratchet, 10mm socket, socket extension, panel trim removal tool, small flathead screwdriver, Phillips screwdriver, fishwire (or a substitute such as a cut-up wire hanger, stiff wire, rope or string), and wire cutter. Proper tools will improve installation quality and reduce installation time.
Yes. You must locate the vehicle battery in the engine compartment on the driver side and disconnect the negative battery terminal before beginning installation. Fasten this wire down and away from the battery while completing the installation process. Reconnect it after all installation steps are complete.
Open the tailgate fully and raise the glass. Use a 10mm socket to remove four bolts (two on each side) securing the taillight trim. Use a Phillips screwdriver to remove eight screw push fasteners (four on each side). You may need a small flathead screwdriver to help back out the push fastener screws by adding pressure to the backside. Remove the taillight panel trim by pulling straight out, starting at the bottom and working your way up on each side. Then locate the taillight housing and separate the connectors, taking care not to damage the locking tabs.
Starting on the driver side, locate the side of the harness with the yellow wire. From underneath the vehicle between the rear tire and the rear bumper, route the wire up between the body and rear bumper, staying along the inside of the black cloth-taped wire harness. Route the harness housings up and around the rear bumper and attach to the factory harness and driver-side rear taillight. The yellow wire should route behind the rear door trim that was removed. Zip tie the harness in place as needed.
Route the green wire over the vehicle frame on both sides of the vehicle to the passenger side, zip tying as needed to the rear bumper. Then repeat the same routing procedure as the driver side (Step 6): route the wire up between the body and rear bumper, staying along the inside of the black cloth-taped wire harness, route the harness housings up and around the rear bumper, and attach to the factory harness and passenger-side rear taillight. The green wire should route behind the rear door trim that was removed. Zip tie the harness in place as needed.
You may need to drill a hole for the ground wire, depending on your vehicle. Locate a grounding point such as an existing screw or bolt in the frame of the vehicle. If no suitable existing fastener is available, drill a 3/32" pilot hole. The area should be free from rust, dirt, and paint—use an abrasive pad or paper to remove rust and paint. Secure the white ground wire with the ring terminal on the existing fastener or with the provided ground screw. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and/or personal injury.
Route the 4-flat along the top of the driver-side frame rail to just behind the driver-side front tire, loosely securing any excess wire so it is not drooping or dangling. Then pull the 4-flat up between the inner and outer fender and route it along the driver-side inner fender to the front of the vehicle. Secure any excess wire so it is not drooping or dangling, but not so tight that it causes unnecessary strain to the wire, which could lead to breakage over time. After removing slack from the 4-flat wire, tighten any zip ties and add as needed. Use a zip tie to fasten any excess wire to a solid spot along the driver-side inner fender.
Fishwire is a technique to push or pull an electrical wire through a blind hole. Make sure the wire is long enough to stick out on the other side. Insert the fishwire through the blind hole and locate it on the other side. Use tape to secure the harness to the fishwire and pull back up. The fishwire or harness may get hung up on something; if this happens, you may have to push back down, wiggle it around, or twist the wire to loosen it from what it is hung up on. Fishwire can be anything from a cut-up wire hanger, stiff wire, rope, or string, depending on what is needed for the installation.
Once the RV harness is installed, verify that the harness is functioning by attaching the 4-flat to any vehicle with functioning trailer lights. The taillights on the tow vehicle should function along with the taillights on the towing vehicle. You can also test using a test light.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. The manual does not specify an inspection interval. Install the provided 4-flat dust cover to help prevent corrosion.
The installation difficulty level is rated as Easy. Installation difficulty levels are based on time and effort involved and may vary depending on the installer's level of expertise, condition of the vehicle, and proper tools and equipment.
No. When routing the 4-flat along the driver-side frame rail and inner fender, loosely secure any excess wire initially so it is not drooping or dangling. After removing slack from the 4-flat wire, tighten any zip ties and add as needed. This prevents unnecessary strain on the wire, which could lead to breakage over time.
The Curt 58996 is designed for SUVs and vans. Confirm fitment for your specific make and model with the product listing or Curt Manufacturing, as the manual does not list specific vehicle applications.
Yes, disconnect the negative battery terminal before starting installation and reconnect it after all steps are complete.
Drilling may be required for the ground wire. If no existing screw or bolt is available as a grounding point, drill a 3/32" pilot hole in the vehicle frame. Check for hidden items before drilling to avoid damage.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Also, check for hidden items before drilling to avoid damage and personal injury.
Periodically inspect all wires and connections for visible damage or loose connections. Install the provided 4-flat dust cover to prevent corrosion.
