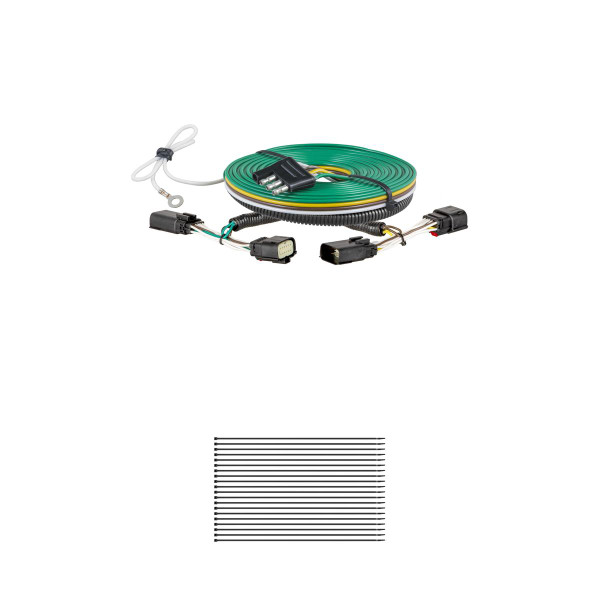

Includes harness, 4-flat extension, mounting bracket and hardware
Includes harness, 4-flat extension, mounting bracket and hardware
Warranty: One-Year Limited Warranty
Finish: Blank
Installation Difficulty: Professional
Installation Time Exact (Minutes): 45
Towing your vehicle behind your RV is a great way to experience more of the adventure on your cross-country excursions. Whether you're towing a compact car or a full-size truck, CURT has the perfect solution to help you Bring It! CURT towed-vehicle RV harnesses are a vehicle-specific, plug-and-play solution to wiring your vehicle for dinghy towing. They use original-equipment-compatible connectors to plug into your vehicle's wiring system without any cutting, splicing or soldering required. They provide a standard 4-way flat connector to plug into the RV socket and synchronize the vehicle's tail lights, turn signals and brake lights with the RV's. Because each towed-vehicle RV harness has a vehicle-specific design, installation is fast and easy. This particular RV dinghy towing wiring harness is designed for specific years of the Ford F-150 with LED taillights. CURT RV harnesses are also built to provide long-lasting operation. They feature integrated block diodes that protect the vehicle's circuits from the RV signals. They isolate the sensitive vehicle electronics, keeping them from overheating and short circuiting. Every CURT towed-vehicle RV harness comes ready to install with all necessary hardware included. They also come with a 4-way flat extension to provide plenty of length to plug into the RV socket, as well as a connector mounting bracket to mount the connector on the vehicle.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2023 | Ford F-150 | With LED taillights and backup sensors |
The CURT Custom Towed-Vehicle RV Wiring Harness, Select Ford F-150 with LED Taillights Trailer Connector Kit (Part #BKDK52103) fits 2021-2023 Ford F-150 models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom Towed-Vehicle RV Wiring Harness, Select Ford F-150 with LED Taillights Trailer Connector Kit (Part #BKDK52103) fits the following vehicles: 2021-2023 Ford F-150. Always verify your specific year, make, and model before ordering.
Yes, the CURT Custom Towed-Vehicle RV Wiring Harness, Select Ford F-150 with LED Taillights Trailer Connector Kit (Part #BKDK52103) is designed to fit the 2021-2023 Ford F-150.
The CURT Custom Towed-Vehicle RV Wiring Harness, Select Ford F-150 with LED Taillights Trailer Connector Kit (Part #BKDK52103) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The Curt 52103 is a custom wiring harness for trucks that integrates vehicle taillight signals to a 4-flat trailer connector. It allows a towed trailer's lights to be powered by and synchronized with the towing vehicle's brake, turn and running light signals.
The manual does not specify which truck makes, models, model years or cab styles are compatible with part 52103. Contact Curt Manufacturing or consult a fitment database to confirm compatibility with your specific vehicle before purchasing.
The manual does not address compatibility with factory-integrated trailer connectors or towing packages. Consult the manufacturer or a fitment specialist to determine whether the 52103 can be used alongside or instead of factory equipment.
Required tools are: fishwire, ratchet, cutting tool, 8mm socket, drill, socket extension, and 3/32" drill bit. Proper tools will improve installation quality and reduce installation time.
The manual does not state whether a fishwire is included with the product. It notes that fishwire can be made from a cut-up wire hanger, stiff wire, rope or string. Contact the manufacturer or your retailer to confirm what is included in the package.
Yes. Step 1 requires you to locate the vehicle battery in the engine compartment on the passenger side and disconnect the negative battery terminal. Fasten this wire down and away from the battery while completing the installation.
Do not lay tools across the positive battery terminal (typically noted with red covers or a red '+' symbol). This can cause a ground short, resulting in sparks and/or electrical shocks.
Open the tailgate and use an 8mm socket to remove the two bolts securing each taillight in place. Carefully remove the taillight straight back from the vehicle. Locate the taillight wiring connectors and separate them from the taillight housing, taking care not to damage the locking tabs. Set the taillight aside in a safe place and repeat on the other side.
Fishwire is a method to push or pull an electrical wire through a blind hole. Insert the fishwire through the blind hole and locate it on the other side. Use tape to secure the harness to the fishwire and pull back up. If the fishwire or harness gets hung up, you may need to push back down, wiggle it around, or twist the wire to loosen it. Fishwire can be made from a cut-up wire hanger, stiff wire, rope or string.
Drop a fishwire down inside the cavity where the taillight was removed. From under the vehicle, attach the yellow wire to the fishwire and pull up into the taillight opening. Attach the custom wiring harness to the taillight, then re-attach the factory harness to the taillight and the T-connection in the custom wiring harness.
Route the green wire over to the passenger side, using zip ties as needed along the rear bumper. Repeat the same process on the passenger side as you did with the yellow wire on the driver side.
You may use an existing screw or bolt in the vehicle frame as a grounding point. If no suitable existing fastener is available, you will need to drill a 3/32" pilot hole. The area should be free from rust, dirt, and paint; use an abrasive pad or paper to remove rust and paint before securing the white ground wire with the ring terminal or the provided ground screw.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and/or personal injury.
Route the 4-flat harness above the frame and below the bed of the truck along the driver-side frame rail to the front. Once the harness is just behind the driver-side front wheel, route it to the rear of the driver-side wheel well, then over to the driver-side rear inner wheel well.
From the engine compartment on the driver side next to the hood hinge, run a fishwire down between the inner fender and the outer fender. Pull the wheel well panel back and locate the end of the fishwire. Attach the 4-flat to the fishwire and pull it to the top of the engine compartment. Route the 4-flat along the driver-side inner fender, zip tie in place as needed, and run it under the air intake to the front of the truck.
The manual does not provide a torque specification for the 8mm bolts that secure the taillights. Consult the vehicle manufacturer's service manual or contact Curt Manufacturing for the correct torque value.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding either limit may result in electrical failure or damage to the vehicle's lighting system.
Once the custom harness is installed, verify that it is functioning by attaching the 4-flat to any trailer with functioning lights. The taillights on the vehicle to be towed should function along with the taillights on the vehicle that is powering them. You can also use a test light to verify proper function.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections.
The manual does not list specific vehicle compatibility. Check the product fitment database or contact Curt Manufacturing with your truck's make, model and year.
You need: fishwire, ratchet, cutting tool, 8mm socket, drill, socket extension, and 3/32" drill bit.
Yes. Disconnect the negative battery terminal before beginning installation and fasten it away from the battery.
Drilling is required only if no existing screw or bolt is available on the vehicle frame for the ground wire. If drilling is needed, a 3/32" pilot hole is required.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Do not lay tools across the positive battery terminal, as this can cause sparks and electrical shocks.
Periodically inspect all wires and connections to ensure there is no visible damage or loose connections.
