Warranty: One-Year Limited Warranty
Electrical System Type: 3W
Output Type: 4-Way Flat
Tail Light Circuits: 7.5 Amps
Turn and Brake Circuits: 3.0 Amps
Installation Difficulty: Advanced
Installation Time Exact (Minutes): 20

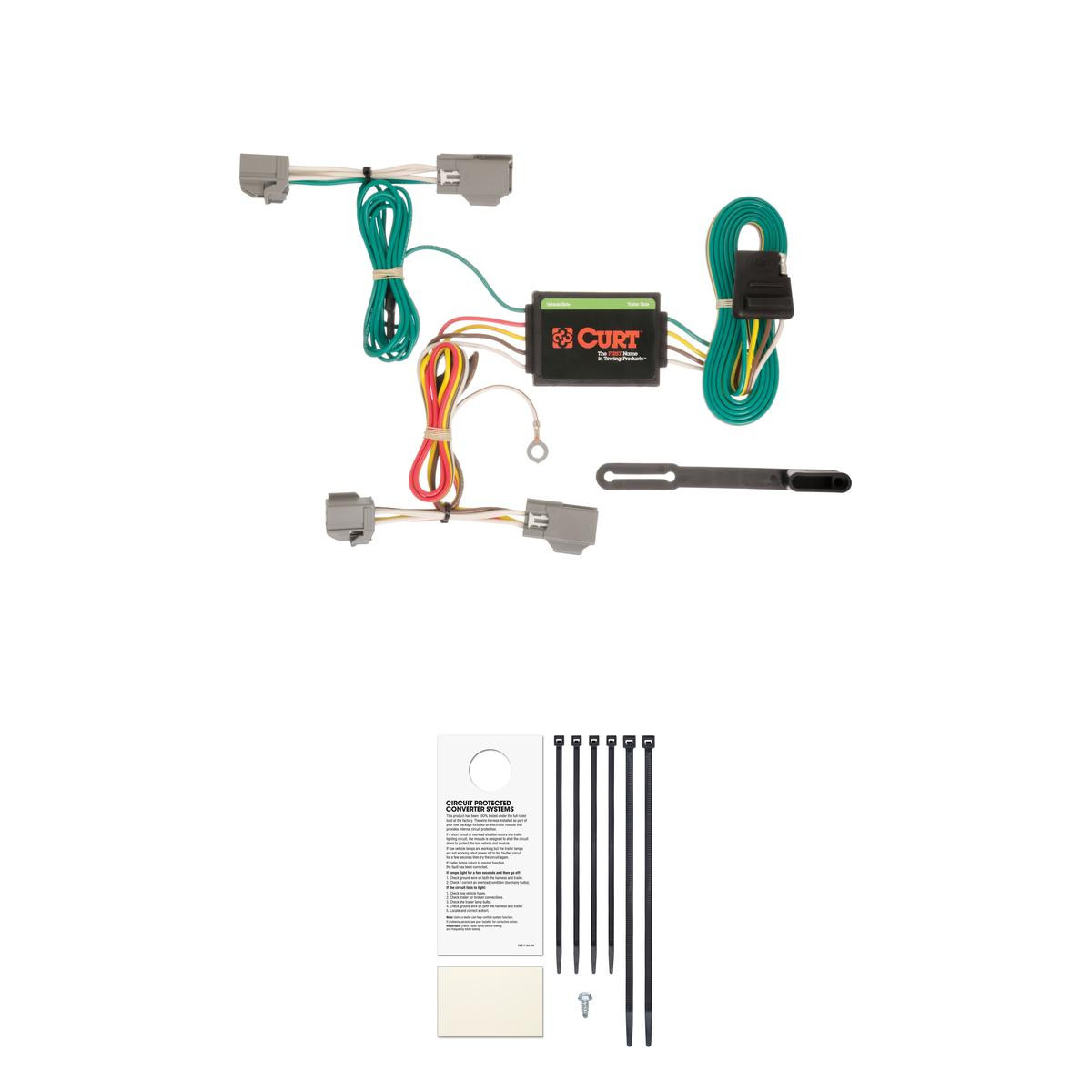

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Ford Fiesta hatchback (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2014 - 2019 | Ford Fiesta | Hatchback | Installation Time: 30-60 minutes |
Yes, the CURT Custom Wiring Harness, 4-Way Flat Output, Select Ford Fiesta Hatchback Trailer Connector Kit (Part #BKDK56191) is designed to fit the 2014-2019 Ford Fiesta.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Ford Fiesta Hatchback Trailer Connector Kit (Part #BKDK56191) fits the following vehicles: 2014-2019 Ford Fiesta. Always verify your specific year, make, and model before ordering.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Ford Fiesta Hatchback Trailer Connector Kit (Part #BKDK56191) fits 2014-2019 Ford Fiesta models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Ford Fiesta Hatchback Trailer Connector Kit (Part #BKDK56191) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, the Curt 56191 T-Connector is designed for Ford Fiesta Hatchback. This harness integrates with the vehicle's factory taillight wiring to provide trailer lighting control.
You must remove the rear hatch floor coverings, the rear scuff panel (secured by two Torx T-30 head screws), and the trunk liner trim on both sides. This provides access to the taillight wiring harness connectors where the T-Connector is installed.
You will need a Torx T-30 screwdriver to remove the rear scuff panel screws, a Phillips screwdriver to remove the trim screws on both sides of the hatch, and a 3/32" drill bit if you need to create a grounding hole (an existing screw with nut in the vehicle frame may be used instead). Cable ties are provided for wire management.
Drilling is not required if you can locate an existing screw with a nut in the vehicle's frame to use as a grounding point. If no suitable existing fastener is available, you will need to drill a 3/32" hole to secure the white ground wire eyelet using the screw provided. Before drilling, verify that no miscellaneous items are hidden behind or under the surface to avoid damage and personal injury.
On the driver's side, locate the vehicle's taillight wiring harness connectors. Separate the connectors carefully without damaging the locking tabs. Insert the T-Connector end with the yellow wire between the separated connectors, ensuring the connectors are fully inserted with locking tabs in place. Repeat this process on the passenger side using the T-Connector end with the green wire, routing it behind the trunk liner and removed scuff panel.
The yellow wire connects to the driver's side taillight wiring harness, and the green wire connects to the passenger side taillight wiring harness. Together, they allow the T-Connector to integrate with both sides of the vehicle's lighting system for trailer control.
The white ground wire provides the ground connection for the T-Connector harness. It must be secured to a grounding point near the connector, either by using an existing screw with nut in the vehicle's frame or by drilling a 3/32" hole and securing the eyelet using the provided screw.
Locate a flat spot on the vehicle's frame and adhere the black converter box using the double-sided tape provided. The converter box should be positioned near the taillight connector area for optimal wiring integration.
Use the provided cable ties to secure any loose wires. This keeps the installation neat and prevents wires from becoming caught or damaged during vehicle operation.
When in use, route the 4-flat connector out from under the felt trunk liner to the center of the vehicle. When not in use, roll it up and store it in an out-of-the-way location to protect it from damage.
The Curt 56191 has the following maximum load ratings: Signal Circuits: 3.0 Amps; Tail/Running Light Circuits: 7.5 Amps. Do not exceed the product's load rating or the tow vehicle's lamp load rating, whichever is lower. Exceeding these limits can cause loss of warranty, overheating, and potentially fire. Check your vehicle owner's manual or contact the vehicle manufacturer for your vehicle's lamp load rating.
Before drilling, verify that no miscellaneous items are hidden behind or under any surface. This precaution avoids damage to hidden components and prevents personal injury.
Yes, the Curt 56191 T-Connector is designed for Ford Fiesta Hatchback models.
You need a Torx T-30 screwdriver, Phillips screwdriver, and optionally a 3/32" drill bit if no existing grounding point is available. Cable ties are provided.
Drilling is optional. You can use an existing screw with nut in the vehicle frame as a grounding point. Only drill a 3/32" hole if no suitable existing fastener is available.
Signal Circuits: 3.0 Amps; Tail/Running Light Circuits: 7.5 Amps. Do not exceed these limits or your vehicle's lamp load rating, whichever is lower.
Remove rear hatch floor coverings, the rear scuff panel (two Torx T-30 screws), and trunk liner trim on both sides to access the taillight wiring harness.
