Warranty: One-Year Limited Warranty
Finish: GLOSS BLACK POWDER COAT
Installation Time Exact (Minutes): 0
CURT electrical connector brackets provide a simple solution for mounting wiring to your trailer hitch or the rear of your vehicle. Connector wires can be a nuisance when they are just lying around. They can get tangled up with cargo and even damaged. An electrical connector left to hang off the back end of your vehicle is an even greater hazard. Secure, protect and optimize the use of your electrical connector by mounting it with a CURT connector bracket. CURT Easy-Mount electrical brackets are an especially convenient option for mounting your connector wiring to your trailer hitch. They mount over the opening of the receiver tube and are held secure using a set of independent screws, meaning there is no drilling or clamping required. Easy-Mount brackets feature solid steel construction, so they will not crack or break like competitive products, and they have a notched design to allow easy access to the receiver hitch pin and clip. This particular CURT Easy-Mount electrical bracket is designed to fit over a 2-1/2" x 2-1/2" receiver tube opening and provide a sturdy mounting place, right beside your trailer hitch receiver, for a 4-way or 5-way flat connector or 6-way or 7-way round connector. When it comes to plugging in your trailer lights, it pays not to skimp out. CURT electrical is the smart way to ensure that your trailer lights and electrical systems are prepared for the road ahead. Keep the power flowing, no matter where your adventures take you, with quality electrical products from CURT.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products

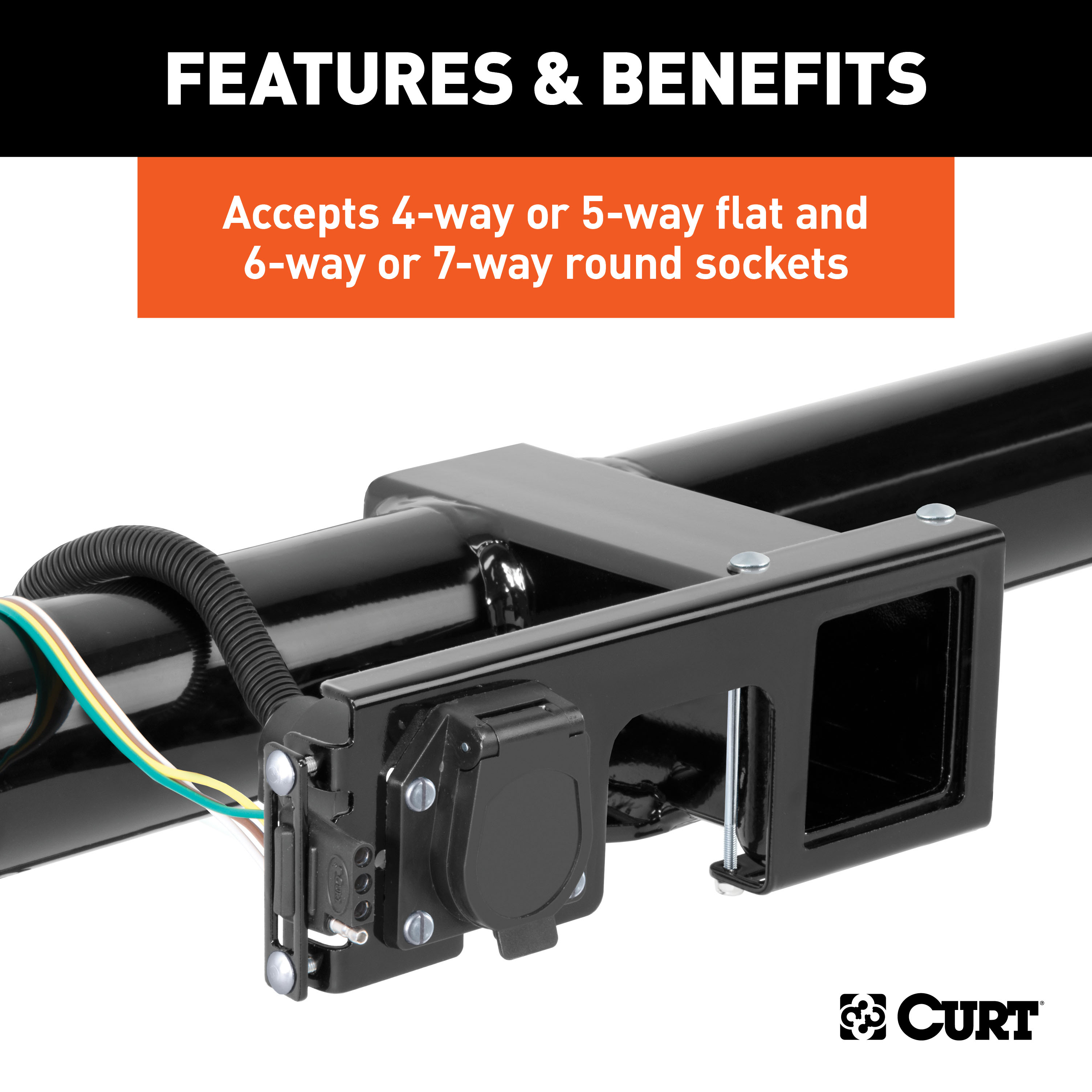

The CURT 58003 is an electrical bracket designed to mount 6- or 7-way and 4- or 5-way flat trailer connectors to a hitch receiver tube collar. It includes all necessary hardware for installation.

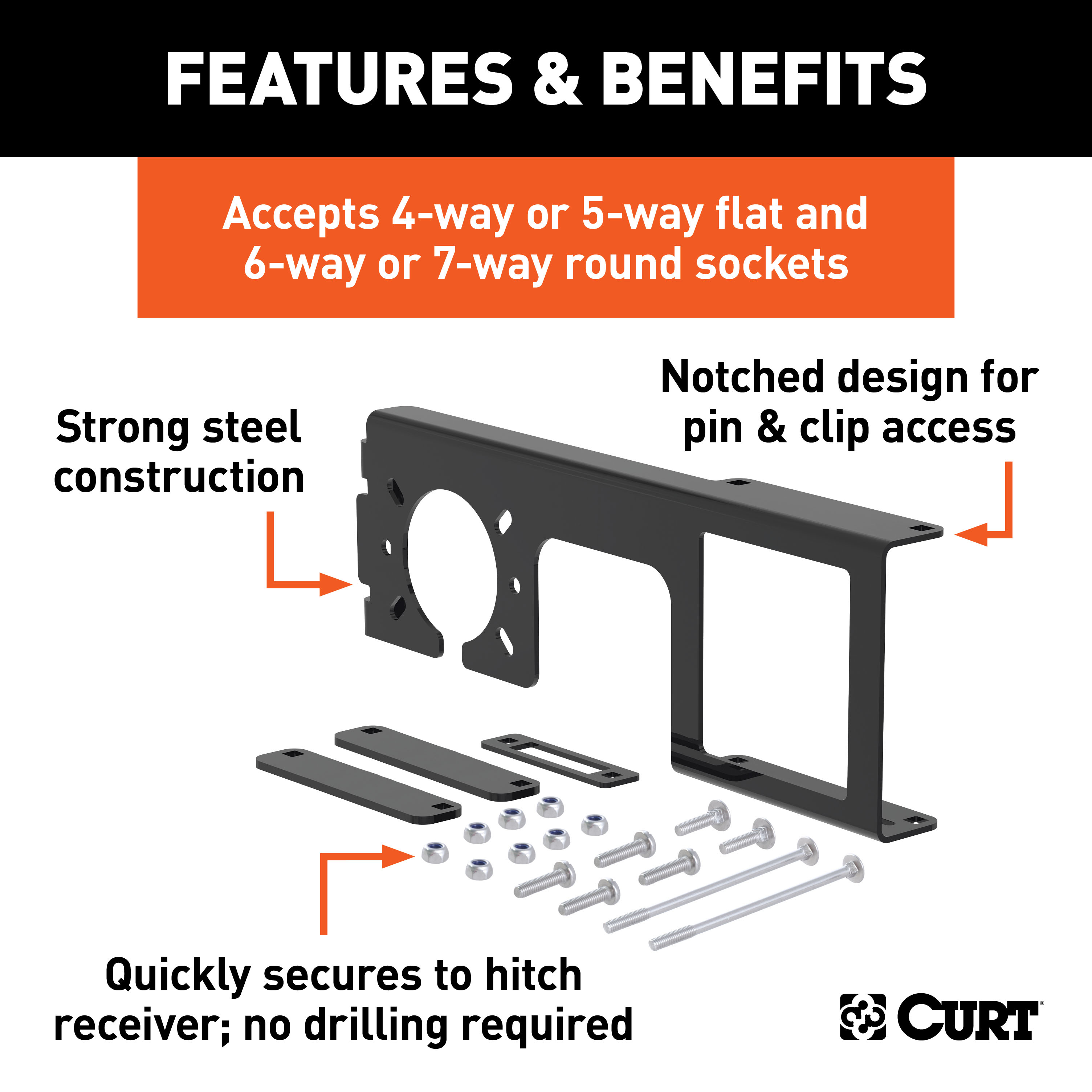

The bracket is designed to mount 6- or 7-way plugs and 4- or 5-way flat connectors. Both connector types are attached to the bracket using the provided hardware.
Yes. The bracket slides over and secures to the receiver tube collar. The manual does not specify whether the collar is factory-installed or must be purchased separately; contact CURT Manufacturing to confirm collar availability for your vehicle.

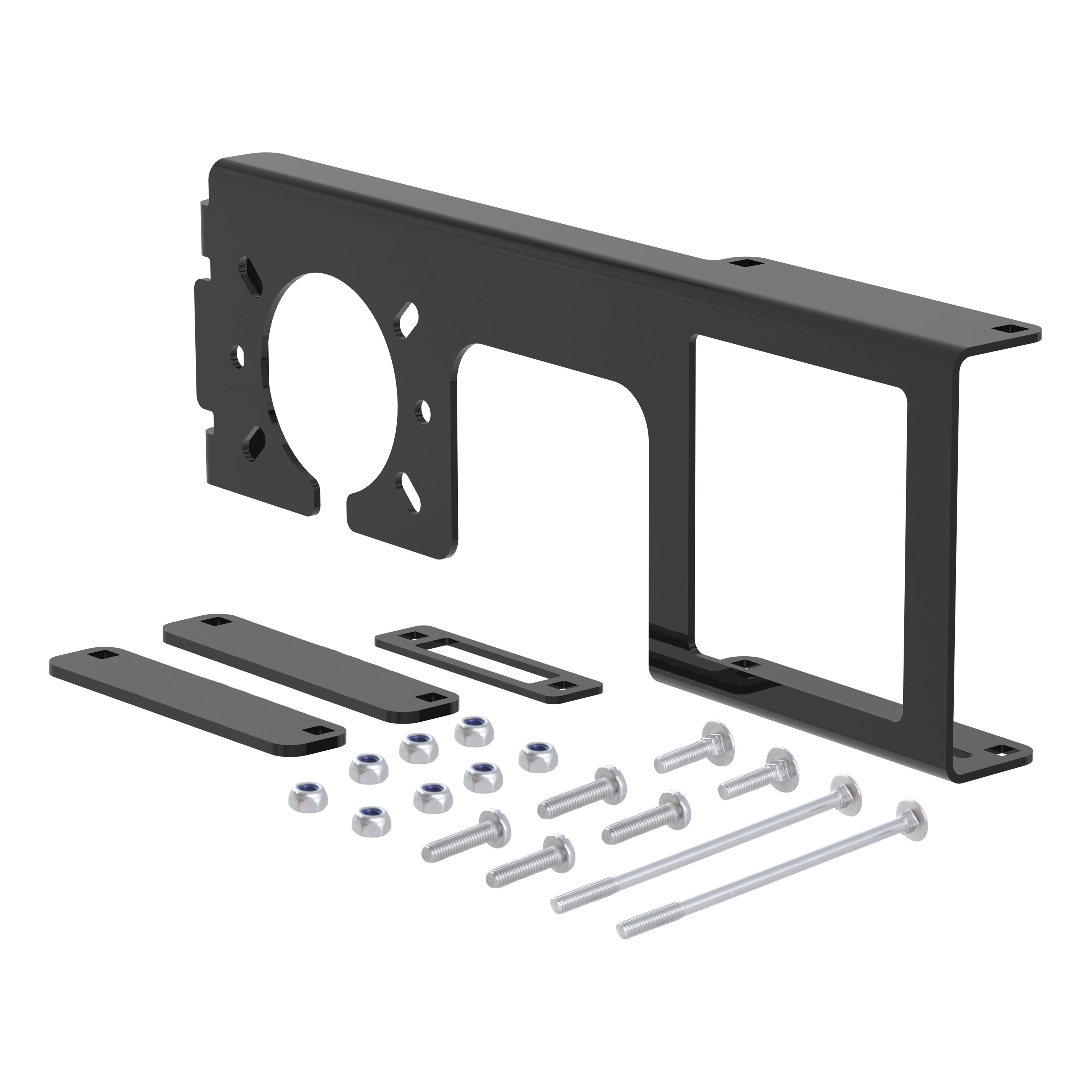

The bracket includes: 8 nylock nuts (M5 - 0.8), 2 carriage bolts (M5 - 0.8 x 20mm), 2 carriage bolts (M5 - 0.8 x 100mm), 4 pan head slotted screws (M5 - 0.8 x 20mm), and 1 mounting bracket.
Prior to installation, check for adequate clearance around the receiver tube for the bracket, plug(s) and wiring. Insufficient clearance may prevent proper installation or cause interference with vehicle components.
Attach the 6- or 7-way plug and 4- or 5-way flat connector to the bracket using the provided hardware. Tighten the hardware evenly until snug. Do not overtighten, as this can cause the front of the bracket to bow or the hardware to break.

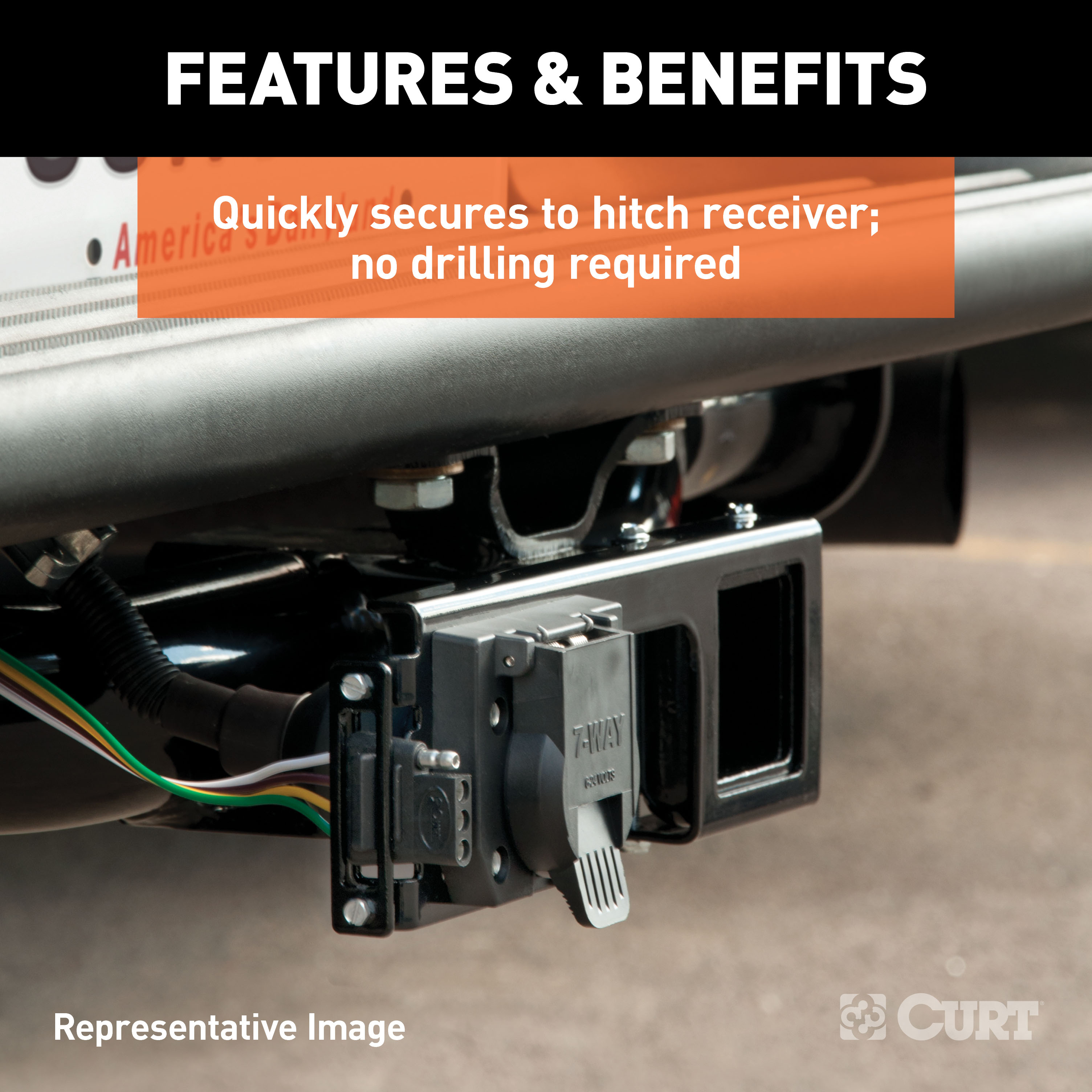

Slide the bracket over the receiver tube collar, then secure it using the provided hardware as shown in the installation diagram. The manual notes that if there is not adequate space to insert a bolt from above, you may need to insert it from below.
Forming the lower bracket flange by pushing it against the ground until it creates a snug fit around the receiver tube can help create a tighter fit during installation. This is optional but recommended to improve the bracket's fit.
Overtightening the hardware can cause the front of the bracket to bow or the hardware to break. Tighten all hardware evenly until snug, then stop.
CURT Manufacturing warrants the product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty.
The 58003 mounts to a hitch receiver tube collar and supports 6- or 7-way and 4- or 5-way flat connectors. Confirm your vehicle has a receiver tube collar and the correct connector types. Contact CURT Manufacturing or check your vehicle documentation for fitment details.
The manual does not mention drilling. The bracket slides over the receiver tube collar and is secured with provided hardware. No drilling is indicated.
No. Overtightening can cause the front of the bracket to bow or the hardware to break. Tighten all hardware evenly until snug, then stop.
Check for adequate clearance around the receiver tube for the bracket, plugs, and wiring. Forming the lower bracket flange against the ground can help create a tighter fit.
