Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

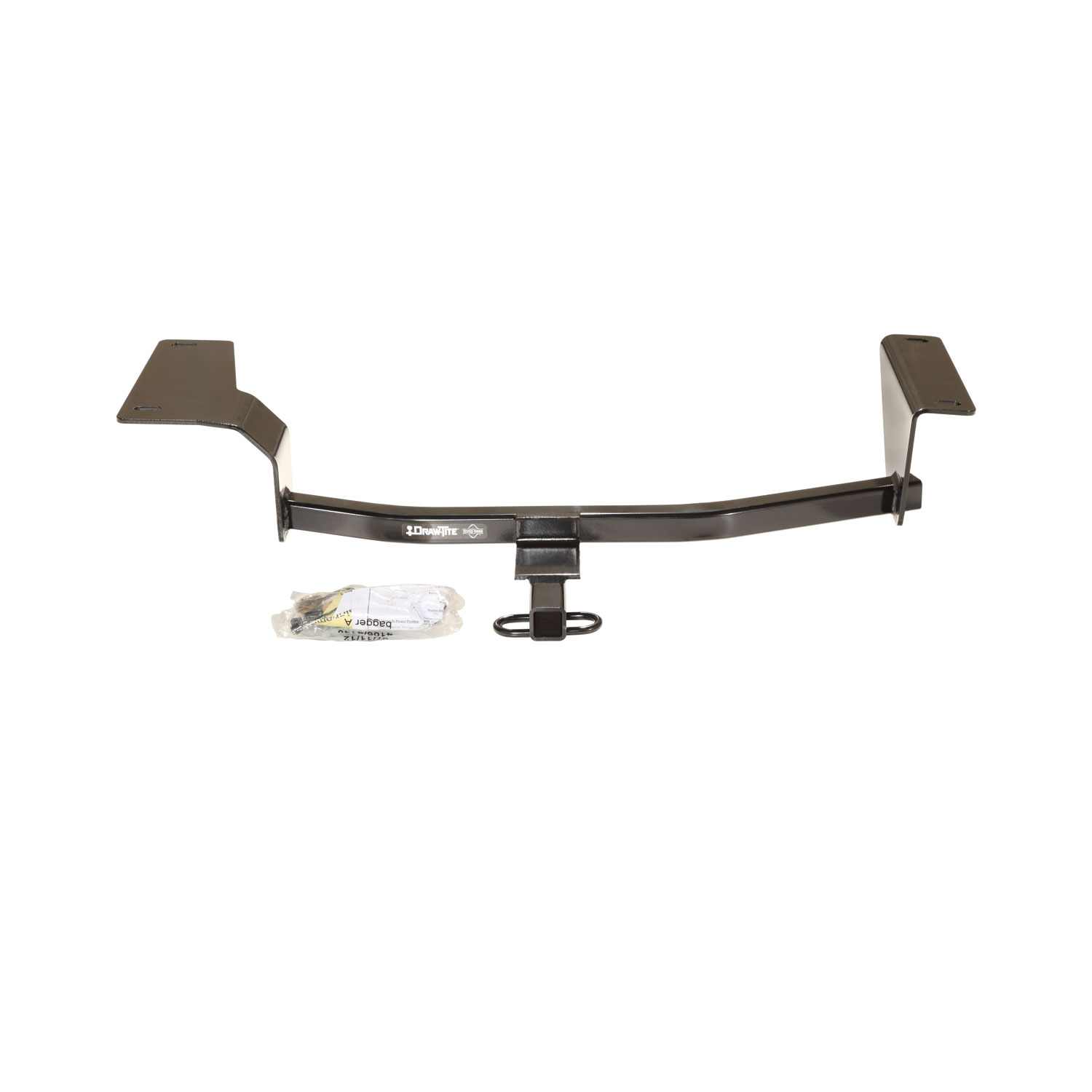

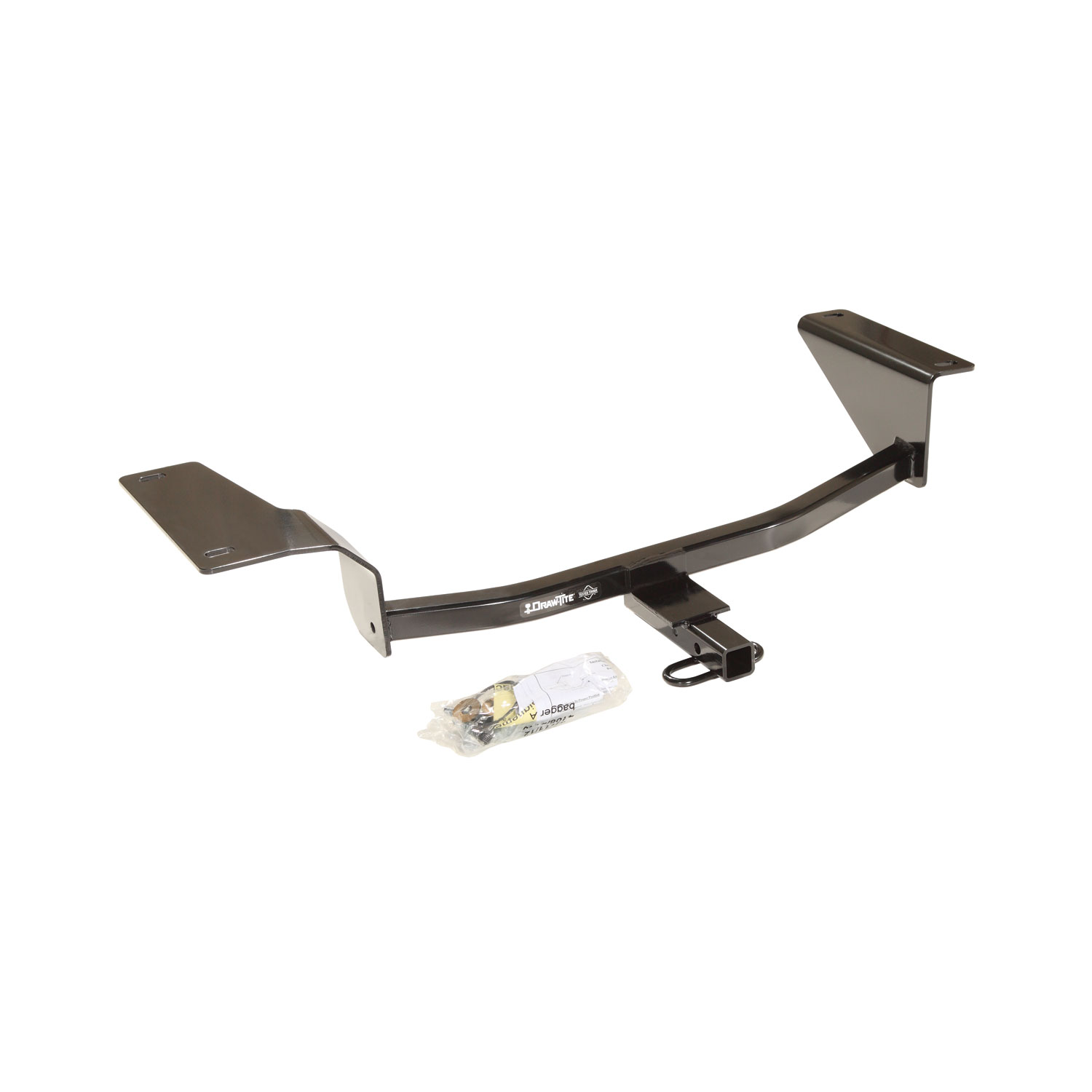

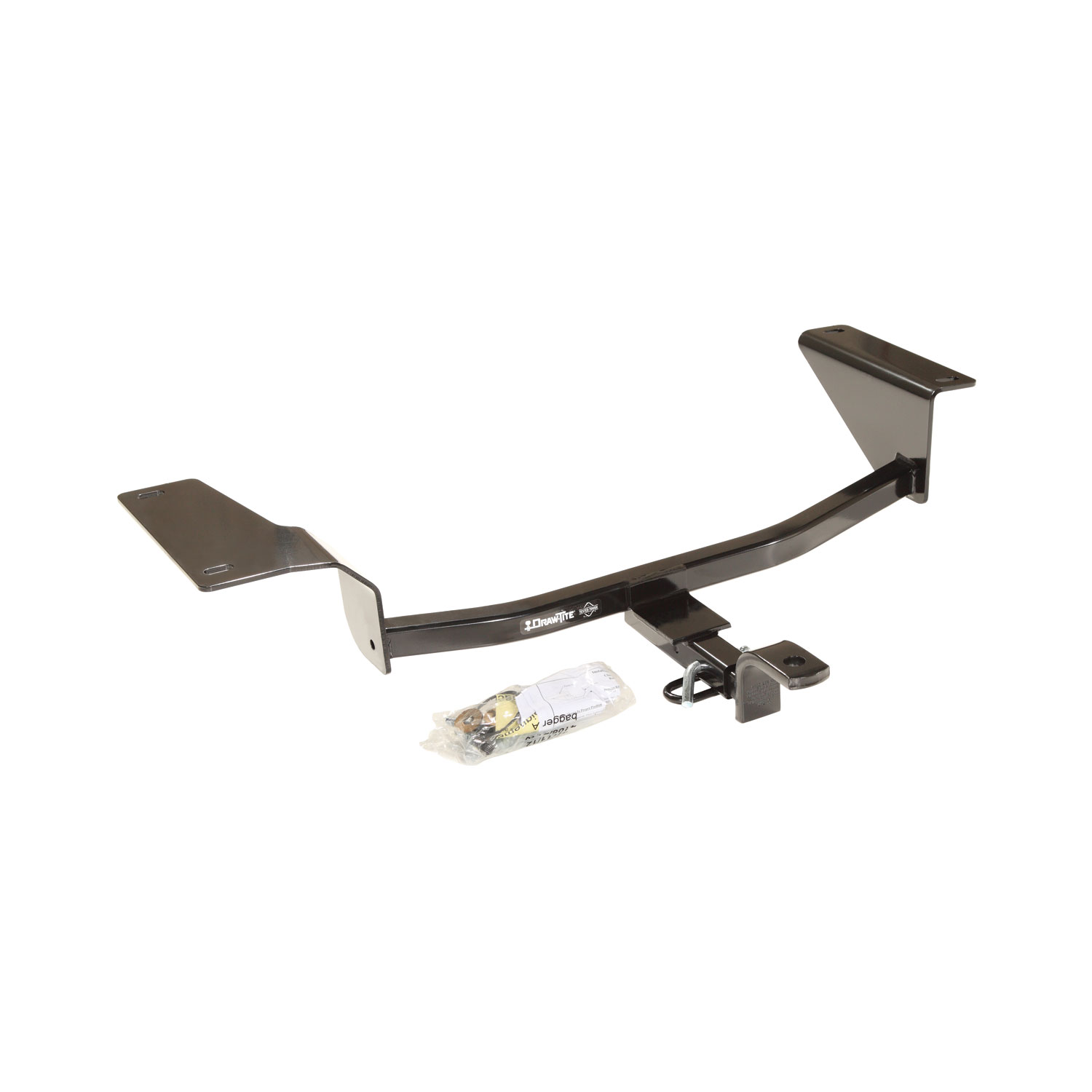

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24882 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 24.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |

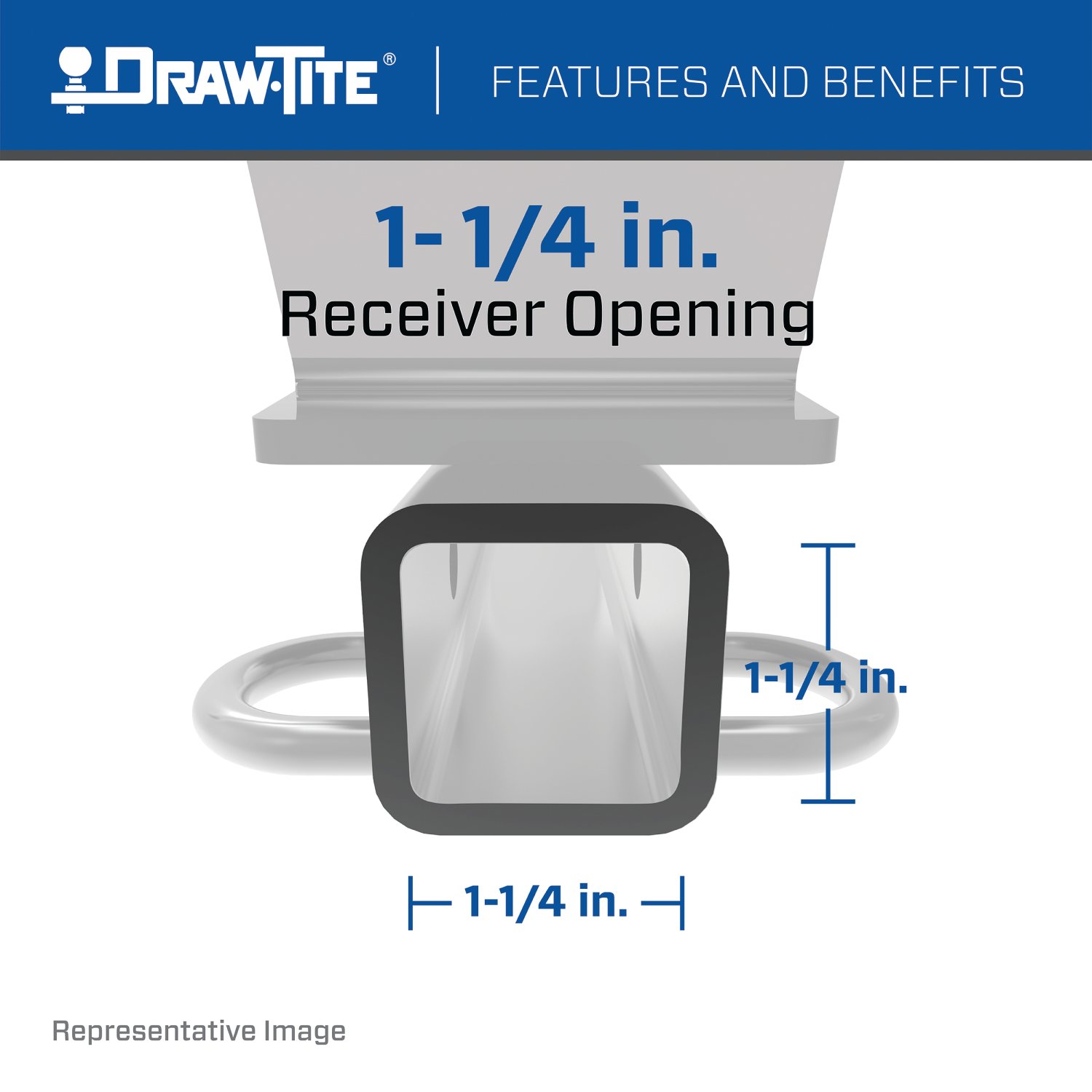

| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.

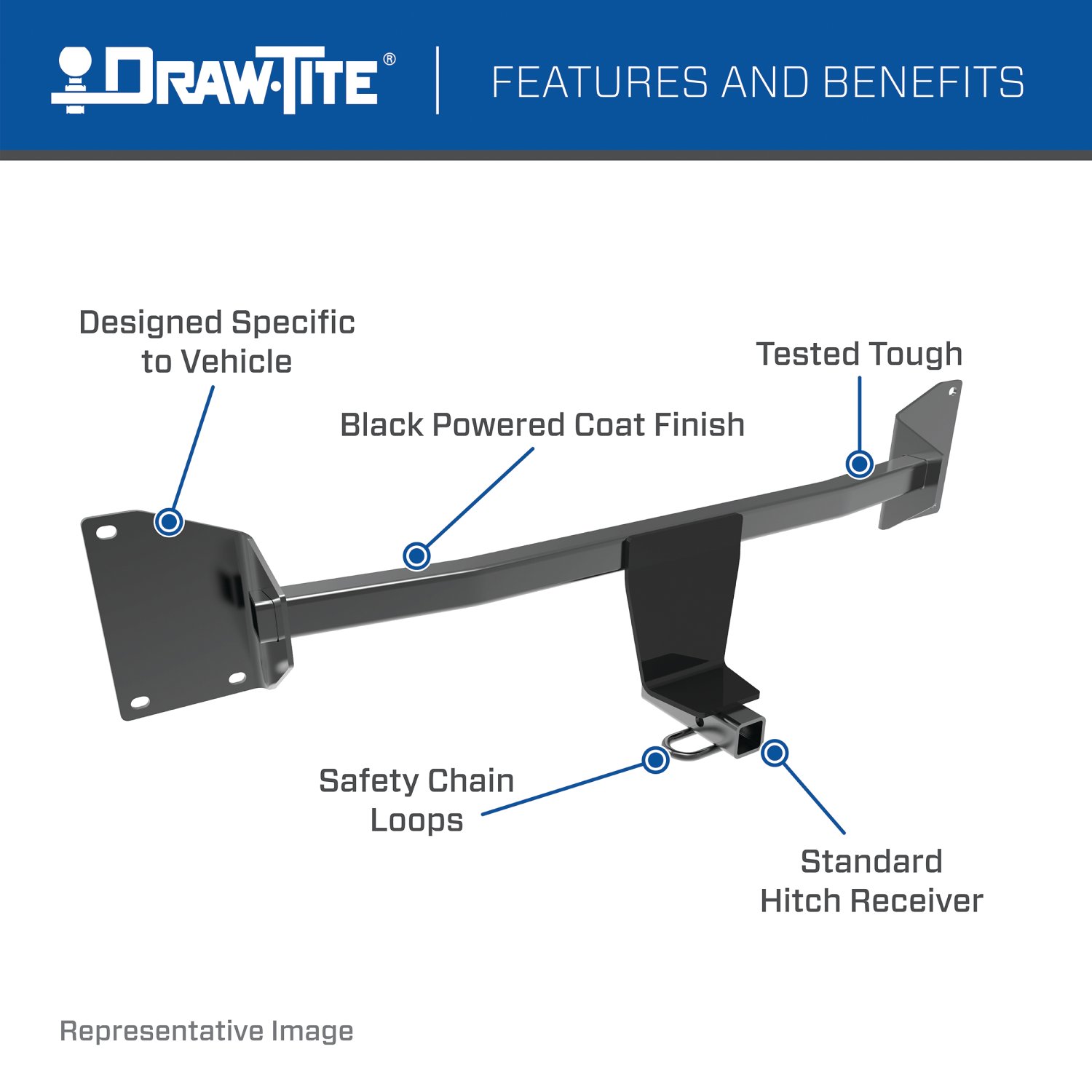

Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2017 | Buick Verano | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
| 2011 - 2016 | Chevrolet Cruze | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Buick Verano, Chevrolet Cruze, Chevrolet Cruze Limited 24882 (Part #DT24882) fits 2012-2017 Buick Verano models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Buick Verano, Chevrolet Cruze, Chevrolet Cruze Limited 24882 (Part #DT24882) fits the following vehicles: 2012-2017 Buick Verano; 2011-2016 Chevrolet Cruze. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Buick Verano, Chevrolet Cruze, Chevrolet Cruze Limited 24882 (Part #DT24882) is designed to fit the 2012-2017 Buick Verano.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Buick Verano, Chevrolet Cruze, Chevrolet Cruze Limited 24882 (Part #DT24882) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24882 is designed for both Chevrolet Cruze and Buick Verano. However, the Buick Verano requires additional preparation: the exhaust must be lowered and the heat shield must be lowered or trimmed on the driver's side to access the frame rail attachment holes. The Chevrolet Cruze does not require these modifications.
The maximum gross trailer weight is 2000 LB (908 kg), and the maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need pliers, lubricant, and wrenches in 13mm and 11/16" sizes. A torque wrench is also required to tighten all fasteners to the specification of 50 Lb.-Ft. (68 N·M).

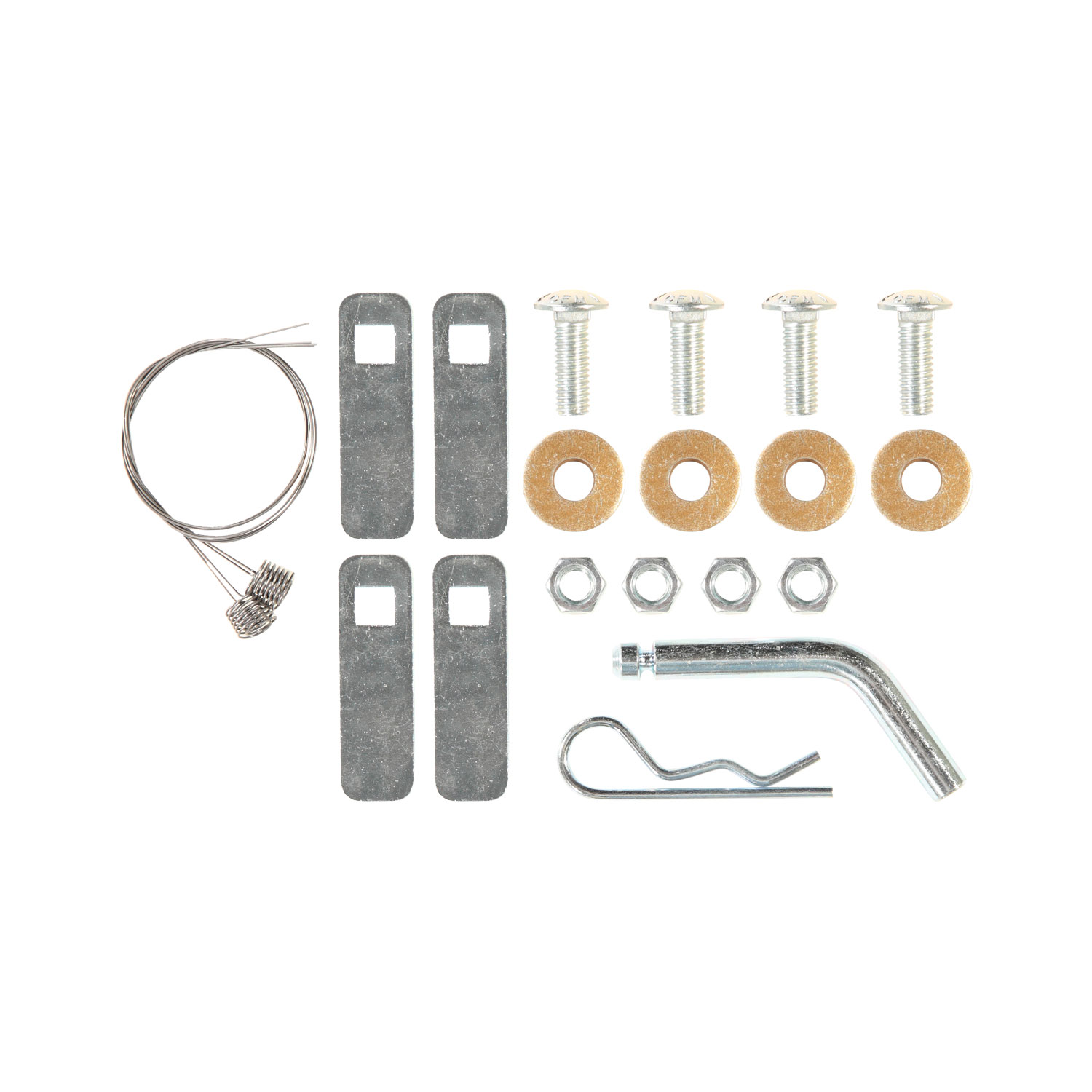

The fastener kit 24882F includes: (4) carriage bolts 7/16-14 x 1.250 GR5, (4) hex nuts 7/16-14, (4) spacers .125 x .900 x 3.00, (4) conical toothed washers 7/16", and (4) pull wires. All fasteners are typical for both sides of the vehicle.

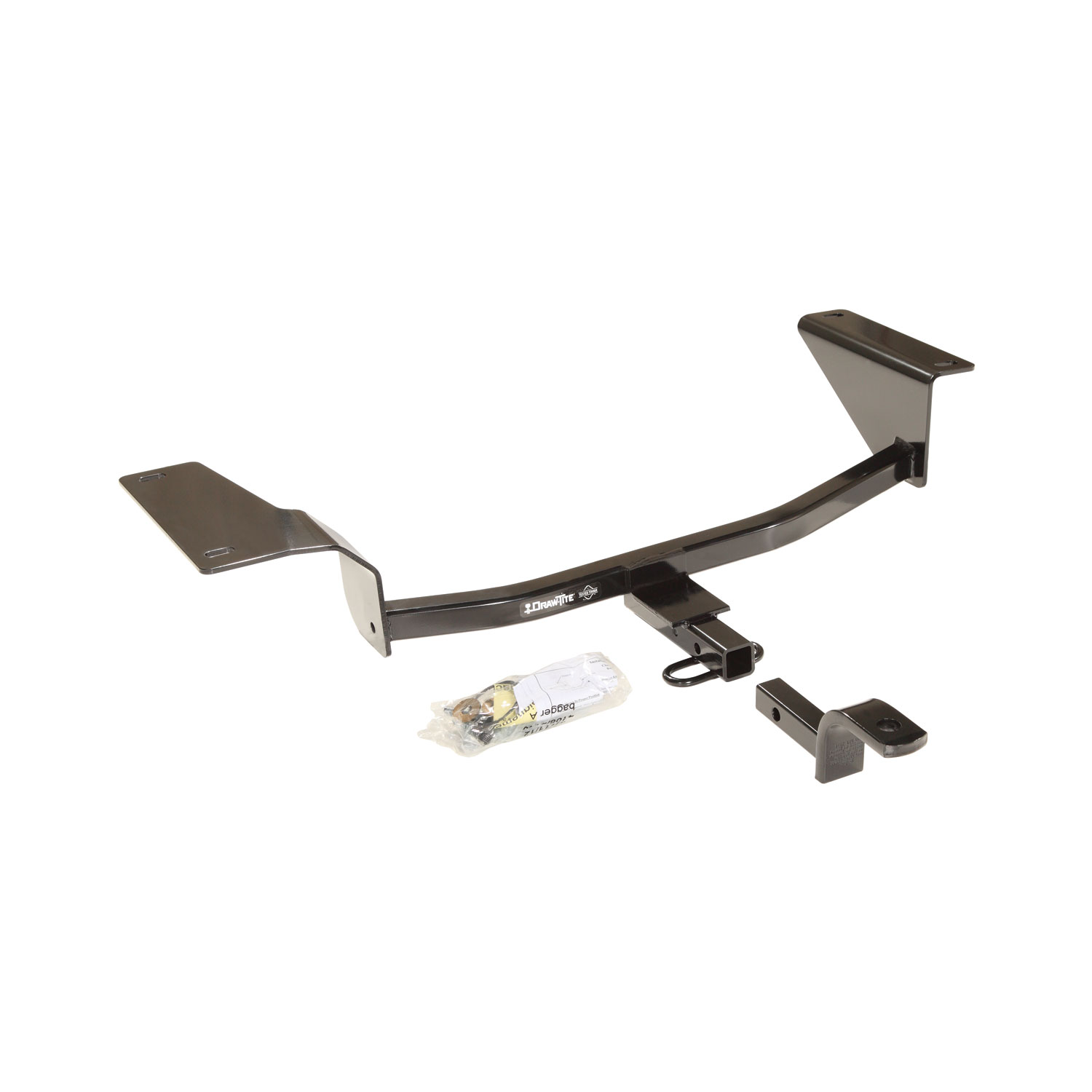

The drawbar kit 3593 is sold separately and is not included with hitch 24882. The drawbar must be used in the RISE position only.
No. Exhaust modification is required only on the Buick Verano. On the Cruze, the hitch can be installed without lowering or modifying the exhaust.
On the Buick Verano driver's side only, you must: (1) lower the exhaust by removing the bolt on the exhaust hanger and removing the exhaust hanger bracket; (2) lower or trim the heat shield to access the frame rail attachment holes; and (3) remove three speed nuts (two at the rear of the heat shield and one forward of the muffler). After hitch installation, reinstall the exhaust hanger and heat shield if it was lowered.
The manual does not indicate that drilling is required. However, on the Buick Verano, the heat shield may need to be trimmed to allow access to the frame rail attachment holes.
No. The manual explicitly states: 'Do not cut access or attachment holes with a torch.' Use alternative cutting methods if trimming the heat shield is necessary.
All 7/16-14 GR5 fasteners must be tightened to 50 Lb.-Ft. (68 N·M) using a torque wrench.
The pull wire is used to install the carriage bolts (items 1 and 4) through the frame rail attachment holes. You feed the pull wire through the attachment hole and out the access hole, then use it to guide the fasteners into position. Leave the pull wire attached during hitch positioning, then remove it after the hitch is pushed against the frame rails.
On the Buick Verano, slide the hitch into position over the exhaust from the rear of the vehicle, sandwiching the heat shield between the hitch and the frame rail. On the Chevrolet Cruze, raise the hitch over the exhaust into position. In both cases, feed the pull wire through the slots on the hitch, then push the hitch against the frame rails.
Yes. After pushing the hitch against the frame rails and removing the pull wires, center the hitch on the vehicle before tightening the fasteners.
The manual warns to 'be careful not to push fastener back into frame rail' when attaching conical washers and nuts. If this occurs, you will need to retrieve the fastener before proceeding. Use the pull wire or access hole to recover it.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify a retorque interval, but regular inspection is recommended.
A damaged hitch or ball must be removed and replaced. Do not attempt to repair it.
Yes. Spraying a lubricant on the metal hanger rod and the rubber isolator helps with removal of the exhaust hanger bracket on the Buick Verano.
Yes, it fits both vehicles. Buick Verano requires exhaust lowering and heat shield modification on the driver's side; Cruze does not.
Maximum 2000 LB gross trailer weight and 200 LB tongue weight. Do not exceed your vehicle manufacturer's rating.
Pliers, lubricant, 13mm and 11/16" wrenches, and a torque wrench. All fasteners must be torqued to 50 Lb.-Ft. (68 N·M).
No, drawbar kit 3593 is sold separately. The drawbar must be used in RISE position only.
Yes, on the driver's side only. The heat shield must be lowered or trimmed to access frame rail attachment holes. The exhaust hanger must also be lowered.
All 7/16-14 GR5 fasteners: 50 Lb.-Ft. (68 N·M) using a torque wrench.
Wear eye protection. Do not cut holes with a torch. Work safely beneath the vehicle. If removed, plug all holes to prevent water and exhaust fume entry. Replace any damaged hitch or ball.
