Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chevrolet Cruze 24951Draw-titeOut of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2016 - 2019 Chevrolet Cruze
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24943 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 21.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® Receiver Hitches Commercial
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chevrolet Cruze 24943 (Part #DT24943) fits 2016-2019 Chevrolet Cruze models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chevrolet Cruze 24943 (Part #DT24943) is designed to fit the 2016-2019 Chevrolet Cruze.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chevrolet Cruze 24943 (Part #DT24943) fits the following vehicles: 2016-2019 Chevrolet Cruze. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chevrolet Cruze 24943 (Part #DT24943) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24943 is designed for 2016-Current Chevrolet Cruze models. For the most up-to-date information regarding specific application years and trim levels, visit the Cequent website at www.cequentgroup.com.
The maximum gross trailer weight is 2000 lb. (908 kg) and the maximum tongue weight is 200 lb. (90.8 kg). However, you must not exceed the lower of your vehicle manufacturer's towing rating or these limits.
You will need: a ratchet, torque wrench, safety glasses, 7mm and 15mm sockets, 6'' socket extension, T15 star driver, utility knife, and marker. A torque wrench is essential because proper torque (53 Lb.-Ft. / 72 N·M) is required to keep the hitch secure.
Yes. The installation requires removal of the bumper fascia and bumper beam. The fascia is removed first using a 7mm socket to remove 4 bolts from the bottom and a T15 driver with 7mm socket to remove 4 bolts from the wheel well on each side. The bumper beam is then removed using a 15mm socket to remove 3 flange nuts from each side.
Raise the hitch and hang it on the studs on the end panel. Then raise the bumper beam to sandwich the hitch between the beam and the end panel. Reuse the existing bumper flange nuts and fasten them loosely at first. Do not tighten fully until all fasteners are in place.
All fasteners must be tightened to 53 Lb.-Ft. (72 N·M) using a torque wrench. Proper torque is essential to keep the hitch secure to the vehicle when towing.
Yes. You must trim the bottom fascia to create an opening for the hitch. Locate the center of the bottom panel and trim a 4.5'' tall by 3.5'' wide area. Use a utility knife for this trimming. Additional trimming may be necessary depending on your vehicle.
Yes. The installation instructions specify to reuse all fasteners from the bumper attachments. The existing bumper flange nuts are reused to secure the hitch.
Always wear safety glasses during installation. Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
No. Do not cut, weld, or modify this receiver. Doing so will compromise the structural integrity and safety of the hitch.
Check that all fasteners are tight and the hitch is securely mounted to the vehicle. The manual recommends checking the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque of 53 Lb.-Ft. (72 N·M) is essential for safe towing.

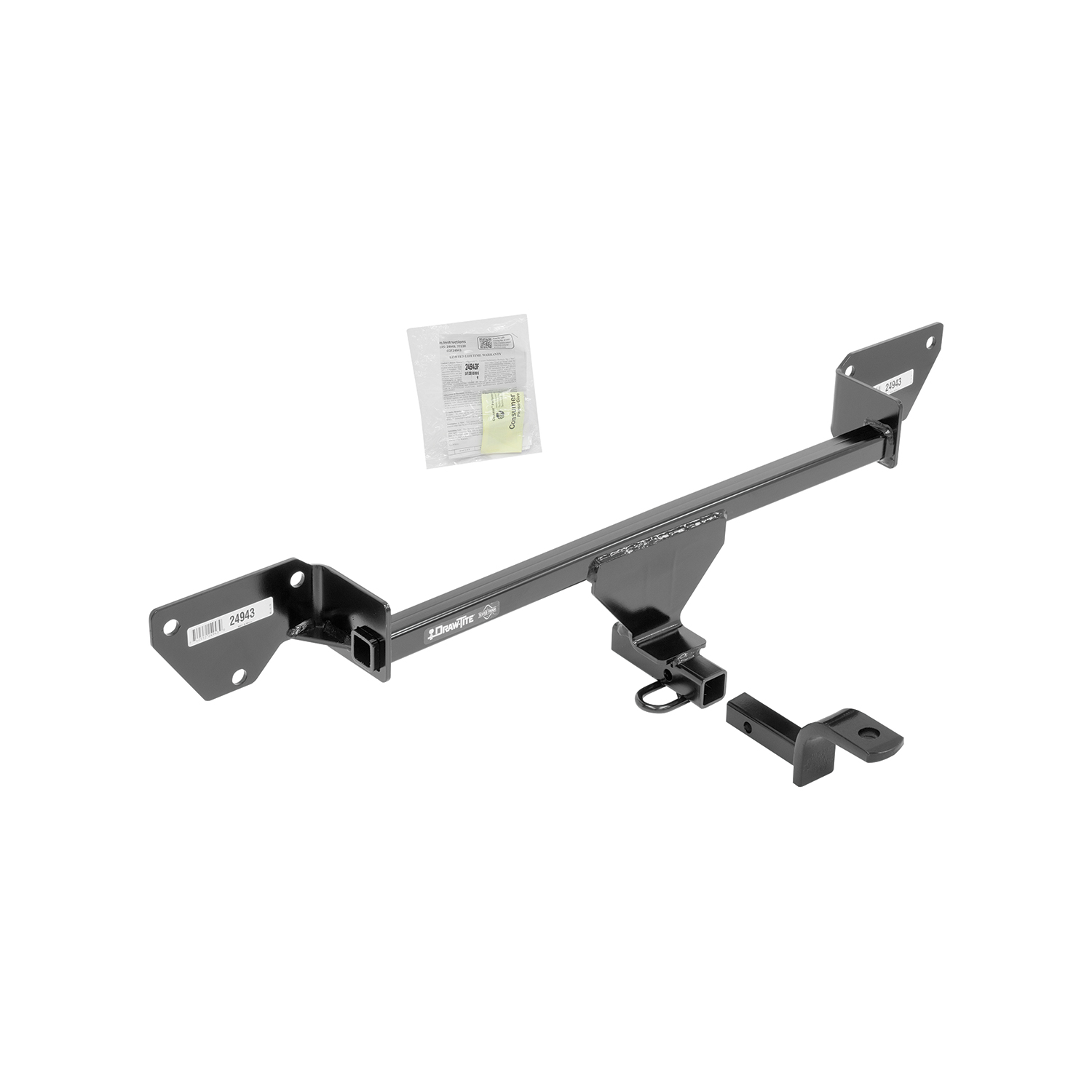

The Drawbar Kit part number 3593 is available for use with the 24943 hitch. The drawbar must be used in the RISE position only. This kit is sold separately.
Load the trailer heavier in front. Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. Do not exceed the lower of your vehicle manufacturer's towing rating or 2000 lb. max gross trailer weight / 200 lb. max tongue weight. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but recommends periodic checks to verify that all fasteners remain tight and the hitch is securely mounted to the vehicle.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch, as it compromises safety.
The average installation time for professional installers is 80 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
Yes, the 24943 is designed for 2016-Current Chevrolet Cruze models. Check the Cequent website for the most current application information.
Maximum 2000 lb. gross trailer weight and 200 lb. tongue weight, but do not exceed your vehicle manufacturer's rating.
Ratchet, torque wrench, safety glasses, 7mm and 15mm sockets, 6'' socket extension, T15 star driver, utility knife, and marker.
Yes, trim the bottom fascia 4.5'' tall by 3.5'' wide at the center of the panel using a utility knife.
All fasteners must be tightened to 53 Lb.-Ft. (72 N·M) using a torque wrench.
Do not exceed 2000 lb. gross trailer weight or 200 lb. tongue weight, and do not exceed your vehicle manufacturer's rating.
1 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2016 - 2019 | Chevrolet Cruze | Sedan | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 80 minutes |
