Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

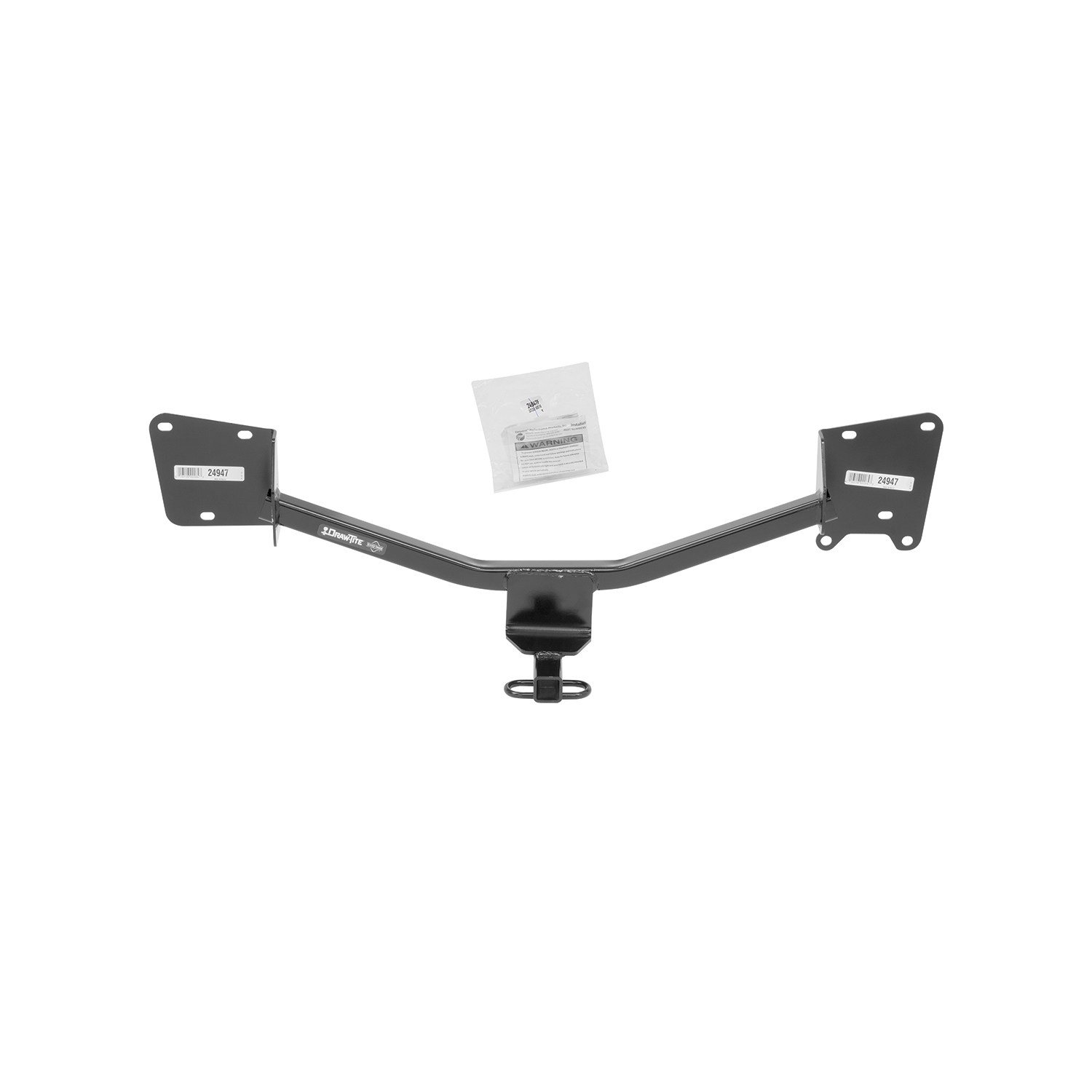

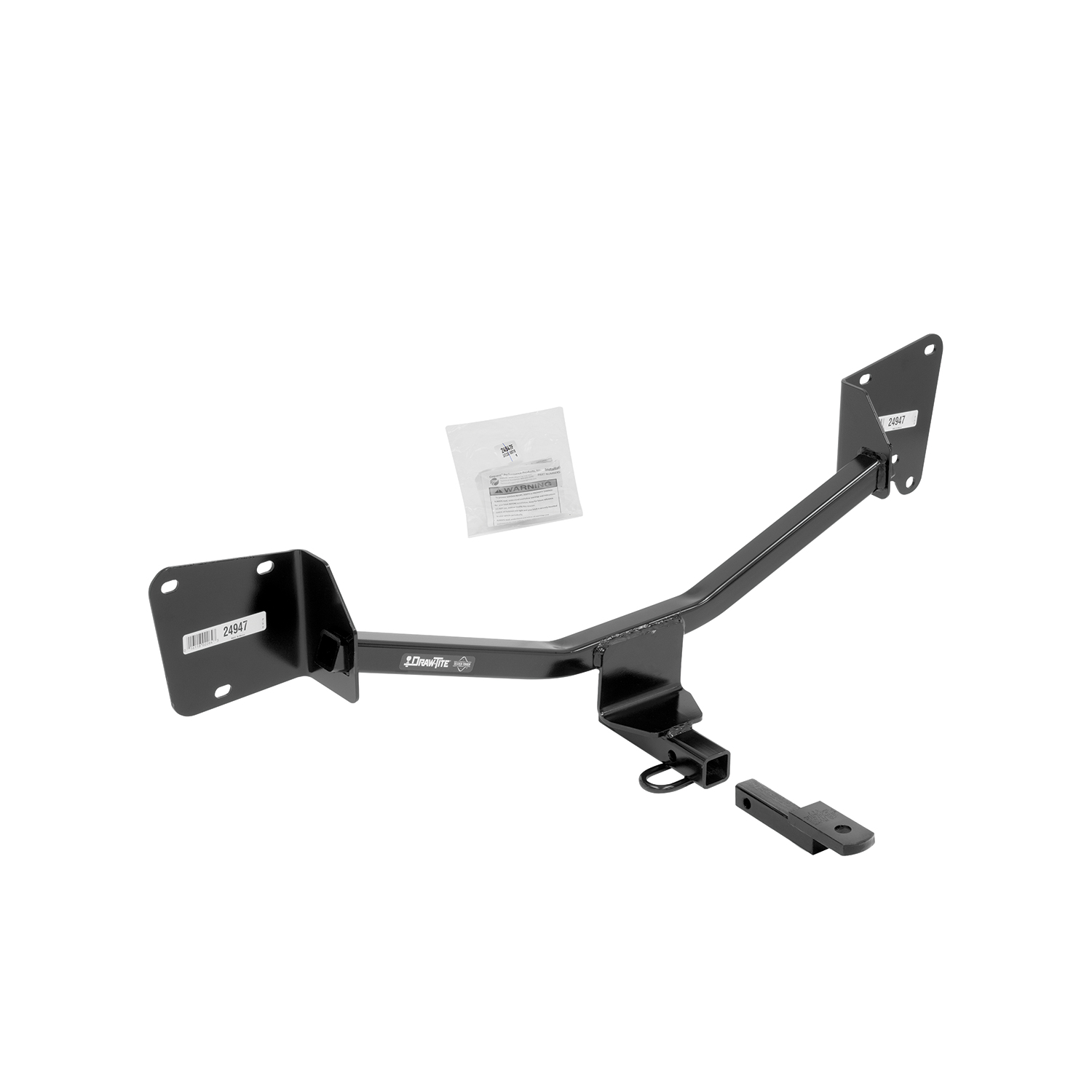

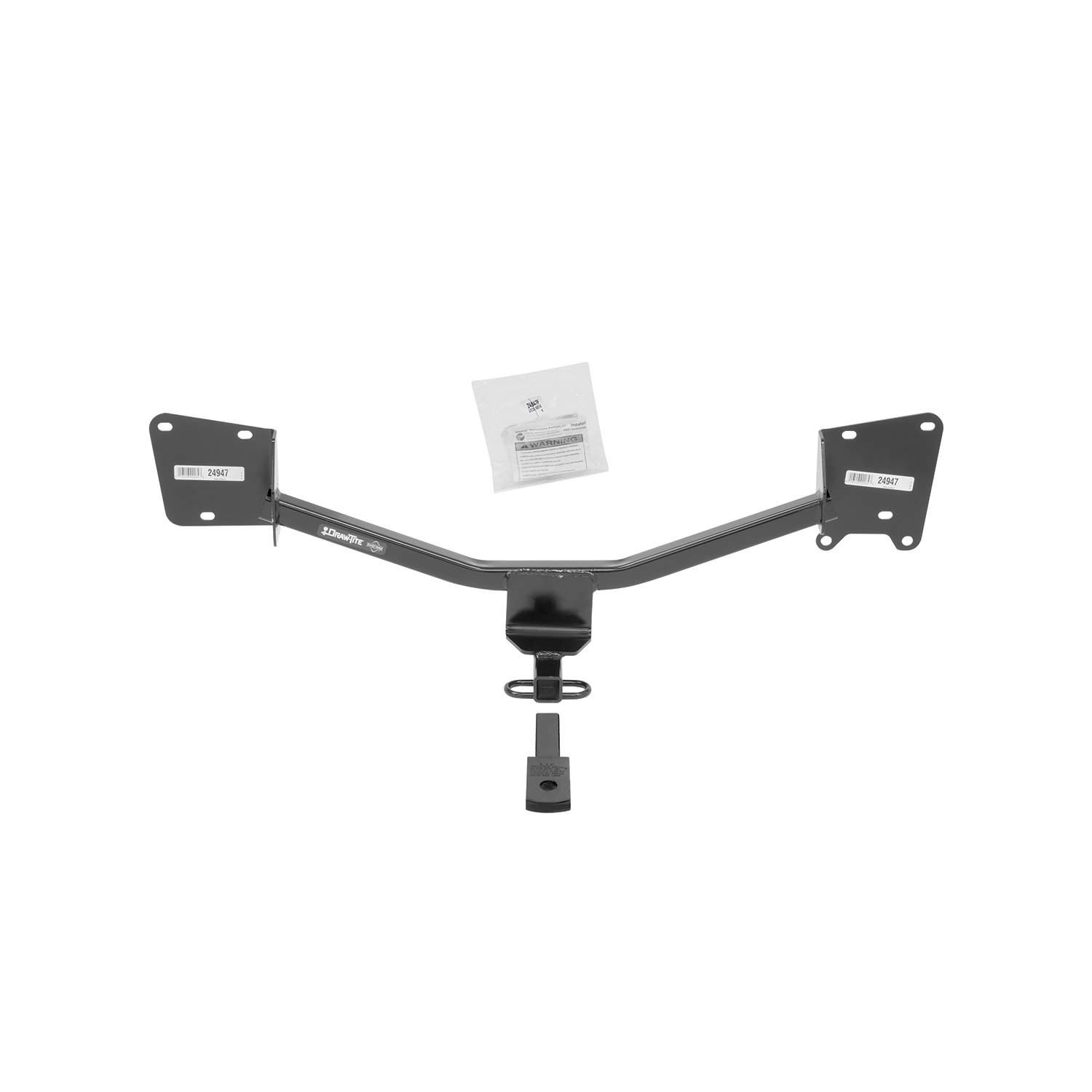

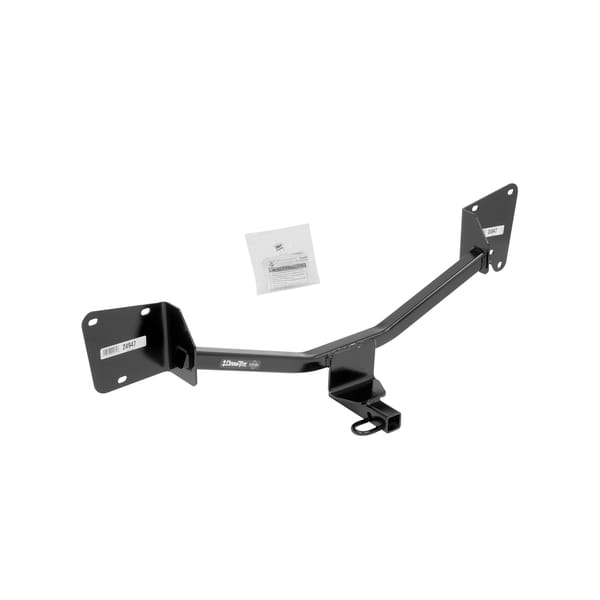

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24947 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 20.55 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® Receiver Hitches Commercial
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2019 | Chevrolet Volt | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 60 minutes |
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chevrolet Volt 24947 (Part #DT24947) is designed to fit the 2016-2019 Chevrolet Volt.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chevrolet Volt 24947 (Part #DT24947) fits the following vehicles: 2016-2019 Chevrolet Volt. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chevrolet Volt 24947 (Part #DT24947) fits 2016-2019 Chevrolet Volt models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chevrolet Volt 24947 (Part #DT24947) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24947 is designed for 2016 and current model year Chevrolet Volt. Visit the manufacturer's website for the most up-to-date information regarding specific trim levels and application years.
The hitch is rated for a maximum gross trailer weight of 2000 lb (908 kg) and maximum tongue weight of 200 lb (90.8 kg). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits.
Required tools include: ratchet, torque wrench, safety glasses, sockets (7mm, 10mm, 13mm, 15mm), 6" socket extension, T15 Torx bit, Phillips screwdriver, plastic trim tools, tape measure, tin snips, and tape. Installation time is approximately 60 minutes for professional installers.
Yes. The bumper beam must be removed to install the hitch. Using a 15mm deep wall socket with 6" extension, remove the 6 flange hex nuts holding the bumper beam to the end panel. The hitch is then sandwiched between the bumper beam and end panel.
Yes. The underbody panel must be trimmed using a tape measure, tape, and tin snips. Mark and trim the panel as shown in Figure 2: trim 3-3/4" on one section, 5-1/2" on another, and 3-1/2" on a third section. The panel may be trimmed in place or optionally removed entirely for trimming.
Tighten all M10 fasteners to 38 Lb.-Ft. (52 N·M) and all M8 fasteners to 20 Lb.-Ft. (27 N·M) using a torque wrench. Proper torque is essential to keep the hitch secure to the vehicle when towing.
Always wear safety glasses during installation. Do not cut, weld, or modify the receiver. Do not use a torch to cut holes. Support the exhaust before unhoking the exhaust hanger. When towing, always wear your seatbelt, slow down, never exceed posted speed limits, and load the trailer heavier in front. If excess sway occurs, take your foot off the gas and hold the steering wheel steady—do not apply brakes or speed up.
Check that all fasteners are tight and the hitch is securely mounted to the vehicle. Periodically verify that all fasteners and the ball remain properly tightened. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Hitch 24947 is designed for 2016 and current model year Chevrolet Volt. For the most up-to-date information regarding specific trim levels and application years, visit the manufacturer's website at www.cequentgroup.com.
The authorized drawbar kit is part number 3593 (sold separately). The drawbar must be used in the RISE position only.
Approximately 28 fasteners must be removed during installation: 5 screws from inside each wheel well (10 total), 1 screw vertically in upper wheel well area on each side (2 total), 8 screws from underbody panel near wheel wells, 5 screws from underbody panel to fascia, 2 screws from each taillight housing (4 total), 1 Phillips screw from each taillight housing (2 total), 2 bolts from exhaust hanger, and 6 flange hex nuts from bumper beam.
Yes. Open the trunk and remove 2 Torx T15 screws and 1 Phillips screw from each taillight housing on both sides. Gently pull the taillights rearward and disconnect the wiring from the taillights. You must reconnect the wiring after installation.
If your vehicle is equipped with fascia wiring, you must disconnect it before removing the fascia. Reconnect all wiring to the fascia after reinstalling it.
Support the exhaust before unhoking the exhaust hanger from the hooks on the end panel. This prevents the exhaust system from dropping or becoming damaged during installation.
First, loosely reinstall the 6 existing M10 hex flange nuts (3 per side) onto the studs. Then reattach the exhaust hanger over the hooks on the end panel and install the 2 M8 bolts. Finally, tighten all M10 fasteners to 38 Lb.-Ft. (52 N·M) and all M8 fasteners to 20 Lb.-Ft. (27 N·M) using a torque wrench.
Raise the hitch and bumper beam into position, aligning the hitch holes with the studs in the end panel. Sandwich the hitch between the bumper beam and the end panel. The hitch is held in place by the 6 M10 flange hex nuts (3 per side) that attach to the studs.
Using a tape measure, tape, and tin snips, mark and trim the underbody panel as follows: trim 3-3/4" on one section, 5-1/2" on another section, and 3-1/2" on a third section, as shown in Figure 2. The panel may be trimmed in place or optionally removed entirely for trimming.
All M10 fasteners must be tightened to 38 Lb.-Ft. (52 N·M) using a torque wrench. There are 6 M10 fasteners total (3 per side) that hold the hitch to the end panel studs.
All M8 fasteners must be tightened to 20 Lb.-Ft. (27 N·M) using a torque wrench. There are 2 M8 fasteners that secure the exhaust hanger.
You will need sockets in the following sizes: 7mm, 10mm, 13mm, and 15mm. A 15mm deep wall socket with a 6" extension is specifically required to remove the bumper beam fasteners.
A T15 Torx bit is required. It is used to remove 5 screws from inside each wheel well, 8 screws from the underbody panel near the wheel wells, and 2 screws from each taillight housing.
Yes. A Phillips head screwdriver is required to remove 1 screw from each taillight housing (2 total) during the removal process.
Tin snips are required to trim the underbody panel. Do not use a torch to cut access or attachment holes, as this is explicitly prohibited.
The manual states that the average installation time for professional installers is 60 minutes. If you do not feel comfortable performing the installation on your own or are in need of assistance, contact a professional installer.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. These actions will help stabilize the trailer.
Hitch 24947 is a weight-carrying hitch only. Weight distributing capability is not available (marked as X in the specifications). The maximum gross trailer weight is 2000 lb (908 kg) and maximum tongue weight is 200 lb (90.8 kg).
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but periodic inspection is required to maintain safe towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This protects the vehicle's interior and prevents corrosion.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch, as it may fail during towing and create a safety hazard.
Cequent Performance Products offers a Limited Lifetime Warranty to the original consumer purchaser. The warranty covers material defects in both material and workmanship, excluding ordinary wear and tear. The warranty is valid only if products are installed, maintained, and used according to instructions. To make a warranty claim, contact Cequent at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, 1-800-632-3290, or TechnicalSupport@cequentgroup.com. You must provide the product and purchase receipt.
Hitch 24947 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Check all fasteners and tighten them to the correct torque specifications: M10 fasteners to 38 Lb.-Ft. (52 N·M) and M8 fasteners to 20 Lb.-Ft. (27 N·M) using a torque wrench. The manual recommends checking the hitch frequently to ensure all fasteners remain properly tightened.
A hitch which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch. Contact the manufacturer at 1-800-632-3290 or TechnicalSupport@cequentgroup.com for warranty service or replacement options.
