Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

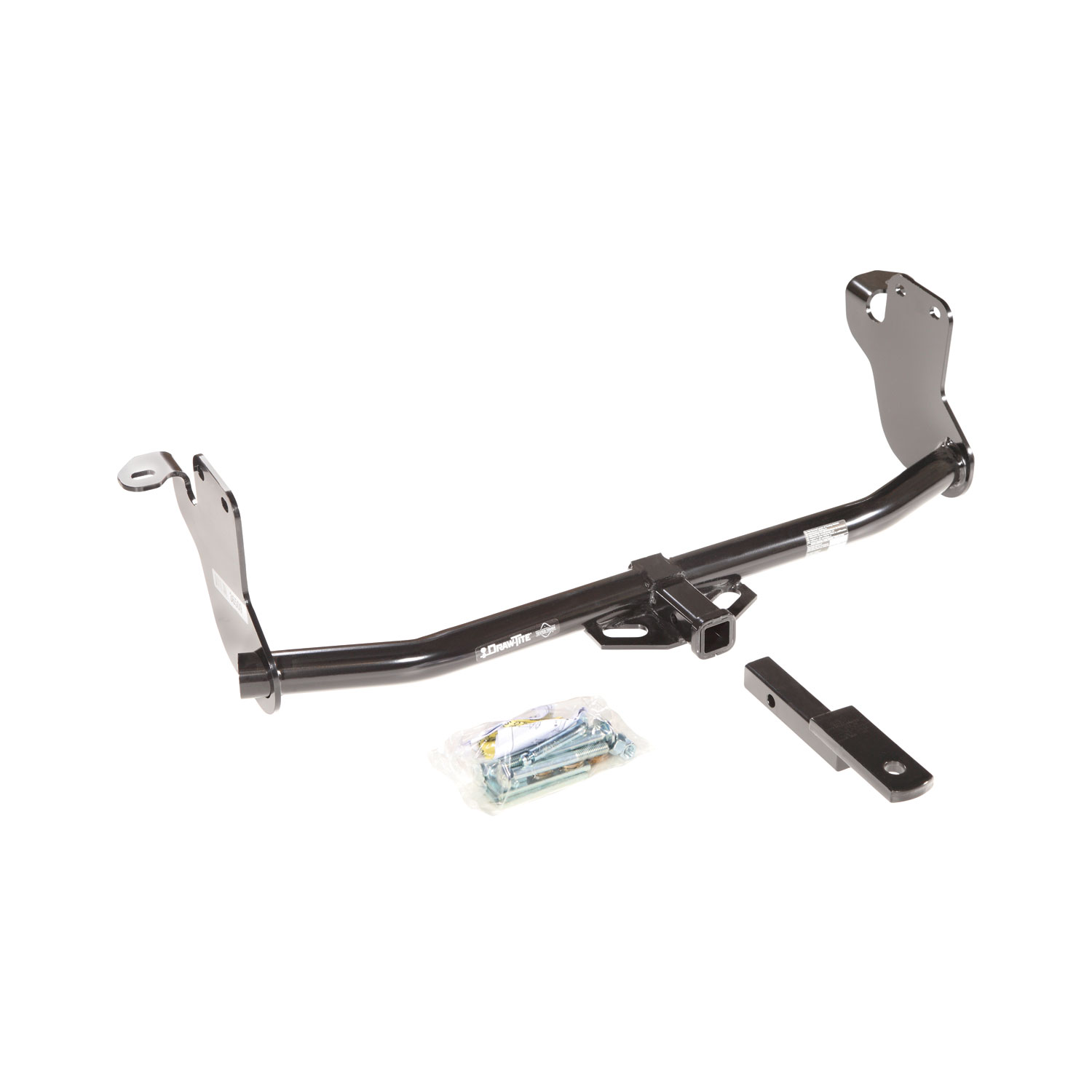

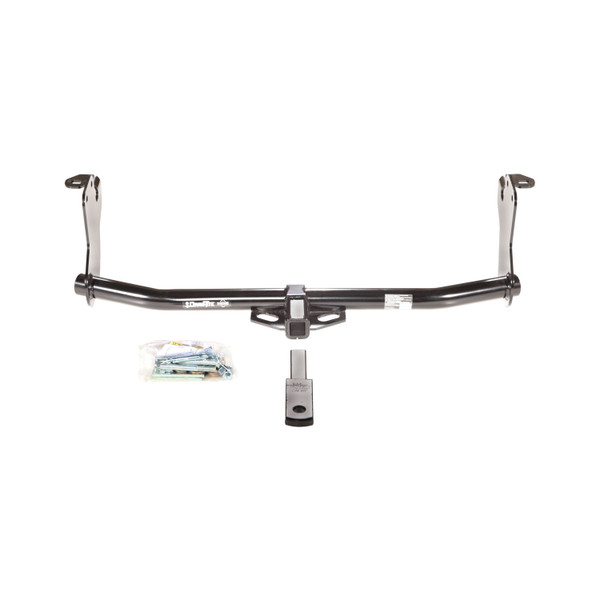

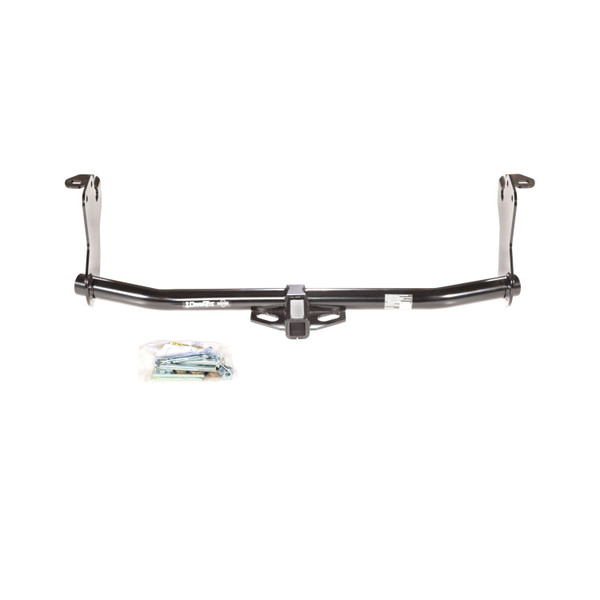

DRAW-TITE Class 2 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 2 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 300 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 2 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 36509 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 25.5 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 300 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | II |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2021 | Mitsubishi Outlander Sport | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
| 2011 - 2014 | Mitsubishi RVR | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
Yes, the Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mitsubishi Outlander Sport, Mitsubishi RVR 36509 (Part #DT36509) is designed to fit the 2011-2021 Mitsubishi Outlander Sport.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mitsubishi Outlander Sport, Mitsubishi RVR 36509 (Part #DT36509) fits 2011-2021 Mitsubishi Outlander Sport models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mitsubishi Outlander Sport, Mitsubishi RVR 36509 (Part #DT36509) fits the following vehicles: 2011-2021 Mitsubishi Outlander Sport; 2011-2014 Mitsubishi RVR. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mitsubishi Outlander Sport, Mitsubishi RVR 36509 (Part #DT36509) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, hitch part number 36509 is designed for Mitsubishi Outlander Sport and RVR vehicles. The installation instructions are specific to these models.
The maximum gross trailer weight is 3500 lb (1589 kg) and the maximum tongue weight is 300 lb (136 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need wrenches in the following sizes: 14mm, 17mm, ¾ inch, and 7/8 inch. A torque wrench is also required to tighten fasteners to specification.

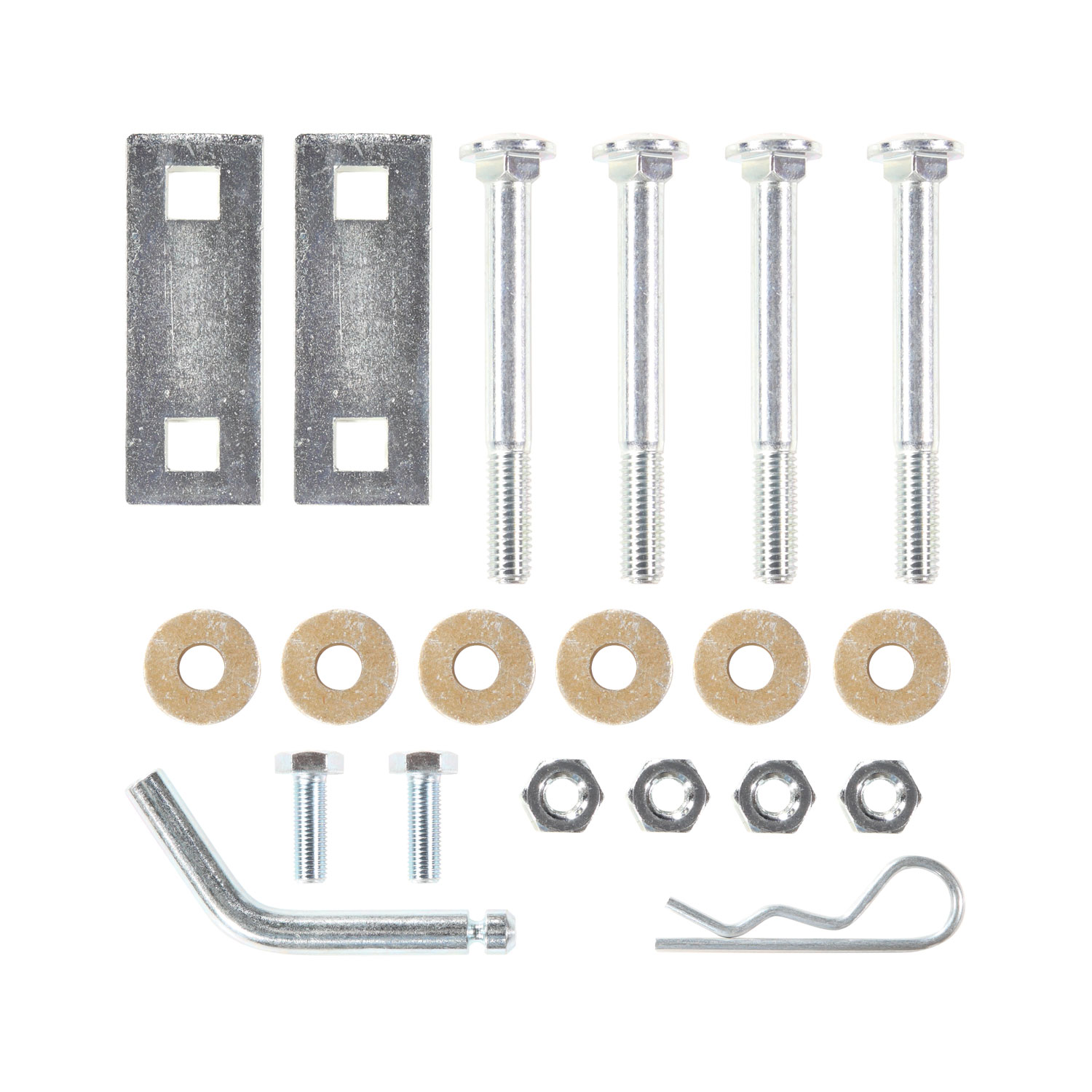

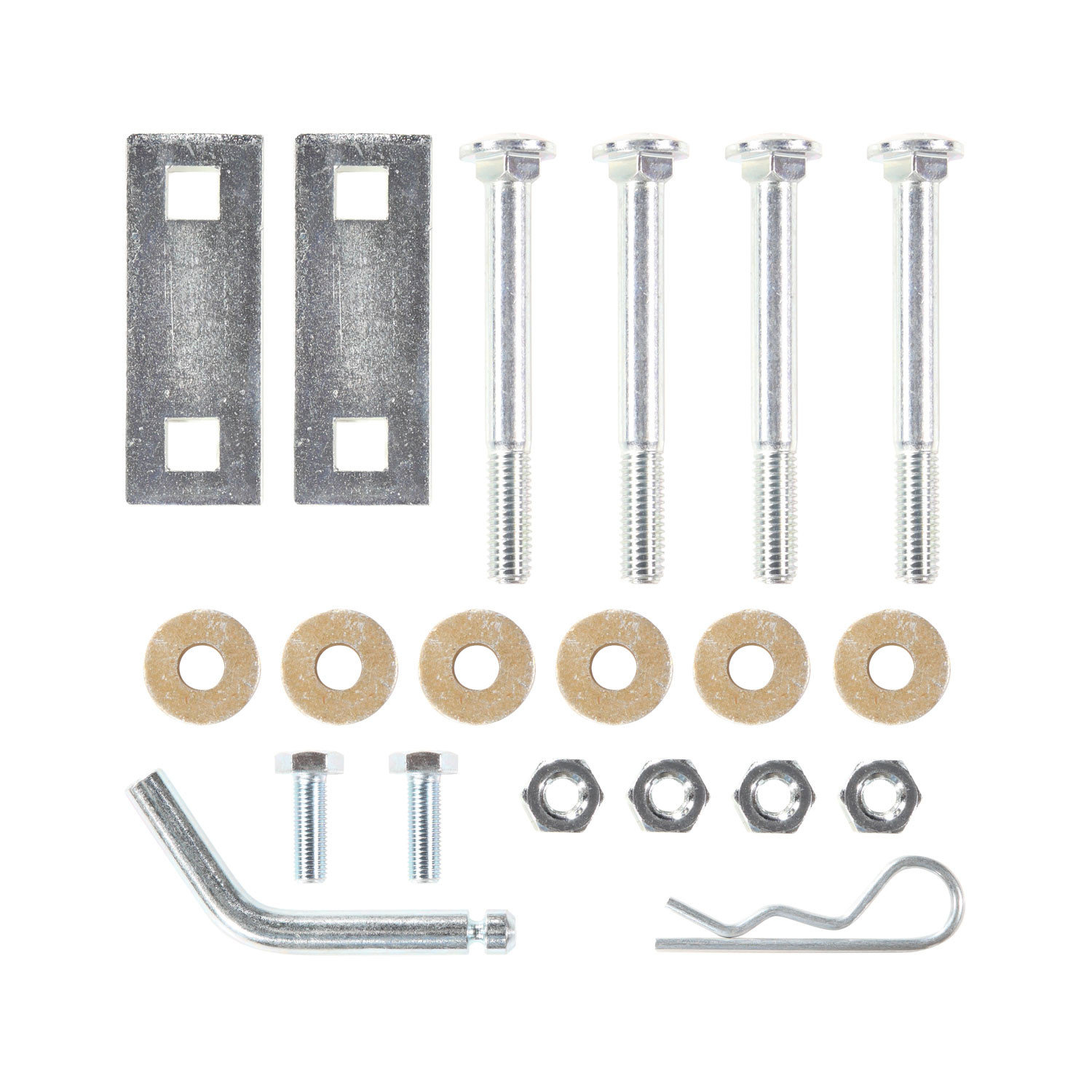

The hitch includes: (2) blocks 0.250 x 1.50 x 4.00 with 2 square holes each; (4) carriage bolts ½-13 x 4.50 long Gr5; (4) ½ inch conical washers; (2) M10 x 1.25 x 30mm CL8.8 bolts; (2) 7/16 inch conical washers; and (4) ½-13 hex nuts. Additional fastener kits are available separately as part number 36509F.
Yes. You must remove the three bolts and factory tow loop from the passenger's side frame rail. Return the bolts and tow loop to the vehicle owner. The factory tow loop is sold separately if it needs to be replaced.
First, tighten all ½-13 GR5 carriage bolts to 75 Lb.-Ft. (102 N·M). Then, tighten all M10-1.25 CL8.8 bolts to 42 Lb.-Ft. (57 N·M). Use a torque wrench for both steps.
Tighten all ½-13 GR5 carriage bolts to 75 Lb.-Ft. (102 N·M) using a torque wrench.
Tighten all M10-1.25 CL8.8 bolts to 42 Lb.-Ft. (57 N·M) using a torque wrench.
No. During installation, loosely install the ½ inch conical washers and hex nuts onto the carriage bolts (step 3), and loosely install the M10 hex bolts with 7/16 inch conical washers into the weld nuts (step 4). Tighten all fasteners to specification only after the hitch is positioned and all bolts are inserted.
Raise the driver's side of the hitch first, guiding the flange on the side bracket around the carbon canister. Then raise the passenger's side into position. This sequence makes installation easier.
Adjust the carriage bolts to be flush with the inside of the frame rails. On the driver's side, the carriage bolts are installed by reaching between the bumper fascia and over the top of the carbon canister.
The drawbar must be used in the rise position only. Do not use it in any other position.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. This should be done regularly throughout the life of the hitch.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch or ball.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
Yes, hitch 36509 is designed specifically for Mitsubishi Outlander Sport and RVR models.
Maximum gross trailer weight is 3500 lb (1589 kg) and maximum tongue weight is 300 lb (136 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You need wrenches in 14mm, 17mm, ¾ inch, and 7/8 inch sizes, plus a torque wrench. No special equipment is required.
Tighten ½-13 GR5 carriage bolts to 75 Lb.-Ft. (102 N·M) and M10-1.25 CL8.8 bolts to 42 Lb.-Ft. (57 N·M). Tighten carriage bolts first, then M10 bolts.
The drawbar must be used in the rise position only.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
