Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

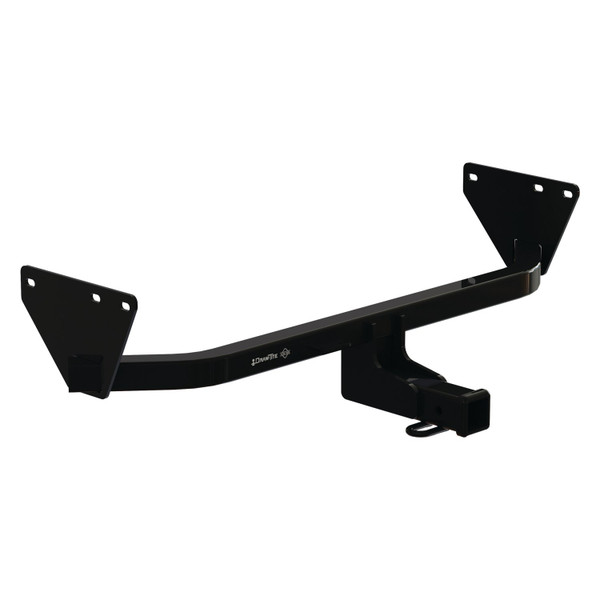

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 525 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76543 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 40.64 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 525 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2025 | Mitsubishi Outlander | Class 3 Trailer Hitch: 3500 lbs 525/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Mitsubishi Outlander 76543 (Part #DT76543) fits 2022-2025 Mitsubishi Outlander models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Mitsubishi Outlander 76543 (Part #DT76543) is designed to fit the 2022-2025 Mitsubishi Outlander.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Mitsubishi Outlander 76543 (Part #DT76543) fits the following vehicles: 2022-2025 Mitsubishi Outlander. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Mitsubishi Outlander 76543 (Part #DT76543) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the hitch part numbers 76543, 84543, and CQT76543 are designed for 2022-Current Mitsubishi Outlander models. However, Horizon Global recommends visiting their website for the most up-to-date information regarding specific application years and trim levels, as fitment may vary.
The maximum gross trailer weight is 3500 lb (1588 kg) and the maximum tongue weight is 525 lb (238 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
You will need: a ratchet, torque wrench, safety glasses, 19mm sockets, socket extension, die grinder, wire brush, exhaust removal pliers, marker, and tape. Soapy water is also needed to lubricate exhaust rubber hangers.
Fastener Kit 76543F includes: (6) M12 x 1.25 x 45 CL 8.8 bolts and (6) 1/2" conical washers. These are used to secure the hitch to the vehicle frame rails, with 3 bolts and 3 washers on each side.
You must lower the exhaust muffler, not remove it completely. Use soapy water to lubricate the exhaust rubber hangers, then use exhaust removal pliers to remove the rubber hangers at the 3 rearmost locations. Be sure to support the exhaust before removing the hangers. The muffler is reinstalled after the hitch is secured.
Yes. You must trim the interior corner panels under the vehicle. Using tape and marker, sketch a 2" x 2" square on the inside corner of the panel under the vehicle on both sides. Using a die grinder, remove the 2" x 2" corner on both sides. This is a permanent modification to the vehicle body panels.
All M12 fasteners must be tightened with a torque wrench to 76 Ft.-Lb. (103 N·M). Proper torque is essential to keep the hitch securely mounted to the vehicle when towing.
The conical washer teeth side must be positioned against the hitch. The washers are used with the M12 bolts to secure the hitch to the vehicle frame rails.
If necessary, firmly press the heat shield up to keep it from contacting the top of the hitch. This adjustment prevents interference between the heat shield and the hitch assembly.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. Support the exhaust before removing rubber hangers. If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Periodically verify that all fasteners remain tight and the hitch is securely mounted to the vehicle. Proper torque is needed to keep the hitch secure during towing.
Load the trailer heavier in front. Do not exceed the lower of your towing vehicle manufacturer's rating or 3500 lb GVWR / 525 lb tongue weight. Always wear your seatbelt. Slow down when towing and never exceed posted speed limits. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel steady. Do not apply brakes or speed up during sway.
No. Do not cut, weld, or modify the receiver. Doing so may compromise the structural integrity and safety of the hitch.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Periodically verify that all fasteners remain tight and the hitch is securely mounted to the vehicle. If the hitch is damaged, it should be removed and replaced.
Yes, the 76543 is designed for 2022-Current Mitsubishi Outlander models. Check the manufacturer's website for the most current trim level and year information.
Maximum gross trailer weight: 3500 lb (1588 kg). Maximum tongue weight: 525 lb (238 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Yes. You must use a die grinder to remove a 2" x 2" corner from the interior trim panels on both sides of the vehicle. This is a permanent modification.
All M12 fasteners must be tightened to 76 Ft.-Lb. (103 N·M) using a torque wrench.
Yes. Lower the exhaust muffler by removing the rubber hangers at the 3 rearmost locations using exhaust removal pliers. Support the exhaust before removing hangers. Reinstall after the hitch is secured.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle.
Firmly press the heat shield up to keep it from contacting the top of the hitch. This adjustment should be made during installation (Step 3) if necessary to prevent interference.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Retighten any loose fasteners to 76 Ft.-Lb. (103 N·M) using a torque wrench. Periodically verify that all fasteners remain tight and the hitch is securely mounted to the vehicle.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Reduce speed and maintain steady steering control.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
