Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2020 | Toyota Sienna | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |

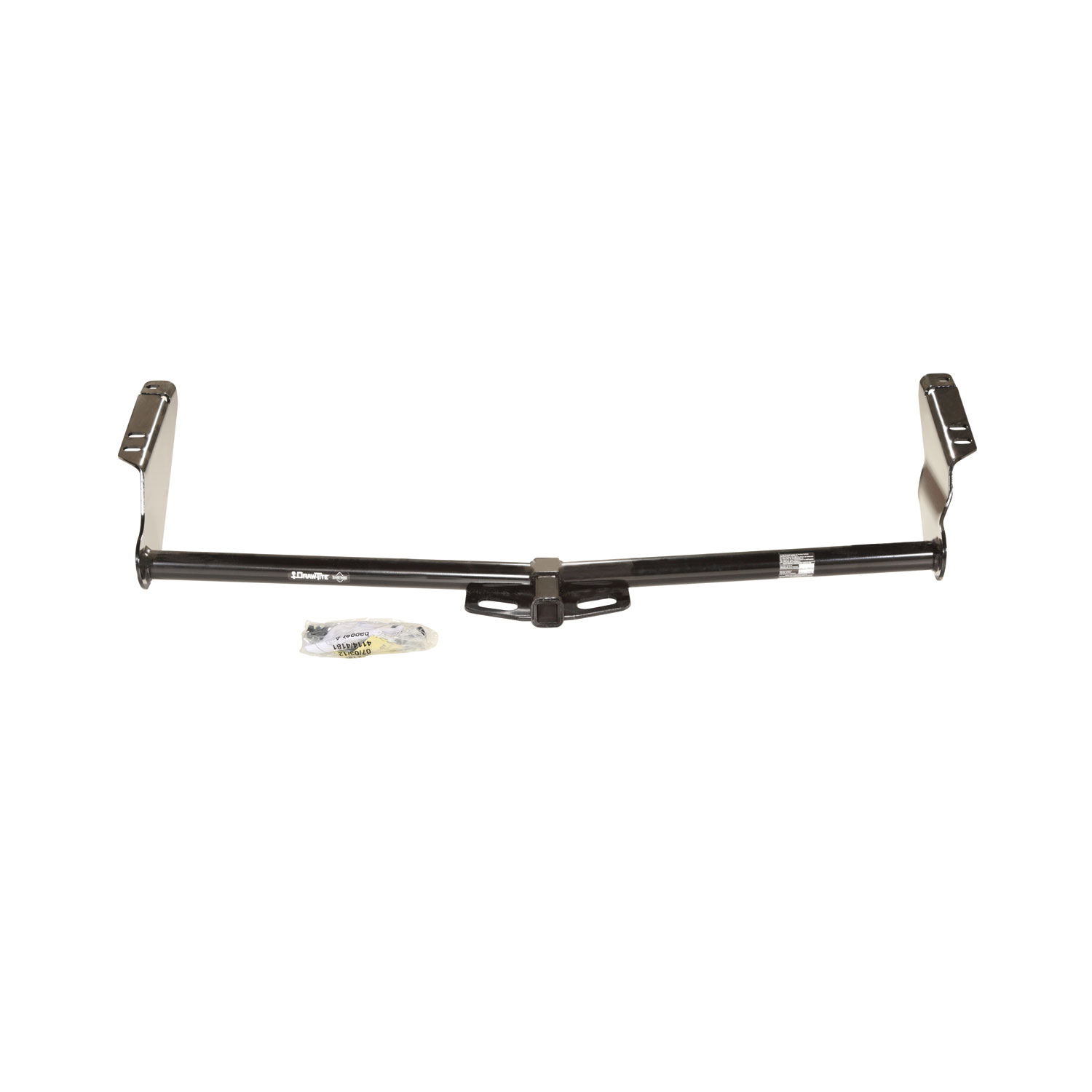

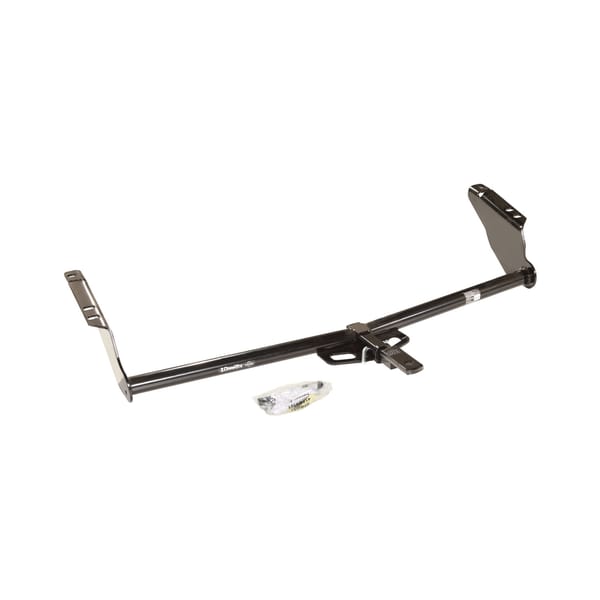

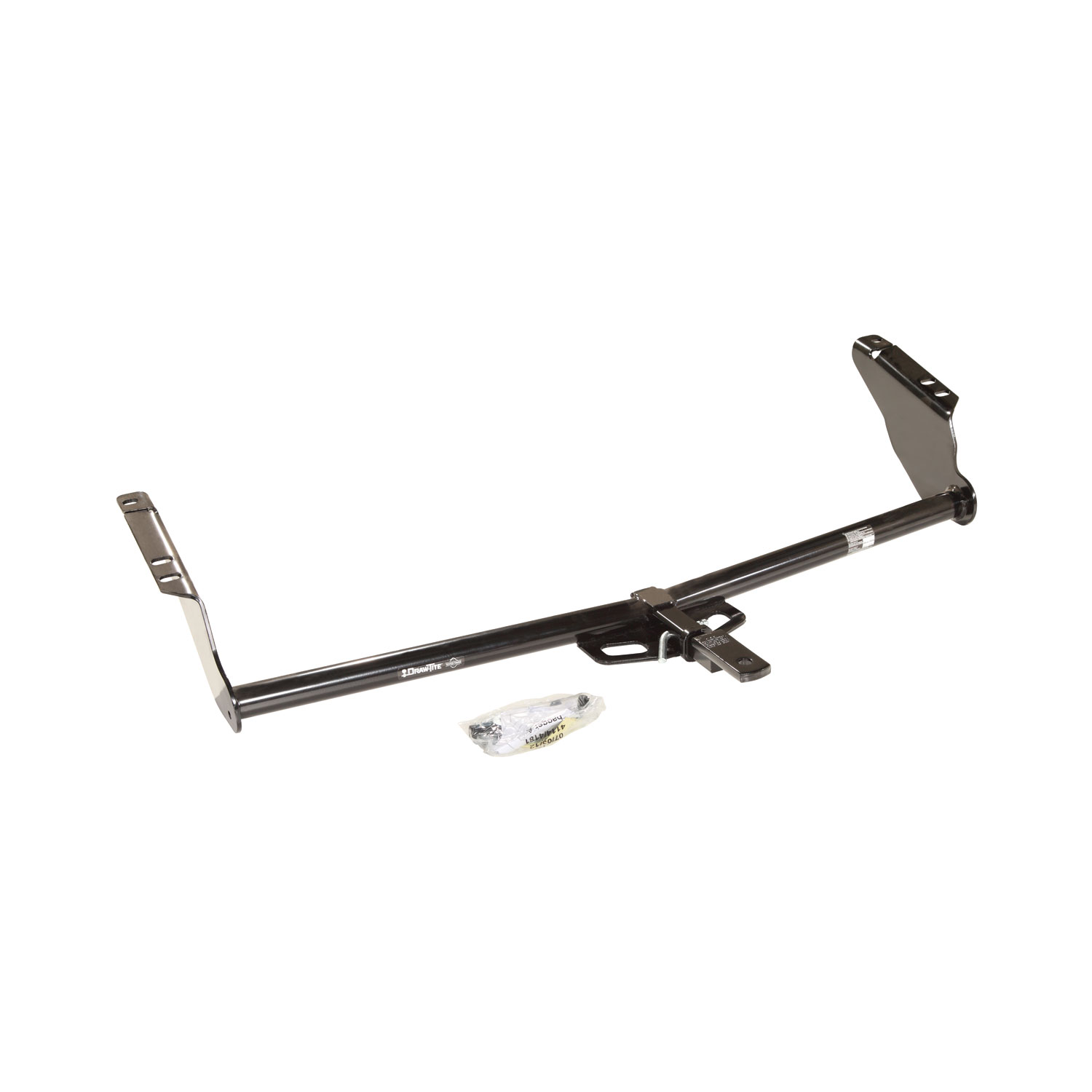

Yes, the Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Sienna 36513 (Part #DT36513) is designed to fit the 2004-2020 Toyota Sienna.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Sienna 36513 (Part #DT36513) fits the following vehicles: 2004-2020 Toyota Sienna. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Sienna 36513 (Part #DT36513) fits 2004-2020 Toyota Sienna models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Toyota Sienna 36513 (Part #DT36513) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 36513 fits Toyota Sienna models 2011, 2012, 2013, and 2015. If your Sienna is a different model year, this hitch may not be compatible. Verify your vehicle's year before purchasing.
The manual lists compatibility for 2011, 2012, 2013, and 2015 model years only. The 2014 model year is not listed. Contact the manufacturer or a fitment database to confirm whether this hitch is compatible with 2014 Sienna models.
The maximum gross trailer weight is 3500 lb (1589 kg) and the maximum tongue weight is 300 lb (136 kg). However, do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need: 10mm wrench, 19mm wrench, 6-inch ratchet extension, and a large screwdriver. No drill bits are required.
The fastener kit 36513F includes: 6 hex bolts M12 x 1.25 x 40mm (CL10.9), 6 lock washers 1/2 inch, and 6 flat washers 1/2 inch. These fasteners attach the hitch to the frame rails.
For vehicles with an appearance panel covering the trunk pan, you must remove it before installation. The panel will need to be trimmed or not reinstalled on the vehicle. Ask the vehicle owner their choice before starting installation. See Figure 2 for the areas to be trimmed.
Lowering the exhaust may ease installation. The manual notes that spraying a lubricant on the metal hanger rod and rubber isolator helps with removal. If you lower the exhaust, you must raise it back into position after the hitch is installed.
Raise the hitch into position over the exhaust pipes, aligning the slots in the hitch with the weldnuts in the bottom of the frame rails. There are 3 weldnuts on each side (6 total). Once aligned, install and torque the fasteners.
All M12 CL10.9 fasteners must be tightened with a torque wrench to 75 lb-ft (102 N-m).
1. Remove plastic plugs from existing holes (if present). 2. Raise hitch into position over exhaust pipes, aligning slots with weldnuts in frame rails. 3. Install fasteners as shown. 4. Torque all fasteners to 75 lb-ft (102 N-m). 5. Raise exhaust back into position if lowered. 6. Reinstall trimmed cover panel or return untrimmed panel to vehicle owner.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual recommends regular inspection to maintain proper installation.
The drawbar kit 36051 is available separately and must be used in the Rise position only. Additional ball options (part numbers 39611-UHaul and 06137) are also sold separately.
The wiring access location is SUV1, 2, indicating the specific points on the vehicle where wiring harness connections are made.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch or ball.
Yes, plastic plugs may be present in the existing holes in the frame rails. These must be removed before raising the hitch into position and aligning it with the weldnuts.
The hitch is positioned over the exhaust pipes. The manual notes that lowering the exhaust may ease installation. After the hitch is installed and fastened, the exhaust must be raised back into position. There should be no permanent interference once properly installed.
The appearance panel covers the trunk pan. For vehicles with this panel, it must be removed before hitch installation. The panel will need to be trimmed or not reinstalled on the vehicle, depending on the vehicle owner's choice.
Yes, if your Sienna is a 2011, 2012, 2013, or 2015 model. Other model years are not listed as compatible.
You need 10mm and 19mm wrenches, a 6-inch ratchet extension, and a large screwdriver. No drilling is required.
Yes, for vehicles with an appearance panel covering the trunk pan. The panel must be removed and either trimmed or not reinstalled, depending on the owner's preference.
All M12 CL10.9 fasteners must be torqued to 75 lb-ft (102 N-m) using a torque wrench.
Wear eye protection, observe safety precautions when working beneath the vehicle, and do not cut holes with a torch. Plug all holes after installation to prevent water and exhaust fume entry.
Lowering the exhaust may ease installation. If lowered, raise it back into position after the hitch is installed. Lubricating the hanger rod and rubber isolator helps with removal.
