Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

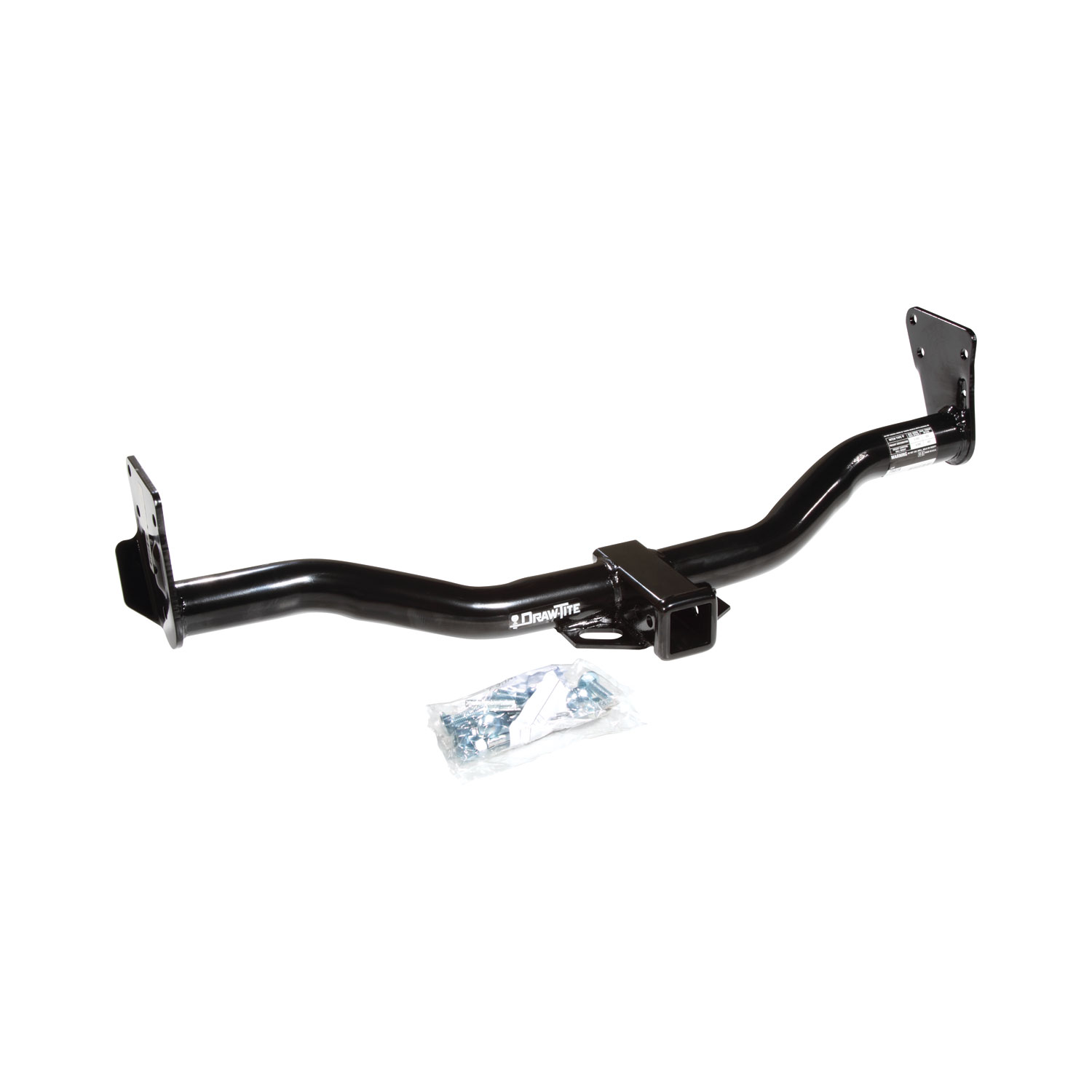

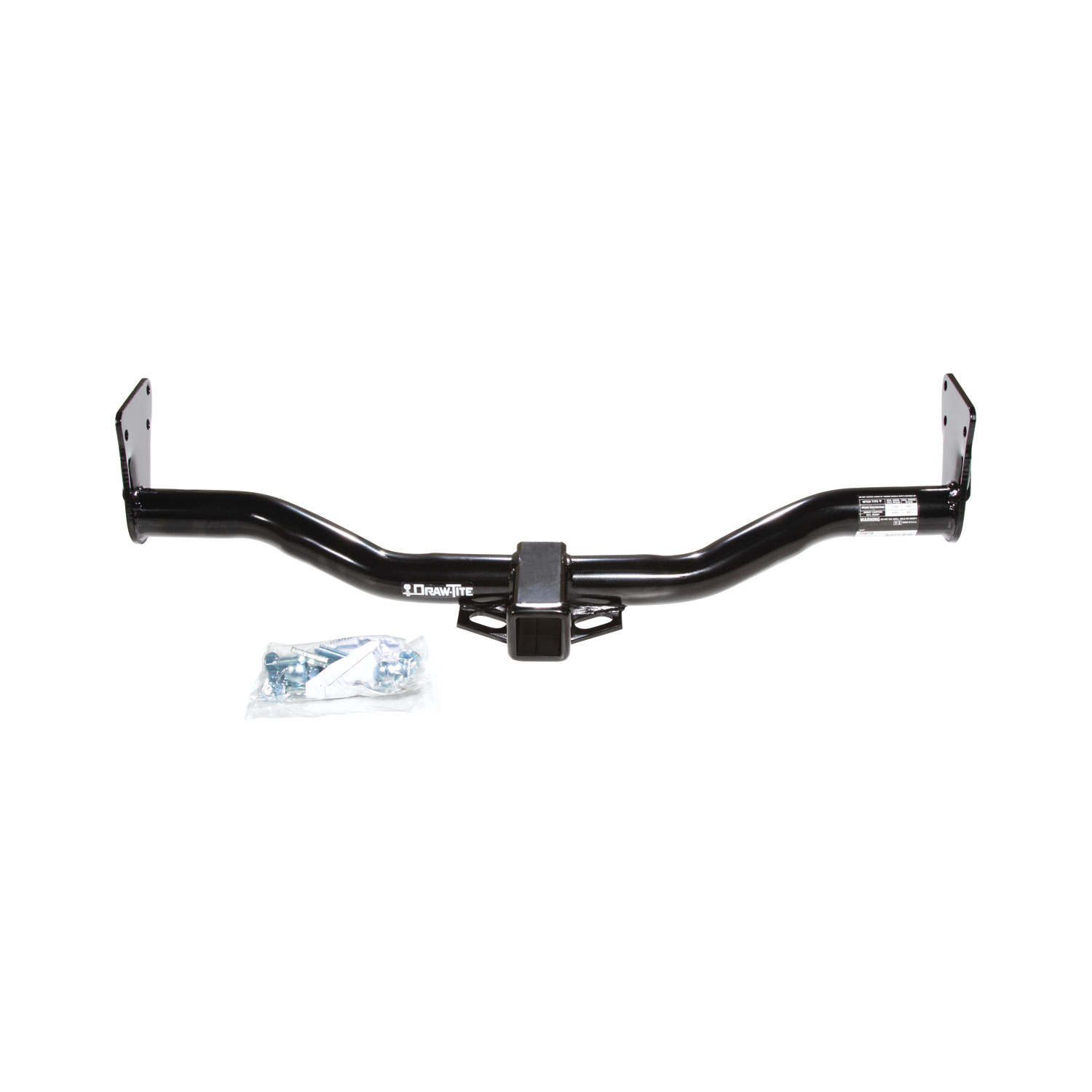

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 4,000 lbs. gross trailer weight (GTW) and up to 400 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 6,000 lbs. weight distribution (WD) and 600 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75079 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 29 LBS |
| GROSS TOWING WEIGHT: | 4,000 LBS. |
| GROSS TONGUE WEIGHT: | 400 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 6,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 600 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
5 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1995 - 2005 | Chevrolet Blazer | Class 3 Trailer Hitch: 4000 lbs 400/4,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 600/6,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes When installing on a vehicle originally equipped with an OEM hitch. OEM bumper brackets must be purchased and installed prior to installation |
| 2002 - 2005 | GMC Jimmy | Class 3 Trailer Hitch: 4000 lbs 400/4,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 600/6,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes |
| 1995 - 2001 | GMC Jimmy | Class 3 Trailer Hitch: 4000 lbs 400/4,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 600/6,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes When installing on a vehicle originally equipped with an OEM hitch. OEM bumper brackets must be purchased and installed prior to installation |
| 1996 - 1997 | Oldsmobile Bravada | Class 3 Trailer Hitch: 4000 lbs 400/4,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 600/6,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes |
| 1998 - 2001 | Oldsmobile Bravada | Class 3 Trailer Hitch: 4000 lbs 400/4,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 600/6,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes When installing on a vehicle originally equipped with an OEM hitch. OEM bumper brackets must be purchased and installed prior to installation |
Yes, part number 75079 is designed for Chevrolet Blazer, GMC Jimmy, Oldsmobile Bravada, and GMC Envoy models from 1998 and newer. Confirm your vehicle year and model match this application before purchasing.
Yes, this hitch (part numbers 75079, 44715, 87478, or 78167 UHAUL) is compatible with GMC Envoy models from 1998 and newer.
Yes, this hitch is compatible with Oldsmobile Bravada models from 1998 and newer.
You will need wrenches in 7/8" and 18mm sizes, and a torque wrench to tighten fasteners to 75 Lb.-Ft. (102 N·M). No drill bits are required.
No, drilling is not required. The manual lists "Drill Bits: None" under Equipment Required.
Yes, if your 1998 or newer model has an original equipment trailer hitch, you must remove it before installation. After removal, you will need to purchase left and right bumper brackets from a General Motors dealer (part numbers 15719945 and 15719946) and install them.
Only if your vehicle has an original equipment trailer hitch. For 1998 and newer models with a factory hitch, you must purchase left and right bumper brackets (part numbers 15719945 and 15719946) from a General Motors dealer before installation.
If your vehicle does not have an original equipment trailer hitch, you must remove the four forward bumper bolts and return them to the vehicle owner. The manual does not specify what happens to these bolts after removal.
Six carriage bolts are used in total: three on each side of the vehicle. Each bolt is ½-13 x 1-3/4" Grade 5 (GR5).

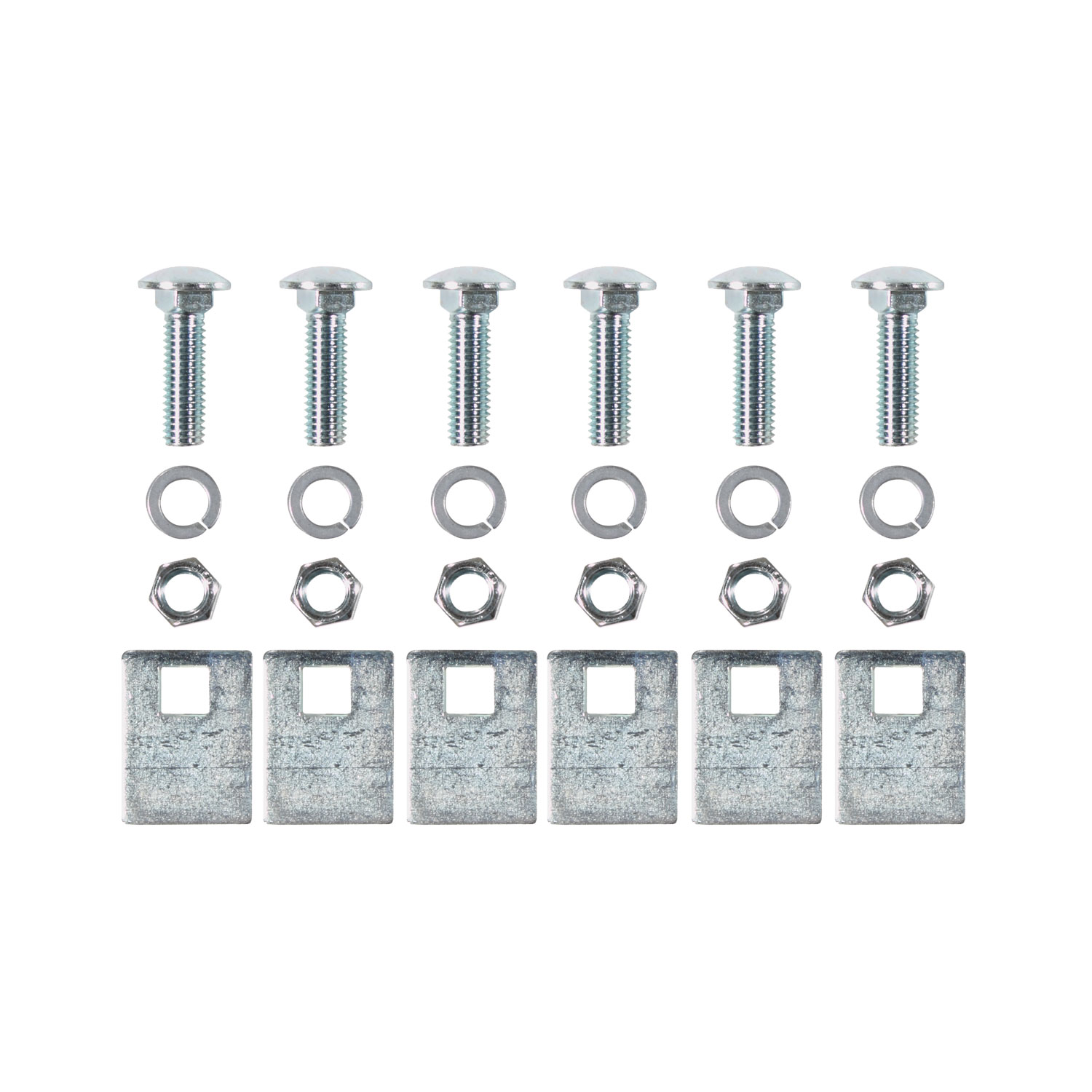

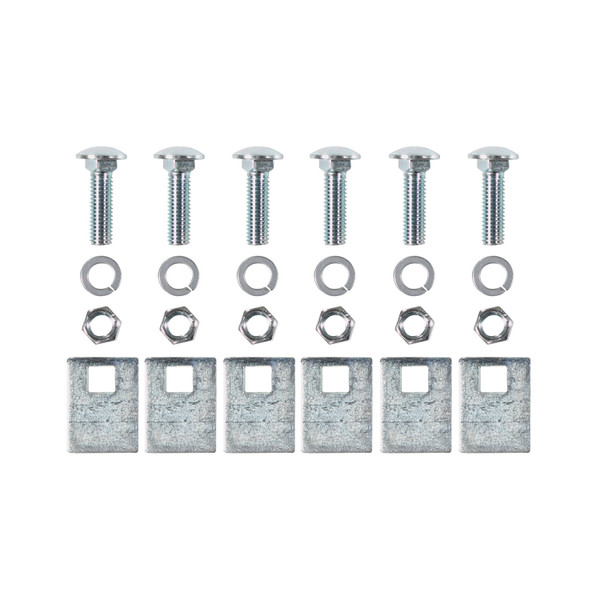

The fastener kit F75079 includes: 6 carriage bolts (½-13 x 1-3/4" GR5), 6 lock washers (½"), 6 blocks (¼ x 1-1/2 x 2), and 6 hex nuts (½-13).
All ½ GR5 fasteners must be tightened to 75 Lb.-Ft. (102 N·M) using a torque wrench.
The hitch capacity depends on the type: Weight Distributing hitch supports a maximum gross trailer weight of 6,000 Lb. (2,724 Kg) with a maximum tongue weight of 600 Lb. (272 Kg); Weight Carrying Ball Mount supports a maximum gross trailer weight of 4,000 Lb. (1,816 Kg) with a maximum tongue weight of 400 Lb. (182 Kg). Do not exceed the lower of the towing vehicle manufacturer's rating or the hitch rating.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual recommends regular inspection to maintain proper installation.
The manual recommends checking the hitch frequently to ensure all fasteners and the ball are properly tightened, but does not specify an exact interval.
A damaged hitch or ball must be removed and replaced. Do not continue to use a damaged hitch.

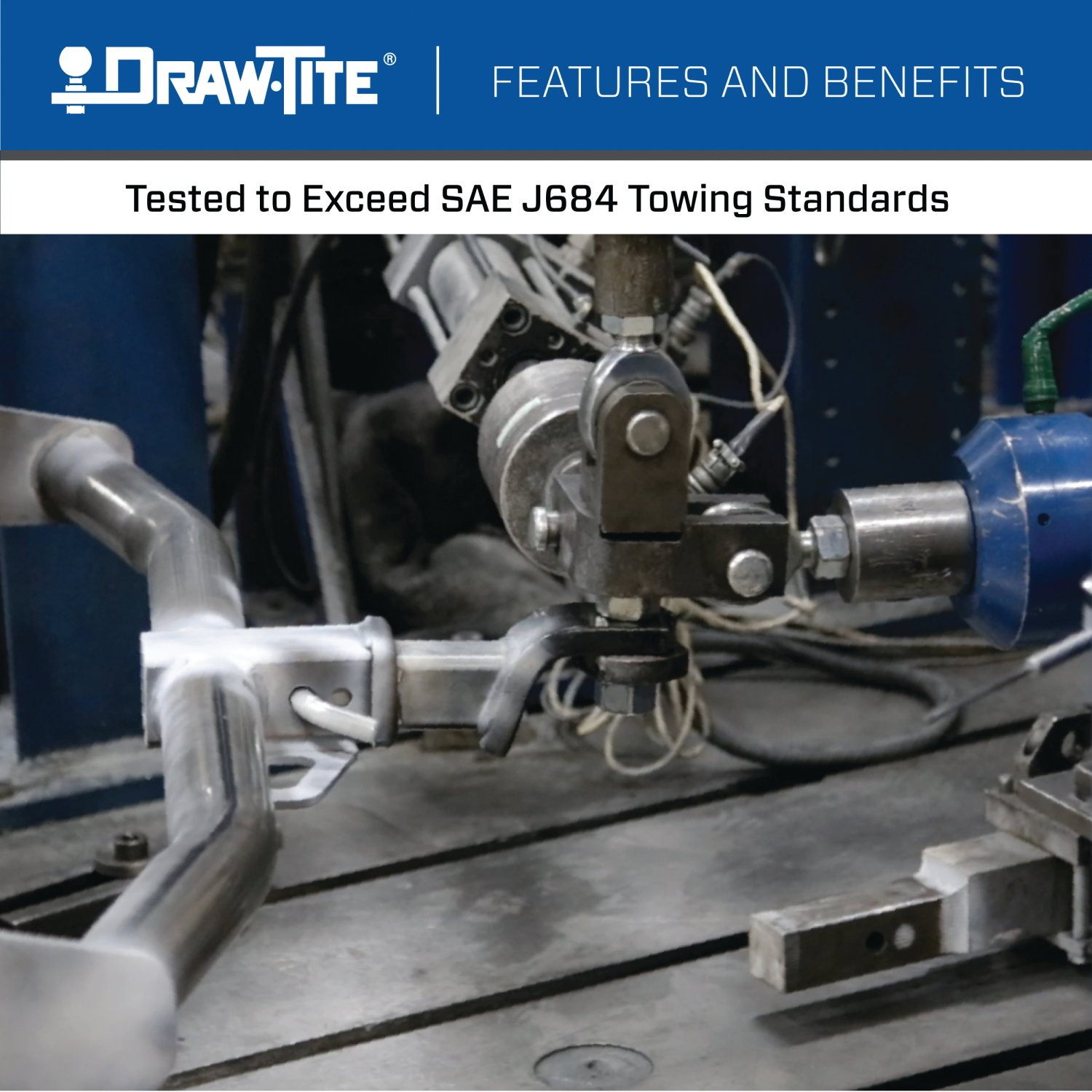

This hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
This hitch fits Chevrolet Blazer, GMC Jimmy, Oldsmobile Bravada, and GMC Envoy models from 1998 and newer.
You need 7/8" and 18mm wrenches and a torque wrench. No drilling is required.
Yes, if your 1998 or newer model has an original equipment hitch. You will also need to purchase GM bumper brackets (part numbers 15719945 and 15719946).
Tighten all ½ GR5 fasteners to 75 Lb.-Ft. (102 N·M) using a torque wrench.
Weight Distributing: 6,000 Lb. gross trailer weight, 600 Lb. tongue weight. Weight Carrying Ball Mount: 4,000 Lb. gross trailer weight, 400 Lb. tongue weight. Do not exceed your vehicle manufacturer's rating.
Wear eye protection when working beneath the vehicle. Do not cut holes with a torch. If removed, plug all holes to prevent water and exhaust fume entry. Check fasteners and ball frequently.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
