Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

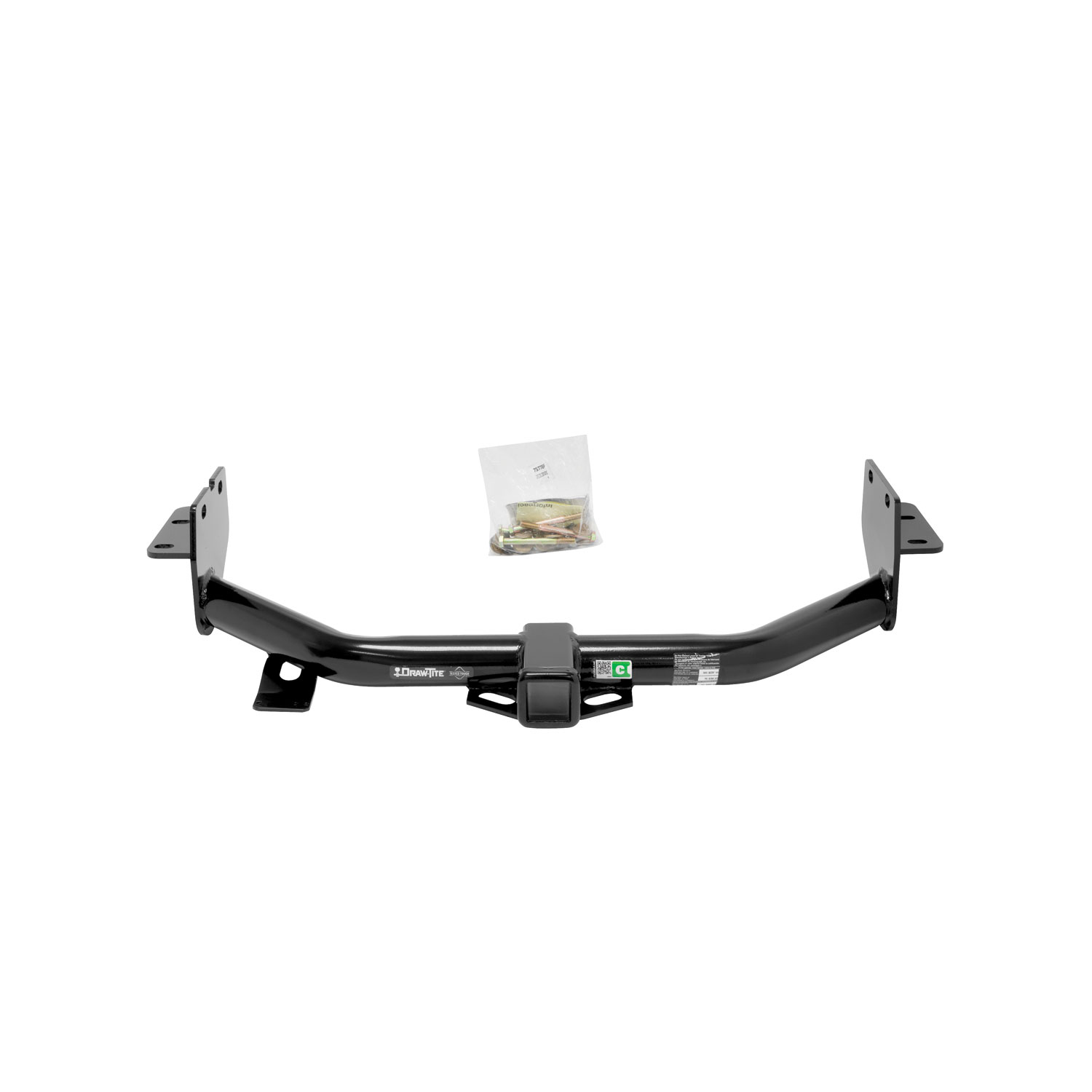

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 5,000 lbs. gross trailer weight (GTW) and up to 750 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 7,500 lbs. weight distribution (WD) and 750 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75776 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 32 LBS |
| GROSS TOWING WEIGHT: | 5,000 LBS. |
| GROSS TONGUE WEIGHT: | 750 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 7,500 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 750 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 - 2019 | Hyundai Santa Fe | Class 3 Trailer Hitch: 5000 lbs 750/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/7,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Santa Fe 75776 (Part #DT75776) is designed to fit the 2013-2019 Hyundai Santa Fe.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Santa Fe 75776 (Part #DT75776) fits 2013-2019 Hyundai Santa Fe models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Santa Fe 75776 (Part #DT75776) fits the following vehicles: 2013-2019 Hyundai Santa Fe. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Santa Fe 75776 (Part #DT75776) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 75776 is designed for Hyundai Santa Fe GLS/Limited models with 6 or 7 passengers from 2013, 2015, and 2016 model years. If your vehicle matches these specifications, the hitch is compatible. Verify your model year and trim level before purchasing.
The maximum towing capacity depends on the hitch type and your vehicle manufacturer's rating. For a Weight Distributing hitch, the maximum gross trailer weight is 7500 Lb (3401 Kg) with a maximum tongue weight of 750 Lb (340 Kg). For a Weight Carrying Ball Mount, the maximum gross trailer weight is 5000 Lb (2267 Kg) with a maximum tongue weight of 750 Lb (340 Kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these hitch specifications.
You will need a #2 Phillips screwdriver, a 17mm wrench, a 19mm wrench, and a torque wrench. No drill bits are required. If the plastic bumper locator pin interferes with the hitch hardware, you will also need an angle grinder to trim it.

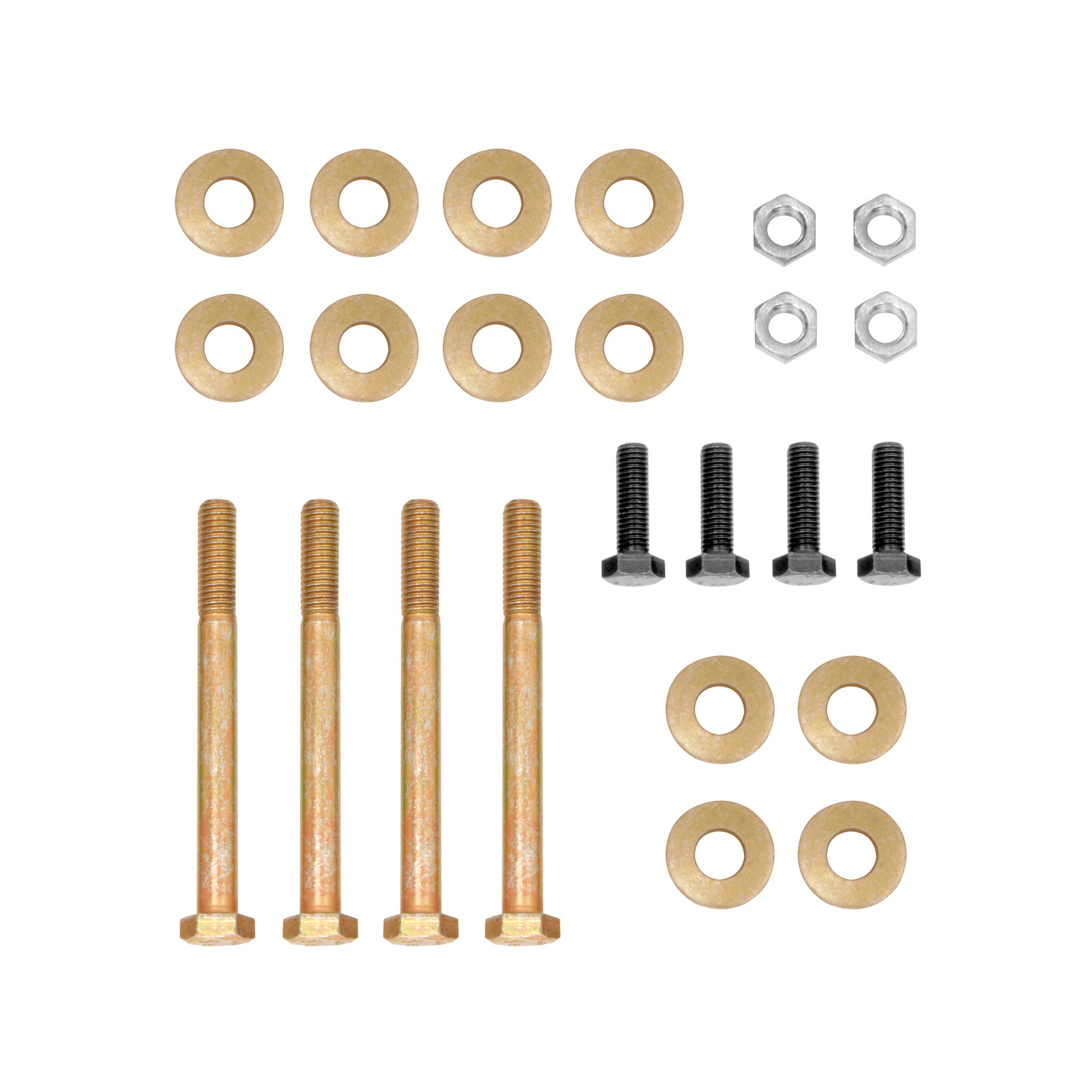

The fastener kit 75776F includes: 4 M12 x 1.75 x 120 Bolt CL8.8, 4 M10 x 1.25 x 30 Bolt CL10.9, 8 pieces of 1/2" Conical Washer, 4 pieces of 7/16" Conical Washer, and 4 M12 x 1.75 Nut CL10. The installation uses existing weld nuts in the vehicle frame.
Yes. The first step of installation is to lower and remove the spare tire from the vehicle. The tire release is located underneath the storage compartment in the back of the vehicle. You must reinstall the spare tire after the hitch installation is complete and ensure it is seated properly.
Yes. Remove the access door on the rear fascia by removing the two plastic push pins with a #2 Phillips screwdriver and pushing the two outside tabs inward. After the hitch is installed, reinstall the access door.
No drilling is required. The hitch uses existing weld nuts in the vehicle frame. However, the plastic bumper locator pin may interfere with the hitch hardware. If necessary, trim the locator pin at the shoulder to allow proper hardware clearance.
The plastic bumper locator pin may interfere with the hitch hardware. If necessary, trim the locator pin at the shoulder to allow proper hardware clearance. The manual does not specify when this will be needed, so you should check for interference as you raise the hitch into position during step 3.
Tighten all M12 CL8.8 fasteners with a torque wrench to 72 Lb.-Ft. (98 N·M). Torque the M10 bolts first, then the M12 bolts.
Tighten all M10 CL10.9 fasteners with a torque wrench to 40 Lb.-Ft. (54 N·M). Torque the M10 bolts first, then the M12 bolts.
Hand tighten the M10 bolts first (step 4). Then torque the M10 bolts to 40 Lb.-Ft. (54 N·M), followed by torquing the M12 bolts to 72 Lb.-Ft. (98 N·M).
The conical washers must be installed with the teeth side against the hitch. There are 8 pieces of 1/2" conical washers and 4 pieces of 7/16" conical washers in the fastener kit.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced.
After installation, verify that the spare tire is reinstalled and seated properly, and that the access door is reinstalled. Check the hitch frequently, making sure all fasteners and the ball are properly tightened.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is recommended to ensure safe operation.
The 75776 hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, part number 75776 is designed for 2015 Hyundai Santa Fe GLS/Limited models with 6 or 7 passengers.
You need a #2 Phillips screwdriver, 17mm and 19mm wrenches, and a torque wrench. No drilling is required. An angle grinder may be needed if the bumper locator pin interferes.
Yes, you must lower and remove the spare tire first. It is reinstalled after the hitch installation is complete.
M10 bolts: 40 Lb.-Ft. (54 N·M). M12 bolts: 72 Lb.-Ft. (98 N·M). Torque M10 bolts first, then M12 bolts.
Weight Distributing: 7500 Lb (3401 Kg) gross trailer weight, 750 Lb (340 Kg) tongue weight. Weight Carrying Ball Mount: 5000 Lb (2267 Kg) gross trailer weight, 750 Lb (340 Kg) tongue weight. Do not exceed your vehicle manufacturer's rating.
Wear eye protection and observe safety precautions when working beneath the vehicle. Do not use a torch to cut holes. Plug all holes after removal to prevent water and exhaust fume entry. Replace any damaged hitch or ball.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
