DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 525 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75943 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 43.51 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 525 LBS. |

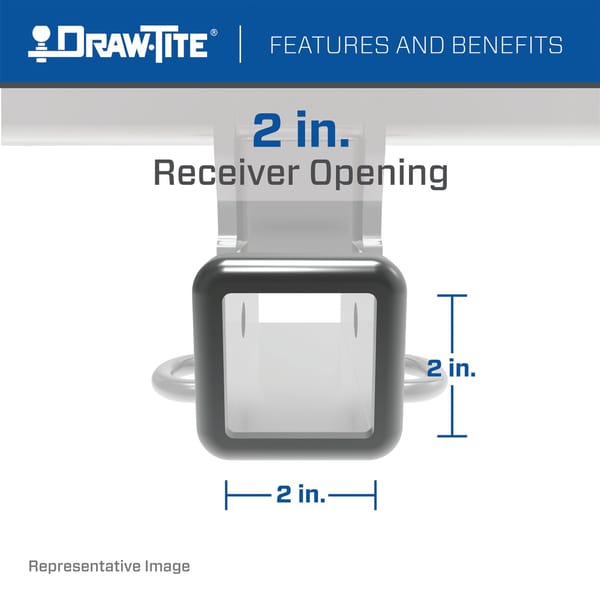

| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Lincoln MKC 75943 (Part #DT75943) fits 2015-2019 Lincoln MKC models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Lincoln MKC 75943 (Part #DT75943) fits the following vehicles: 2015-2019 Lincoln MKC. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Lincoln MKC 75943 (Part #DT75943) is designed to fit the 2015-2019 Lincoln MKC.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Lincoln MKC 75943 (Part #DT75943) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Part numbers 75943, 87673, and 44756 are designed for 2015-Current Lincoln MKC models. Visit the Cequent website for the most up-to-date information regarding specific application years and trim levels.
Required tools: ratchet, torque wrench, safety glasses, sockets (13mm, 10mm, 11/16"), die grinder, and 6" socket extension.
Yes. The access hole must be enlarged with a die grinder to allow 7/16" carriage bolts and spacers access to both sides of the vehicle frame rail. Do not use a torch to cut access holes.
Tighten all M8 CL10.9 fasteners to 20 Lb.-Ft. (27 N·M) and all 7/16" GR5 fasteners to 50 Lb.-Ft. (68 N·M) using a torque wrench.
Maximum Gross Trailer Weight: 3500 lb. (1588 kg). Maximum Tongue Weight: 525 lb. (238 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Yes. The 75943 hitch is designed for 2015-Current Lincoln MKC models, which includes 2016 models. For the most current information on specific trim levels and application years, visit the Cequent website.

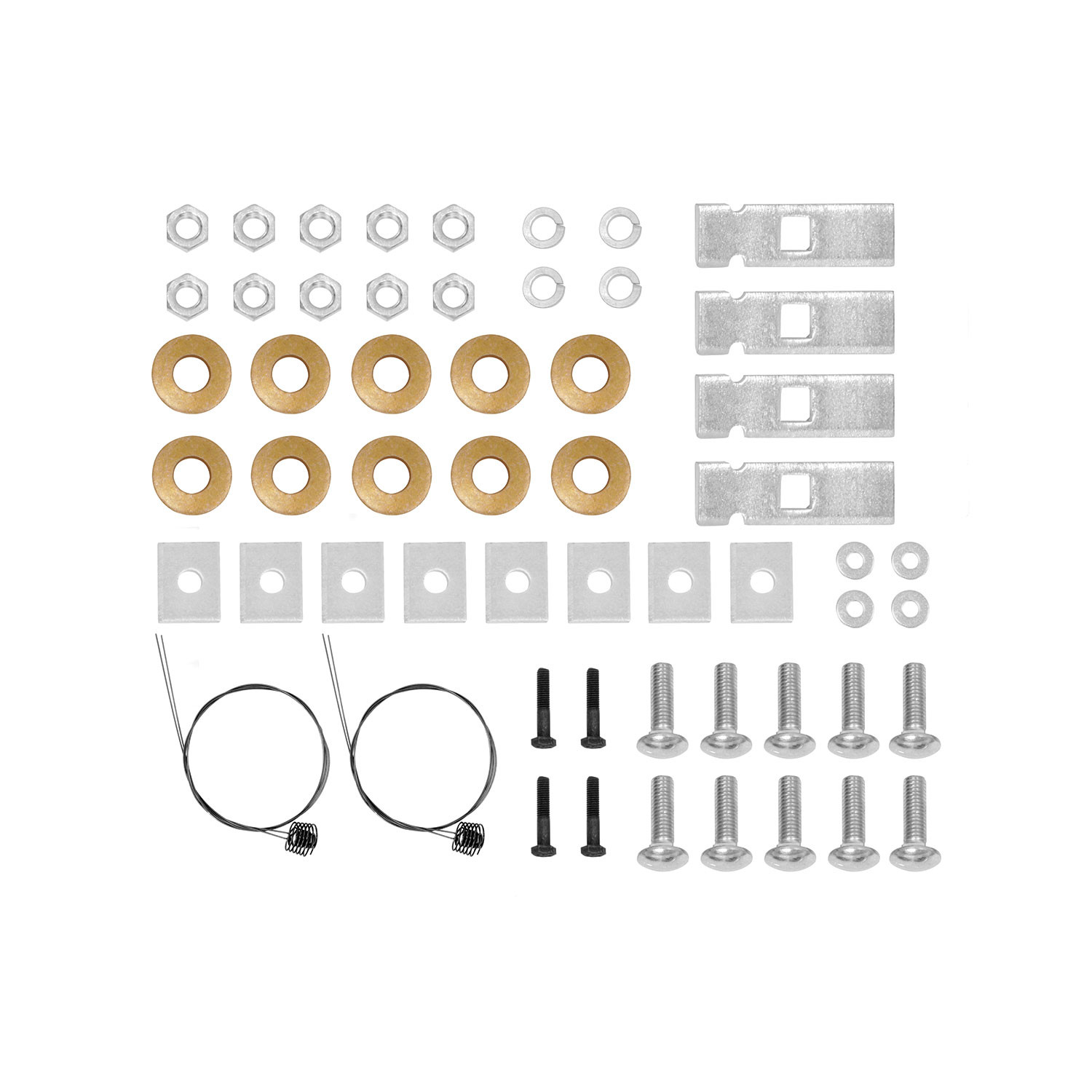

The fastener kit 75943F includes: 10 carriage bolts 7/16"-14 x 1.50 GR5, 4 spacers 1/4" x 7/8" x 3, 10 conical washers 7/16", 10 hex nuts 7/16"-14 GR2, 4 fishwires 7/16"-14, 8 round-hole spacers 0.250 x 1 x 1.5, 4 bolts M8 x 1.25 x 40 CL10.9, 4 lock washers 5/16", and 4 flat washers 5/16".
Yes. The installation instructions state to remove the side brackets from the hitch before beginning installation. These fasteners are to be reused during installation.
The first step is to lower the exhaust by removing the two 8mm bolts from the hanger bracket on both sides of the vehicle.
After enlarging the access hole with a die grinder, thread the 7/16" carriage bolts and spacers through the enlarged access hole and out through the two side mounting holes in the frame rail using fishwire. Leave the fishwires attached. Then raise the side brackets over the fishwires, remove the fishwires, and install conical washers and nuts on both sides, hand tight only at this time.
Slide the hitch in from the rear passenger side of the vehicle over the exhaust and into position.
No. During initial assembly, keep all fasteners hand tight only. The side bracket fasteners (step 4), hitch-to-bracket fasteners (step 6), and hanger bracket fasteners (step 7) should all remain hand tight until the final torque step.
Four round-hole spacers measuring 0.250 x 1 x 1.5 inches are sandwiched between the hanger bracket and frame rail on both sides (two spacers per side). Ensure the holes on the hanger bracket and spacers line up for the bolt to pass through.
All M8 CL10.9 fasteners must be tightened to 20 Lb.-Ft. (27 N·M) using a torque wrench.
All 7/16" GR5 fasteners must be tightened to 50 Lb.-Ft. (68 N·M) using a torque wrench.
If needed, you may remove the two nuts holding the inner fender on the passenger side to ease installation of the forward attachment point.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced.
Load the trailer heavier in front. Do not exceed the lower of your towing vehicle manufacturer's rating or the hitch maximum of 3500 lb. gross trailer weight and 525 lb. tongue weight.
Slow down when towing and never exceed any posted speed limit.
The average installation time for professional installers is 45 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
No. Do not cut, weld, or modify the receiver. Do not cut access or attachment holes with a torch.
Cequent Performance Products, Inc. offers a Limited Lifetime Warranty to the original consumer purchaser only. The warranty covers material defects in both material and workmanship, ordinary wear and tear excepted. The warranty is valid only if products are returned for inspection and testing, the alleged nonconformance is material and not caused by misuse, neglect, wear and tear, improper installation, unsuitable storage, improper repair, alteration, or accident, and the products were installed, maintained, and used in accordance with instructions. Product replacement is the sole and exclusive remedy. For warranty claims, contact Cequent at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, 1-800-632-3290.
For technical assistance, contact Cequent Performance Products, Inc. at 800-632-3290 or TechnicalSupport@cequentgroup.com. You can also visit www.cequentgroup.com.
The manual does not specify whether battery disconnection is required. Contact Cequent technical support at 800-632-3290 or TechnicalSupport@cequentgroup.com for clarification.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2019 | Lincoln MKC | Class 3 Trailer Hitch: 3500 lbs 525/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 45 minutes |
