Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

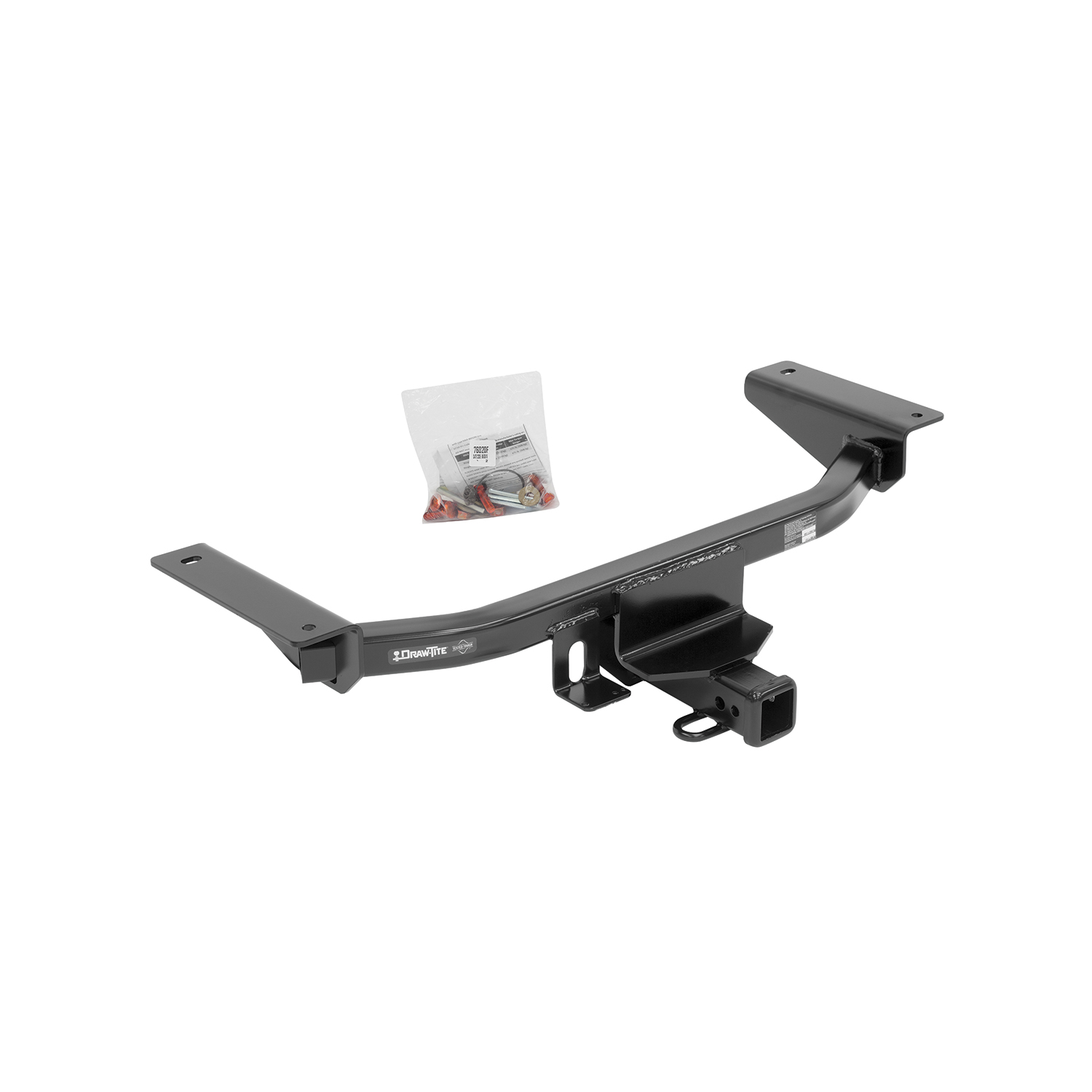

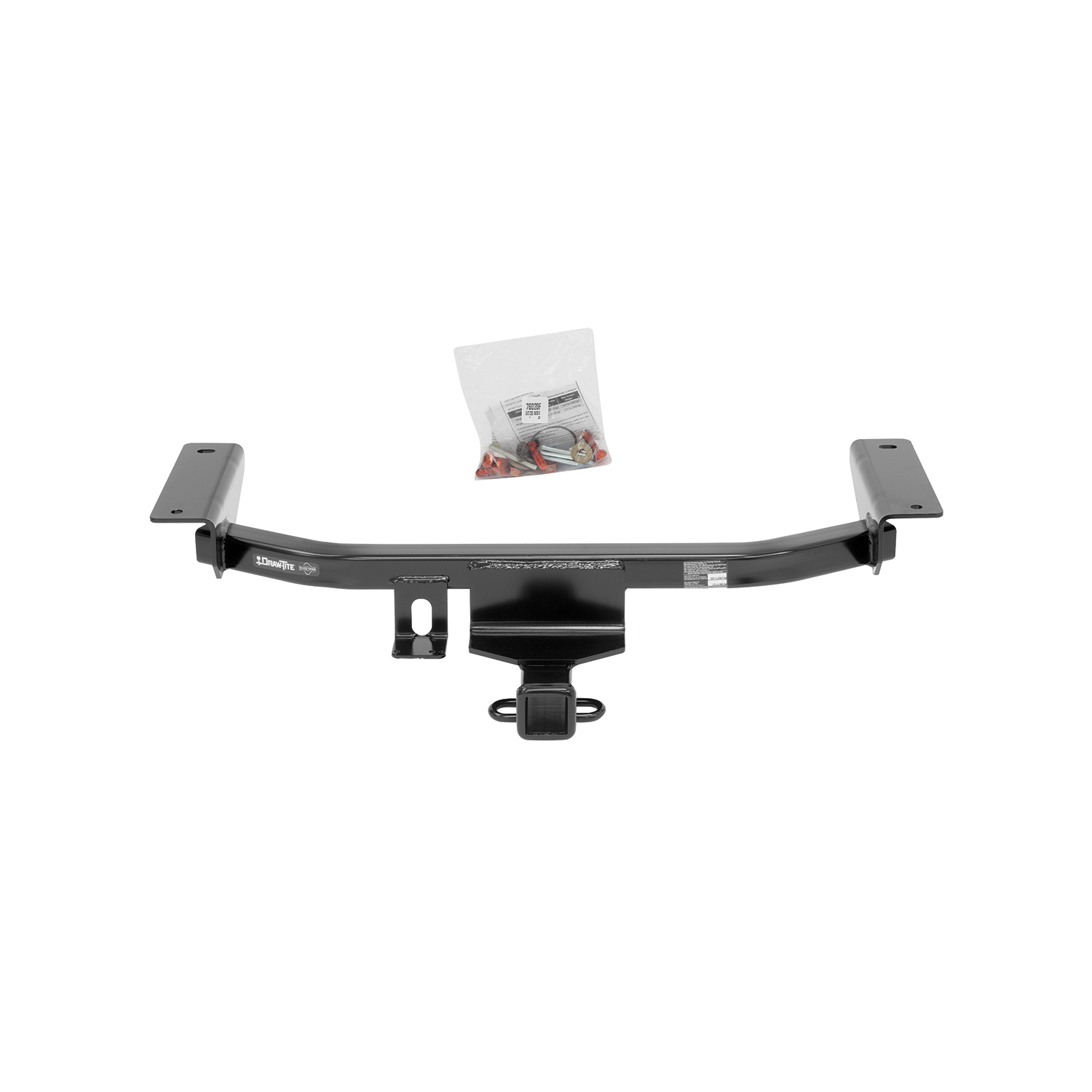

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 4,500 lbs. gross trailer weight (GTW) and up to 675 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 4,500 lbs. weight distribution (WD) and 675 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76020 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 37.85 LBS |
| GROSS TOWING WEIGHT: | 4,500 LBS. |
| GROSS TONGUE WEIGHT: | 675 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 4,500 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 675 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Mazda CX-9 76020 (Part #DT76020) fits 2016-2023 Mazda CX-9 models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Mazda CX-9 76020 (Part #DT76020) is designed to fit the 2016-2023 Mazda CX-9.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Mazda CX-9 76020 (Part #DT76020) fits the following vehicles: 2016-2023 Mazda CX-9. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Mazda CX-9 76020 (Part #DT76020) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. The 76020 is designed for 2016-Current Mazda CX-9 models. For the most up-to-date information regarding specific application years and trim levels, visit the Cequent website.
The maximum gross trailer weight is 4500 lb. (2043 kg) and the maximum tongue weight is 675 lb. (306 kg) for both weight-carrying and weight-distributing hitch types. However, do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools are: ratchet, torque wrench, safety glasses, socket, 6'' socket extension, flat head screwdriver, 7/8'' socket, and exhaust removal pliers.

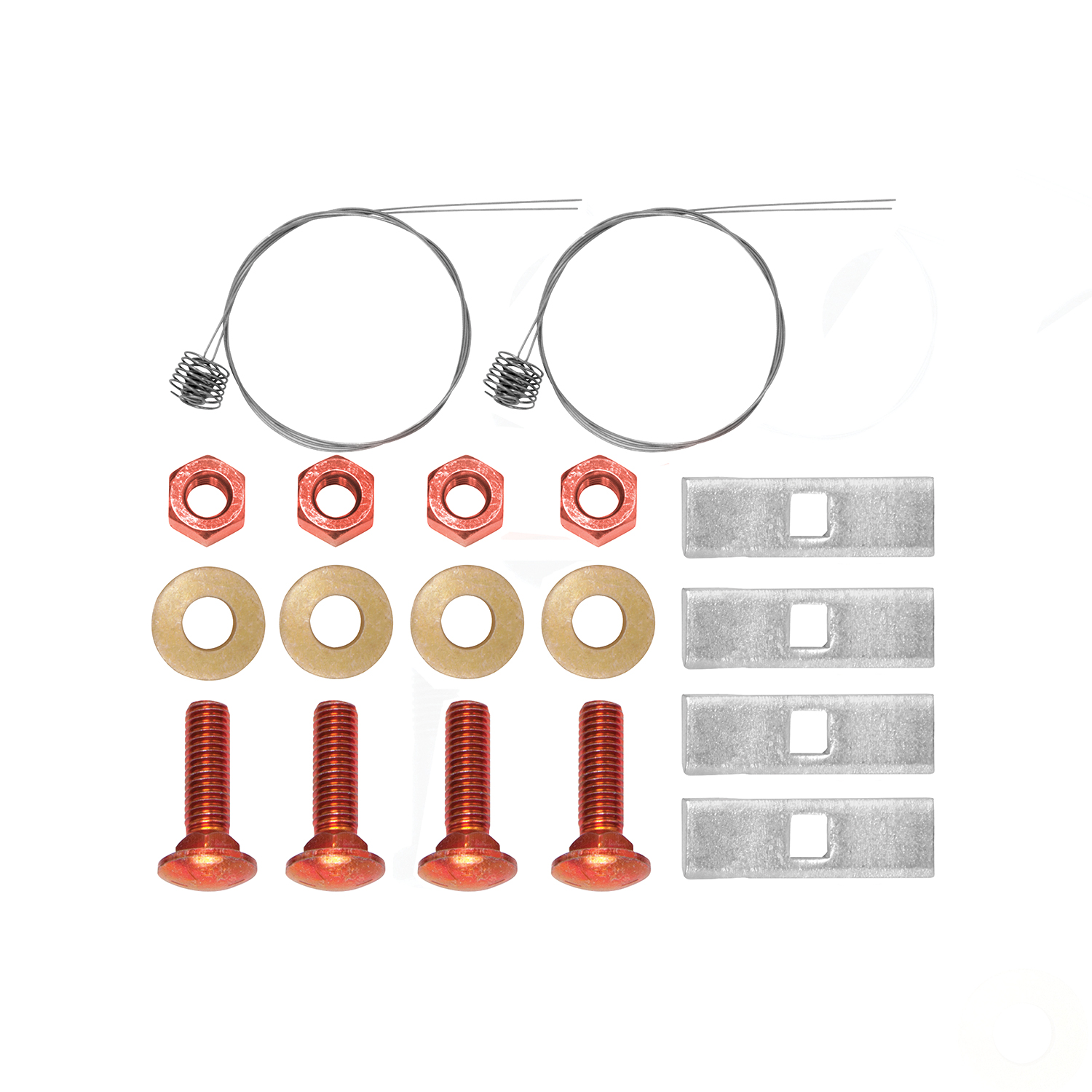

Fastener kit 76020F includes: (4) carriage bolts ½"-13 x 1.75 Gr8, (4) conical washers 1/2'', (4) blocks 1/4'' x 1'' x 3'', (4) hex nuts ½"-13 Gr8, and (4) pull wires ½''.
Yes. The first step is to remove the plastic expanding fasteners from the lower trim panel to access the installation area. The panel should be returned to the vehicle owner after installation.
Yes. You must pry off the four rubber exhaust hangers using exhaust removal pliers or a suitable tool. Spray with soapy water to make removal easier. Be sure to support the exhaust system during this process.
The fishwire method is used to route the carriage bolts and blocks through the vehicle frame access holes to the attachment points. Pull wires are attached to the bolts and left in place until the hitch is raised into position. The pull wires are then removed and the conical washers and hex nuts are installed onto the carriage bolts. See Figures 2 and 3 in the manual for detailed illustrations.
All hitch fasteners must be tightened to 110 Lb.-Ft. (149 N·M) using a torque wrench. Proper torque is essential to keep the hitch secure to the vehicle when towing.
The conical washers must be installed with the teeth side facing toward the hitch. This orientation is critical for proper fastener engagement.
After raising the hitch into position: (1) guide the fishwire ends through the attachment holes, (2) remove the pull wires, (3) install the conical washers (teeth side toward hitch) and ½'' hex nuts onto the carriage bolts, and (4) ensure no wires or other items have been pinched between the hitch and vehicle frame.
Yes. After tightening all hitch fasteners, raise the exhaust back into position and reinstall all four exhaust hangers.
Check that all fasteners and the ball are properly tightened. The manual recommends checking the hitch frequently to ensure all fasteners remain tight during use.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability while towing.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but periodic inspection is required.
A hitch or ball which has been damaged should be removed and replaced. Do not continue using a damaged hitch.
Return the plastic expanding fasteners and lower trim panel to the vehicle owner after installation.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt while towing.
Yes, the 76020 is designed for 2016-Current Mazda CX-9 models. Check the Cequent website for the most current application information.
You need: ratchet, torque wrench, safety glasses, socket, 6'' socket extension, flat head screwdriver, 7/8'' socket, and exhaust removal pliers.
Yes. Remove the lower trim panel and lower the exhaust system by removing the four rubber exhaust hangers. Both must be reinstalled after hitch installation.
Tighten all hitch fasteners to 110 Lb.-Ft. (149 N·M) using a torque wrench.
Maximum gross trailer weight is 4500 lb. (2043 kg) and maximum tongue weight is 675 lb. (306 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle.
The manual states you must assure no wires or other items have been pinched between the hitch and vehicle frame. If pinching occurs, reposition the hitch and pull wires to clear the obstruction before tightening fasteners.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2023 | Mazda CX-9 | Class 3 Trailer Hitch: 4500 lbs 675/4,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 675/4,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
