Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2005 - 2010, 2015 - 2023 Chrysler Dart
Confirmed to Fit
2011 - 2014 Chrysler Dart
Confirmed to Fit
2008 - 2023 Dodge Challenger
Confirmed to Fit
2006 - 2023 Dodge Charger
Confirmed to Fit
2005 - 2008 Dodge Magnum
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

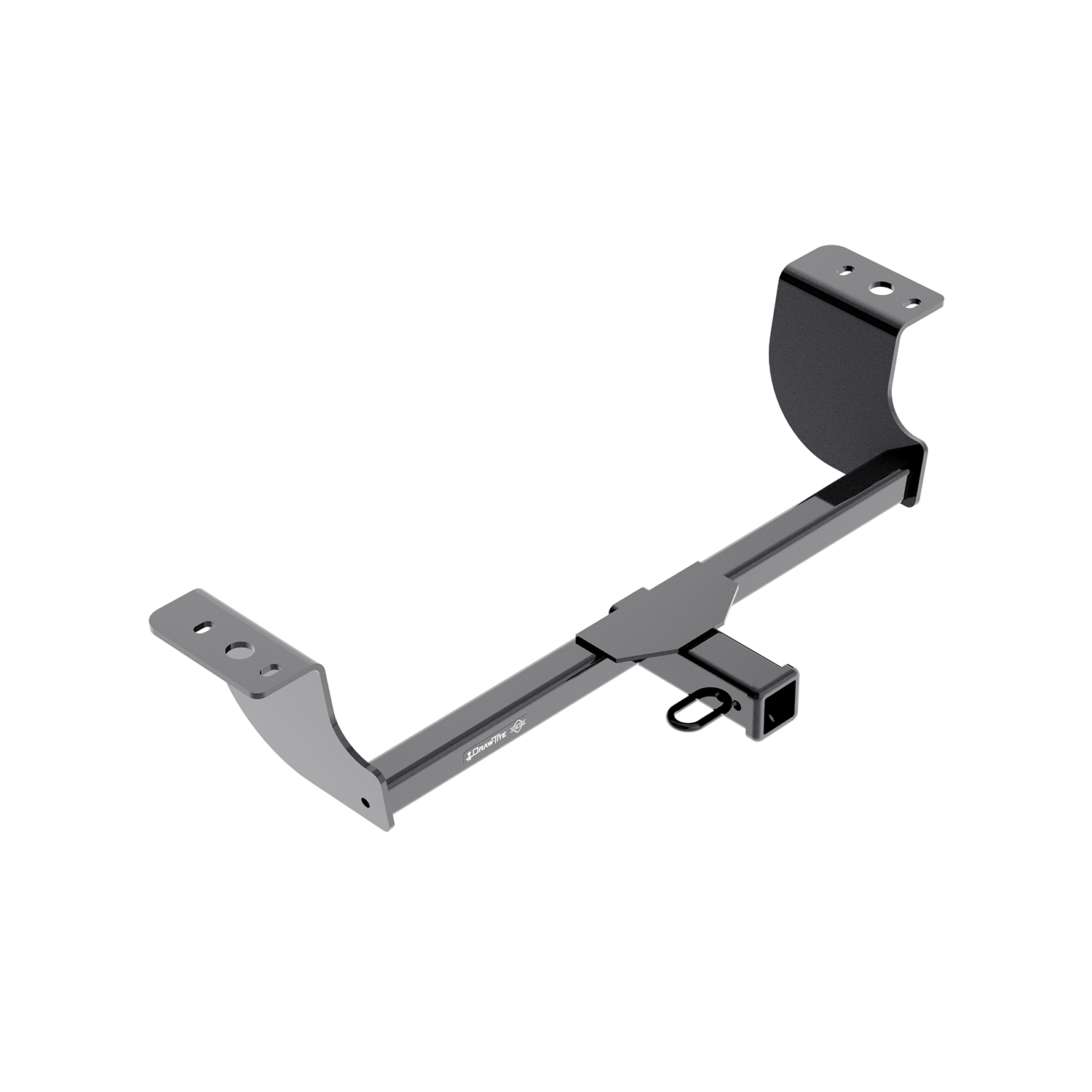

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 4,500 lbs. gross trailer weight (GTW) and up to 675 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76145 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 35 LBS |
| GROSS TOWING WEIGHT: | 4,500 LBS. |
| GROSS TONGUE WEIGHT: | 675 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
5 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2010, 2015 - 2023 | Chrysler Dart | Class 3 Trailer Hitch: 4500 lbs 675/4,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
| 2011 - 2014 | Chrysler Dart | Class 3 Trailer Hitch: 4500 lbs 675/4,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
| 2008 - 2023 | Dodge Challenger | Class 3 Trailer Hitch: 4500 lbs 675/4,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes Except with Quad Tip Exhaust |
| 2006 - 2023 | Dodge Charger | Class 3 Trailer Hitch: 4500 lbs 675/4,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
| 2005 - 2008 | Dodge Magnum | Class 3 Trailer Hitch: 4500 lbs 675/4,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Chrysler 300, Dodge Challenger, Dodge Charger, Dodge Magnum 76145 (Part #DT76145) fits the following vehicles: 2005-2023 Chrysler Dart; 2008-2023 Dodge Challenger; 2006-2023 Dodge Charger; 2005-2008 Dodge Magnum. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Chrysler 300, Dodge Challenger, Dodge Charger, Dodge Magnum 76145 (Part #DT76145) fits 2005-2023 Chrysler Dart models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Chrysler 300, Dodge Challenger, Dodge Charger, Dodge Magnum 76145 (Part #DT76145) is designed to fit the 2005-2023 Chrysler Dart.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Chrysler 300, Dodge Challenger, Dodge Charger, Dodge Magnum 76145 (Part #DT76145) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part 76145 fits 2008 and newer Dodge Challengers, except those with quad exhaust tips. Verify your vehicle does not have quad exhaust tips before purchasing.
Yes, part 76145 fits 2005 and newer Chrysler 300 models.
No. Part 76145 does not fit Dodge Challengers with quad exhaust tips. The hitch will interfere with the quad exhaust configuration.
No. Part 76145 is designed for 2005 and newer Chrysler 300 models. The 2004 model year is not supported.
Required tools: ratchet, torque wrench, safety glasses, sockets (8 mm, 10 mm, 13 mm, 15 mm, 18 mm, and 3/4 inch), socket extension, universal joint socket, flat-head screwdriver, and plastic trim tools.
For 2011 and newer models, the vehicle must be raised a minimum of 20 inches (measured from bottom of fascia to ground) to allow access to the frame rails and exhaust system.
Torque all ½ inch fasteners to 75 ft-lb (102 N·m). Torque the M12 bolt to 68 ft-lb (92 N·m). Proper torque is critical for safety when towing.
Part 76145 is a weight-carrying hitch with a maximum gross trailer weight of 4500 lb (2041 kg) and maximum tongue weight of 675 lb (306 kg). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits.
No drilling is required. The hitch uses existing weldnuts on the frame rails and existing exhaust hanger attachment points. The manual explicitly states: do not cut access or attachment holes with a torch.
Fascia removal is required only on vehicles with welded exhaust systems where the exhaust tips are riveted to the fascia. On vehicles with separable exhaust (pre-2011 and some 2011+), fascia removal is not necessary. Check your exhaust configuration before starting installation.

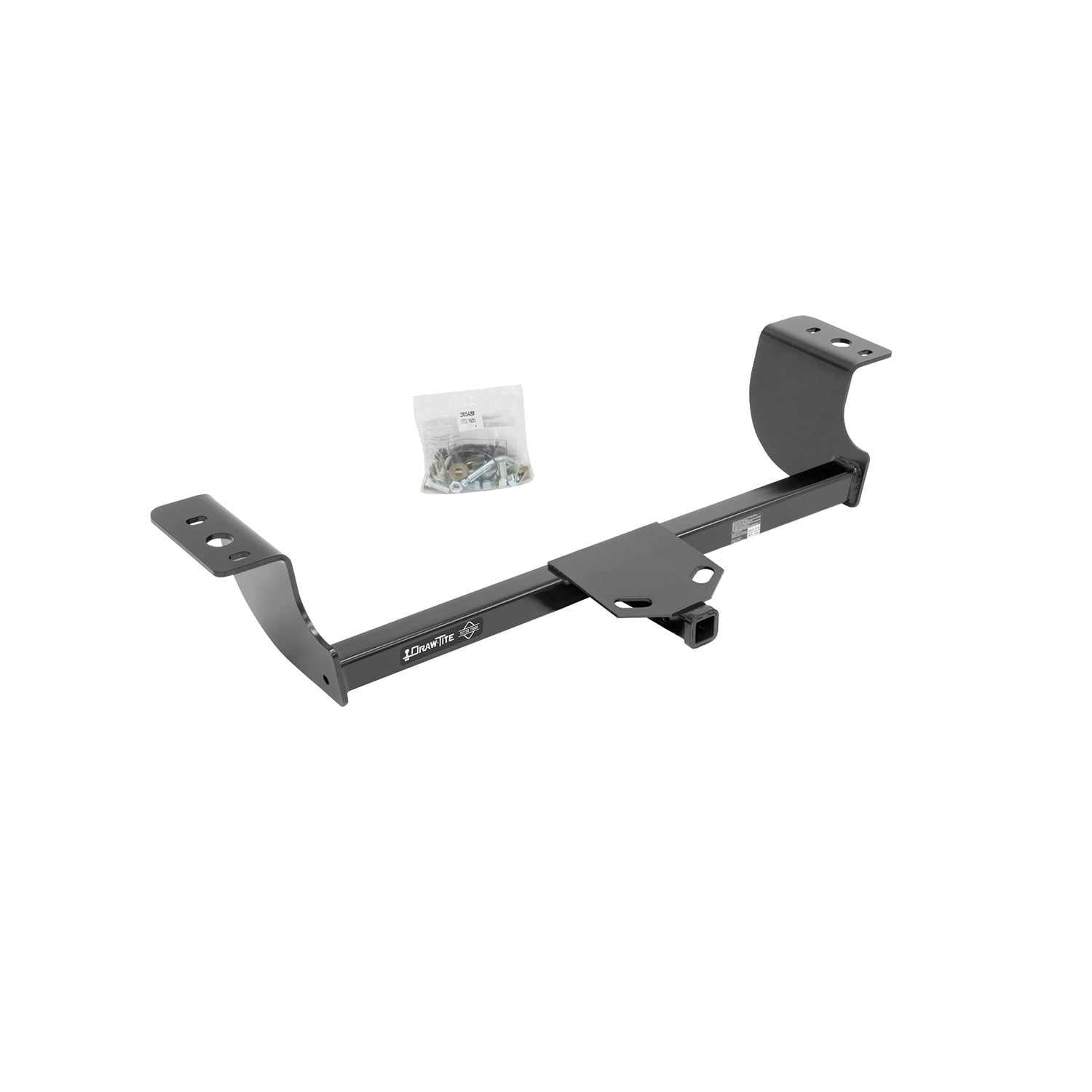

Fastener kit 76145F includes: (3) carriage bolts ½"-13 x 1.50 GR5, (3) spacers 1" x 3", (3) hex nuts ½", (4) conical tooth washers ½", (1) bolt M12 CL10.9, and (3) fish wires ½-13. All fasteners are included; no additional hardware is required.
Yes, part 76145 fits 2006 and newer Dodge Chargers.
Yes, part 76145 fits 2005-2008 Dodge Magnum models. Compatibility for 2009 and newer Magnums is not listed in the manual.
The manual does not list 2009 or newer Dodge Magnum models as compatible. Part 76145 is confirmed only for 2005-2008 Magnum models. Contact Cequent at 800-632-3290 or visit their website to verify compatibility for 2009 and newer years.
Pre-2011 vehicles with separable exhaust take approximately 30 minutes to install. 2011 and newer vehicles with welded exhaust assemblies and riveted exhaust tips (requiring fascia removal) take approximately 50 minutes. These times are averages for professional installers.
Muffler removal is required on 2011 and newer models. On pre-2011 models, the muffler is not removed; instead, the exhaust is lowered by removing the exhaust hangers. The hitch slides over the mufflers during installation.
Remove the exhaust hangers using a 13 mm socket. Spray lubricant or soapy water on the metal hanger rod and rubber isolator to ease removal. On vehicles with dual exhaust, remove hangers from both sides. On 2011 and newer models, also remove rubber isolators from hangers on exhaust pipes forward of the trunk pan for additional clearance.
Fish wire (½-13) is used to route the ½ inch carriage bolts and spacers through the access holes in the driver and passenger side frame rails. The fish wire pulls the hardware through the existing holes in the frame. The manual shows kinking the fish wire to keep the spacer independent of the bolt.
Two (2) carriage bolts and spacers go through the passenger side frame rail access hole. One (1) carriage bolt and spacer go through the driver side frame rail access hole. Total: three bolts and three spacers.
The conical tooth washer (½ inch) is a locking washer with teeth on one side. Install it with the teeth side facing against the hitch. Four conical tooth washers are included in the fastener kit. They are used under the ½ inch fasteners and under the M12 bolt to prevent loosening during towing.
The spacers (1 inch x 3 inch) are used with the ½ inch carriage bolts to create proper spacing and alignment when fastening the hitch to the frame rails through the access holes. Three spacers are included in the fastener kit.
Run the M12 bolt into the existing weldnut to clean dirt or debris from the weldnut. This is done before raising the hitch into position. Perform this step on both pre-2011 and 2011+ installations.
1. Lower exhaust by removing exhaust hangers (13 mm socket). 2. Clean weldnut with M12 bolt. 3. Fish carriage bolts and spacers through frame rail access holes. 4. Raise hitch over mufflers and loosely install M12 bolt and conical tooth washer into weldnut. 5. Install ½ inch conical tooth washers and nuts. 6. Torque all ½ inch fasteners to 75 ft-lb (102 N·m) and M12 bolt to 68 ft-lb (92 N·m). 7. Reinstall exhaust hangers.
1. Remove plastic appearance panels (Chrysler 300/300C only). 2. Lower exhaust by removing hangers (13 mm socket). 3. Remove muffler (V8: save assembly bolts and springs; V6: save band clamp). 4. Clean weldnut with M12 bolt. 5. Fish carriage bolts and spacers through frame rail access holes. 6. Raise passenger side bracket over passenger muffler, support it, loosely install M12 bolt and conical tooth washer through bracket into driver side frame rail, push passenger muffler up and outward, install ½ inch conical tooth washers and nuts. 7. Torque all ½ inch fasteners to 75 ft-lb (102 N·m) and M12 bolt to 68 ft-lb (92 N·m). 8. Reinstall exhaust hangers. 9. Reinstall wiring and bumper fascia.
On 2011 and newer V8 models, remove and save the (2) assembly bolts and springs from the flange (nut and spring are attached). Carefully remove the muffler from the driver's side. These bolts and springs must be saved for reinstallation after the hitch is installed.
On 2011 and newer V6 models, remove and save the band clamp located just before the "Y" connection on the exhaust. Separate the exhaust pipes and remove the muffler. Carefully remove the muffler from the driver's side. The band clamp must be saved for reinstallation.
Plastic appearance panel removal is required only on Chrysler 300 and 300C models. The panels cover the trunk pan and must be removed to access the frame rails. After installation, return the panels and fasteners to the vehicle owner.
Remove plastic expansion fasteners holding the wheel well liner to the fascia (each side). Pull back the wheel well liner to access the hidden screw (10 mm socket) holding the upper fascia to the quarter panel (each side). Remove remaining screws and plastic expansion fasteners along the bottom of the fascia, including the 10 mm nuts holding the underbody panel to the trunk pan. Gently remove the fascia and unplug wiring. Set the bumper fascia aside.
Loosely install the M12 bolt and conical tooth washer before installing the ½ inch fasteners. This holds the hitch in position. Then install the ½ inch conical tooth washers and nuts. Finally, torque all fasteners to their specified values in the final step. Do not fully tighten fasteners until all are in place.
Torque the M12 bolt to 68 ft-lb (92 N·m). This is the final torque specification after all fasteners are installed.
Torque all ½ inch fasteners (carriage bolts and hex nuts) to 75 ft-lb (102 N·m). This includes the three ½ inch fasteners on the frame rails and the ½ inch conical tooth washers and nuts.
After installation, verify that all fasteners are tight and the hitch is securely mounted to the vehicle. Check the hitch frequently during use to ensure all fasteners and the ball remain properly tightened. Proper torque is critical for safety when towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This prevents corrosion and damage to the vehicle interior.
The maximum tongue weight is 675 lb (306 kg). Do not exceed this limit or the lower of your vehicle manufacturer's towing rating.
If excessive sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Reduce speed and maintain steady steering until the sway subsides.
Load the trailer heavier in front. This means the weight should be distributed so that the front of the trailer (near the tongue) is heavier than the rear. This improves stability and handling when towing.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Do not cut, weld, or modify the receiver.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but recommends periodic checks during use to ensure safety when towing.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch. Contact Cequent at 800-632-3290 for replacement parts.
Run the M12 bolt into the existing weldnut to clean dirt or debris from the weldnut before raising the hitch into position. This ensures a clean connection and proper torque application.
Spray a lubricant or soapy water on the metal hanger rod and the rubber isolator to ease removal. Allow the lubricant to soak for a few minutes before attempting to remove the hanger again.
Gently push the passenger side muffler up and outward for clearance. If additional clearance is needed, remove the rubber isolators from the exhaust hangers on the exhaust pipes forward of the trunk pan. This provides additional space to position the hitch bracket.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
