Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2018 - 2026 Honda Odyssey
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
On Sale Today
Original price was $307.50. Current price is $205.73.You save $101.77 (33%)
Free Shipping
Ships free on all orders
Authorized Dealer
FREE ShippingFREE SHIPPING
Estimated delivery Wed, Sep 16 - Sat, Sep 19
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout

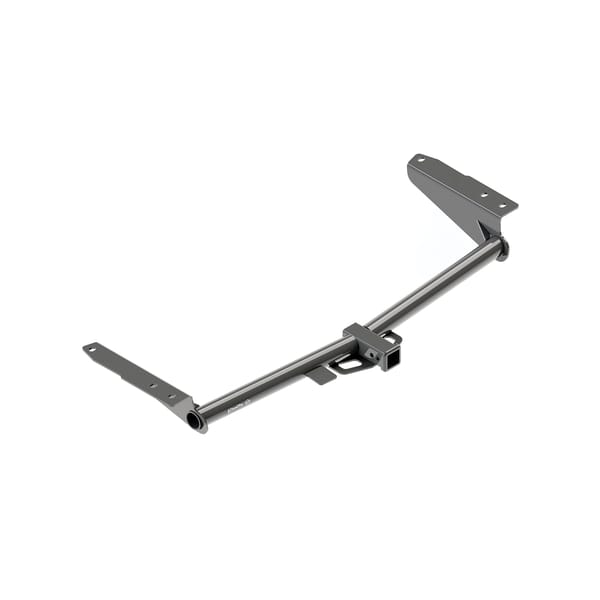

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 4,500 lbs. gross trailer weight (GTW) and up to 675 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 5,000 lbs. weight distribution (WD) and 675 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76171 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 44.8 LBS |
| GROSS TOWING WEIGHT: | 4,500 LBS. |
| GROSS TONGUE WEIGHT: | 675 LBS. |

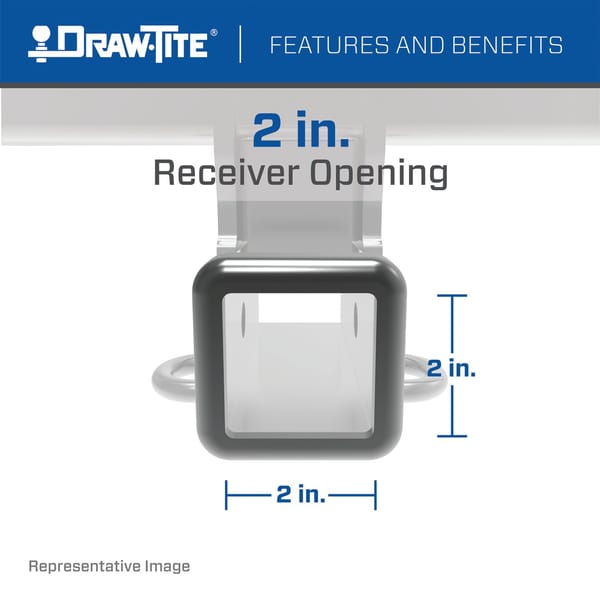

| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 5,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 675 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2026 | Honda Odyssey | Class 3 Trailer Hitch: 4500 lbs 675/4,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 675/5,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 25 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Honda Odyssey 76171 (Part #DT76171) fits the following vehicles: 2018-2026 Honda Odyssey. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Honda Odyssey 76171 (Part #DT76171) is designed to fit the 2018-2026 Honda Odyssey.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Honda Odyssey 76171 (Part #DT76171) fits 2018-2026 Honda Odyssey models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Honda Odyssey 76171 (Part #DT76171) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part numbers 76171, 84171, and CQT76171 are designed for 2018-Current Honda Odyssey models. Visit the manufacturer's website for the most up-to-date information regarding specific model years and trim levels.
This hitch (part numbers 76171, 84171, CQT76171) is designed for 2018-Current Honda Odyssey models. The manual recommends visiting the manufacturer's website at www.cequentgroup.com for the most current information regarding specific model years and trim levels, as applications may be updated.
You will need: ratchet, torque wrench, safety glasses, 10 mm and 19 mm sockets, 6 inch socket extension, panel removal tool, Phillips screwdriver, tape, utility knife, and exhaust removal pliers.
Fastener Kit 76171F includes: (6) conical washers 1/2 inch (Part 01292008) and (6) M12 bolts 1.25 x 35 CL8.8. These fasteners attach the hitch to the vehicle's frame rails.
No, you do not need to fully remove the exhaust. You will temporarily lower the exhaust pipe on the passenger side using exhaust removal pliers and support it with a bungee cord or support to prevent damage to the muffler.
Remove the mud flap on the driver side (if present) and the bottom appearance panel on the driver side by removing (4) rivets and (2) screws using a Phillips screwdriver, panel removal tool, and 10 mm socket. Also remove (2) rivets from the small plastic panel above the exhaust tip on the passenger side using the panel removal tool. Keep all fasteners and panels for reinstallation.
1. Remove mud flap and bottom appearance panels. 2. Lower exhaust pipe on passenger side temporarily. 3. Raise hitch into position and slide it over passenger side exhaust pipe first, then loosely install M12 bolts and conical washers. 4. Tighten all M12 fasteners with torque wrench to 76 Lb.-Ft. (103 N·M). 5. Trim bottom appearance panel. 6. Reinstall all fasteners, exhaust, appearance panels, and mud flap.
Loosely install the M12 bolts and conical washers first (Step 3). Then tighten all M12 fasteners with a torque wrench to 76 Lb.-Ft. (103 N·M) in Step 4. Do not leave them loose after installation.
Tighten all M12 fasteners to 76 Lb.-Ft. (103 N·M) using a torque wrench.
The M12 bolts are 1.25 x 35 mm, Class 8.8 (CL8.8). There are (6) bolts included in Fastener Kit 76171F. They must be tightened to 76 Lb.-Ft. (103 N·M).
The conical washers (1/2 inch, Part 01292008) are included in Fastener Kit 76171F with (6) washers total. They must be oriented with the teeth side against the hitch when installed with the M12 bolts.
No drilling is required. The hitch attaches to existing weldnuts on the vehicle's frame rails using the included M12 bolts and conical washers.
Yes, you must trim the bottom appearance panel as shown in Figure 3. The trim dimensions are 1.0 inch from the edge and 10.0 inches in length. Use a utility knife for this trimming.
Yes, trimming the bottom appearance panel is a permanent modification. The panel must be trimmed to 1.0 inch from the edge and 10.0 inches in length to accommodate the hitch installation.
Do not exceed the lower of your vehicle manufacturer's rating or: Weight Carrying hitch: 4500 lb (2043 kg) maximum gross trailer weight, 675 lb (306 kg) maximum tongue weight. Weight Distributing hitch: 5000 lb (2270 kg) maximum gross trailer weight, 675 lb (306 kg) maximum tongue weight.
The maximum tongue weight is 675 lb (306 kg) for both weight carrying and weight distributing configurations.
Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. Load the trailer heavier in front. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Always read and follow all warnings and instructions for your vehicle and other accessories used with the hitch before use.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
No. Do not cut, weld, or modify this receiver. Additionally, do not cut access or attachment holes with a torch.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection.
Check that all fasteners are tight and the hitch is securely mounted to the vehicle. The manual recommends checking the hitch frequently to ensure all fasteners and the ball are properly tightened.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue using a damaged hitch.
The average installation time is 25 minutes for professional installers. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
Yes. This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Cequent Performance Products warrants to the original consumer purchaser that the product will be free from material defects in both material and workmanship, ordinary wear and tear excepted. The warranty is valid only if products are returned for inspection and testing, the inspection discloses material nonconformance not caused by misuse, neglect, wear and tear, improper installation, unsuitable storage, improper repair, alteration, or accident, and the products were installed, maintained and used in accordance with instructions. Product replacement is the sole and exclusive remedy. Contact Cequent at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, 1-800-632-3290.
Check all fasteners and retighten them to the proper torque specification of 76 Lb.-Ft. (103 N·M) using a torque wrench. The manual recommends checking the hitch frequently to ensure all fasteners remain properly tightened, as proper torque is needed to keep the hitch secure to the vehicle when towing.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
