Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

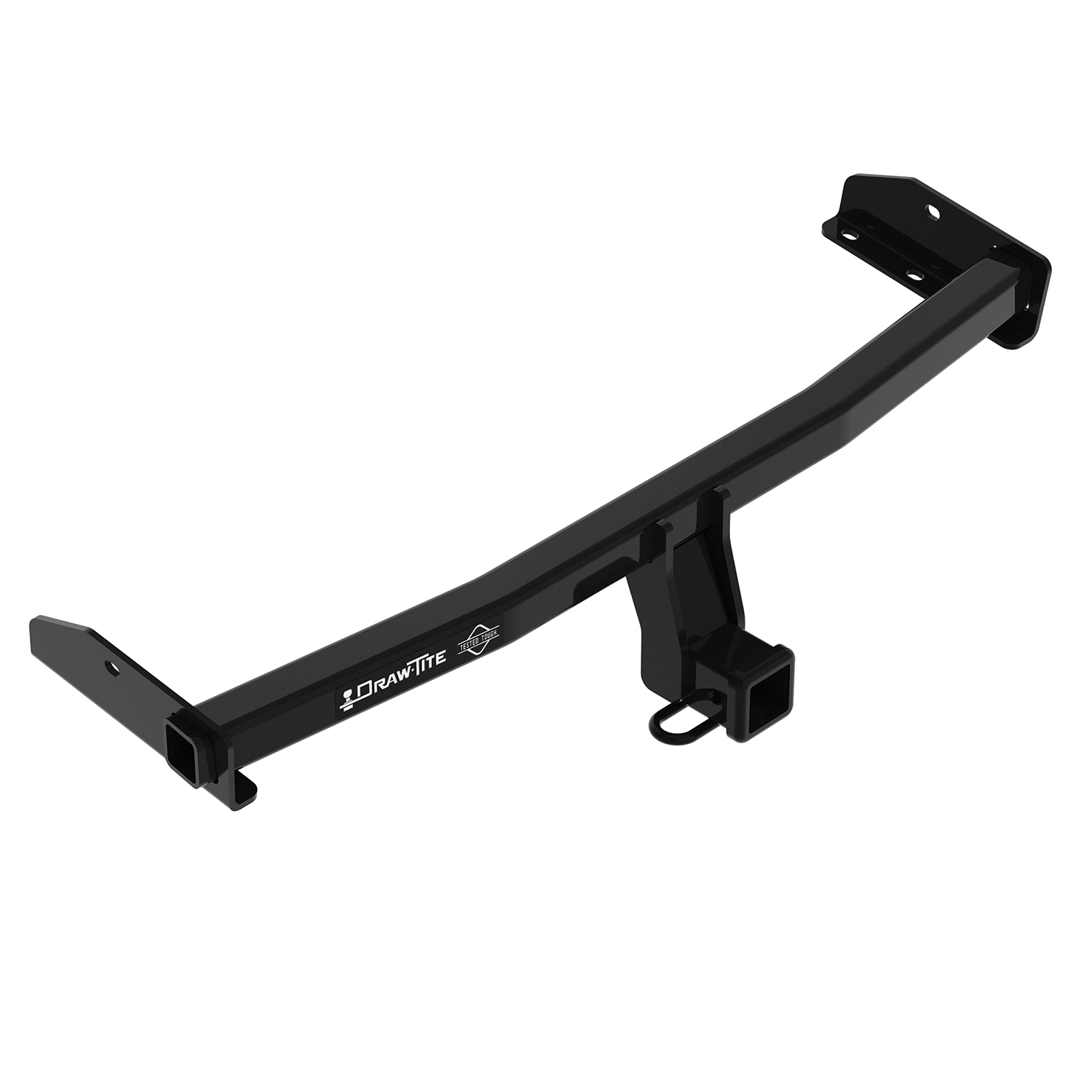

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 525 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76225 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 42 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 525 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2020 | Dodge Journey | Class 3 Trailer Hitch: 3500 lbs 525/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 90 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Dodge Journey 76225 (Part #DT76225) fits the following vehicles: 2009-2020 Dodge Journey. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Dodge Journey 76225 (Part #DT76225) is designed to fit the 2009-2020 Dodge Journey.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Dodge Journey 76225 (Part #DT76225) fits 2009-2020 Dodge Journey models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Dodge Journey 76225 (Part #DT76225) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part numbers 76225, 84225, and CQT76225 are designed for 2009-Current Dodge Journey models. Visit the manufacturer's website to confirm your specific trim level and year are covered.
This is a weight-carrying hitch with a maximum gross trailer weight of 3500 lb (1589 kg) and maximum tongue weight of 525 lb (238 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Required tools: drill with 5/32" bit, ratchet, torque wrench, safety glasses, sockets (7mm, 13mm, 3/4"), 6" socket extension, exhaust removal pliers, utility knife, 5/32" Torx bit, plastic rivet gun, and flat head screwdriver.
Yes. Step 3 requires removing the bumper beam using a 13mm socket to remove the three nuts holding it on each side of the vehicle. All wiring must be removed from the bumper beam before removal.
Yes. Step 2 requires lowering the exhaust system using exhaust removal pliers to detach the two exhaust hangers on each side. The exhaust system must be supported before lowering it.
Yes. You must drill out three rivets inside the wheel well on each side and four rivets inside the trunk opening using a drill with a 5/32" bit. You must also trim the fascia 3.5" according to Figure 2.
All 1/2-13 Gr5 fasteners must be tightened to 75 Lb.-Ft. (102 N·M) using a torque wrench. Proper torque is essential to keep the hitch secure during towing.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. DO NOT apply your brakes and DO NOT speed up.
Check that all fasteners are tight and the hitch is securely mounted to the vehicle. Check periodically during use to ensure all fasteners and the ball remain properly tightened.
Fastener kit 76196F includes: six pull wires (1/2", part no. 5482), six conical tooth washers (1/2", part no. 01292008), six hex nuts (1/2-13 GR5), six blocks (1/4" x 1.0" x 3.0", part no. 3022), six carriage bolts (1/2-13 x 1.75), one cable tie (part no. 0827080-00), and ten plastic expansion rivets (part no. 110269).
Yes. If your vehicle is equipped with reverse sensors, you must use cable ties to secure the wiring harness to the hitch cross tube during Step 6 of installation. One cable tie is included in the fastener kit.
The conical washer must be installed with the teeth side facing against the hitch. This is shown in Figure 1 on page 3.
Three fastener assemblies are required per side, for a total of six fastener assemblies. Each assembly consists of a pull wire, conical tooth washer, hex nut, block, and carriage bolt.
The pull wire is used to guide the carriage bolt through the block and frame rail to the attachment holes. The pull wire is attached to the carriage bolt, fed through the block, then through the frame rail, and pulled out through the attachment holes. The pull wire should be kinked to keep the spacer (block) independent of the bolt.
Step 1 requires: (a) drilling out three rivets inside the wheel well on each side and four rivets inside the trunk opening using a 5/32" drill bit; (b) removing one screw from the top of the wheel well on each side using a 7mm socket; (c) removing four push pins underneath the trunk opening at the top of the fascia using a flat blade screwdriver; (d) removing the fascia. A 5/32" Allen bit may help remove the rubber trunk stopper to access rivets near the brake lights.
Use exhaust removal pliers to detach the two exhaust hangers on each side of the vehicle. Before lowering, ensure the exhaust system is supported to prevent it from falling. Spray lubricant may help remove stubborn exhaust hangers.
When removing the bumper beam in Step 3, remove all wiring from the bumper beam and return the bumper beam to the customer. The wiring must be disconnected before the bumper beam is removed.
The fascia must be trimmed 3.5" according to Figure 2. This trimming is shown in Step 7 and illustrated on page 3.
No. The manual explicitly states: "Do not cut access or attachment holes with a torch." Use appropriate cutting tools such as a utility knife for the fascia trimming.
Step 8 requires: raise the exhaust back into place and replace the fascia by reversing the process in Step 1. This means reinstalling the push pins, screws, and rivets in the reverse order they were removed.
Kinking the pull wire means bending it to keep the spacer (block) independent of the bolt. This is shown in Figure 2 on page 3 and prevents the spacer from moving along the bolt during installation.
When inserting the hitch into the frame rails in Step 4, make sure the blocks are aligned properly and do not overlap. The blocks should be positioned correctly before tightening the fasteners to 75 Lb.-Ft.
A 5/32" drill bit is required to drill out the rivets. You must remove three rivets inside the wheel well on each side and four rivets inside the trunk opening.
You need three socket sizes: 7mm (to remove wheel well screws), 13mm (to remove bumper beam nuts), and 3/4" (for other fasteners). A 6" socket extension is also required.
Always wear safety glasses when installing the hitch. The manual also recommends observing safety precautions when working beneath a vehicle and wearing eye protection.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue using a damaged hitch.
Always wear your seatbelt. Load the trailer heavier in front. Slow down when towing and never exceed any posted speed limit. Do not exceed the lower of your vehicle manufacturer's towing rating or this hitch's 3500 lb GVWR / 525 lb tongue weight limits.
This is a weight-carrying hitch. Weight-distributing capability is listed as N/A. The maximum gross trailer weight is 3500 lb (1589 kg) and maximum tongue weight is 525 lb (238 kg).
The average installation time for professional installers is 90 minutes. If you do not feel comfortable performing the installation yourself or need assistance, contact a professional installer.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual emphasizes that proper torque is needed to keep the hitch secure to the vehicle when towing.
This product includes a Limited Lifetime Warranty covering material defects in both material and workmanship, excluding ordinary wear and tear. The warranty is valid only if products are installed, maintained, and used according to the manufacturer's instructions. Product replacement is the sole remedy. Contact Horizon Global Americas Inc. at 1-800-632-3290 or 47912 Halyard Drive, Suite 100, Plymouth, MI 48170 to make a warranty claim.
For technical assistance, contact Horizon Global Americas Inc. at 1-800-632-3290 or email TechnicalSupport@horizonglobal.com. Visit www.cequentgroup.com for additional information and step-by-step photo installation instructions.
Exhaust hangers can be stuck due to corrosion or age. The manual recommends using spray lubricant to help remove stubborn exhaust hangers. Allow the lubricant to penetrate before attempting removal with exhaust removal pliers.
A 5/32" Allen bit may be useful to remove the rubber trunk stopper to allow access to the rivets located near the brake lights. This will provide better access to drill out those rivets.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
