Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

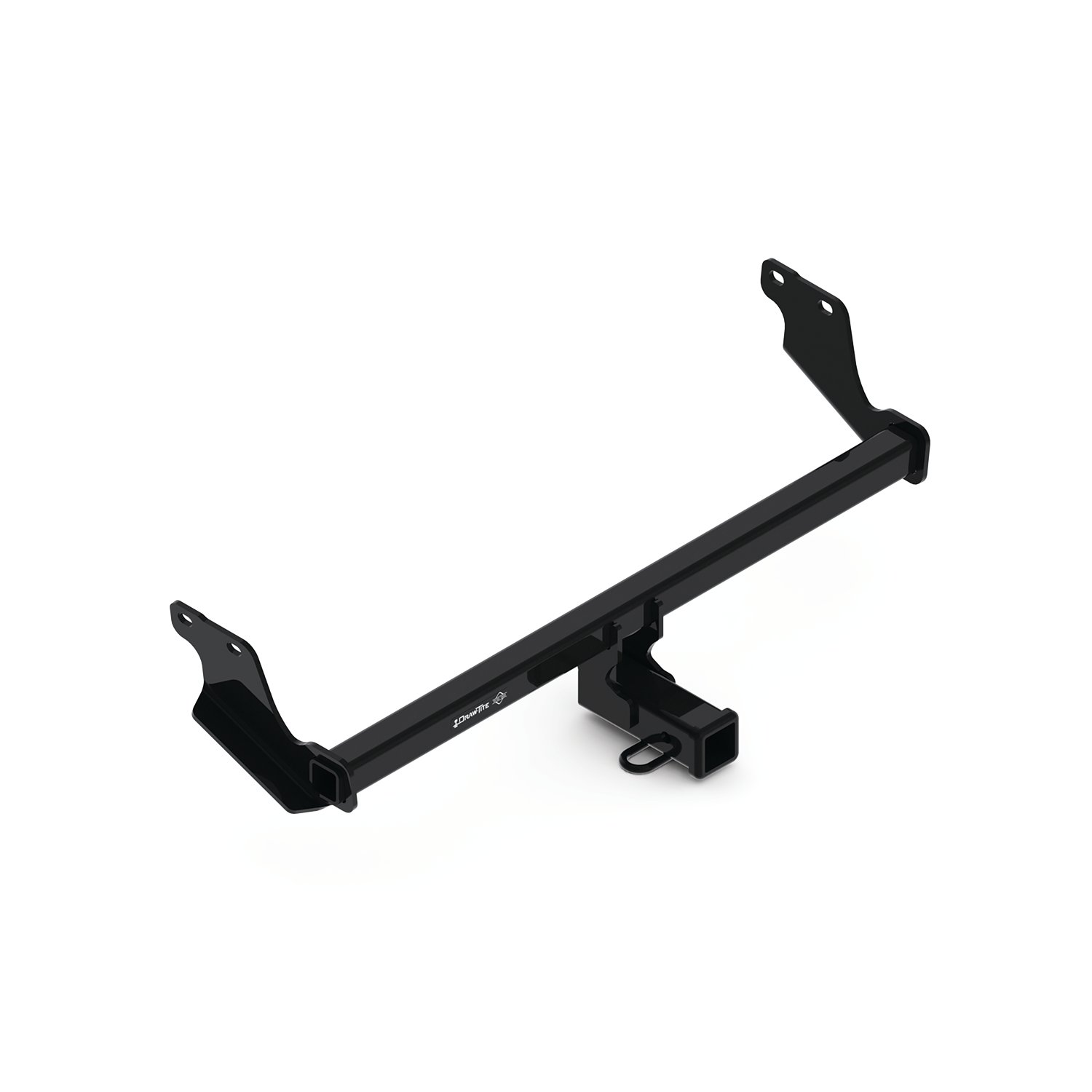

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76641 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 28 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2023 - 2026 | Dodge Hornet | Class 3 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 90 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Dodge Hornet 76641 (Part #DT76641) fits 2023-2026 Dodge Hornet models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Dodge Hornet 76641 (Part #DT76641) fits the following vehicles: 2023-2026 Dodge Hornet. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Dodge Hornet 76641 (Part #DT76641) is designed to fit the 2023-2026 Dodge Hornet.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Dodge Hornet 76641 (Part #DT76641) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, part numbers 76641, 84641, and CQT76641 are designed for the Dodge Hornet GT. Visit the Horizon Global website for the most up-to-date information regarding application years, sub-models, and trim levels.
The maximum gross trailer weight is 2000 lb (907 kg) and the maximum tongue weight is 200 lb (90.7 kg) for the weight-carrying hitch type. The lowest capacity of any component in your towing system—including your vehicle, trailer, and hitch—determines the maximum load you can safely tow. Never exceed your vehicle manufacturer's recommended towing capacity.
Required tools include: ratchet, torque wrench, safety glasses, 13mm and 3/4" sockets, T25 and T30 Torx bits, flat screwdriver, socket extension, die grinder, scraper knife, tape measure, marker, tape, plastic trim tools, and aviation snips.
The fastener kit 76641F includes: (4) carriage bolts 1/2-13 x 1.75 Gr5, (4) spacer blocks 1/4 x 1.00 x 2.00, (4) conical washers 1/2, (4) hex nuts 1/2-13 GR5, and (4) pull wires 1/2. All fasteners are used on both sides of the vehicle (2 per side).
No drilling is required. The hitch uses existing holes in the frame rails and fasteners are pulled through using pull wires. However, the bumper fascia must be trimmed with a notch approximately 4-1/2" tall by 3-1/2" wide, and excess caulking must be removed from the frame rails.
Yes. Step 1 requires lowering the muffler by removing one 13mm bolt from each exhaust hanger (one per side). Support the exhaust system with a strap before removing the hangers. Save the bolts for reinstallation. The muffler is raised back into position in Step 10 after the hitch is installed.
The bumper fascia does not need to be fully removed, but it must be loosened. Step 2 requires removing (4) T30 Torx screws from the bottom edge, (2) push-pin fasteners from the outer bottom area near the wheel well, and (8) T25 Torx screws (4 per side) from inside the wheel well liner. Save all fasteners for reinstallation. Gently pull the bottom edge to verify it moves down freely.
The notch must be cut in the bottom center of the fascia approximately 4-1/2" tall by 3-1/2" wide. Use a tape measure, marker, and aviation snips to measure, mark, and cut. Be aware of the hands-free antenna and wiring inside the fascia and do not cut into any wiring.
Yes. Step 6 requires removing the two prongs from each exhaust hanger bracket using a cutting tool. This modification is necessary to allow the hitch to fit properly. The modified hangers are then reinstalled in Step 10.
Yes. Step 5 requires using a knife scraper to remove excess caulking from the outer surfaces of the frame rails so the hitch bracket will sit flat against the frame.
All 1/2-13 Gr5 fasteners must be torqued to 75 Lb.-Ft. (102 N·M). The exhaust hanger M8 fasteners must be torqued to 20 Lb.-Ft. (27 N·M). Use a torque wrench to ensure proper torque.
All M8 fasteners on the exhaust hanger brackets must be torqued to 20 Lb.-Ft. (27 N·M) using a torque wrench. These bolts are reinstalled in Step 10 after the hitch is mounted.
1. Lower muffler (support exhaust with strap). 2. Loosen bumper fascia (remove Torx screws and push-pin fasteners). 3. Remove rubber plugs and adhesive tape from frame rails. 4. Trim fascia notch (4-1/2" x 3-1/2"). 5. Remove excess caulking from frame rails. 6. Modify exhaust hangers (remove prongs). 7. Install fasteners using pull wires through frame rails. 8. Raise hitch into position, install forward ends first with receiver tube angled downward, feed pull wires through hitch mounting holes, pull fascia down, rotate hitch into position, align holes, pull bolts through, remove pull wires, loosely install conical washers and hex nuts. 9. Torque all 1/2-13 Gr5 fasteners to 75 Lb.-Ft. (102 N·M). 10. Raise muffler and torque M8 fasteners to 20 Lb.-Ft. (27 N·M). 11. Reattach bumper fascia and adhesive patch.
Step 7 uses pull wires to install fasteners inside the frame rails. Feed the coiled end of each pull wire through an existing hole on the outer side of the frame rail and out through the access hole in the bottom of the frame (2 per side). Attach the 1/2" carriage bolts and 1/4" spacer blocks to the pull wires and pull the fasteners inside the frame rails. Leave pull wires attached temporarily. In Step 8, feed all pull wires through the mounting holes in the hitch, then pull the bolts through the hitch into position and remove the pull wires.
In Step 8, after pulling the bolts through the hitch into position, loosely install the conical washers and hex nuts onto the carriage bolts (4 places, 2 per side). Do not fully tighten them at this stage. All 1/2-13 Gr5 fasteners are then torqued to 75 Lb.-Ft. (102 N·M) in Step 9 using a torque wrench.
In Step 8, raise the hitch into position by installing the forward ends of the side brackets first with the receiver tube angled downward. After feeding the pull wires through the mounting holes and pulling the fascia down, rotate the hitch into position to align the holes with the frame.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Support the exhaust system with a strap before removing hangers. Do not cut wiring inside the fascia. Do not use a torch to cut access or attachment holes. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced.
No. The manual explicitly states DO NOT cut, weld, or modify this trailer hitch. Modifications to the hitch itself will void the warranty and compromise safety.
After installation, check that the hitch is securely mounted to the vehicle and all fasteners are tight. The manual states to regularly check that all fasteners are tight and the hitch is securely mounted. Ensure all fasteners are torqued to the prescribed torque values (75 Lb.-Ft. for 1/2-13 Gr5 bolts and 20 Lb.-Ft. for M8 exhaust bolts). For additional security, thread locker can be used on all fasteners.
The manual states to regularly check that all fasteners are tight and the hitch is securely mounted to the vehicle. Regular checks are necessary to ensure hitch towing capacity and longevity of the product. No specific interval is provided; check frequently during normal use.
Yes. The manual states that for additional security, thread locker can be used on all fasteners. This is optional but recommended for added safety during towing.
The product includes a Limited Lifetime Warranty covering the original consumer purchaser only. The warranty covers material defects in both material and workmanship, ordinary wear and tear excepted. The warranty is valid only if products are returned for inspection and testing, the defect is not caused by misuse, neglect, wear and tear, improper installation, unsuitable storage, improper repair, alteration, or accident, and the product was installed, maintained, and used according to instructions. Product replacement is the sole remedy. Contact Horizon Global at 127 Public Square Suite 5300, Cleveland, OH 44114, or 800-632-3290 to make a claim. Retain your purchase receipt to verify date of purchase.
A damaged hitch or ball must be removed and replaced. Do not attempt to repair a damaged hitch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
The manual specifies the 76641 hitch is designed for the Dodge Hornet GT. For information about compatibility with other vehicle makes, models, years, sub-models, or trim levels, visit the Horizon Global website at www.horizonglobal.com or contact technical support at 800-632-3290.
The installation difficulty is rated as Intermediate. This rating is based on time and effort involved and may vary depending on installer level of expertise, condition of the vehicle, and availability of proper tools and equipment. Installation times are listed on Horizon Global websites or in downloadable application guides.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
