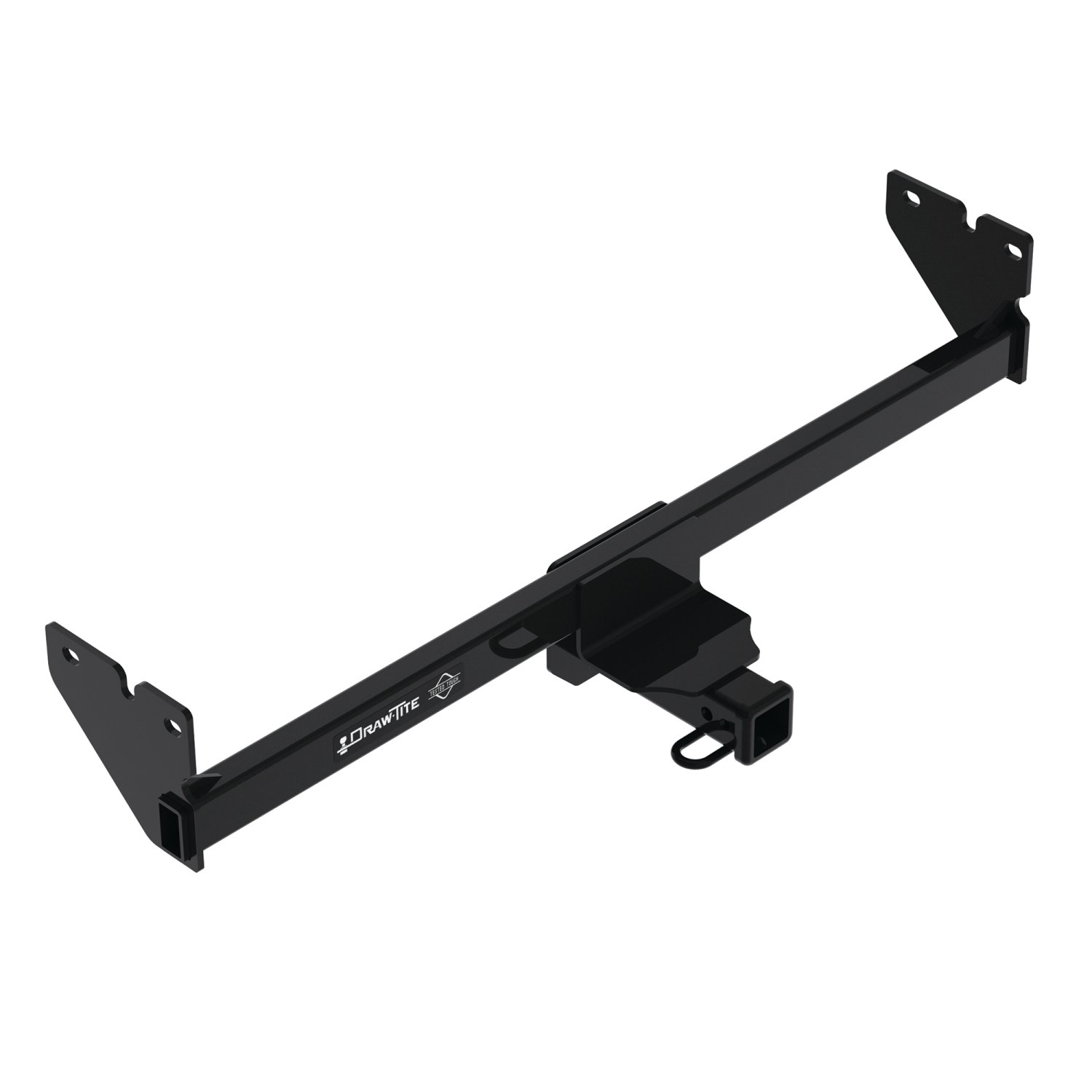

Draw-Tite Hardware Kit For Class 3 Trailer Hitch, 2 Inch 76386 For 2020-2025 Volkswagen Atlas Cross Sport Draw-tite$55.49Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2020 - 2025 Volkswagen Atlas Cross Sport
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 5,000 lbs. gross trailer weight (GTW) and up to 750 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76386 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 37.47 LBS |
| GROSS TOWING WEIGHT: | 5,000 LBS. |
| GROSS TONGUE WEIGHT: | 750 LBS. |

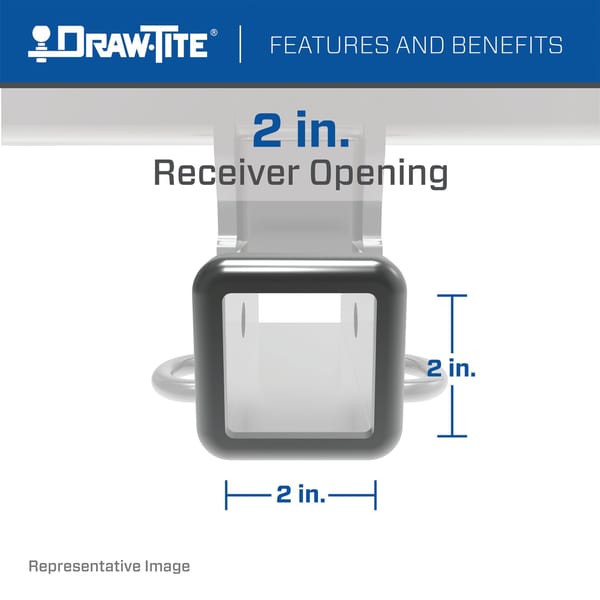

| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2025 | Volkswagen Atlas Cross Sport | Class 3 Trailer Hitch: 5000 lbs 750/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Volkswagen Atlas Cross Sport 76386 (Part #DT76386) fits the following vehicles: 2020-2025 Volkswagen Atlas Cross Sport. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Volkswagen Atlas Cross Sport 76386 (Part #DT76386) fits 2020-2025 Volkswagen Atlas Cross Sport models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Volkswagen Atlas Cross Sport 76386 (Part #DT76386) is designed to fit the 2020-2025 Volkswagen Atlas Cross Sport.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Volkswagen Atlas Cross Sport 76386 (Part #DT76386) Drilling is required for installation. Basic hand tools are typically all you need.
Yes. Part numbers 76386, 84386, and CQT76386 are designed for 2020-Current Volkswagen Atlas Cross Sport. Visit the manufacturer's website for the most up-to-date information regarding application years and trim levels.
All 7/16-14x1.75 GR 5 fasteners must be tightened to 50 ft-lb (68 N·m).
Maximum Gross Trailer Weight: 5000 lb (2268 kg). Maximum Tongue Weight: 750 lb (340 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
Required tools: T15 Torx bit, flat head screwdriver, utility knife, tape measure, marker, 3/4" socket, ratchet, torque wrench, and safety glasses.
No drilling is required. The hitch uses existing frame rail access holes. However, the lower fascia must be trimmed using a utility knife, and caulking must be removed from the fascia area.
The manual does not mention disconnecting the battery. However, the installation involves removing wiring cable clips from the frame rails, so exercise caution around electrical components.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Do not cut, weld, or modify the receiver.
Yes, part numbers 76386, 84386, and CQT76386 are designed for 2020-Current Volkswagen Atlas Cross Sport models. For the most current information on specific trim levels and model years, visit www.horizonglobal.com.
This is a weight-carrying hitch with a maximum gross trailer weight of 5000 lb (2268 kg) and a maximum tongue weight of 750 lb (340 kg). However, you must not exceed the lower of these limits or your vehicle manufacturer's towing rating. Weight distributing capacity is not applicable for this hitch type.
The fastener kit (76386F) includes: (4) carriage bolts 7/16"-14x1.75 GR5, (4) washers 0.88 x 2.00 x .109, (4) conical washers 7/16", (4) hex nuts 7/16"-14 GR2, and (4) pull wires 7/16-14. All fasteners are identical on both sides of the hitch.
The average installation time for professional installers is 40 minutes. If you do not feel comfortable performing the installation on your own or need assistance, contact a professional installer.
The first step is to loosen the lower fascia by using a T15 Torx bit to remove 3 screws from the bottom of the lower fascia. Return 1 screw to the vehicle owner.
Using a flat head screwdriver, remove 2 wiring cable clips from both frame rails. Using a utility knife, remove the caulking area as shown in the manual. Feed the carriage bolts and washers through the access holes on both frame rails using the pull wires. Leave the pull wires attached until the hitch is positioned.
Using a tape measure, marker, and utility knife, measure, mark, and trim the lower fascia. The manual specifies trimming 7 3/4" of the vehicle front and 1 1/2" centerline, as shown in Figure 4. Refer to the detailed diagram in the manual for exact trim locations.
Gently pull the lower fascia outward, raise the hitch into position, and slide it behind the fascia. Feed the pull wires through the bracket slots. Remove the pull wires and loosely install the conical washers and hex nuts to the hitch. Do not fully tighten at this stage.
All 7/16-14x1.75 GR 5 fasteners must be tightened to 50 ft-lb (68 N·m) using a torque wrench. Proper torque is essential to keep the hitch secure to the vehicle when towing.
After tightening all fasteners to 50 ft-lb (68 N·m), reinstall the 2 screws on the side of the lower fascia using the T15 Torx bit.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Periodically verify that the hitch is securely mounted to the vehicle. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Slow down when towing and never exceed any posted speed limit.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability while towing.
Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. Load the trailer heavier in front. Do not exceed the lower of your towing vehicle manufacturer's rating or the hitch's maximum capacity (5000 lb gross trailer weight, 750 lb tongue weight).
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. Periodically verify that the hitch is securely mounted to your vehicle.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch or ball.
No. Do not cut, weld, or modify the receiver. Modifications are not permitted and will compromise the safety and integrity of the hitch.
No. Do not cut access or attachment holes with a torch. Use only the utility knife to trim the lower fascia and remove caulking as specified in the installation instructions.
You need to loosen the lower fascia by removing 3 screws from the bottom using a T15 Torx bit. You also need to remove 2 wiring cable clips from both frame rails using a flat head screwdriver. No other factory components require removal.
The hitch receiver (part numbers 76386, 84386, or CQT76386) comes with the fastener kit 76386F, which includes 4 carriage bolts, 4 washers, 4 conical washers, 4 hex nuts, and 4 pull wires. The lower fascia screws are not included; 1 screw is returned to the vehicle owner.
No. After feeding the pull wires through the bracket slots and removing them, loosely install the conical washers and hex nuts to the hitch. Only after the hitch is properly positioned should you tighten all fasteners to 50 ft-lb (68 N·m).
The hitch uses 7/16-14x1.75 GR 5 carriage bolts. These fasteners must be tightened to 50 ft-lb (68 N·m). The conical washers are 7/16" and the hex nuts are 7/16"-14 GR2.
Professional installation is recommended if you do not feel comfortable performing the installation on your own or are in need of assistance. The average installation time for professional installers is 40 minutes.
The hitch comes with a Limited Lifetime Warranty covering material defects and workmanship, excluding ordinary wear and tear. The warranty is valid only if the product is installed, maintained, and used according to the manufacturer's instructions. To make a warranty claim, contact Horizon Global Americas Inc. at 1-800-632-3290 or 47912 Halyard Drive, Suite 100, Plymouth, MI 48170. Product replacement is the sole remedy under this warranty.
For technical assistance, contact Horizon Global Americas Inc. at 800-632-3290 or email TechnicalSupport@horizonglobal.com. You can also visit www.horizonglobal.com for additional information.
Check the hitch frequently to ensure all fasteners remain properly tightened. If fasteners have loosened, retighten all 7/16-14x1.75 GR 5 fasteners to 50 ft-lb (68 N·m) using a torque wrench. Periodically verify that the hitch is securely mounted to the vehicle.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. If water or fumes are entering after installation, verify that all holes have been properly sealed and that the fascia is correctly positioned.
A hitch or ball which has been damaged should be removed and replaced immediately. Do not continue to use a damaged hitch or ball, as this compromises safety and towing capability.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
