Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

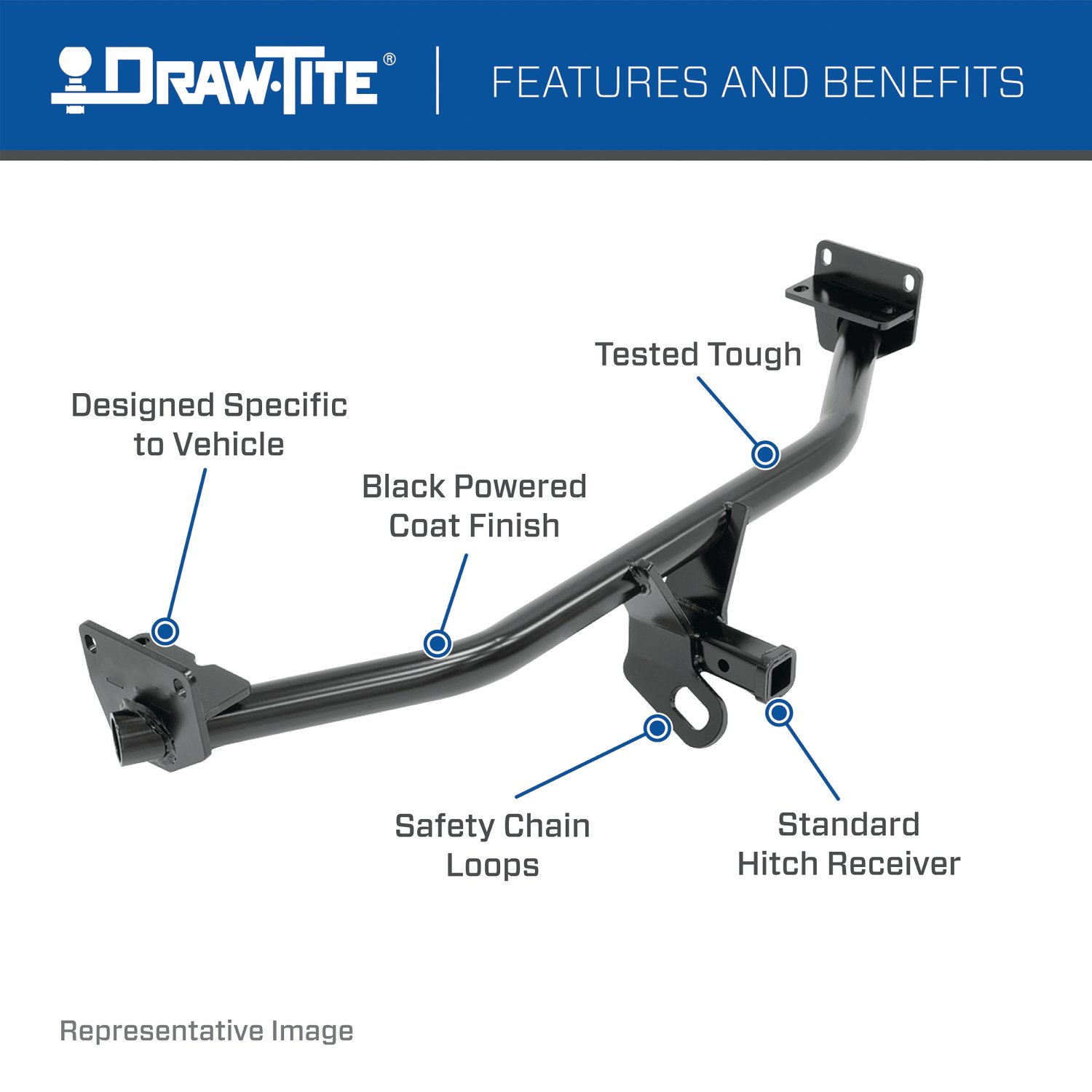

DRAW-TITE Class 2 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 2 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 300 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 2 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 36542 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 28 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 300 LBS. |

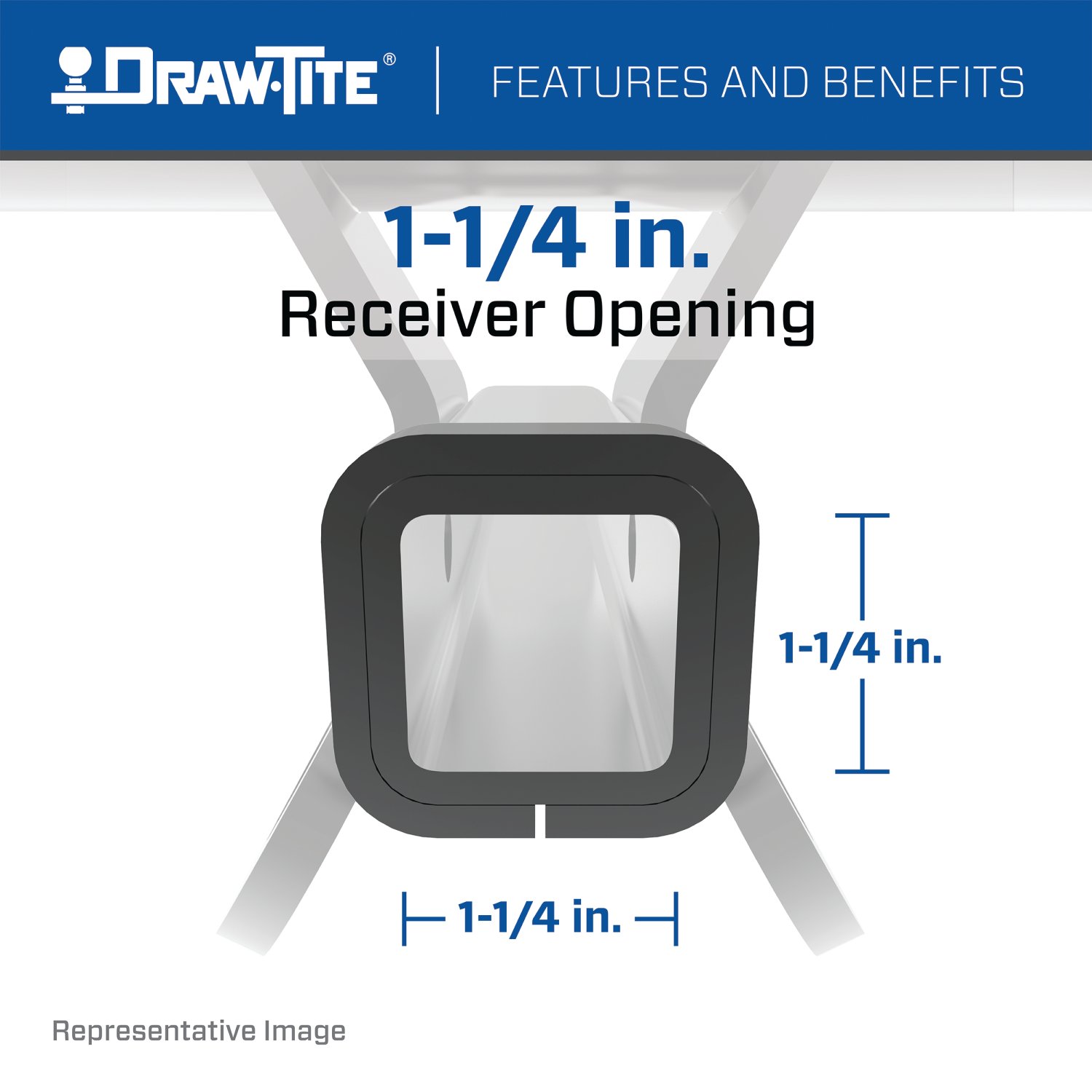

| RECEIVER SIZE: | 1.25 IN. |

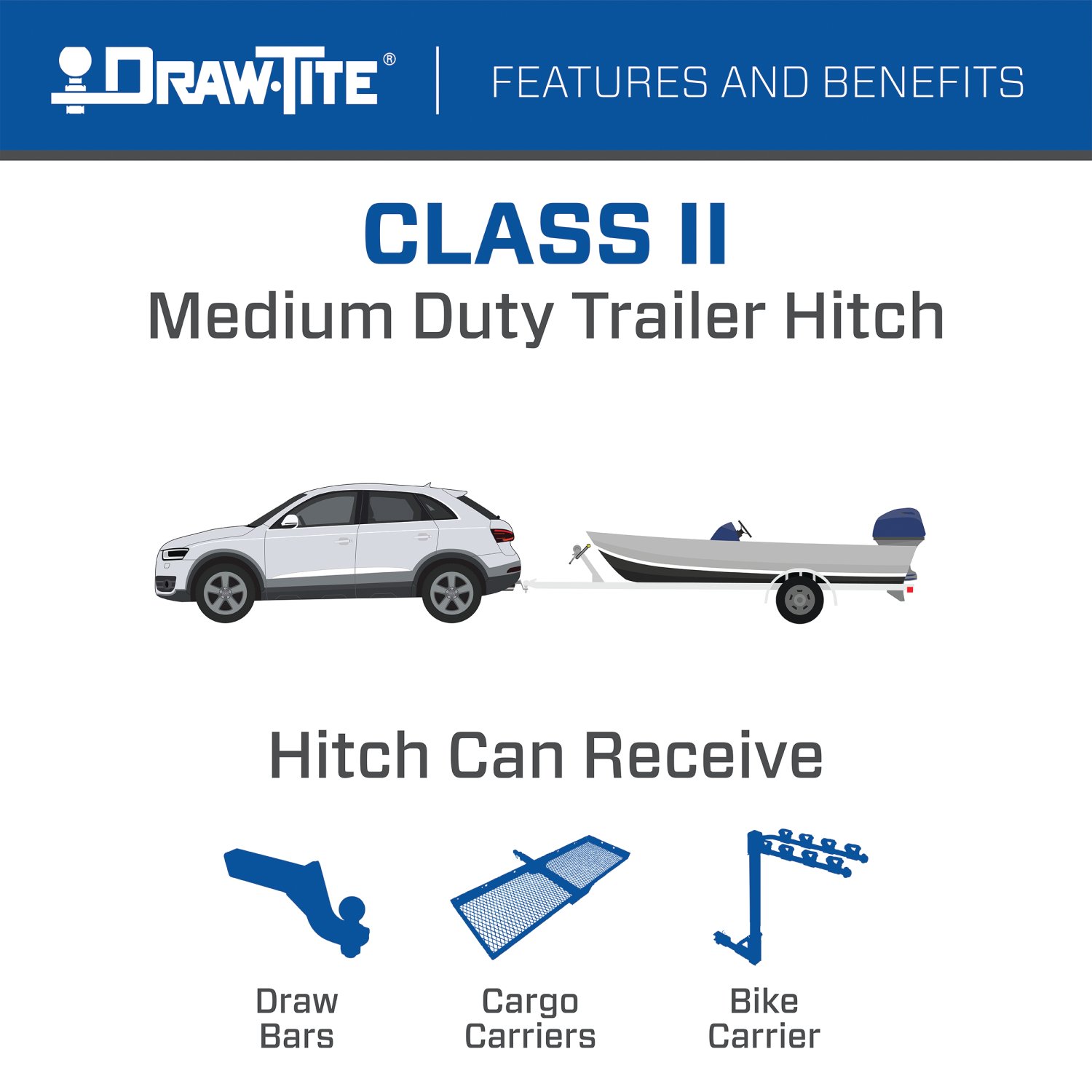

| HITCH CLASS: | II |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 - 2020 | Nissan Rogue | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes |
| 2014 - 2015 | Nissan Rogue Select | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes |
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Nissan Rogue, Nissan Rogue Select 36542 (Part #DT36542) fits the following vehicles: 2008-2020 Nissan Rogue; 2014-2015 Nissan Rogue Select. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Nissan Rogue, Nissan Rogue Select 36542 (Part #DT36542) is designed to fit the 2008-2020 Nissan Rogue.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Nissan Rogue, Nissan Rogue Select 36542 (Part #DT36542) fits 2008-2020 Nissan Rogue models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Nissan Rogue, Nissan Rogue Select 36542 (Part #DT36542) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
No. Part number 36542 is designed for Nissan Rogue and Nissan Rogue Select models, but explicitly excludes Krōm variants. If you have a Krōm model, you will need a different hitch.
Part number 36542 is designed for 2014 and 2015 Nissan Rogue and Nissan Rogue Select models (except Krōm).
The 36542 is a Class II Weight Carrying Ball Mount with a maximum gross trailer weight of 3500 lb (1590 kg) and maximum tongue weight of 300 lb (136 kg). However, you must not exceed the lower of the towing vehicle manufacturer's rating or these hitch specifications.
You will need wrenches in 18 mm and 19 mm sizes, and a torque wrench to tighten fasteners to 75 Lb.-Ft. (102 N·M). No drill bits are required.

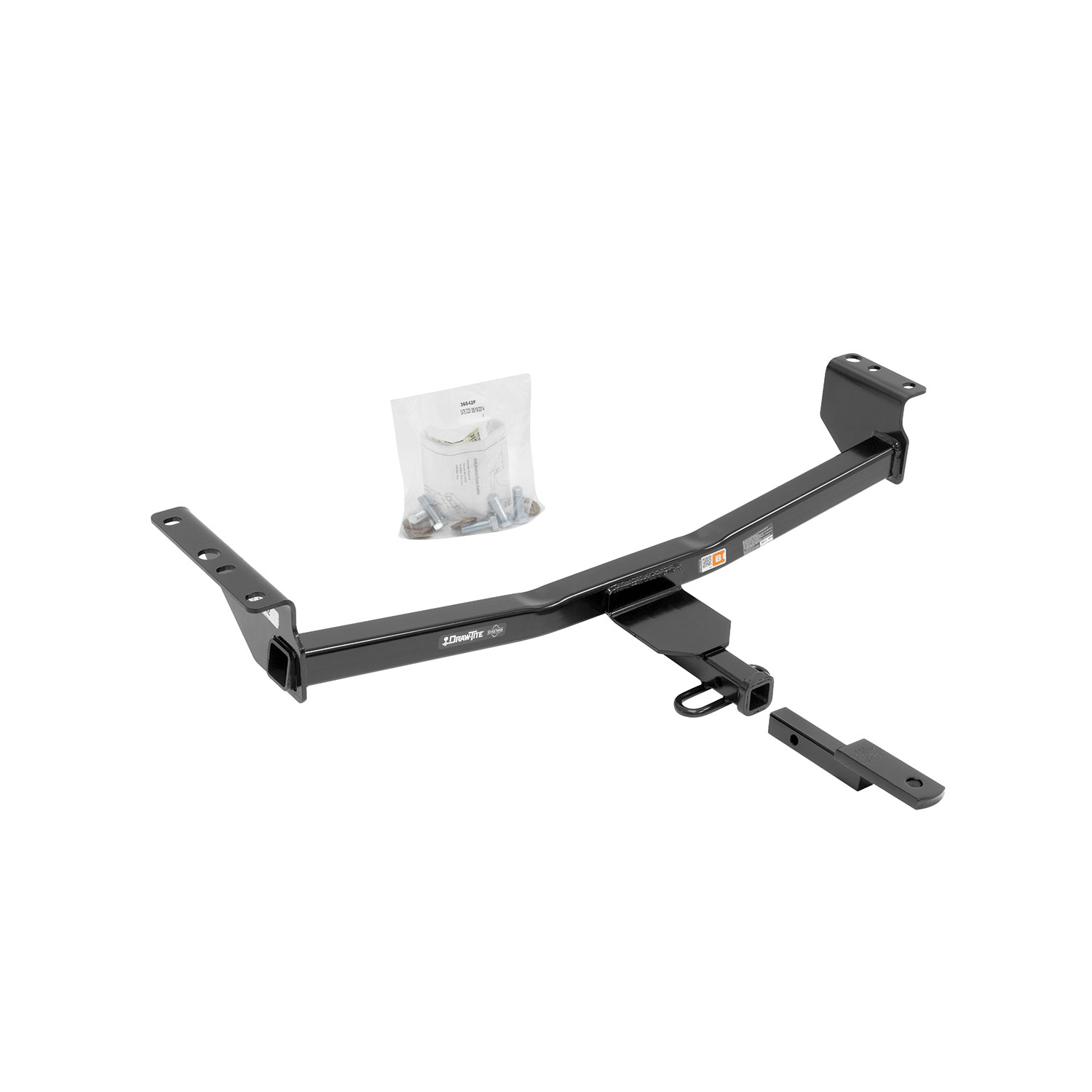

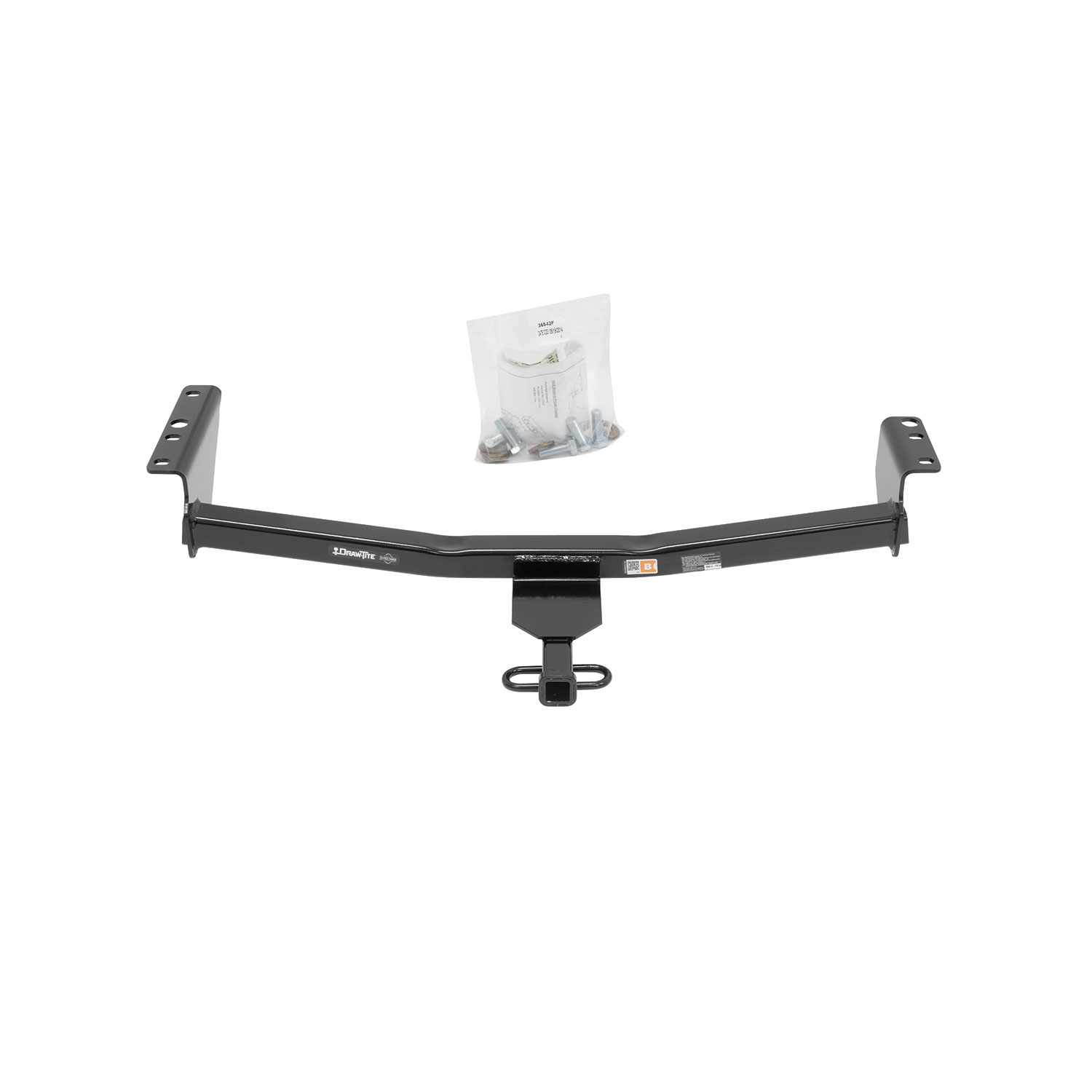

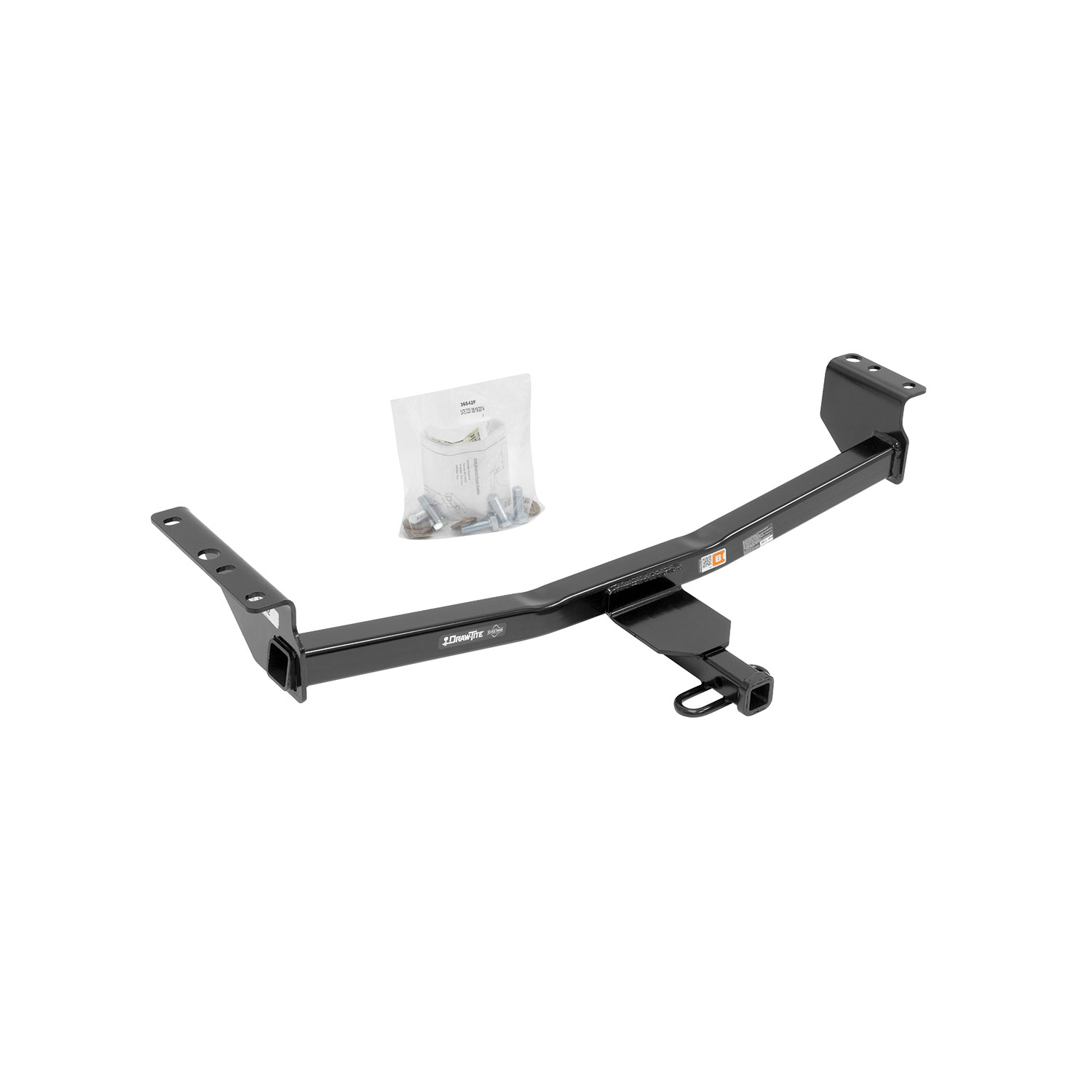

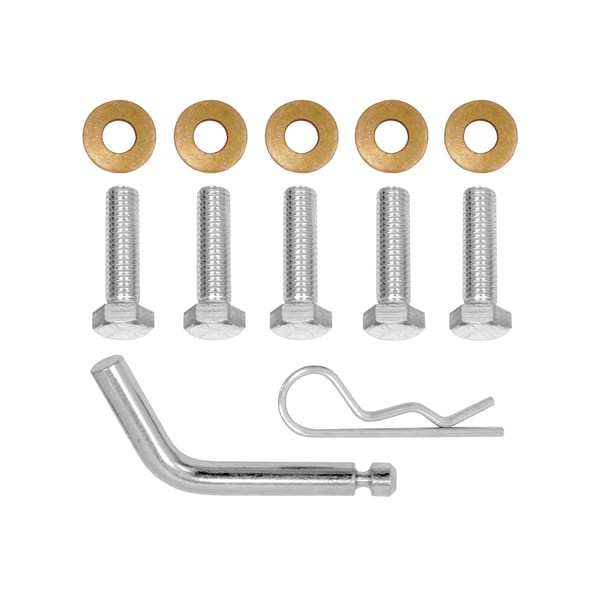

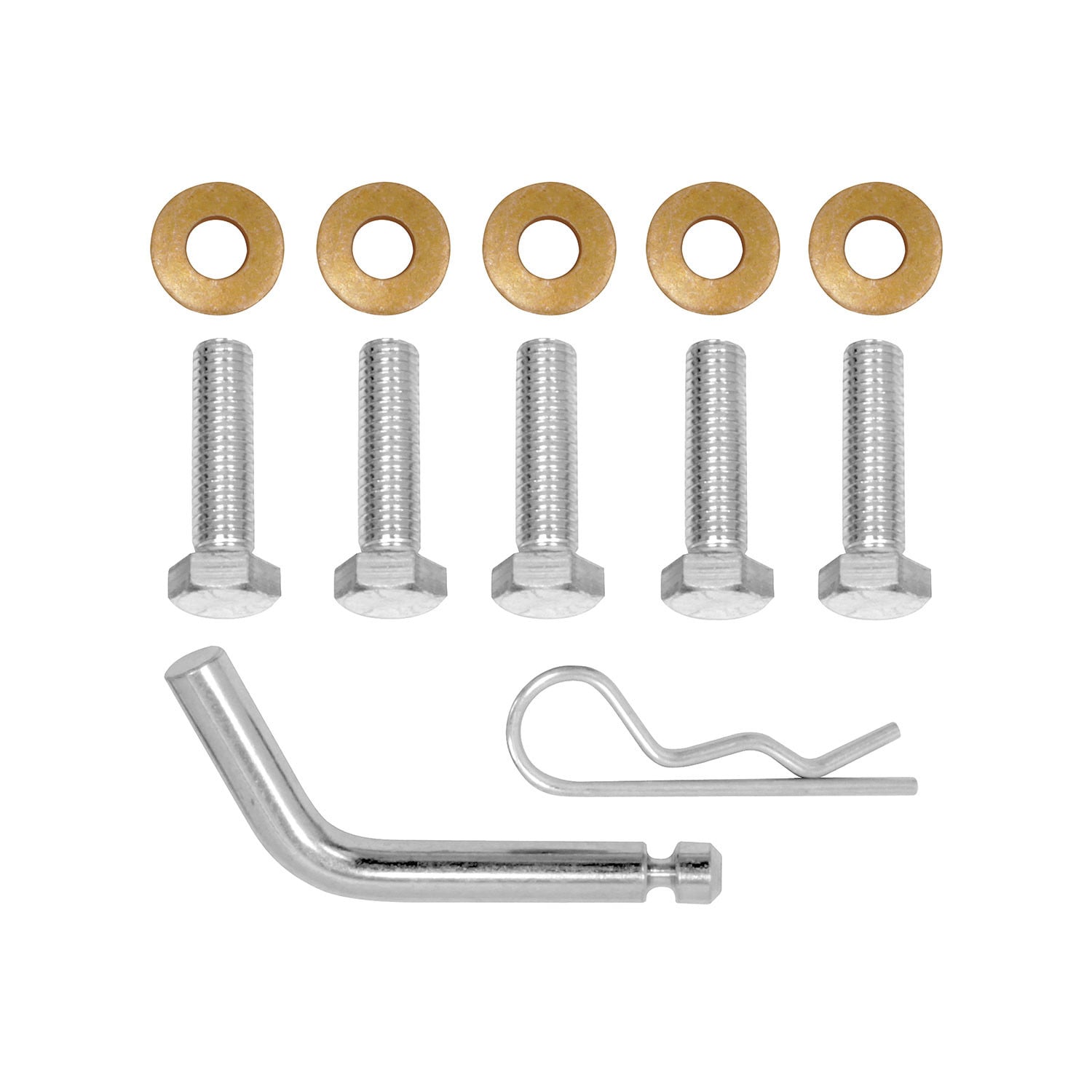

The hitch comes with 5 hex bolts (M12 x 1.25 x 35 mm CL8.8) and 5 conical washers (½"). These fasteners are included in the fastener kit 36542F. All fasteners must be tightened to 75 Lb.-Ft. (102 N·M).
Yes. Step 1 of the installation requires you to remove and return the factory tow hook and its fasteners to the vehicle owner.
Only if your vehicle has appearance panels covering the driver's and passenger's side frame rails. If present, remove these plastic appearance panels and return them along with their fasteners to the vehicle owner. If your vehicle does not have these panels, no removal is necessary.
1. Remove and return the factory tow hook and fasteners to the vehicle owner. 2. Raise the hitch into position on the driver's side and loosely install the center fastener, inserting the hex bolt and conical washer through the elongated hole in the hitch into the vehicle frame. 3. Raise the hitch into position on the passenger's side and loosely install the center fastener in the same manner. 4. Center the hitch on the vehicle and install the remaining hardware. 5. Tighten all M12 x 1.25 CL8.8 fasteners with a torque wrench to 75 Lb.-Ft. (102 N·M).
No. The manual lists "Drill Bits: None" under Equipment Required, indicating that no drilling is necessary for installation.
All M12 x 1.25 CL8.8 fasteners must be tightened with a torque wrench to 75 Lb.-Ft. (102 N·M).
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual emphasizes regular inspection to ensure the installation remains secure.

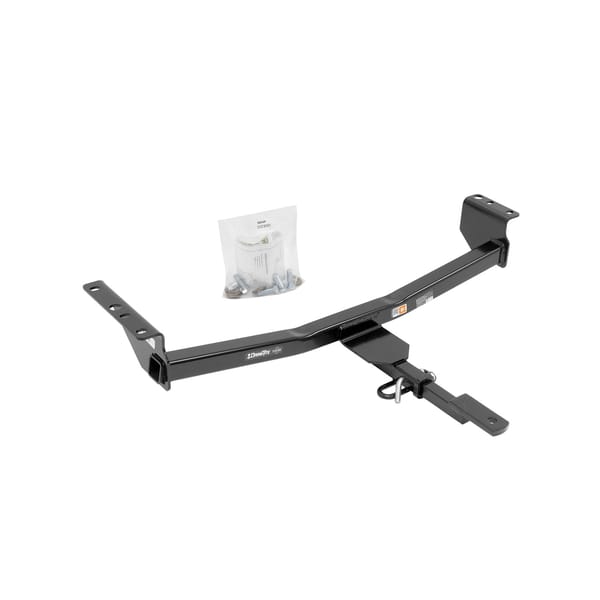

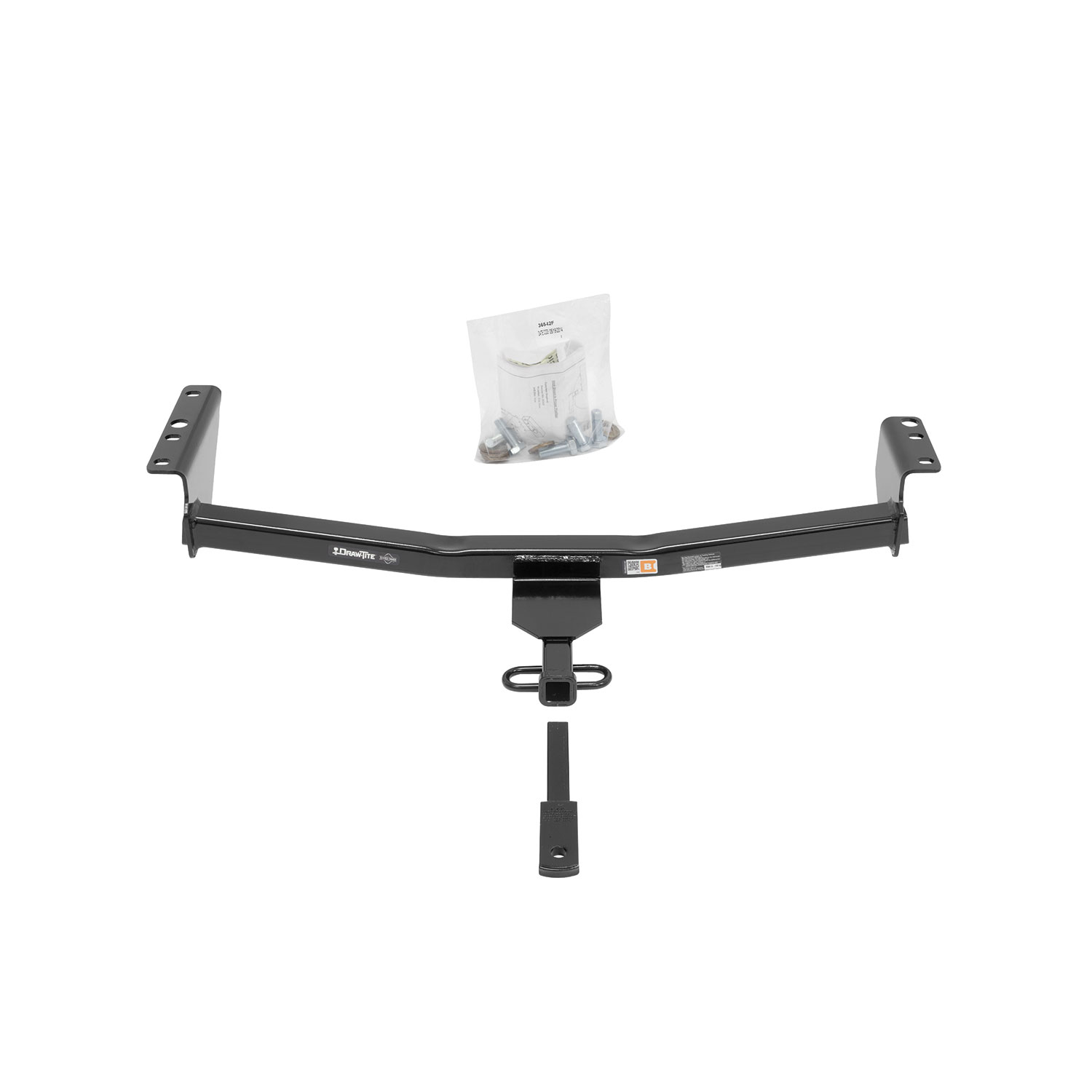

The manual references drawbar kit 36053 as a separate product sold separately. The relationship between the base hitch 36542 and the drawbar kit is not explicitly detailed in the manual.
Yes, the 36542 fits 2014–2015 Nissan Rogue and Rogue Select models, except Krōm variants.
You need 18 mm and 19 mm wrenches and a torque wrench. No drilling is required.
Tighten all M12 x 1.25 CL8.8 fasteners to 75 Lb.-Ft. (102 N·M) with a torque wrench.
Maximum gross trailer weight is 3500 lb (1590 kg) and maximum tongue weight is 300 lb (136 kg), but do not exceed your vehicle manufacturer's rating.
Yes, remove the factory tow hook and fasteners and return them to the vehicle owner.
No, no drilling is required.
