Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

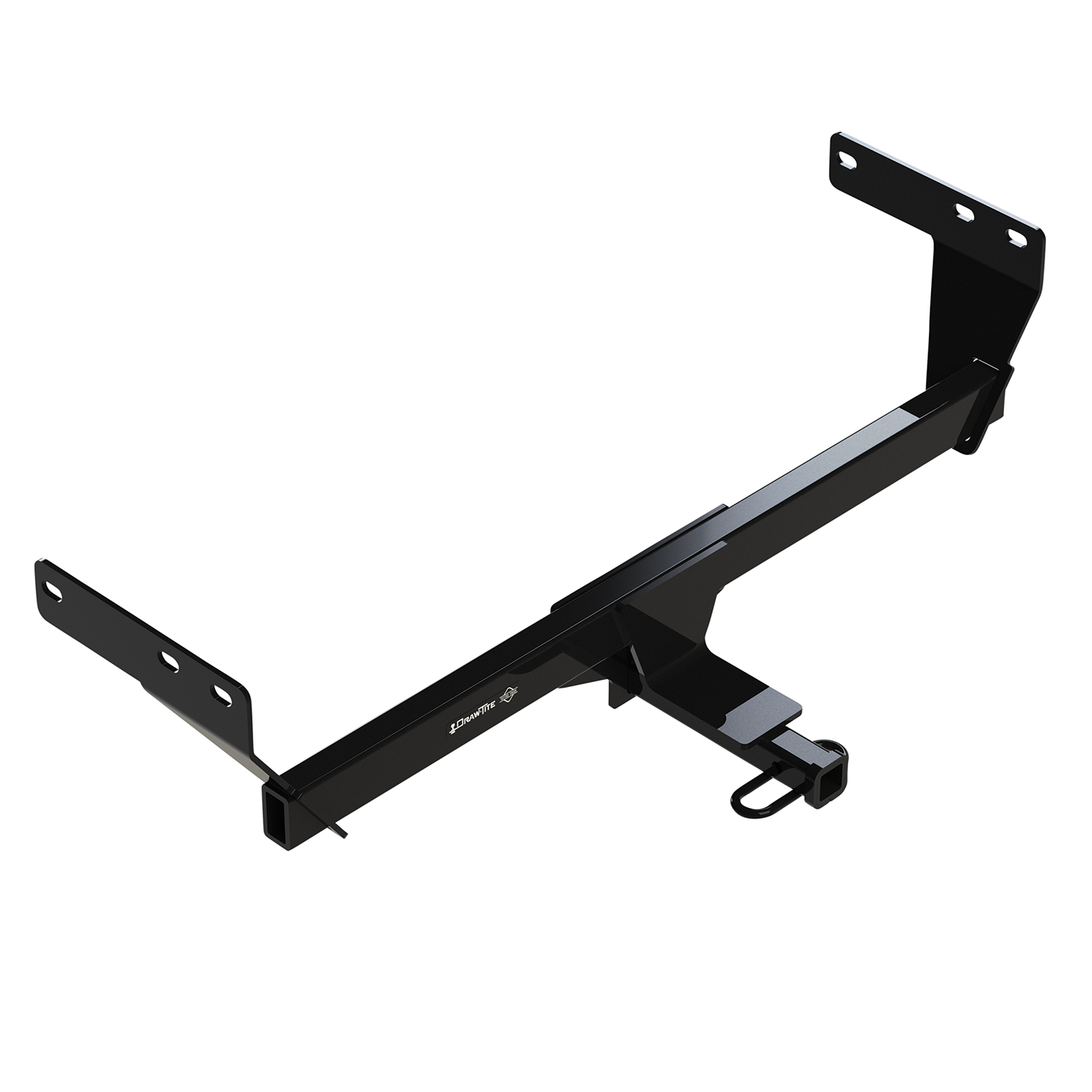

DRAW-TITE Class 2 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 2 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 350 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 2 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 37135 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 38 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 300 LBS. |

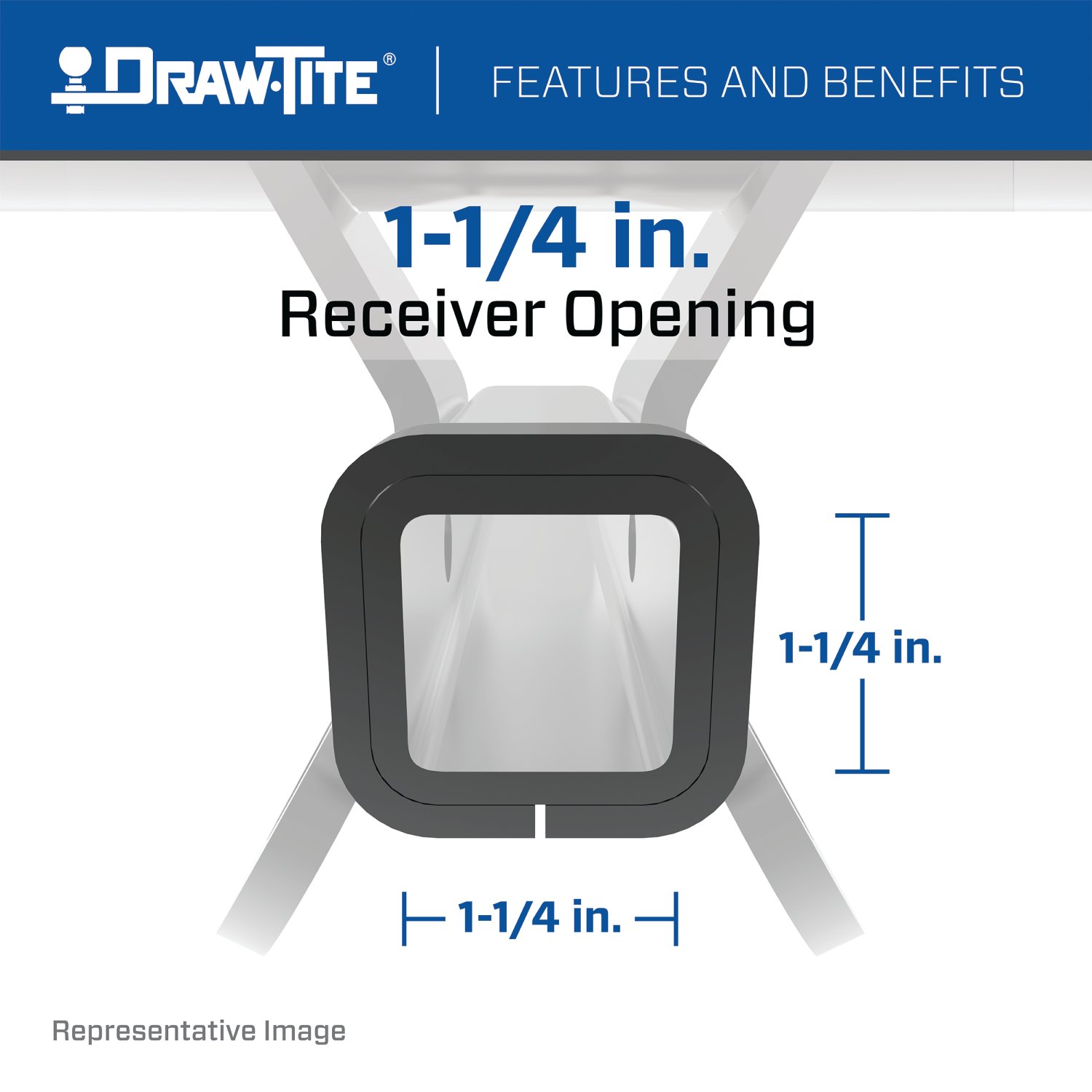

| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | II |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.

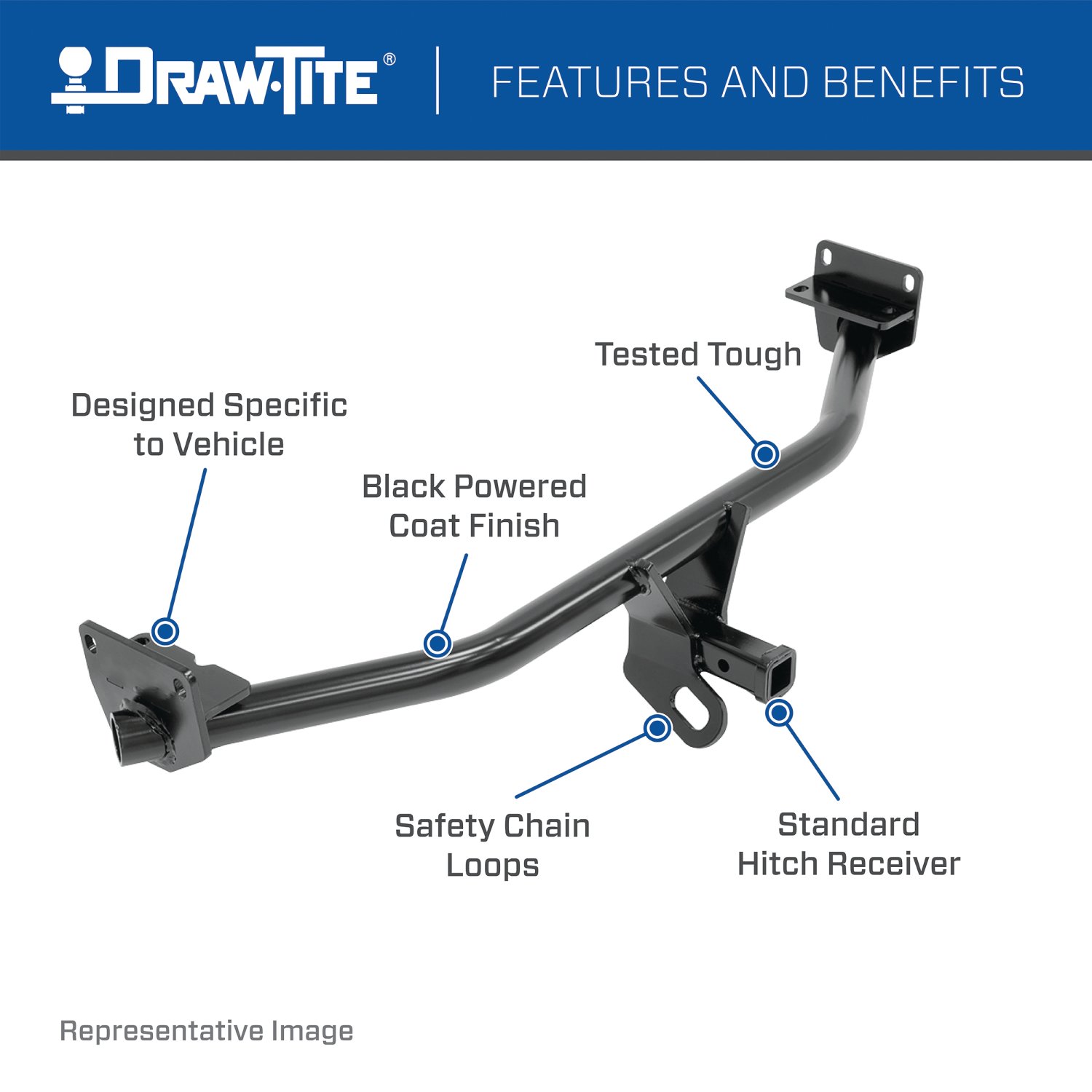

Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2024 | Nissan Rogue | Class 2 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Nissan Rogue 37135 (Part #DT37135) fits 2021-2024 Nissan Rogue models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Nissan Rogue 37135 (Part #DT37135) is designed to fit the 2021-2024 Nissan Rogue.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Nissan Rogue 37135 (Part #DT37135) fits the following vehicles: 2021-2024 Nissan Rogue. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Nissan Rogue 37135 (Part #DT37135) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 37135 is designed for 2021-Current Nissan Rogue models. However, visit www.horizonglobal.com for the most up-to-date information regarding specific application years and trim levels, as compatibility may vary.
No. The 37135 is a weight-carrying hitch only. Weight-distributing capability is listed as N/A in the manual specifications. This hitch is rated for a maximum gross trailer weight of 3500 lb. (1588 kg) and maximum tongue weight of 350 lb. (158 kg) in weight-carrying mode only.
The maximum gross trailer weight is 3500 lb. (1588 kg) and the maximum tongue weight is 350 lb. (158 kg). However, you must not exceed the lower of your towing vehicle manufacturer's rating or these limits.
You will need: a ratchet, a torque wrench, safety glasses, 19 mm sockets, and an M12x1.25 tap to clean the access holes. The manual recommends professional installation if you are not comfortable performing the work yourself.
The fastener kit 37135F includes (6) M12 x 1.25 x 35 CL8.8 bolts and (6) 1/2" conical washers. These are the only fasteners required for installation.
No drilling is required. The hitch uses existing weldnuts on the vehicle. You only need to clean the access holes using an M12x1.25 tap to remove paint and debris from both sides of the weldnuts before installation.
1. Clean the access holes using an M12x1.25 tap to remove paint and debris from the weldnuts on both sides. 2. Raise the hitch into position and align it with the mounting holes. Loosely install (6) M12 bolts and (6) 1/2" conical washers with the conical washer teeth side against the hitch. 3. Tighten all M12 fasteners with a torque wrench to 76 Ft.-Lb. (103 N·M). Always wear safety glasses during installation.
All M12 fasteners must be tightened to 76 Ft.-Lb. (103 N·M) using a torque wrench. Proper torque is essential to keep the hitch securely mounted to the vehicle when towing.
The manual instructs you to loosely install all (6) M12 bolts and (6) conical washers first, then tighten all M12 fasteners together with a torque wrench to 76 Ft.-Lb. (103 N·M). The manual does not specify a particular tightening sequence.
The conical washer teeth side must face against the hitch. This is shown in Figure 1 and is critical for proper fastening.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath the vehicle. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced immediately.
Check that all fasteners and the ball are properly tightened. The manual recommends checking the hitch frequently to ensure all fasteners and the ball remain securely tightened, especially before towing.
The manual states you should check all fasteners periodically to ensure the hitch is securely mounted to your vehicle. It specifically notes to check the hitch frequently, making sure all fasteners and the ball are properly tightened.
Load the trailer heavier in front. Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. Do not exceed the lower of your towing vehicle manufacturer's rating or the hitch limits (3500 lb. max gross trailer weight, 350 lb. max tongue weight). If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
No. The manual explicitly states: DO NOT cut, weld or modify this receiver. Any modification will void the product's integrity and safety.
The average installation time is 30 minutes for professional installers. If you do not feel comfortable performing the installation on your own or are in need of assistance, the manual recommends contacting a professional installer.
The product includes a Limited Lifetime Warranty covering material defects in materials and workmanship, excluding ordinary wear and tear. The warranty is valid only if the product is installed, maintained, and used in accordance with the manufacturer's instructions. For warranty claims, contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, 1-800-632-3290. You must provide the product and purchase receipt to process a claim. Product replacement is the sole remedy; the manufacturer is not liable for service or labor charges.
A hitch or ball which has been damaged should be removed and replaced immediately. Do not attempt to repair a damaged hitch or ball.
If the hitch is removed, you must plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Yes, the 37135 is designed for 2021-Current Nissan Rogue models. Check www.horizonglobal.com for the most current trim level compatibility.
Maximum gross trailer weight is 3500 lb. (1588 kg) and maximum tongue weight is 350 lb. (158 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
You need a ratchet, torque wrench, safety glasses, 19 mm sockets, and an M12x1.25 tap. Professional installation is recommended if you are not comfortable doing it yourself.
No. The hitch uses existing weldnuts on the vehicle. You only need to clean the access holes with an M12x1.25 tap to remove paint and debris.
All M12 fasteners must be tightened to 76 Ft.-Lb. (103 N·M) using a torque wrench.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath the vehicle.
No. Do not cut, weld, or modify this receiver. Modifications will compromise safety and void the warranty.
